Troy-Bilt 12097 2HP W/Edger Attachment (S/N 120970100101-Up) Mini Tiller

Model: 511844

Save Part Not Listed?
product name

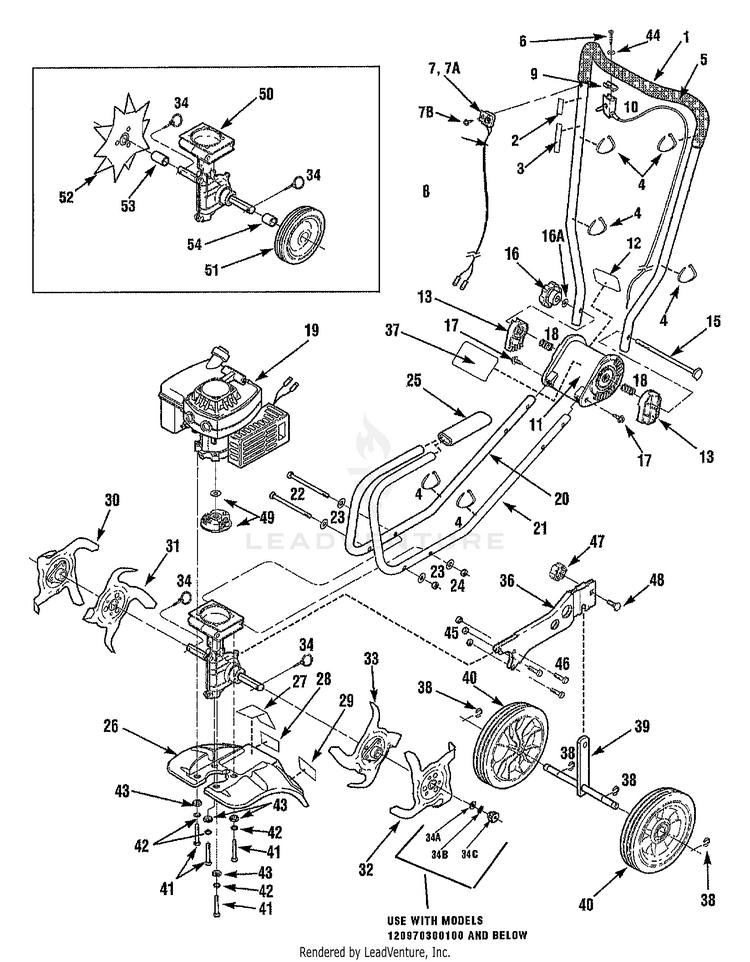

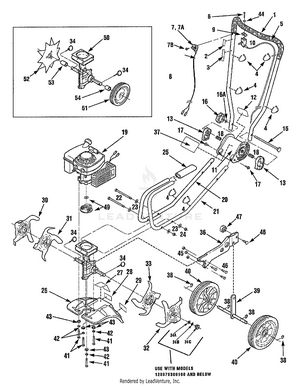

MAIN ASSEMBLY

...
...
1
ASSM-H/BAR W/DECALS/GRIP (INC. #2,3,5) MTD-1903775
...
2
DECAL-OFF/ON MTD-1909936
...
3
DECAL-STABILIZE/ST MTD-1909939
...
4
7" CABLE TIE MTD-725-0157
...
5
SLEEVE-UPP MTD-1904320
...
6
SCR-PH M10 MTD-1750608
...
7
IGN. SWITCH 96 MTD-1983718
...
7A
SWITCH BRACKET AS/850 MTD-1981012001
...
7B
SCR-PH M12 MTD-1766503
...
8
HARNESS-WIRE ASSM MTD-1909812
...
9
SPACER-THROTTLE CO MTD-1909775
...
10
THROTTLE CABLE MTD-1909794
...
11
BRACKET-PIVOT H/BAR MTD-1909701
...
12
DECAL-CONTROL LEVE MTD-1909935
...
13
QUADRANT-HANDLEBAR MTD-1909702
...
?14
REF. NUMBER NOT USED MTD-NA
...
15
SCREW-CURV HD 5/16-1 MTD-1909722
...
16
ADJUSTING KNOB MTD-1909250
...
16A
FLAT WASHER MTD-736-0275
...
17
SCR-SELF TAP 1/4-14X.75 MTD-1904193
...
18
SPRING-H/BAR ASSM MTD-1909766
...
19
ENGINE, 2HP TECUMSEH CONTACT YOUR AUTHORIZED ENGINE DEALER MTD-NA
...
20
H/BAR-LOWE MTD-1909670001
...
21
H/BAR-LWR LT PNT MTD-1909669001
...
22
SCREW 1/4- MTD-1983663
...
23
Flat Washer .271 ID x .630 OD MTD-736-3020
...
24
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324
...
25
GRIP-LOWER H/BAR MTD-1909720
...
26
HOOD-W/DEC MTD-1904203
...
27
DECAL-CAUTION ANSI MTD-1904552
...
28
DECAL-WARNING ANSI MTD-1904553
...
29
REF. NUMBER NOT USED MTD-NA
...
30
BOLO TINE RIGHT OUTER MTD-1909540
...
31
ASSEMBLY-BOLO RT INNER MTD-1909539
...
32
ASSEMBLY-BOLO LT OUTER MTD-1909712
...
33
ASSEMBLY-BOLO LT INNER MTD-1909711
...
34
Pin-Lynch MTD-753-04070
...
34A
Washer, Flat, .411 x 1.25 x .100 MTD-736-0133
...
34B
External L-Washer 5/16 MTD-736-0607
...
34C
KNOB 5/16-18 INSERT MTD-1909835
...
?35
REF. NUMBER NOT USED MTD-NA
...
36
ASSY-WHEEL BRKT SM/TILLER MTD-1909680
...
37
DECAL-LOGO MTD-1909943
...
38
Clip Ring MTD-GW-9532
...
39
AXLE MTD-1909517001
...
40
WHEEL MTD-1909853
...
41
SCR-HH 1/4 MTD-1100807
...
42
Lock Washer MTD-936-0329
...
43
SPACER-ENG MTD-1909838
...
44
BLADE - 21-1/2" x 1/2" MTD-690-120-0058
...
45
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324
...
46
SCR-HH 1/4-20X1.0 MTD-1100069
...
47
KNOB 5/16-18 INSERT MTD-1909835
...
48
SCR-CAR 5/16-18X.75 G5 MTD-90077
...
49
CLUTCH ROTOR ASSEMBLY MTD-1909487P
...
50
GEARBOX ASSEMBLY MTD-986-04000
...
34
Washer, Flat, .411 x 1.25 x .100 MTD-736-0133
...
34A
External L-Washer 5/16 MTD-736-0607
...
?35
KNOB 5/16-18 INSERT MTD-1909835
...
51
ASSEMBLY-TIRE/WHEEL MTD-1903777
...
52
ASSM-TINE BORDER EDGER MTD-1903781
...
53
SPACER-TINE 1.0X.8X1.31LG MTD-1983648
...
54
SPACER-1.0 x .08 X MTD-1903778
...
xx
POWER LAWN RAKE ATTACHMENT MTD-12575
...
xx
HINGE-CATC MTD-12574

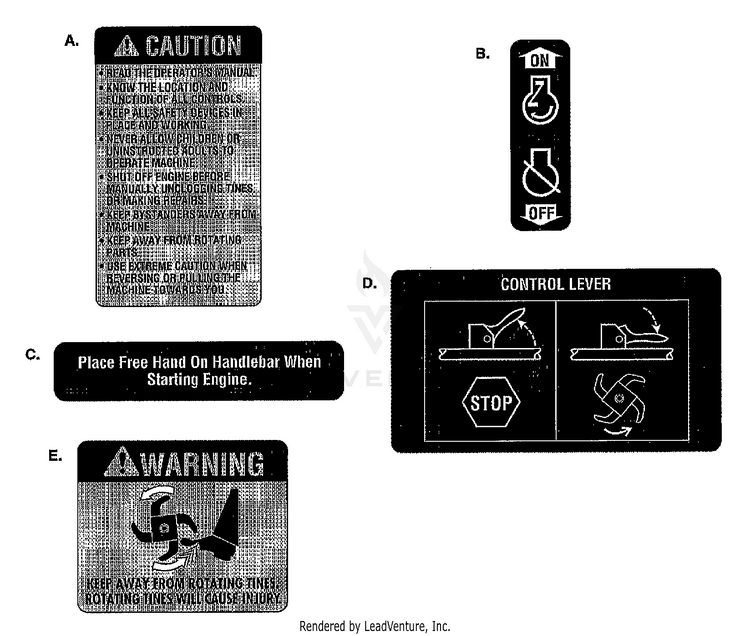

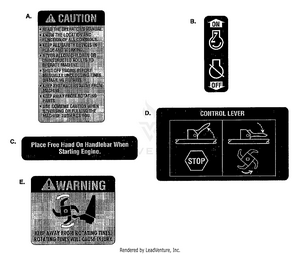

OPERATING AND SAFETY DECALS

...
...
A
DECAL-CAUTION ANSI MTD-1904552
...
B
DECAL-OFF/ON MTD-1909936
...
C
DECAL-STABILIZE/ST MTD-1909939
...
D
DECAL-CONTROL LEVE MTD-1909935
...
E
DECAL-WARNING ANSI MTD-1904553

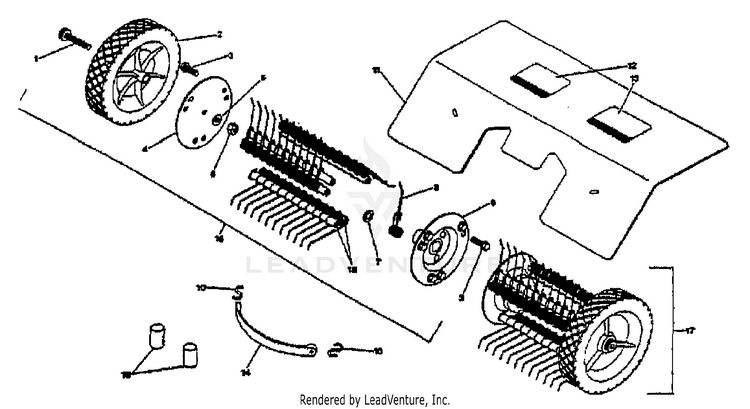

POWER RAKE/LAWN AERATOR ATTACHMENTS

...
...
1
BOLT-SC HD 1/2X1 1/2 MTD-H213909
...
2
ASSM-WHEEL & TIRE MTD-H213911
...
3
SCR-WHIZ 5/16-18X3/4 LK MTD-H213910
...
4
END CAP-OUTER MTD-H213907
...
5
L-Wash. 3/8" I.D." MTD-736-0169
...
6
HEX NUT 3/8-16 GR5 MTD-712-3017
...
7
WASHER-FL 1/2 ID-7/8 OD MTD-H200830
...
8
KIT-SPRING TINE (12 SPRING) MTD-H214174
...
8
KIT-SPRING TINE (36 SPRING) MTD-H214175
...
9
END CAP-INNER MTD-H213908
...
10
S-HOOK (DEBRIS SHIELD) MTD-H214186
...
11
ASSM-HOOD W/DECALS MTD-1915062
...
12
DECAL-CAUTION MTD-1983094
...
13
DECAL-WARNING MTD-1983095
...
14
STRAP-DEBRIS SHIELD MTD-H214187
...
15
BAR-SPRING TINE RETAIN MTD-H213904
...
16
ASSM-DETHATCHER RT MTD-H213912
...
17
ASSM-DETHATCHER LT MTD-H213913
...
18
SPACER-TINE 1.0X.8X1.31LG MTD-1983648
...
xx
SCREW-SET MTD-1909503

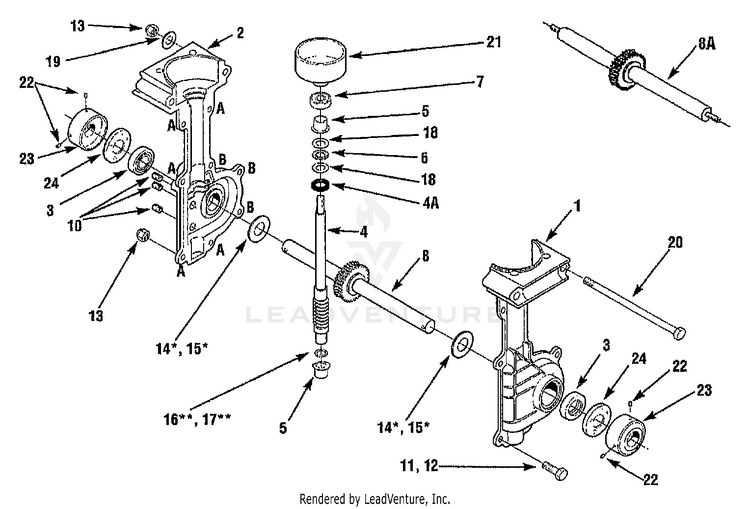

TRANSMISSION

...
...
1
TRANSMISSION CASE ASSEMBLY LEFT MTD-1915039
...
2
TRANSMISSION CASE ASSEMBLY (RH) MTD-1915040
...
3
Oil Seal, .750 x 125 MTD-921-04044
...
4
SHAFT ASSEMBLY-WORM & I MTD-1918307
...
4A
OIL SEAL INPUT MTD-1909923
...
5
BEARING-INPUT MTD-1983731
...
6
THRUST BEARING MTD-741-04052
...
7
BEARING BALL MTD-1983637
...
?8
OUTPUT SHAFT ASSEMBLY INCLUDES PRESSED-ON WORM GEAR AND TWO RING LOCK PINS MTD-1904416
...
8A
ASSM-OUTPUT SHAFT INCLUDES PRESSED-ON WORM GEAR AND TWO RING LOCK PINS MTD-1909482
...
?9
REF. NUMBER NOT USED. MTD-NA
...
10
PIPE PLUG 1/8-27 HEX SOC MTD-737-04178
...
11
Hex Screw, 1/4-20 x 7/8 FIVE LOCATIONS IDENTIFIED AS "A" ON TRANSMISSION CASE MTD-710-0206
...
12
SCR-HH 1/4-20X1.0 FIVE LOCATIONS IDENTIFIED AS "B" ON TRANSMISSION CASE MTD-1100069
...
13
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324
...
14
THRUST WASHER MTD-1983635
...
15
THRUST WASHER MTD-1983635
...
16
WASHER-THRUST .505X.02 AS REQ'D MTD-1983641
...
17
THRUST WASHER MTD-936-0616
...
18
THRUST WASHER MTD-1983638
...
19
Flat Washer .271 ID x .630 OD MTD-736-3020
...
20
SCREW 1/4- MTD-1983663
...
21
ASSM-CLUTCH & DRUM MTD-1909486
...
22
SCR-SET 1/4-28X.38 HXSKT MTD-1747166
...
23
CAP-DUST MTD-1915055
...
24
WASHER-FELT 1.5X.72X.13 MTD-1983713
