Troy-Bilt 12001 1.5HP Roto-Tiller (S/N 120010100101-120010299999) Speedy Hoe/MINI Tiller

Model: 512036

Save Part Not Listed?
product name

Popular Parts

Popular Parts

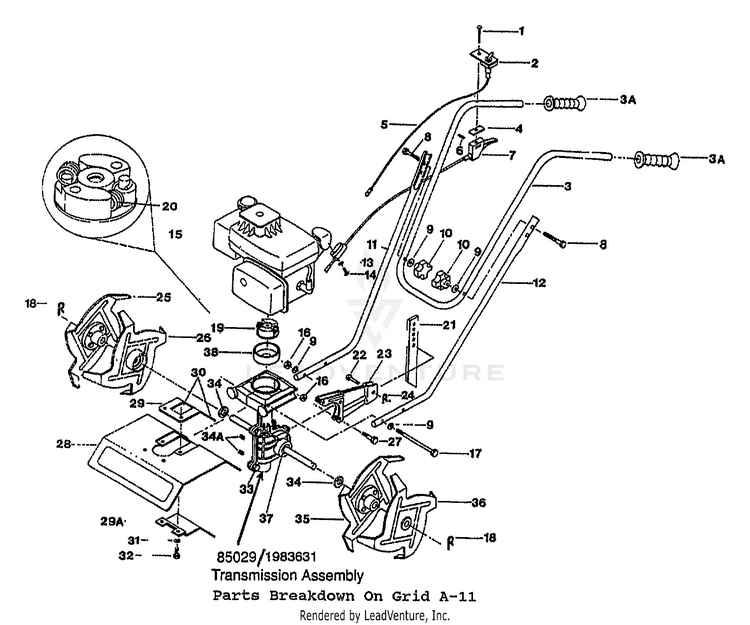

MAIN ASSEMBLY

...
...
1
SCR-PH M10 ITEMS USUALLY AVAILABLE FROM A QUALITY HARDWARE STORE AS WELL AS FROM THE FACTORY. MTD-1983716
...
2
IGN. SWITCH 96 MTD-1983718
...
2
SWITCH BRACKET AS/850 MTD-1981012001
...
3
UPPER HANDLE ASSEMBLY MTD-1981046
...
3A
GRIP 97 MTD-1983728
...
4
PAD-ISOLAT MTD-1983649
...
5
HARNESS-WI MTD-1766998
...
6
FLAT WELD NUT MTD-712-0127
...
7
CABLE-THROTTLE MINITILLER MTD-1984508
...
8
SCREW 5/16-18 x 2.0 MTD-710-1174
...
9
FLAT WASHER MTD-736-0275
...
10
KNOB MTD-1983729
...
11
H/BAR-LOWE MTD-1984509001
...
12
HANDLE LOWER LEFT MTD-1984510001
...
13
WASHER-.44X.187X.05 ITEMS USUALLY AVAILABLE FROM A QUALITY HARDWARE STORE AS WELL AS FROM THE FACTORY. MTD-1187293
...
14
SCR-HH M8- ITEMS USUALLY AVAILABLE FROM A QUALITY HARDWARE STORE AS WELL AS FROM THE FACTORY. MTD-1983661
...
15
ENGINE, TECUMSEH TC-200-2106 AVAILABLE THROUGH LOCAL TECUMSEH SERVICE DEALERS. MTD-NA
...
16
Hex Ins. L-Nut 1/4-20 Thd. ITEMS USUALLY AVAILABLE FROM A QUALITY HARDWARE STORE AS WELL AS FROM THE FACTORY. MTD-712-0324
...
17
SCREW 1/4- ITEMS USUALLY AVAILABLE FROM A QUALITY HARDWARE STORE AS WELL AS FROM THE FACTORY. MTD-1983663
...
18
PIN-HITCH .149DIA MTD-1185590
...
19
KIT-ROTOR ASSM MTD-1984515
...
20
KIT-ROTOR ASSM MTD-1984513
...
21
DRAG STAKE MTD-1981014001
...
22
CLEVIS PIN MTD-1983723
...
23
DRAG STAKE MTD-1981010001
...
24
Click Pin MTD-714-0145
...
25
TINE ASSEMBLY (RH) OUTER MTD-1984430
...
26
ASSM-TINE INNER RH MTD-1984429
...
27
SCR 1/4-20X1.125 (DRAG STAKE TRANSMISSION) ITEMS USUALLY AVAILABLE FROM A QUALITY HARDWARE STORE AS WELL AS FROM THE FACTORY. MTD-90031
...
28
HOOD W/DECAL 85056 SPEEDYHOE MTD-1985791
...
29
PLATE REAR MTD-1981022010
...
29A
SHIELD-ROCK PNT MTD-1981018010
...
30
SCR M10-32 MTD-1983662
...
31
Lock Washer MTD-936-0329
...
32
SCR-HH 1/4 MTD-1100807
...
33
Hex Screw, 1/4-20 x 7/8 MTD-710-0206
...
34
WASHER-FELT 1.5X.72X.13 MTD-1983713
...
34A
SCREW-HXSK MTD-1983052
...
35
ASSM-TINE INNER LH MTD-1984427
...
36
ASSM-TINE OUTER LH MTD-1984428
...
37
KIT-DUST CAP MTD-1904183
...
37
SCREW-HXSK MTD-1983052
...
38
CLUTCH-DRUM & HUB MTD-1984514
...
xx
KIT-ROTOR ASSM MTD-1984515
...
xx
DECAL-LAZYBOY PT/13001/00 MTD-1983224
...
xx
DECAL-CAUTION MTD-1983094
...
xx
DECAL-WARNING MTD-1983095
...
xx
DECAL-THROTTLE HHT MTD-1983096
...
xx
DECAL-ENGINE ON/OF MTD-1983097
...
xx
SPACER-TINE 1.0X.8X1.31LG (INSTALL WHEN OUTER TINES ARE OFF FOR CULTIVATING) MTD-1983648
...
xx
CUP-MEASUR MTD-1983647
...
xx
KIT-TINE REPLACE 85059 (INCL. 25,26,35,36, TWO 18, TWO 34) MTD-1982393
...
xx
ASSM-TRANS 85029 (PARTS BREAKDOWN ON GRID A- 11) MTD-1983631
...
xx
7" CABLE TIE MTD-725-0157
...
xx
TINE SPACE MTD-1981053

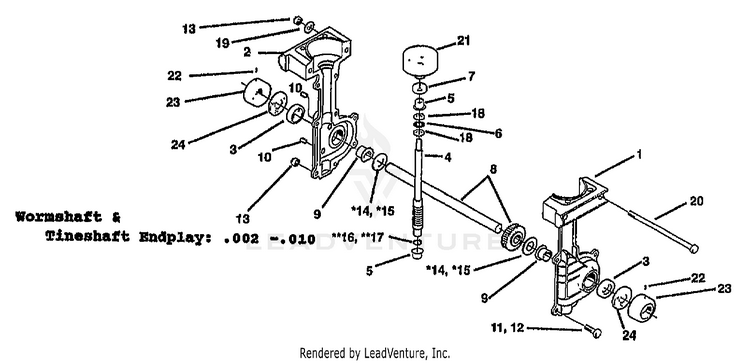

TRANSMISSION

...
...
xx
ASSM-TRANS 85029 MTD-1983631
...
1
CASING-TRANS LEFT MTD-1983628
...
2
TRANS-CASE RH PT/85024/00 MTD-1983629
...
3
Oil Seal, .750 x 125 MTD-921-04044
...
4
SHAFT ASSEMBLY-WORM & I MTD-1918307
...
5
BEARING-INPUT MTD-1983731
...
6
THRUST BEARING MTD-741-04052
...
7
BEARING BALL MTD-1983637
...
8
SHAFT ASSEMBLY AS/8503 MTD-1981052
...
9
BUSHING-1.25X.755X.73 MTD-1915034
...
10
PIPE PLUG 1/8-27 HEX SOC MTD-737-04178
...
11
Hex Screw, 1/4-20 x 7/8 MTD-710-0206
...
12
SCREW 1/4- MTD-1983658
...
13
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324
...
14
THRUST WASHER USE AS REQUIRED TO SET ENDPLAY: (.002 - .010) & CENTER WORM GEAR IN THE TRANSMISSION CASE. MTD-1983635
...
15
THRUST WASHER USE AS REQUIRED TO SET ENDPLAY: (.002 - .010) & CENTER WORM GEAR IN THE TRANSMISSION CASE. MTD-1983635
...
16
WASHER-THRUST .505X.02 (.020") USE AS REQUIRED, SET ENDPLAY: (.002 -.010) WORMSHAFT & TIMESHAFT ENDPLAY: .002 - .010 MTD-1983641
...
17
THRUST WASHER USE AS REQUIRED, SET ENDPLAY: (.002 -.010) WORMSHAFT & TIMESHAFT ENDPLAY: .002 - .010 MTD-936-0616
...
18
THRUST WASHER MTD-1983638
...
19
Washer ITEMS ARE NOT PART OF THE 19883631 TRANSMISSION ASSEMBLY. THEY MUST BE ORDERED SEPARATELY IF REQUIRED. MTD-736-0159
...
20
SCREW 1/4- ITEMS ARE NOT PART OF THE 19883631 TRANSMISSION ASSEMBLY. THEY MUST BE ORDERED SEPARATELY IF REQUIRED. MTD-1983663
...
21
CLUTCH-DRUM & HUB ITEMS ARE NOT PART OF THE 19883631 TRANSMISSION ASSEMBLY. THEY MUST BE ORDERED SEPARATELY IF REQUIRED. MTD-1984514
...
22
SCREW-HXSK ITEMS ARE NOT PART OF THE 19883631 TRANSMISSION ASSEMBLY. THEY MUST BE ORDERED SEPARATELY IF REQUIRED. MTD-1983052
...
23
KIT-DUST CAP ITEMS ARE NOT PART OF THE 19883631 TRANSMISSION ASSEMBLY. THEY MUST BE ORDERED SEPARATELY IF REQUIRED. MTD-1904183
...
24
WASHER-FELT 1.5X.72X.13 ITEMS ARE NOT PART OF THE 19883631 TRANSMISSION ASSEMBLY. THEY MUST BE ORDERED SEPARATELY IF REQUIRED. MTD-1983713
