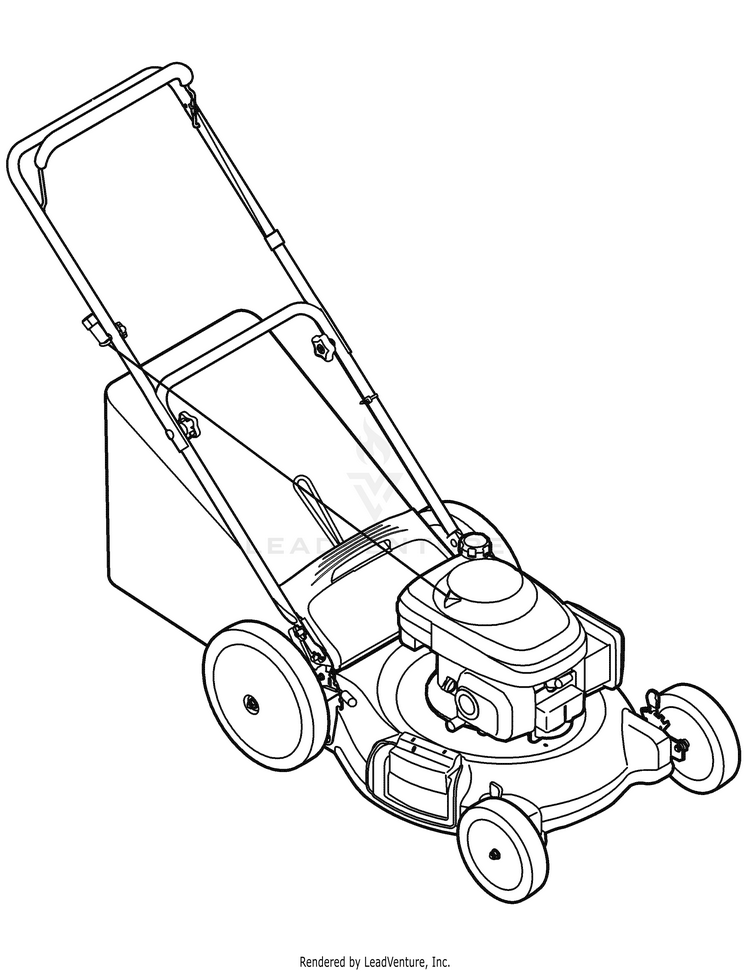

Troy-Bilt 11A-542Q711 (2008) Push Mower

Model: 11A-542Q711 (2008)

Save
Part Not Listed?Part Not Listed?

product name

.Quick Reference

...
...
xx
SPLG:1ST FIRE:RP CHAMP:N11/12 MTD-FF-22

...
xx
Pre-Filter MTD-NA

...
xx

...
xx

...
xx
Drive Belt MTD-NA

...
xx
Control Cable 40" (brake) MTD-946-1130

...
xx
Drive Cable MTD-NA

...

...
xx
Blade Bolt MTD-710-1257

...
xx
Blade Adapter MTD-748-04082

...
xx
BLADE BELL SUPPORT MTD-736-0524B-1

...
xx
WHEEL KIT IDLE 8 x 2 (W/BEARINGS) (Front) MTD-753-08175

...
xx
REAR WHEEL12X2.1 (Back) MTD-734-04019

...
xx
Ignition Key MTD-NA

...
xx
Grass Bag MTD-964-04007A

...
xx
Grass Bag Frame MTD-747-04080A

...
xx
Trailshield MTD-731-05642A

...
xx
Rear Discharge Door MTD-731-06847

...
xx
Hinged Mulch Plug Assembly MTD-987-02055

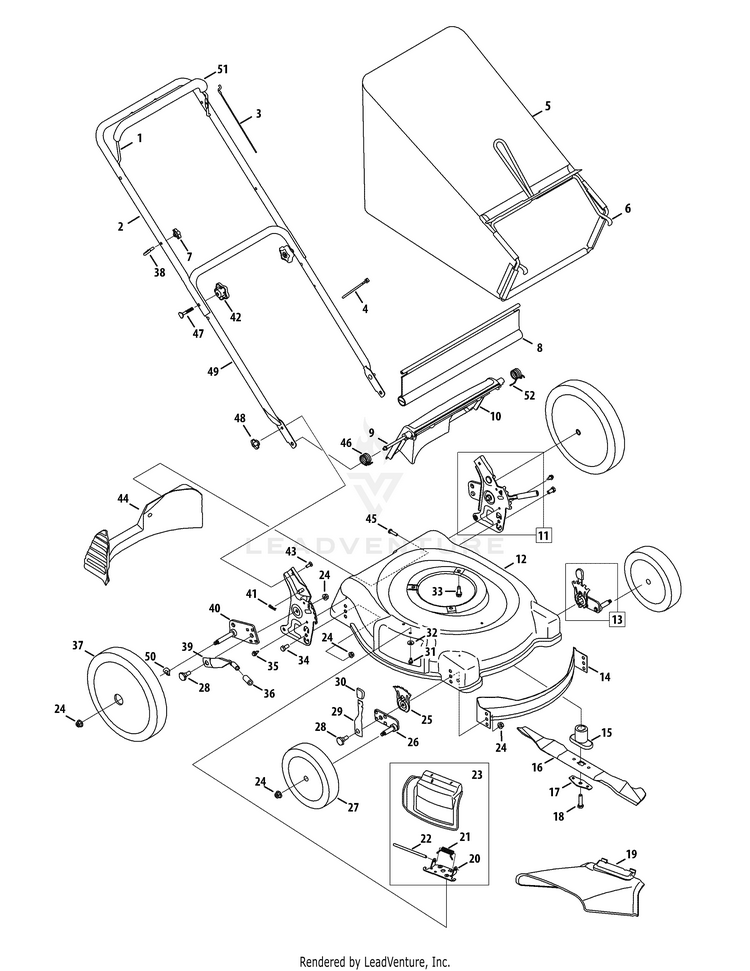

General Assembly

...
...
1
Blade Control MTD-747-1161A

...
2
Upper Handle MTD-749-1092A

...
3
Control Cable (brake) MTD-946-0957

...
3
Control Cable 40" (brake) MTD-946-1130

...
3
40.00" CONTROL CABLE (brake) MTD-946-04104

...
4
7" CABLE TIE MTD-725-0157

...
5
Grass Bag MTD-964-04007A

...
6
Grass Bag Frame MTD-747-04080A

...
7
Handle Knob MTD-720-0279

...
8
Trailshield MTD-731-05642A

...
9
Pivot Rod MTD-747-04588

...
10
Rear Discharge Door MTD-731-06847

...
11
Rear Handle Bracket Assy. - LH MTD-987-02280A

...
11
Rear Handle Bracket Assy. - RH MTD-987-02279A

...
12
Deck 21-inch MTD-787-01279

...
13
Front Height Adjuster Assembly - LH MTD-987-02075B

...
13
Front Height Adjuster Assembly - RH MTD-987-02074B

...
14
FRONT BAFFLE MTD-782P5002B

...
15
Blade Adapter - 25mm (Honda engine) MTD-748-04082

...
15
Blade Adapter MTD-748-0377E

...

...
17
BLADE BELL SUPPORT MTD-736-0524B-1

...
18
Hex Screw, 3/8-24 x 2.5 MTD-710-1257

...
19
Side Discharge Chute MTD-731-04177

...
20
Deflector Chute Adaptor MTD-17032A

...
21
TORSION SPRING MTD-732-1014C

...
22
HINGE PIN MTD-747-0710A

...
23
Hinged Mulch Plug Assembly MTD-987-02055

...
24
Flange Lock Nut 3/8-16 MTD-712-04065

...
25
Height Adjustment Plate MTD-787-01290A

...
26
Pivot Arm Assy RH (8" wheel) MTD-987-02337

...
26
Pivot Arm Assy LH (8" wheel) MTD-987-02338

...
27
WHEEL KIT IDLE 8 x 2 (W/BEARINGS) MTD-753-08175

...
28
Shoulder Scr., .5D x .385 MTD-738-04266

...
29
Spring Lever MTD-94832

...
30
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1

...
31
TT Screw, 1/4-20 x .500 MTD-710-0599

...
32
SPRING WASHER BELL MTD-736-0270

...
33
TT Screw, 3/8-16 x 1.0 MTD-710-0654A

...
34
Hex Screw, 3/8-16 x .75 MTD-710-0216

...
35
TT Screw, 1/4-20 x .625 MTD-710-1652

...
36
Foam Grip MTD-720-0312

...
37
REAR WHEEL12X2.1 MTD-734-04019

...
38
Eye Bolt MTD-710-1205

...
39
Rear Hi-Wheel Spring Lever MTD-732-0866

...
40
Pivot Bar RH MTD-987-02335

...
40
Pivot Bar LH MTD-987-02336

...
41
Hairpin Clip MTD-714-0104

...
42
STAR KNOB 5/16-18 MTD-720-04072A

...
43
Carriage Bolt ,1/4-20 x .75 MTD-710-0703

...
44
Rear Baffle MTD-731-04150C

...
45
Screw HL, 1/4-15 x 1.00 MTD-710-1241

...
46
Torsion Spring - RH MTD-732-04090A

...
47
Carriage Bolt, 5/16-18 x 2 MTD-710-1174

...
48

...
49
Lower Handle MTD-749-0928A-0637

...
50
Spring Washer MTD-736-0182

...
51
Deluxe Bail Cover - Red MTD-731-04204

...
52
Torsion Spring - LH MTD-732-04089A

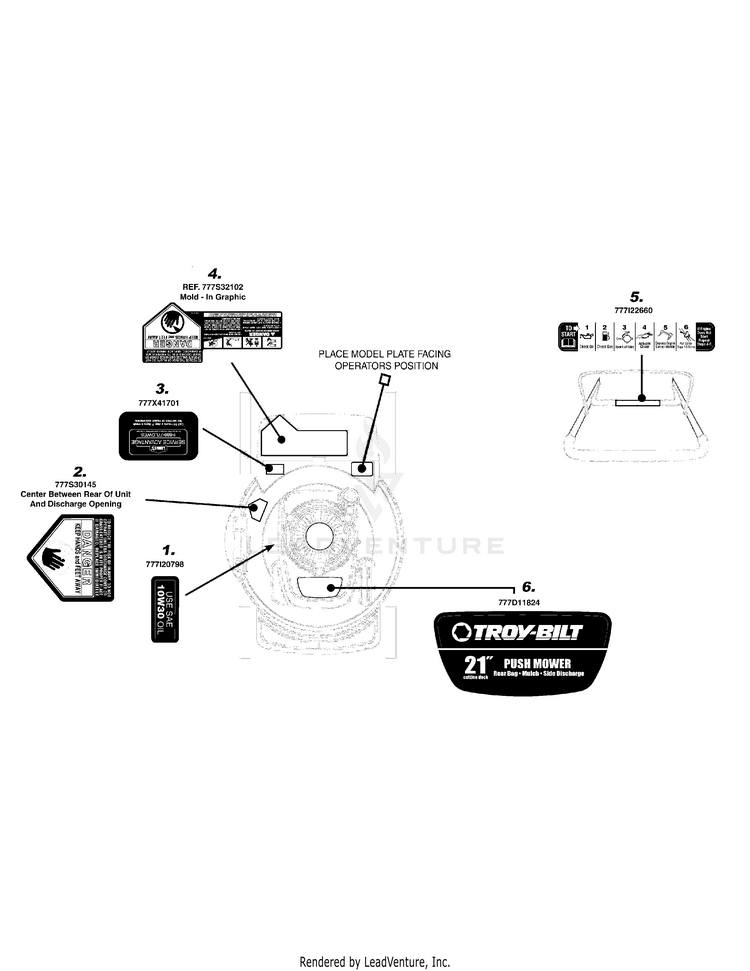

Label Map Q711

...
...
1
LBL:MWR:SRHD:HONDA OIL CAPCTY MTD-777I20798

...
2
Danger Label MTD-977S30145

...
3
LBL:LOWES SERVICE ADVANTAGE MTD-777X41701


...
5
LBL:MWR:HNDL:ST INSTR:HON ARCS MTD-777I22660

...
...
...
