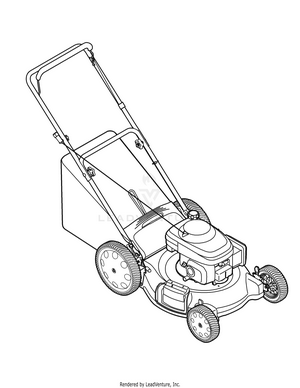

Troy-Bilt 11A-542Q711 (2006) Push Mower

Model: 11A-542Q711 (2006)

Save
Part Not Listed?Part Not Listed?

product name

.Quick Reference

...
...
xx
SPLG:1ST FIRE:RP CHAMP:N11/12 MTD-FF-22

...
xx
Pre-Filter MTD-NA

...
xx

...
xx
Fuel Filter MTD-NA

...
xx
Control Cable 40" MTD-946-1130

...
xx
Choke Cable MTD-NA

...
xx
Blade Adapter MTD-748-04082

...

...
xx
BLADE BELL SUPPORT MTD-736-0524B-1

...
xx
Blade Bolt MTD-710-1257

...
xx
WHEEL KIT IDLE 8 x 2 (W/BEARINGS) MTD-753-08175

...
xx
REAR WHEEL12X2.1 MTD-734-04019

...
xx
Trailshield MTD-731-4998

...
xx
Discharge Chute MTD-731-04177

...
xx
Mulch Plug MTD-987-02055

...
xx
Grass Bag MTD-964-04007A

...
xx
Grass Bag Frame MTD-747-04080A

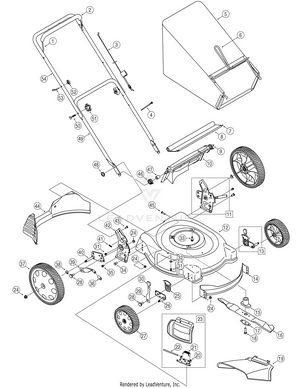

General Assembly

...
...
1
Blade Control MTD-747-1161A

...
2
Bail Cover MTD-731-04204

...
3
Control Cable 40" MTD-946-1130

...
4
7" CABLE TIE MTD-725-0157

...
5
Grass Bag MTD-964-04007A

...
6
Grass Bag Frame MTD-747-04080A

...
7
TRAILSHIELD WIRE MTD-732P0700

...
8
Trailshield MTD-731-04998

...
9
Pivot Rod MTD-747-0996

...
10
Grass Bag Door MTD-753-06366

...
11
Rear Handle Bracket Assy. - LH MTD-687-02057

...
11
Rear Handle Bracket Assy. - RH (not shown) MTD-687-02056

...
12
Deck 21-inch MTD-787-01279

...
13
Front Height Adjuster Assembly - LH MTD-987-02075B

...
13
Front Height Adjuster Assembly - RH MTD-987-02074B

...
14
FRONT BAFFLE MTD-782P5002B

...
15
Blade Adapter MTD-748-04082

...

...
17
BLADE BELL SUPPORT MTD-736-0524B-1

...
18
Hex Screw, 3/8-24 x 2.5 MTD-710-1257

...
19
Side Discharge Chute MTD-731-04177

...
20
Deflector Chute Adaptor MTD-17032A

...
21
TORSION SPRING MTD-732-1014C

...
22
HINGE PIN MTD-747-0710A

...
23
Hinged Mulch Plug Assembly MTD-987-02055

...
24
Flange Lock Nut 3/8-16 MTD-712-04065

...
25
Height Adjustment Plate MTD-787-01290A

...
26
Pivot Arm Assembly - LH MTD-987-02077A

...
26
Pivot Arm Assembly - RH MTD-987-02076A

...
27
WHEEL KIT IDLE 8 x 2 (W/BEARINGS) MTD-753-08175

...
28
Shoulder Screw, .5D x .434 MTD-738-0507B

...
29
Spring Lever MTD-94832

...
30
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1

...
31
TT Screw, 1/4-20 x .500 MTD-710-0599

...
32
SPRING WASHER BELL MTD-736-0270

...
33
TT Screw, 3/8-16 x 1.0 MTD-710-0654A

...
34
Hex Screw, 3/8-16 x .75 MTD-710-0216

...
35
TT Screw, 1/4-20 x .625 MTD-710-1652

...
36
Foam Grip MTD-720-0312

...
37
REAR WHEEL12X2.1 MTD-734-04019

...
38
Spring Washer MTD-736-0182

...
39
Rear Hi-Wheel Spring Lever MTD-732-0866

...
40
Pivot Bar RH MTD-987-02335

...
40
Pivot Bar LH MTD-987-02336

...
41
Hairpin Clip MTD-714-0104

...
42
Handle Bracket Assy - RH MTD-687-02192

...
42
Handle Bracket Assy - LH MTD-687-02191

...
43
Carriage Bolt ,1/4-20 x .75 MTD-710-0703

...
44
Rear Baffle MTD-731-04150C

...
45
Screw HL, 1/4-15 x 1.00 MTD-710-04371

...
46
Torsion Spring - RH MTD-732-04090A

...
46
Torsion Spring - LH (not shown) MTD-732-04089A

...
47
Spacer.375 x.50 x 1.02 MTD-950-04162

...
48

...
49
Lower Handle MTD-749-0928A-0637

...
50
Carriage Bolt, 5/16-18 x 2 MTD-710-1174

...
51
STAR KNOB 5/16-18 MTD-720-04072A

...
52
Handle Knob MTD-720-0279

...
53
Eye Bolt MTD-710-1205

...
54
Upper Handle MTD-749-1092A
...
...
...
