Troy-Bilt 11A-436N063 Tru-Cut 110 Plastic Door (2003) Push Mower

Model: 11A-436N063 Tru-Cut 110 Plastic Door (2003)

Save
 Part Not Listed?Part Not Listed?
product name

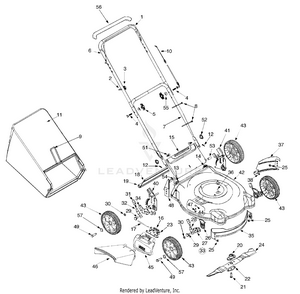

General Assembly

...
...
1
Control Handle MTD-747-1161A
...
2
Rope Guide MTD-710-1205
...
3
Handle Knob 1/4-20 Thd. MTD-720-0279
...
4
Curved Hd. Bolt 5/16-18 x 2" MTD-710-1174
...
5
Hand Knob MTD-720-0284
...
6
Upper Handle MTD-749-1092A
...
7
Lower Handle MTD-749-0928A-0637
...
8
7" CABLE TIE MTD-725-0157
...
9
Grass Bag Frame MTD-747-04080A
...
10
Control Cable 40" MTD-946-1130
...
11
Grass Bag MTD-964-04007A
...
12
Int. Cotter Pin 5/16" Dia. MTD-714-0104
...
13
TORSION SPRING (RH) MTD-932-04072
...
14
TORSION SPRING (LH) MTD-932-04071
...
15
Rear Discharge Door MTD-931-04134
...
16
TORSION SPRING MTD-732-1014C
...
17
HINGE PIN MTD-747-0710A
...
18
TRAILSHIELD WIRE MTD-732P0700
...
19
Trailshield MTD-731-04998
...
20
Blade Adapter MTD-748-0376E
...
21
Hex Bolt 3/8-24 x 1.5" Lg. MTD-710-1044
...
22
BLADE BELL SUPPORT MTD-736-0524B-1
...
23
Deflector Chute Adapter MTD-17032A
...
24
Blade MTD-942-0741A
...
25
Hex Flange Nut 3/8-16 MTD-912-0431
...
26
Height Adjustment Plate MTD-787-01290A
...
27
Pivot Bar MTD-15262B
...
28
Spring Lever MTD-94832
...
29
Shld. Bolt.5" Dia. x.357" MTD-738-0507B
...
30
Bell Washer.38" I.D. x.88" O.D. MTD-736-0105
...
31
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
32
Rear Spring Lever MTD-732-0417A
...
33
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
34
Pivot Bar R.H. MTD-14765
...
xx
Pivot Bar L.H. MTD-14766
...
35
FRONT BAFFLE MTD-782P5002B
...
36
Hex L-Wash.Scr. 3/8-16 x 1" MTD-710-0654A
...
37
LH Rear Baffle MTD-782-5003A
...
38
Torx Mach AB-Tap Scr. 1/4 x.62" MTD-710-1017
...
39
Hex Ind Wash. Scr. 1/4-14:.625 MTD-710-0896
...
40
HANDLE BRACKET (RH) MTD-787-01016-0637
...
41
HANDLE BRACKET (LH) MTD-787-01015-0637
...
42
Deck 21" MTD-787-01104
...
43
WHEEL KIT IDLE 8 x 2 MTD-753-08091
...
44
SPRING WASHER BELL MTD-736-0270
...
45
Hinged Mulch Plug Assembly MTD-987-02055
...
46
Chute Deflector: Side Discharge MTD-731-04177
...
47
Hex Hd Self-Tp Scr. 1/4-20 x.5" MTD-710-0599
...
48
RH Rear Baffle MTD-782-5004B
...
49
Axle Bolt MTD-738-0213
...
51
Hex Carriage Screw 1/4-20 MTD-710-0703
...
52
WING NUT MTD-712-0397A
...
53
Spacer.375 x.50 x 1.02 MTD-950-04162
...
54
Grass Bag Door MTD-753-06366
...
55
Shoulder Washer MTD-736-0451
...
56
Deluxe Bail Cover MTD-731-04204
...
57
WAVE WASHER MTD-936-0504
...
...
...
