Troy-Bilt 11A-436N063 Tru-Cut 110 (2002) Push Mower

Model: 11A-436N063 Tru-Cut 110 (2002)

Save
 Part Not Listed?Part Not Listed?
product name

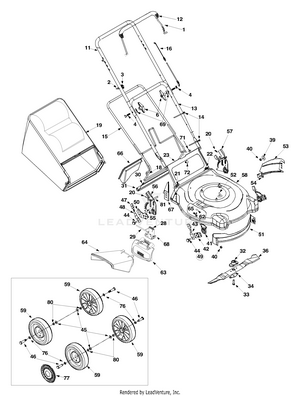

General Assembly

...
...
1
Control Handle MTD-747-1161A
...
2
Rope Guide MTD-710-1205
...
3
Handle Knob 1/4-20 Thd. MTD-720-0279
...
4
Curved Hd. Bolt 5/16-18 x 2" MTD-710-1174
...
6
Hand Knob MTD-720-0284
...
11
Upper Handle MTD-749-1092A
...
12
Bail Cover MTD-731-2626
...
13
Lower Handle MTD-749-0928A-0637
...
14
7" CABLE TIE MTD-725-0157
...
15
Rear Catcher Frame MTD-764-0310A-0637
...
16
Control Cable 40" MTD-946-1130
...
18
Front Catcher Frame MTD-764-0311-0637
...
19
Grass Bag MTD-964-0309
...
20
Int. Cotter Pin 5/16" Dia. MTD-714-0104
...
21
Door Spring - R.H. MTD-732-0678
...
22
Door Spring (L.H.) MTD-932-0677
...
23
Rear Discharge Door MTD-782-7000
...
28
Torsion Spring MTD-932-0731
...
29
HINGE PIN MTD-747-0710A
...
30
TRAILSHIELD WIRE MTD-732P0700
...
31
Trailshield MTD-731-04998
...
32
Blade Adapter Kit (Incl. Ref. 13-15) (Kit includes 32-34) MTD-753-06315
...
xx
Blade Adapter MTD-748-0376E
...
33
Hex Bolt 3/8-24 x 1.5" Lg. MTD-710-1044
...
34
BLADE BELL SUPPORT MTD-736-0524B-1
...
36
Blade MTD-942-0741A
...
39
UNKNOWN MTD-NA
...
40
Hex Flange Nut 3/8-16 MTD-912-0431
...
41
Height Adjustment Plate MTD-787-01290A
...
42
Pivot Bar MTD-15262B
...
43
Spring Lever MTD-94832
...
44
Shld. Bolt .5" Dia. x .357" MTD-738-0507B
...
45
Bell Washer .38" I.D. x .88" O.D. MTD-736-0105
...
46
Axle Bolt MTD-738-0213
...
47
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
48
Spring Lever MTD-94832
...
49
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) Not shown MTD-753-06761
...
50
Pivot Bar R.H. MTD-14765
...
xx
Pivot Bar L.H. N/I MTD-14766
...
51
FRONT BAFFLE MTD-782P5002B
...
52
Hex L-Wash.Scr. 3/8-16 x 1" MTD-710-0654A
...
53
LH Rear Baffle MTD-782-5003A
...
54
Torx Mach AB-Tap Scr. 1/4 x.62" MTD-710-1017
...
55
Hex Ind Wash. Scr. 1/4-14:.625 MTD-710-0896
...
56
RH Handle Bracket Assembly MTD-753-05994
...
57
RH Handle Bracket Assembly MTD-753-05994
...
58
Cutting Deck MTD-782-0047A
...
59
Wheels - Front MTD-753-08093
...
62
SPRING WASHER BELL MTD-736-0270
...
63
Hinged Mulching Plug MTD-731-1404A
...
64
Side Discharge Chute MTD-731-1409B
...
65
Hex Hd Self-Tp Scr. 1/4-20 x .5" MTD-710-0599
...
66
PLUG-MULCHING BAFFLE MTD-782-5007C
...
67
RH Rear Baffle MTD-782-5004B
...
68
Mounting Bracket MTD-782-7006
...
69
Saddle Washer MTD-736-0451
...
71
Truss Scr. #10-24 x .38" Lg. MTD-710-0192
...
72
Knob MTD-720-0275
...
76
WAVE WASHER MTD-936-0504
...
77
Hubcap, 8" MTD-731-0981C
...
80
Spacer, .380 ID x .625 OD x .21 MTD-950-0535
...
81
Weld Pin MTD-710-1248
...
xx
Spark Plug Boot Not shown MTD-735-0639

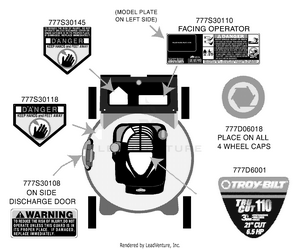

Safety & Decorative Labels

...
...
777S30145
Danger Label MTD-977S30145
...
777S30110
LABEL-DANGER MTD-777S30110
...
777S30118
LABEL-DANGER MTD-777S30118
...
777S30108
LABEL-MOWER WARNING MTD-777S30108
...
777D06018
LABEL-WHEELCAP MTD-777D06018
...
777D6001
MTD-777D6001
...
...
...
