Troy-Bilt 11A-436A766 Tru-Cut 100 (2004) Push Mower

Model: 11A-436A766 Tru-Cut 100 (2004)

Save
Part Not Listed?Part Not Listed?

product name

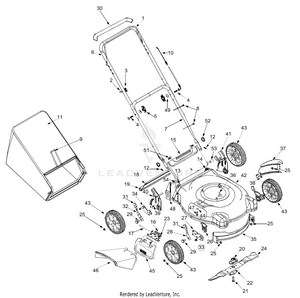

General Assembly

...
...
1
Control Handle MTD-747-1161A

...
2
Rope Guide MTD-710-1205

...
3
Handle Knob 1/4-20 Thd. MTD-720-0279

...
4
Curved Hd. Bolt 5/16-18 x 2" MTD-710-1174

...
5
Hand Knob MTD-720-0284

...
6
Upper Handle MTD-749-1092A

...
7
Lower Handle MTD-749-0928A-0637

...
8
7" CABLE TIE MTD-725-0157

...
9
Grass Bag Frame MTD-747-04080A

...
10
Control Cable 40" MTD-946-1130

...
11
Grass Bag MTD-964-04007A

...
12
Int. Cotter Pin 5/16" Dia. MTD-714-0104

...
13
Torsion Spring - RH MTD-732-04090A

...
14
Torsion Spring - LH (not shown) MTD-732-04089A

...
15
Rear Discharge Door MTD-931-04134

...
16
TORSION SPRING MTD-732-1014C

...
17
HINGE PIN MTD-747-0710A

...
18
TRAILSHIELD WIRE MTD-732P0700

...
19
Trailshield MTD-731-04998

...
20
Blade Adapter MTD-748-0376E

...
21
Hex Bolt 3/8-24 x 1.5" Lg. MTD-710-1044

...
22
BLADE BELL SUPPORT MTD-736-0524B-1

...
23
Deflector Chute Adapter MTD-17032A

...

...
25
Hex Flange Nut 3/8-16 MTD-912-0431

...
26
Height Adjustment Plate MTD-787-01290A

...
27
Pivot Arm Assembly - LH MTD-987-02077A

...
xx
Pivot Arm Assembly - RH MTD-987-02076A

...
28
Spring Lever MTD-94832

...
29
Shld. Bolt.5" Dia. x.357" MTD-738-0507B

...
30
Deluxe Bail Cover MTD-731-04204

...
31
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1

...
32
Rear Spring Lever MTD-732-04175

...
33
Front Height Adjuster Assembly - RH MTD-987-02074B

...
xx
Front Height Adjuster Assembly - LH MTD-987-02075B

...
34
Pivot Arm Assembly - RH MTD-987-02071A

...
xx
Pivot Arm Assembly - LH MTD-987-02070A

...
35
FRONT BAFFLE MTD-782P5002B

...
36
Hex L-Wash.Scr. 3/8-16 x 1" MTD-710-0654A

...
37
LH Rear Baffle MTD-782-5003A

...
38
Torx Mach AB-Tap Scr. 1/4 x.62" MTD-710-1017

...
39
Hex Ind Wash. Scr. 1/4-20:.625 MTD-710-1652

...
40
RH Handle Bracket Assembly MTD-753-05994

...
41
RH Handle Bracket Assembly MTD-753-05994

...
42

...
43
WHEEL KIT IDLE 8 x 2 MTD-753-08091

...
44
SPRING WASHER BELL MTD-736-0270

...
45
Hinged Mulch Plug Assembly MTD-987-02055

...
46
Side Chute Deflector MTD-731-04177

...
47
Hex Hd Self-Tp Scr. 1/4-20 x.5" MTD-710-0599

...
48
RH Rear Baffle MTD-782-5004B

...
49
Shoulder Washer MTD-736-0451

...
51
Hex Carriage Screw 1/4-20 MTD-710-0703

...
52

...
53
Spacer.375 x.50 x 1.02 MTD-950-04162

...
54
Grass Bag Door MTD-753-06366
...
...
...
