Troy-Bilt 11A-106N063 Tru-Cut 100 (2002) Push Mower

Model: 11A-106N063 Tru-Cut 100 (2002)

Save Part Not Listed?
product name

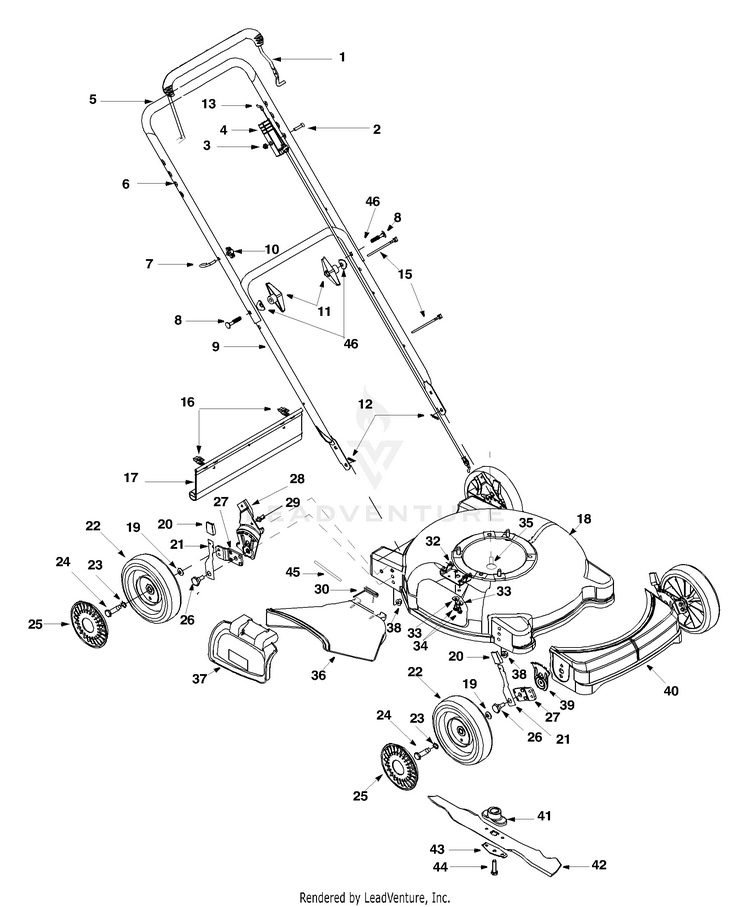

General Assembly

...
...
1
Std. Control Handle MTD-747-0824B-0637
...
2
SCREW 1/4-20 x 1.310 MTD-710-1270
...
3
Hex Lock Nut MTD-712-0324
...
4
Control Housing MTD-746-0883
...
5
Foam Grip MTD-720-0295
...
6
UPPER HANDLE MTD-749-0705
...
7
Rope Guide MTD-710-1205
...
8
Carriage Bolt MTD-710-1174
...
9
Lower Handle MTD-749-0928A-0637
...
10
Wing Nut MTD-720-0279
...
11
Hand Knob MTD-720-0284
...
12
Hairpin Clip MTD-714-0104
...
13
Control Cable: 40.5" MTD-946-0554
...
15
7" CABLE TIE MTD-725-0157
...
16
HINGE CLIP MTD-17098P
...
17
Rear Flap MTD-731-0872B
...
18
20" DECK ASSEMBLY MTD-682-0139
...
19
Bell Washer MTD-736-0105
...
20
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
21
Spring Lever MTD-94832
...
22
Wheels - Front MTD-753-08093
...
23
WAVE WASHER MTD-936-0504
...
24
Axle Bolt MTD-738-0102
...
25
Hubcap, 8" MTD-731-0981C
...
26
Shoulder Bolt MTD-738-0507B
...
27
Pivot Bar MTD-15262B
...
28
HANDLE BRACKET ASSEMBLY (RH) MTD-987-02106A
...
xx
BRACKET ASSEMBLY Not shown in illustration MTD-987-02107A
...
29
Stake Bolt MTD-738-0585
...
30
Torsion Spring MTD-932-0731
...
?31
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) Not shown in illustration MTD-753-06761
...
32
MOUNTING BRACKET MTD-782-7006
...
33
SPRING WASHER BELL MTD-736-0270
...
34
Hex Washer Hd. TT Screw MTD-710-0599
...
35
TT Sems Screw MTD-710-0654A
...
36
Chute Deflector MTD-731-1409B
...
37
MULCH PLUG ASSEMBLY MTD-682-7002
...
38
Hex Flange Nut 3/8-16 MTD-912-0431
...
39
Height Adjustment Plate MTD-787-01290A
...
40
FRONT DECK COVER MTD-931-1949B
...
41
Blade Adapter MTD-748-0376E
...
xx
Blade Adapter Kit (Incl. Ref. 13-15) MTD-753-06315
...
42
20" Mulching Blade MTD-742-0740-0637
...
43
BLADE BELL SUPPORT MTD-736-0524B-1
...
44
Hex Bolt MTD-710-1044
...
45
HINGE PIN MTD-747-0710A
...
46
Saddle Washer MTD-736-0451
...
xx
Engine Shrd B&S Quantum (Not Shown) MTD-BS-790037
...
xx
ENGINE SHROUD (Not Shown) MTD-751B282175

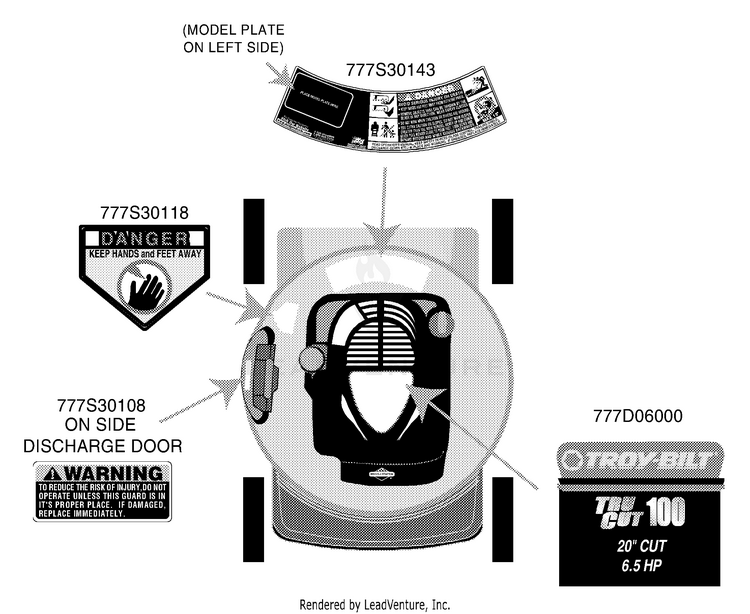

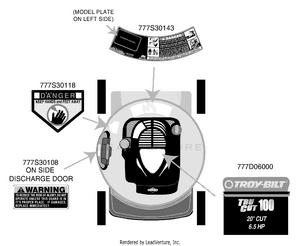

Safety & Decorative Labels

...
...
777S30143
LABEL-DANGER 1-800 (CURV MTD-777S30143
...
777S30118
LABEL-DANGER MTD-777S30118
...
777S30108
LABEL-MOWER WARNING MTD-777S30108
...
777D06000
LABEL-SHROUD MTD-777D06000
