Troy-Bilt 11364 Tuff Cut II 5hp-22" S.P ES Walk Behind Mower

Model: 11364 TUFF CUT II 5HP-22"" S.P ES

Save
 Part Not Listed?Part Not Listed?
product name

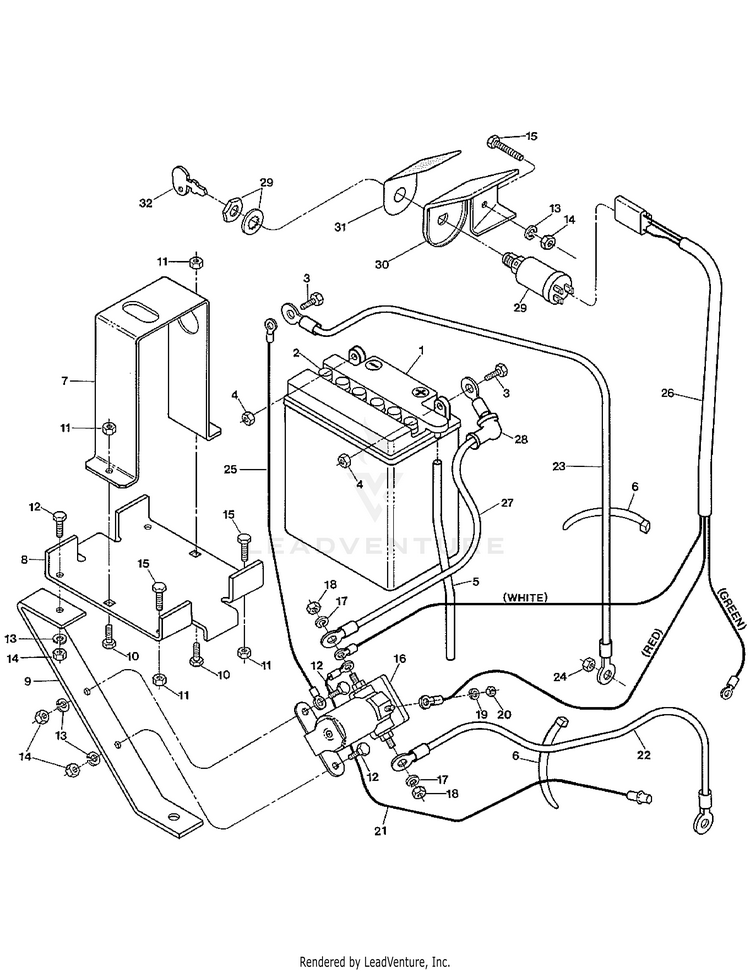

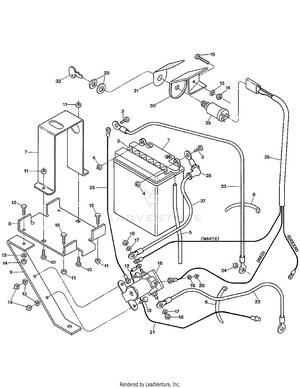

ELECTRIC START

...
...
1
BATTERY MTD-GW-9234B
...
2
CAP-BATTERY (YELLOW) GW MTD-GW-9462
...
3
HARDWARE PACK-BA MTD-GW-11361
...
4
HARDWARE PACK-BA MTD-GW-11361
...
5
TUBE-VENT MTD-GW-9009
...
6
7" CABLE TIE MTD-725-0157
...
7
BATTERY CL MTD-GW-20758
...
8
BATT BASE MTD-GW-80010
...
9
BATT BRACKET MTD-GW-80011
...
10
SCR-HHCS 1/4-20X1 GR5 MTD-GW-90017
...
11
NUT-HK 1/4-20 MTD-1110106
...
12
SCR HHCS 1 MTD-GW-90004
...
13
Lock Washer MTD-936-0329
...
14
NUT-HEX 1/4-20 ZP MTD-GW-9800
...
15
SCR-HHCS 1 MTD-GW-90005
...
16
SOL W/HDWE KIT MTD-GW-1959
...
17
LOCK WASHER 5/16 MTD-936-0119
...
18
NUT-5/16X 24 MTD-912-3057
...
19
EXTERNAL WASHER #10 MTD-936-0147
...
20
Hex Nut, #10-32 MTD-1186208
...
21
ASSM-WIRE MTD-GW-T242204
...
22
CABLE-STRT MTD-GW-T239871
...
23
CABLE - NEGATIVE MTD-GW-T239872
...
24
HEX NUT 5/16-18 MTD-712-3010
...
25
WIRE ASSEMBLY MTD-GW-T239749
...
26
WIRE HARNE MTD-GW-T239747
...
27
CABLE-BTRY MTD-GW-T239870
...
28
BOOT-BATTERY CABLE MTD-GW-97020
...
29
KEYSWITCH WITH KEYS MTD-GW-9230
...
30
KEYSWITCH MTD-GW-80013
...
31
DECAL-IGNITION MTD-GW-80074
...
32
KEYS(1PAIR) FOR SW MTD-GW-9243099

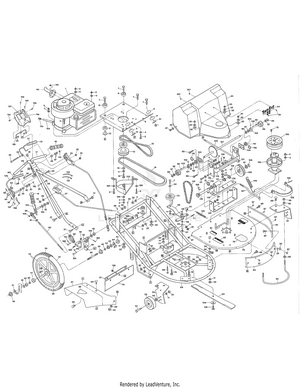

MAIN ASSEMBLY

...
...
1
ENGINE, 5HP MTD-NA
...
2
SCREW 5/16-18 x 1.75 GR5 MTD-710-3180
...
3
LOCK WASHER 5/16 MTD-936-0119
...
4
WASHER-PLA MTD-GW-9901
...
5
HEX NUT 5/16-18 MTD-712-3010
...
6
ENGINE BAS MTD-GW-80041
...
7
Hex Cap Screw, 3/8-16 x 2.00 MTD-710-3144
...
8
REBOUND MO MTD-GW-T200234
...
9
LOAD CARRY MTD-GW-T200236
...
10
TUB-SPACER 24" MTD-GW-T200237
...
11
L-Wash. 3/8" I.D. MTD-736-0169
...
12
V-BELT-TRACTION 3L X MTD-GW-T239661
...
13
PULLEY-ENGINE MTD-GW-T239670
...
14
V-BELT - BLADE MTD-GW-T236321
...
15
Flat Washer, .406 x 1.0 x .105 MTD-736-3052
...
16
BOLT - hex. hd., 3/8"-24 x 1-1/2", engine pulley MTD-710-0459A
...
17
HANDLEBAR ASSEMBLY S-P MTD-GW-80087
...
18
GRIP-HANDLEBAR MTD-GW-T239797
...
19
PLUG-METAL MTD-GW-97008
...
20
DECAL-STARTING INST MTD-GW-T240263
...
21
ASSM-BLADE CONTROL HANDLE (INCL 57) MTD-GW-80032
...
22
SPACER MTD-GW-T242369
...
23
CABLE-BLADE DRIVE MTD-GW-T239738P
...
24
SCR-PHP M# MTD-GW-90026
...
25
HEX LOCK NUT #10- MTD-GW-92001
...
26
PLUG-HOLE MTD-GW-T240175
...
27
SPEED CONTROL-ENGINE (CABLE AND CONTROL) MTD-GW-T239735
...
28
SCR 1/4-20 MTD-GW-90006
...
29
Lock Washer MTD-936-0329
...
30
NUT-HEX 1/4-20 ZP MTD-GW-9800
...
31
HEX SCREW 3/8-16 X .75 MTD-710-0216
...
32
HEX NUT 3/8-16 GR5 MTD-712-3017
...
33
BRACKET-PROT TRLR-PAI MTD-GW-80043
...
34
TRAILER-MOWER MTD-GW-T242207
...
35
TIRE & WHEEL ASSEMBLY MTD-GW-T242397
...
36
TIRE-16 x 2.125 MTD-GW-T242398
...
37
TUBE-16" MTD-GW-T239808
...
38
ASSM-16" RIM MTD-GW-T242459
...
39
VALVE CAP MTD-GW-T3823
...
40
NUT-HF/LK 3/8-24 WHIZ MTD-GW-92003
...
41
TAB-WHEEL LOCK RH MTD-GW-T242211
...
41A
TAB-WHEEL LOCK LH MTD-GW-T242212
...
42
NUT-SPECIA MTD-GW-92004
...
43
NUT-ACORN 3/8-24 ZP MTD-GW-92005
...
44
CUP-WHEEL MTD-GW-T239800
...
45
BEARING-WHEEL MTD-GW-T239803
...
46
AXLE-WHEEL MTD-GW-T239802
...
47
DISCHARGE MTD-GW-80048
...
48
DECAL-BLADE WARNIN MTD-GW-T214744
...
49
SCR-CARR 1/4-20X.375 MTD-GW-90014
...
50
HANGER-RT WHL PNT MTD-GW-80046
...
51
LT WHEEL H MTD-GW-80047
...
52
ASSEMBLY TIRE & WHEEL FRONT MTD-GW-80163
...
53
SCR-SHLDR 3/8-16X1.406 MTD-GW-90023
...
54
SPROCKET-21T MTD-GW-9004
...
55
BELL CRANK MTD-GW-80044
...
56
BEARING-SLEEVE MTD-GW-T27503
...
57
STICKER-BLADE BAIL MTD-GW-T242413
...
58
COTTER PIN MTD-GW-97004
...
59
JOINT-BALL MTD-GW-T24542
...
60
CLEVIS PIN MTD-GW-97002
...
61
Jam Nut, 3/8 MTD-912-3001
...
62
BUSHING-.62X.5X.43 MTD-GW-97095
...
63
LATCH-TOGGLE MTD-GW-T242158
...
64
FRAME WELD MTD-GW-80142
...
65
SCREW-HHCS MTD-GW-90027
...
66
SCREW 3/8 x 4.5 N.C GR. 5 MTD-710-0693
...
67
SHIM-.88 X MTD-GW-T13235
...
68
PIVOT TUBE MTD-GW-T239706
...
69
IDLER ARM MTD-GW-80063
...
70
TRUNNION MTD-GW-T213158
...
71
PIN-COTTER .094X1.0 MTD-GW-9317
...
72
IDLER PULLEY MTD-GW-T230178
...
73
Self-tapping Screw, 5/16-18 x .625 MTD-710-0604A
...
74
SCR-HHC 5/16-18X.75 GR 5 ZP MTD-GW-90007
...
75
Screw-Hex 5/16-18 MTD-710-0395
...
76
SCR-HHC 5/16-18X.75 GR 5 ZP MTD-GW-90007
...
77
SPACER-.625X.387X1.0 MTD-GW-T241439
...
78
ASSM-DECK TOP 22" (INCL. 79-82) MTD-GW-80091
...
79
DECAL-LOGO 22" MTD-GW-80165
...
80
DECAL-WARNING PROC MTD-GW-80076
...
81
DECAL-CAUTION BELT MTD-GW-T240226
...
82
DECAL-DANGER GUARD MTD-GW-80073
...
83
WRAP-FRONT 22" PNT MTD-GW-80068
...
84
NUT-WKWA MTD-GW-9828
...
85
WRAP-LH PNT MTD-GW-80067
...
86
CARRIAGE BOLT 3/8-16 x 1.00 GR5 MTD-710-3168
...
87
SCR-HW 10- MTD-GW-90024
...
88
BUMPER-22 MTD-GW-80060
...
89
HEX NUT MTD-712-0206
...
90
Lock Washer, 1/2 MTD-736-0921
...
91
Flat Washer, .203 x .403 x .040 MTD-736-0931
...
92
Flat Washer .271 ID x .630 OD MTD-736-3020
...
93
COVER-BELT 22" TROY-BILT MTD-GW-80168
...
93
KIT-SVC 22" BELT COVER TUFF-CUT MTD-GW-56001
...
94
PLATE-NAME TROY-BILT MTD-GW-80164
...
94
PLATE-NAME 22" MTD-GW-T242176
...
95
POP RIVET MTD-GW-97000
...
95A
WASHER-RIVETING MTD-GW-94009
...
96
RETAINING RING MTD-916-0171
...
97
WASHER-1.0 MTD-GW-94003
...
98
DRIVE ROLL MTD-GW-T239761
...
99
SPRING - DOWEL RET MTD-GW-T239841
...
100
DOWEL PIN MTD-GW-T239840
...
101
RATCHET (RH) MACH MTD-GW-T239633
...
102
RATCHET-LH MACH MTD-GW-T239634
...
103
SPRING PIN3/16 x 1.50 MTD-915-0134
...
104
BEARING PL MTD-GW-80022
...
105
Pin, Cotter, 1/8 x 1.00 MTD-714-0115
...
106
PULLEY W/SCREWS KI MTD-GW-80102
...
107
SHAFT-DRIVE POLISHED 22" MTD-GW-80159
...
108
E-ring MTD-716-0106
...
109
ROD-TRAC DR LINK PNT MTD-GW-80065
...
110
PIN-CLIP ( MTD-GW-97009
...
111
SCREW 3/8-16 x 1 GR5 MTD-710-0514
...
112
SPACER-.390X.630X. MTD-GW-94006
...
113
TRACTION D MTD-GW-80021
...
114
CHAIN #35-46 PITCHES MTD-GW-T238343
...
115
BRKT-JACKSFT MTG PNT MTD-GW-80017
...
116
JACKSFT-WELD HEAT TREAT MTD-GW-80066
...
117
GROOVE BALL BEARING MTD-741-0145
...
118
RING-RETAIN EXT 1. MTD-GW-97016
...
119
KEY-HI PRO 1/8X1/2 MTD-GW-97007
...
120
PULLEY-WHEEL DRIVE MTD-GW-T240086
...
121
SCR-SET HX MTD-GW-90016
...
122
BRACKET-U-CHANNEL-PAI MTD-GW-80015
...
123
ROLL PIN . MTD-GW-97006
...
124
WASHER-.87 MTD-GW-94000
...
125
SPRING-WHEEL OR RE MTD-GW-T239734
...
126
SPRING-SPINDLE BRAKE MTD-GW-T239750
...
127
ROD - BRAK MTD-GW-T239708
...
128
BRAKE BAND & LINING MTD-GW-T242200
...
129
PIN-COTTER 1/8X3/4 MTD-GW-97010
...
130
SPINDLE KIT-TUFFCUT I&II MTD-GW-80137
...
131
BLADE-22" TUFFCUT NLA MTD-GW-T239632
...
132
7" CABLE TIE MTD-725-0157
...
133
BELT GUIDE MTD-GW-80007
...
134
WASHER-BELLEVILLE 3/8 MTD-GW-T241589
...
135
SCR-HH 3/8-24 X 1.5" G8 MTD-GW-90025
...
136
Hex Lock Nut, 5/16-18 MTD-912-0158
...
137
RIVET (SEE REF NO. 139) MTD-NA
...
138
TOGGLE SPRING (SEE REF NO 139) MTD-NA
...
139
BAIL W/SPR MTD-GW-80089
...
140
WHEEL DR H MTD-GW-80030
...
141
DECAL-TRACTION BAI MTD-GW-T242412
...
142
RETAINING RING - (snap ring), external MTD-GW-9516
...
143
WHEEL DR L MTD-GW-80024
...
144
RING-RETAINING EXTERNAL MTD-GW-97015
...
145
LINK-HANDLE MTD-GW-T242170
...
146
CLEVIS PIN MTD-GW-97011
...
147
CLEVIS (PLATED) MTD-GW-80027
...
148
SCR-PHP M1 MTD-GW-90020
...
149
WASHER MTD-GW-20546
...
150
CLEVIS PIN MTD-GW-97017
...
151
ADJ-BLOCK MTD-GW-80045
...
152
SCR-SELF TAP MTD-GW-90002
...
153
EXHAUST EX MTD-GW-80006
...
154
OIL DRAIN PIPE MTD-GW-T236347
...
155
PLUG-SQ HEAD 1/4-18 NPT MTD-1105620
...
156
SHROUD-CNTRL W/DECAL (INCL. 157) MTD-GW-80090
...
157
DECAL-OPER INSTR MTD-GW-T242414
...
158
SCR PH PLP MTD-GW-90003
...
159
BRACE-PANEL MTD-GW-T242191
...
160
NUT-HFLK 3/8-16 MTD-1186393
...
161
SPACER-.87 MTD-GW-94004
...
xx
NUT-HFLK 5/16-18 ZP MTD-712-04054
...
...
...
...
...
