Troy-Bilt 11078 1.5HP Speedy Hoe Roto-Tiller (S/N HH026799 - Lower) Speedy Hoe/MINI Tiller

Model: 512032

Save Part Not Listed?
product name

Popular Parts

Popular Parts

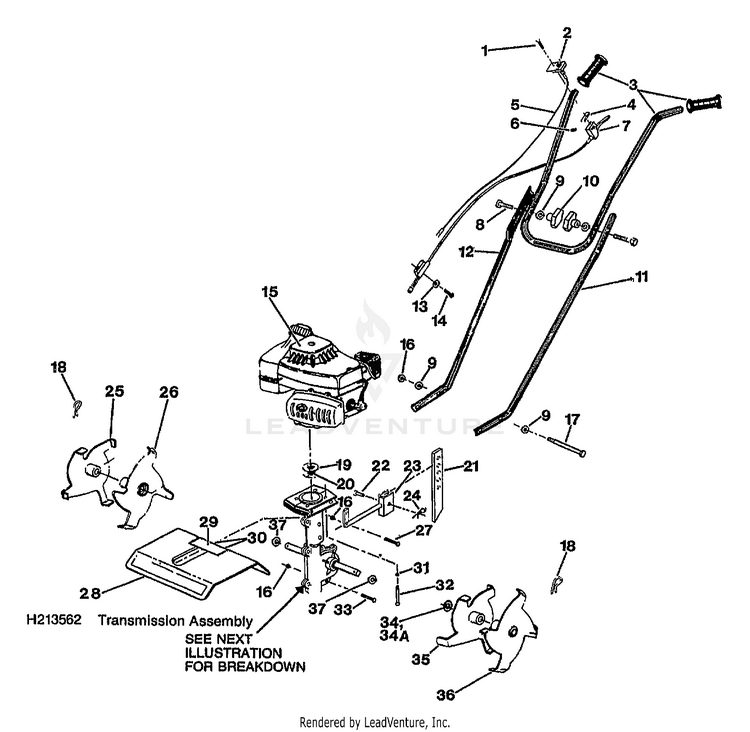

MAIN ASSEMBLY

...
...
xx
ASSM-TRANSMISSION SPDY HOE MTD-H214166
...
1
SCR-PH M10 ITEMS WHICH SHOULD BE AVAILABLE FROM YOUR LOCAL HARDWARE STORE, AS WELL AS BEING AVAILABLE FROM GARDEN WAY. MTD-1983716
...
2
ASSM-SWITCH W/BRKT HHT MTD-H213531
...
3
UPPER HANDLE ASSEMBLY MTD-1981046
...
4
PAD-ISOLAT MTD-1983649
...
5
HARNESS-WI MTD-1766998
...
6
FLAT WELD NUT MTD-712-0127
...
7
ASSEMBLY TRIGGER & CABLE MTD-1983646
...
8
SCREW 5/16-18 x 2.0 MTD-710-1174
...
9
WASHER-BOW 1.0X.328X.059 MTD-1983650
...
10
KNOB MTD-1763767
...
11
H/BAR-LWR LH HHT MTD-H213572
...
12
H/BAR-LWR RH HHT MTD-H213571
...
13
FLAT WASHE ITEMS WHICH SHOULD BE AVAILABLE FROM YOUR LOCAL HARDWARE STORE, AS WELL AS BEING AVAILABLE FROM GARDEN WAY. MTD-1983714
...
14
SCR-HH M8- ITEMS WHICH SHOULD BE AVAILABLE FROM YOUR LOCAL HARDWARE STORE, AS WELL AS BEING AVAILABLE FROM GARDEN WAY. MTD-1983661
...
15
ENGINE, TECUMSEH TC-200-2026C MTD-NA
...
16
Hex Ins. L-Nut 1/4-20 Thd. ITEMS WHICH SHOULD BE AVAILABLE FROM YOUR LOCAL HARDWARE STORE, AS WELL AS BEING AVAILABLE FROM GARDEN WAY. MTD-712-0324
...
17
SCR 1/4-20X4 1/2 BOLT 90036 ITEMS WHICH SHOULD BE AVAILABLE FROM YOUR LOCAL HARDWARE STORE, AS WELL AS BEING AVAILABLE FROM GARDEN WAY. MTD-H213514
...
18
PIN-HITCH .149DIA MTD-1185590
...
19
CLUTCH-ROTOR SPEEDYHOE MTD-1983630
...
20
SPRING-CLUTCH MTD-H213773
...
21
DRAG STAKE MTD-1981014001
...
22
CLEVIS PIN MTD-1983723
...
23
ASSM-BRKT DRAGSTAKE HHT MTD-H213539
...
24
Click Pin MTD-714-0145
...
25
TINE ASSEMBLY (RH) OUTER MTD-1984430
...
26
ASSM-TINE INNER RH MTD-1984429
...
27
HEX SCREW 1/4-20 x 1.25 ITEMS WHICH SHOULD BE AVAILABLE FROM YOUR LOCAL HARDWARE STORE, AS WELL AS BEING AVAILABLE FROM GARDEN WAY. MTD-710-0106
...
28
HOOD W/DECAL 85056 SPEEDYHOE MTD-1985791
...
29
PLATE-REAR TINE COVER MTD-H213785
...
30
SCR-PHP M10-32X.38 STH ZP MTD-H200723
...
31
WASHER-.88X312X.08 ZP ITEMS WHICH SHOULD BE AVAILABLE FROM YOUR LOCAL HARDWARE STORE, AS WELL AS BEING AVAILABLE FROM GARDEN WAY. MTD-9901
...
32
SCR-HH 1/4-20X2.00 GR5 MTD-90021
...
33
Hex Cap Screw, 1/4-20 x .75 MTD-710-3015
...
34
KIT-DUST CAP MTD-1904183
...
34A
SCREW-HXSK MTD-1983052
...
35
ASSM-TINE INNER LH MTD-1984427
...
36
ASSM-TINE OUTER LH MTD-1984428
...
37
WASHER-FELT 1.5X.72X.13 MTD-1983713
...
xx
BRAKE DISC MTD-11073
...
xx
DECAL-CAUTION MTD-1983094
...
xx
DECAL-WARNING MTD-1983095
...
xx
DECAL-THROTTLE HHT MTD-1983096
...
xx
DECAL-ENGINE ON/OF MTD-1983097
...
xx
SPACER-TINE 1.0X.8X1.31LG REPLACES OUTER TINES WHEN NARROW CULTIVATING. MTD-1983648
...
xx
CUP-MEASUR MTD-1983647
...
xx
KIT-TINE REPLACE 85059 (INCL. 25,26,35,36, TWO 18. TWO 37) MTD-1982393
...
xx
ASSM-TRANSMISSION (INCL. 2-7) MTD-H214166
...
xx
7" CABLE TIE MTD-725-0157

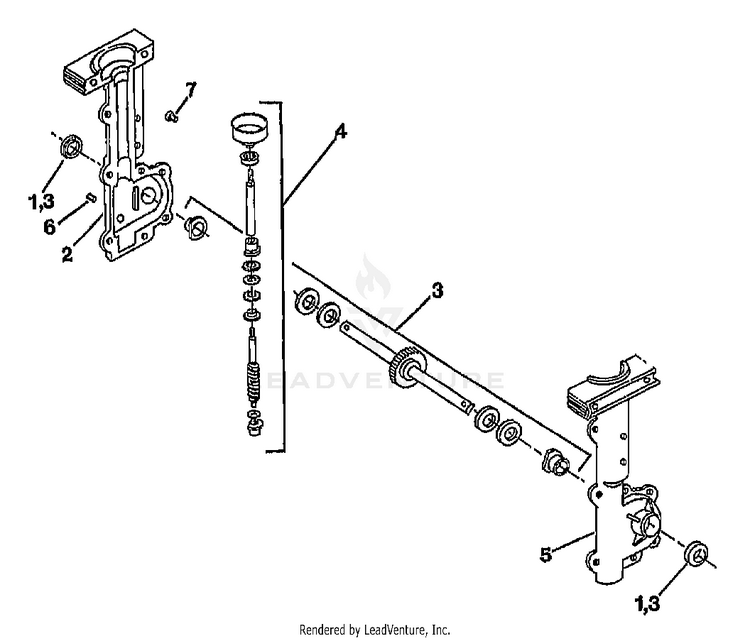

TRANSMISSION

...
...
1
SEAL-HHT MTD-H213556
...
2
TRANSNISSION, RIGHT HAND HALF AVAILABLE IN KIT NO. H213562 MTD-NA
...
2
ASSM-TRANSMISSION SPDY HOE MTD-H214166
...
3
KIT-TINE SHAFT (INCL. TWO 1 & 3) MTD-H213798-S
...
4
INPUT SHAFT ASM KIT-HHT MTD-H213553-S
...
5
TRANSMISSION LEFT HAND HALF AVAILABLE IN KIT NO. H213562 MTD-NA
...
5
ASSM-TRANSMISSION SPDY HOE MTD-H214166
...
6
PLUG-OIL FILL HHT MTD-H213761
...
7
SCR-PHP M10-32X.38 STH ZP MTD-H200723
