Troy-Bilt 10530 Polar Blast 10.5HP 30" Self-Propelled (2004) 31AH9V75063 (2004) 31AH9V75101 (2004) Snow Thrower

Model: 513272

Save
 Part Not Listed?Part Not Listed?
product name

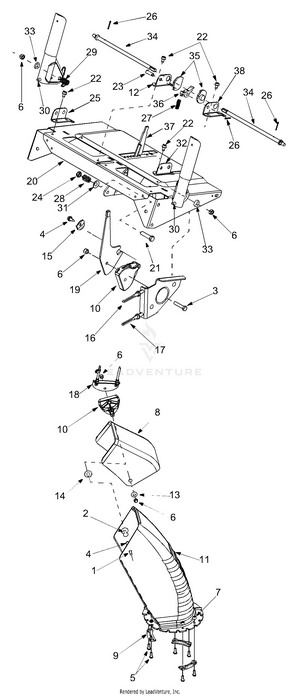

Chute

...
...
1
Carriage Screw MTD-710-0276
...
2
Carriage Bolt 5/16-18 x 1.75" MTD-710-0458
...
3
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
4
Hex AB Screw 1/4-14 x .625" MTD-710-0896
...
5
Hex Screw 1/4-20 x .75" MTD-710-3015
...
6
Hex Lock Nut MTD-712-0429
...
7
LOCK NUT 1/4 MTD-912-3027
...
8
Upper Chute MTD-731-0846C
...
9
Chute Flange Keeper MTD-731-0851A
...
10
Cable Guide: Chute Tilt MTD-731-1313C
...
11
Lower Chute MTD-731-0903E
...
12
Handle Support Bracket - RH MTD-784-5680-0637
...
13
5/16 Washer MTD-736-0159
...
14
Flat Washer MTD-736-0231
...
15
Special Washer MTD-736-0506A
...
16
Chute Control Cable 66" MTD-946-0902
...
17
Chute Control Cable w/clip MTD-946-0903
...
18
Cable Bracket MTD-784-5594
...
19
Chute Tilt Handle MTD-784-5604A-0637
...
20
Panel, Handle MTD-684-0102A
...
21
Hex Bolt 3/8-24 x 1.5" MTD-710-0459A
...
22
TT Screw 1/4-20 x 0.5" MTD-710-0599
...
23
Clevis Pin MTD-711-0653
...
24
Jam Nut MTD-712-0116
...
25
Handle Support Bracket - RH MTD-784-5682-0637
...
26
Cotter Pin MTD-714-0104
...
27
Spring MTD-732-0145
...
28
Spring MTD-732-0193
...
29
Torsion Spring MTD-732-0746
...
30
Rubber Bumper MTD-735-0199A
...
31
Bell Washer MTD-736-0105
...
32
Handle Suppt. Bracket 3/8 LH MTD-784-5681
...
33
Special Washer MTD-736-0509
...
34
Cam Rod MTD-747-0877
...
35
Cam: Handle Lock MTD-748-0362
...
36
Handle Lock Pawl MTD-948-0363
...
37
Shift Handle MTD-753-05395
...
38
Handle Support Bracket - LH MTD-784-5679-0637

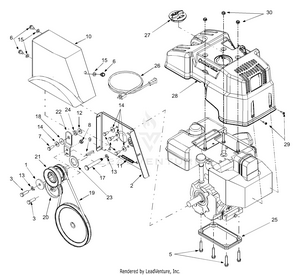

Drive & Engine Accessories

...
...
1
Washer MTD-07386
...
2
Belt Cover Bracket Ass’y MTD-684-0123A-0637
...
3
Hex Screw 3/8-24 x 1.25" MTD-710-0191
...
4
Hex Screw 5/16-24 x .625" MTD-710-0237
...
5
Self-tapping Sems Screw MTD-710-1008
...
6
TT Screw 5/16-18 x 0.5" MTD-710-0607
...
7
Hex Lock Screw 5/16-24 x 1.25" MTD-710-0672
...
8
Jam Nut MTD-712-0116
...
9
Key MTD-714-0118
...
10
Cover, Belt MTD-931-2531
...
11
Spring .38" O.D. x 3.18" Lg. MTD-932-0303
...
12
5/16 Washer MTD-736-0159
...
13
Lock Washer MTD-736-0217
...
14
Beleville Washer MTD-736-0242
...
15
Flat Washer MTD-736-0264
...
17
Shoulder Screw MTD-738-0982
...
18
Shoulder Spacer MTD-748-0234
...
19
V-Belt, 3V x 35.5 MTD-954-0131
...
20
Flat Idler MTD-756-0240
...
21
Double Pulley MTD-756-0241B
...
22
DRIVE IDLER BRACKET MTD-784-5726
...
23
Spacer MTD-750-1148A
...
24
Spacer, .33 x 1.0 x .36 MTD-748-0418
...
25
Spacer MTD-717-0882A
...
26
3-Prong Extension Cord MTD-929-0071B
...
27
Spark Plug Cap MTD-684-04011
...
28
SHROUD-W/DECALS (Incl. Ref. 27) MTD-984-04014A
...
29
Screw, #10-16 x .75 MTD-710-04082
...
30
HEX FLANGE NUT MTD-712-3004A

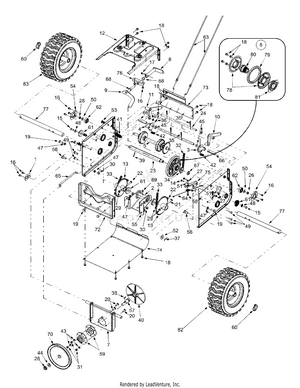

Frame

...
...
1
Pivot Support Bracket MTD-05244B
...
2
Spacer .6725 x 1.125 x 2.48 MTD-750-1302B
...
3
Dogg, Steering Drive, LH MTD-918-0279A
...
4
Dogg, Steering Drive, RH MTD-918-0280A
...
5
Shaft Assembly MTD-918-0282E
...
6
FRICTION WHEEL ASSEMBLY MTD-918-0296B
...
7
Support Bracket Assembly MTD-684-0162-0637
...
8
Shift Arm Assembly MTD-684-0161-0637
...
9
Shift Rod Assembly MTD-684-0117
...
10
AUGER ACTUATOR BRACKET (POWDER BLACK) MTD-684-0118B-0637
...
11
Drive Actuator Bracket Assy. MTD-684-0119B-0637
...
12
Frame Assembly MTD-684-0120
...
13
Sprocket Assembly MTD-684-0122
...
14
Hex Screw, 1/4-28 x .625" MTD-910-0195
...
15
Hex Screw, 5/16-18 x .625" MTD-710-0538
...
16
Self-tapping Screw, 1/4-20 x .5 MTD-710-0599
...
17
Self-tapping Screw, 1/4-20 x 1" MTD-710-0788
...
18
Self-tapping Screw, 1/4-14 x .625" MTD-710-0896
...
19
Hex Screw 3/8-16 x .880" MTD-710-3001
...
20
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
21
Hex Screw 5/16-18 x 2" MTD-710-3103
...
22
Hex Screw 5/16-18 x 1.75" MTD-710-3180
...
23
Hex Shaft: Drive MTD-711-1191
...
24
Actuator Shaft MTD-711-1193
...
25
Actuator Drive Shaft MTD-711-1194
...
26
Jam Nut MTD-712-0116
...
27
Hex Nut 1/4-28 MTD-712-0138
...
28
Jam Lock Nut MTD-712-0221
...
29
Lock Nut, 5/16-18 MTD-712-0429
...
30
Hex Nut 3/8-16 MTD-712-0798
...
31
HEX NUT 5/16-18 MTD-712-3010
...
32
Chain MTD-713-0284
...
33
Chain MTD-713-0286
...
34
Sprocket MTD-713-0413
...
35
Int. Cotter Pin MTD-714-0101
...
36
Hairpin Clip MTD-714-0104
...
37
Pin, Cotter, 1/8 x 1.00 MTD-714-0115
...
38
Key MTD-914-0388
...
39
Roll Pin MTD-915-0249
...
40
Drive Plate MTD-917-0302
...
41
Extension Spring MTD-932-0121
...
42
Extension Spring MTD-932-0209
...
43
Lock Washer 5/16 MTD-936-0119
...
44
Lock Washer 5/8 MTD-936-0158
...
45
Flat Washer MTD-936-0160
...
46
Flat Washer MTD-936-0163
...
47
Lock Washer, 3/8 MTD-736-0217
...
48
Bell Washer MTD-736-0242
...
49
Self-tapping Screw, 5/16-12 x .75 MTD-710-0726
...
50
Flat Washer, .406 x .875 x .059 MTD-736-0300
...
51
Lock Washer MTD-936-0329
...
52
Flat Washer MTD-736-0187
...
53
Nut Insert, 3/8-16 MTD-712-0717
...
54
Bearing Retainer Bracket MTD-784-0404
...
55
Axle Bearing Support Bracket MTD-784-0407-0637
...
56
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
57
Spindle: Drive Plate MTD-738-0279
...
58
Shoulder Screw 1/4-28 x .375" MTD-738-0924A
...
59
Bearing Housing Assembly MTD-741-0163A
...
60
Click Pin MTD-714-0151A
...
61
Ball Bearing MTD-941-0563
...
62
Ball Bearing MTD-741-0747
...
63
Steer Cable MTD-746-0949A
...
64
Auger Idler Cable MTD-946-0951A
...
65
Drive Clutch Rod MTD-747-0973
...
66
Split Spacer MTD-750-0903B
...
67
Spacer MTD-950-0997
...
68
Flange Bearing MTD-741-0748
...
69
Lube Fitting, 3/16 MTD-937-3000
...
70
Drive Pulley MTD-756-0344
...
71
Roller Cable MTD-756-0625
...
72
Frame Support Bracket MTD-784-0406A-0637
...
73
Frame Cover: Upper MTD-784-0379
...
74
Frame Cover: Lower MTD-784-0380
...
75
Auger Cable Bracket MTD-784-0384-0637
...
76
Shift Bracket MTD-784-0403-0637
...
77
Axle: Wheel MTD-738-1164A
...
78
Friction Plate Replaces 784-5617A MTD-790-00011
...
79
Friction Wheel Rubber MTD-718-04034
...
80
Friction Wheel Hub MTD-984-0042C
...
81
Friction Wheel Bearing MTD-618-0063A
...
82
Wheel Assembly, LH MTD-634-0225A
...
82
X-Trac Tire Only MTD-734-2031
...
82
Rim Assembly Not shown MTD-734-1124A
...
82
Air Valve Only Not shown MTD-934-0255
...
83
Wheel Assembly, RH MTD-634-0226A
...
83
X-Trac Tire Only Not shown MTD-734-2031
...
83
Rim Assembly Not shown MTD-734-1124A
...
83
Air Valve Only Not shown MTD-934-0255

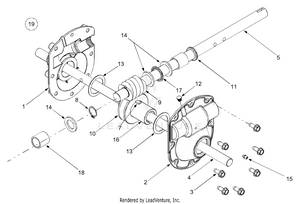

Gear Box

...
...
1
Housing Assembly, Auger, RH MTD-918-0246
...
2
Housing Assembly, Auger, LH MTD-918-0435
...
3
Screw, 5/16-18 x 0.75 MTD-710-1260A
...
4
Axle, Auger MTD-738-0733B
...
5
Shaft, Auger Drive MTD-711-1133
...
6
Key, Hi Pro, 3/16 x 3/4 MTD-714-0126
...
7
#91 Woodruff Key 1/4 x 3/4 MTD-714-0135
...
8
Snap Ring .875 Dia. MTD-716-0111
...
9
Gear, Worm MTD-917-0299
...
10
Gear, Worm, LH MTD-917-1425
...
11
Seal, Oil MTD-921-0145
...
12
Plug, 1/4 x .437 MTD-721-0325
...
13
Washer, Flat, 1.52 x 2.0 MTD-736-0266
...
14
Washer, Flat, .88 x 1.38 MTD-736-0291
...
15
GREASE FITTING MTD-937-3000
...
16
Shaft, Worm Gear MTD-738-0275
...
17
Bearing, Thrust .877 MTD-741-0184
...
18
Sleeve MTD-941-0217
...
19
Auger Gearbox Assembly Complete MTD-618-0436

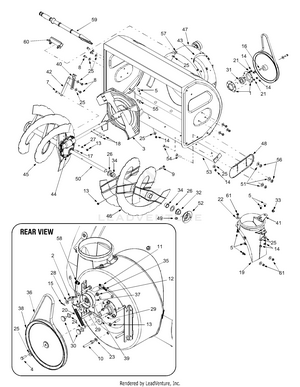

General Assembly

...
...
1
Housing, Bearing MTD-05244B
...
2
Bracket Assembly, Auger Brake MTD-918-0281A
...
3
Impeller , 16" MTD-684-0090B-0637
...
4
SCREW 5/16-18 x .750 MTD-710-1880
...
5
Carriage Bolt 5/16-18 x .750" MTD-710-0451
...
6
Hex Screw, Special 3/8-24 x 1.5" MTD-710-0459A
...
7
Hex Screw 5/16-18 x 1.25" MTD-710-0528
...
8
Self-Tapp. Screw 5/16-12 x .75" MTD-710-0726
...
9
Shear Bolt 5/16-18 x 1.75" MTD-710-0891
...
10
Stud MTD-711-0640
...
11
Ferrule MTD-911-0677
...
12
Jam Nut 3/8-24 MTD-712-0116
...
13
Hex Lock Nut 5/16-18 MTD-712-0429
...
14
HEX NUT 5/16-18 MTD-712-3010
...
15
Hairpin Clip MTD-714-0104
...
16
Key MTD-714-0126
...
17
Key MTD-714-0135
...
18
Spiral Pin MTD-715-0118
...
19
Adapter, Chute, 6" MTD-731-1696B
...
20
Extension Spring MTD-732-0858
...
21
LOCK WASHER 5/16 MTD-936-0119
...
22
5/16 Washer MTD-736-0159
...
23
Lock Washer MTD-736-0169
...
24
Wave Washer MTD-736-0174
...
25
Beleville Washer MTD-736-0242
...
26
Flat Washer MTD-736-0250
...
27
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
28
Flat Washer, .344 x .750 x .120 MTD-936-3008
...
30
Shoulder Screw MTD-738-0281
...
31
Bearing, Self Aligning MTD-941-04024
...
32
Bearing, Flange w/Flats MTD-941-0170
...
33
BUSHING .380 ID MTD-941-0475
...
34
Flange Bushing MTD-741-0494
...
35
Rod, Auger Idler MTD-747-0980A
...
36
V Belt,1/2 x 44 MTD-954-0222A
...
37
Flat Idler MTD-756-0178
...
38
Pulley MTD-756-0243
...
39
Bracket, Auger Idler MTD-784-0385D
...
40
Bracket, Gear Housing Support MTD-784-5076-0637
...
41
BRACKET-CHUTE CRAN MTD-784-5123-0637
...
42
Plate, Gear Housing Support MTD-784-5710-0637
...
43
Bracket, Chute MTD-784-5711-0637
...
44
Gear Assembly MTD-618-0436
...
45
30" SPIRAL ASSEMBLY (RH) MTD-684-04192
...
46
30" SPIRAL ASSEMBLY (LH) MTD-684-04193
...
47
Auger Housing Assembly MTD-684-04006
...
48
Slide Shoe MTD-784-5697
...
49
GREASE FITTING MTD-937-3000
...
50
Axle, Auger MTD-738-0733B
...
51
Bell Washer MTD-736-0105
...
52
Housing, Bearing MTD-784-0315A-0637
...
53
SHAVE PLATE-30" (POWDER BLACK) MTD-784-5715B-0637
...
54
Carriage Screw MTD-710-0389
...
55
Carriage Bolt MTD-710-3168
...
56
Hex Nut 3/8-16 MTD-712-0798
...
57
Screw, 5/16-18 x .75 MTD-710-1260A
...
58
Insert Nut, 3/8-16 MTD-712-0717
...
59
Chute Cleanout Tool MTD-931-2643
...
60
Cleanout Tool Mount MTD-731-11421
...
61
HEX FLANGE NUT MTD-712-3004A

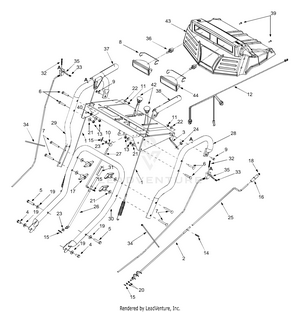

Handle

...
...
1
Cable Assembly: Auger/Drive MTD-646-0012
...
2
Crank, Chute, 26.0 MTD-684-0053B-0637
...
3
Chute Crank Bracket MTD-705-5266-0637
...
4
Hex Screw, 3/8-16 x .88" MTD-710-1879
...
5
Screw, Hex, 3/8-16 x 2.00 Lock MTD-710-04682
...
6
Carriage Bolt 5/16-18 x 1.75" MTD-710-0458
...
7
Carriage Bolt 5/16-18 x 2.5" MTD-710-0572
...
8
Lamp Retainer MTD-747-1136
...
9
Hex Screw 1/4-20 x .75" MTD-710-3015
...
10
Ferrule MTD-911-0677
...
11
Nut, Hex, 1/4-20 MTD-912-0287
...
12
Harness, Light MTD-629-04010A
...
13
HEX NUT 5/16-18 MTD-712-3010
...
14
Hairpin Clip MTD-714-0101
...
15
Hairpin Clip MTD-714-0104
...
16
Chute Crank Knob MTD-720-0201A
...
17
Knob MTD-720-0284
...
18
Push Cap MTD-726-0100
...
19
Bell Washer MTD-736-0105
...
20
Flat Washer MTD-736-0185
...
21
Beleville Washer MTD-736-0242
...
22
SPRING WASHER BELL MTD-736-0270
...
23
FLAT WASHER MTD-736-0275
...
24
BUSHING .380 ID MTD-941-0475
...
25
Upper Chute Crank Rod MTD-747-0624-0637
...
26
Lower Shift Rod MTD-747-0983A
...
27
Upper Shift Rod MTD-747-0997
...
28
Handle, Upper LH MTD-749-0989A-0637
...
29
Upper Handle RH MTD-749-0990A
...
30
Lower Handle MTD-749-0991
...
31
Shift Rod Connector MTD-950-0963
...
32
Oval C-Sunk Screw MTD-710-1625
...
33
Flat Weld Nut MTD-712-0127
...
34
Cable Tie MTD-725-0157
...
35
Trigger Control MTD-746-0950A
...
36
Lamp MTD-925-1658
...
37
Handle Engagement RH MTD-705-5218
...
38
Handle Engagement LH MTD-705-5219
...
39
Screw, #10-16 x .625 MTD-710-04669
...
40
Hex Sems Nut MTD-712-0271
...
41
Hex Lock Nut MTD-712-0429
...
42
SHIFT KNOB MTD-920-0232
...
43
Handle Panel MTD-731-04069
...
44
Light Assembly MTD-925-1672
...
...
...
...
...
Processing
