Troy-Bilt 1028 Storm Tracker 10HP 28" Track Drive (2005) 31AH7L74766 (2005) Snow Thrower

Model: 513212

Save
 Part Not Listed?Part Not Listed?
product name

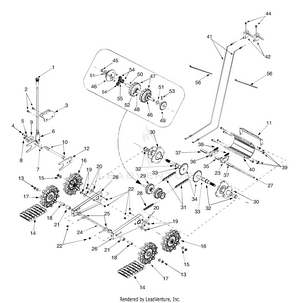

Drive

...
...
1
Grip MTD-720-0223
...
2
Tap Screw, 5/16-12 x.750 MTD-710-0726
...
3
Track Lockout Plate MTD-784-5642
...
4
Hex Cap Screw, 5/16-24 x.75 MTD-710-0157
...
5
Bell Washer,.34 ID x.872 OD MTD-736-0242
...
6
HANDLE ASSEMBLY MTD-684-0038
...
7
Hex Cap Screw, 3/8-24 x 1.5 MTD-710-0459A
...
8
Hex Nut, 3/8-24 MTD-712-0214
...
9
Lift Shaft Drive MTD-748-0353A
...
10
Spacer,.628 ID x.875 OD x.5 MTD-750-0547
...
11
Steering Cable Bracket MTD-784-5609
...
12
Pivot Rod Assembly MTD-684-0009A
...
13
Jam Nut, 1/2-20 MTD-712-0346
...
14
Snow Track MTD-731-1292
...
15
FLAT WASHER .510 x .995 MTD-736-0272
...
16
Track Drive Wheel MTD-731-1538A
...
17
Track Idler Wheel MTD-631-0032A
...
18
Spacer,.51 ID x.75 OD x 1.67 MTD-750-0995
...
19
Screw,.435 x.178-5/16 x.56 MTD-738-0140
...
20
Flat Washer, .442 x 1.38 x .060 MTD-936-0406
...
21
Spacer,.51 ID x 1 OD x 1.34 MTD-750-0909
...
22
Flange Lock Nut, 5/16-18 MTD-712-04063
...
23
LH Dogg Assembly MTD-618-0044
...
24
Axle Assembly MTD-753-05977
...
25
Eye Bolt, 5/16-18 x 3 MTD-710-1231
...
26
Track Side Plate MTD-784-5639
...
27
Actuator Shaft MTD-711-0911
...
28
Chain MTD-713-0233
...
29
Drive Track Shift Assembly MTD-918-0169B
...
30
Track Hub Assembly MTD-683-0024-0637
...
31
Chain MTD-713-0437
...
32
Flange Bearing MTD-941-0339
...
33
Flat Washer,.793 x 1.24 x.06 MTD-736-0287
...
34
Axle Assembly MTD-611-0053
...
35
Spacer,.514 x.630 x 1.59 MTD-750-0904
...
36
RH Dogg Assembly MTD-618-0043
...
37
Spacer, .514 x .632 x 2.44 MTD-750-0903B
...
38
Spring, Extension MTD-932-0209
...
39
Tap Screw, 5/16-18 x 1 MTD-710-0602
...
40
Track Housing MTD-719-0295A
...
41
Track Steering Cable MTD-946-0948A
...
42
Steering Trigger MTD-746-0950A
...
44
Screw, #10-24 x 1.375 MTD-710-1233
...
45
Retaining Ring,.56 MTD-916-0114
...
46
Carrier Ass’y MTD-918-0576A
...
47
Ring Gear MTD-717-1211B
...
48
Snap Ring .625" shaft MTD-916-0115
...
49
13-Tooth Sprocket MTD-713-0414
...
50
Track Steering Drive Shaft MTD-711-0912
...
51
Flat Washer .57 ID x 1.12 OD x .020 MTD-936-0502
...
52
FLAT WASHER MTD-936-0336
...
53
Spiral Pin, 3/16 x 1 MTD-715-0120
...
54
12-Tooth Gear MTD-717-1209A
...
55
18-Tooth Gear MTD-717-1210A
...
56
Cable Tie MTD-725-0157

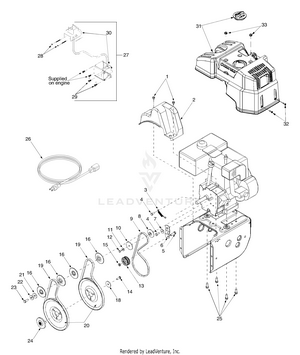

Engine Drive

...
...
1
Hex Washer Screw 1/4-14 x.625 MTD-710-0896
...
2
Belt Cover MTD-731-1324
...
3
Extension Spring MTD-932-0710
...
4
Hex Screw 5/16-24 x.75 MTD-710-0627
...
5
Hex Cap Screw 3/8-16 x 1.25 MTD-710-3005
...
6
Drive Clutch Idler Bracket MTD-05896A
...
7
Shoulder Spacer MTD-748-0234
...
8
Pulley Half MTD-956-0987
...
9
V - Belt MTD-954-0346
...
10
Pulley Half MTD-756-0986
...
11
SPRING WASHER BELL MTD-736-0270
...
12
Hex Cap Screw 1/4-28 x.50 MTD-710-0230
...
13
Flat Idler MTD-756-0313
...
14
Lock Hex Cap Screw 5/16-24 MTD-710-1245B
...
15
Lock Jam Nut 3/8-16 MTD-712-0181
...
16
Pulley Half MTD-756-0569
...
18
Flat Washer MTD-736-0505
...
19
BELT: 3V X 35.00 LG MTD-954-0430C
...
20
Auger Pulley MTD-756-0967
...
21
Flat Washer 3/8 x 1.25 OD MTD-736-0247
...
22
Bell Washer MTD-736-0331
...
23
Hex Cap Screw 3/8-24 MTD-710-0696
...
24
Pulley: Adapter,.75 Dia. MTD-948-0360
...
25
Hex Screw 3/8-16 x 1.0 MTD-710-0654A
...
26
3-Prong Extension Cord MTD-929-0071B
...
27
STARTER MOTOR MTD-TC-33329H
...
28
Hex Screw #6-32 x 2.5 MTD-751428974
...
29
Hex Screw 1/4-20 x.500 MTD-75142896
...
30
Electric Starter MTD-7511A173106
...
31
SHROUD-W/DECALS MTD-984-04014A
...
32
Screw #10-16 x.75 MTD-710-04082
...
33
HEX FLANGE NUT MTD-712-3004A

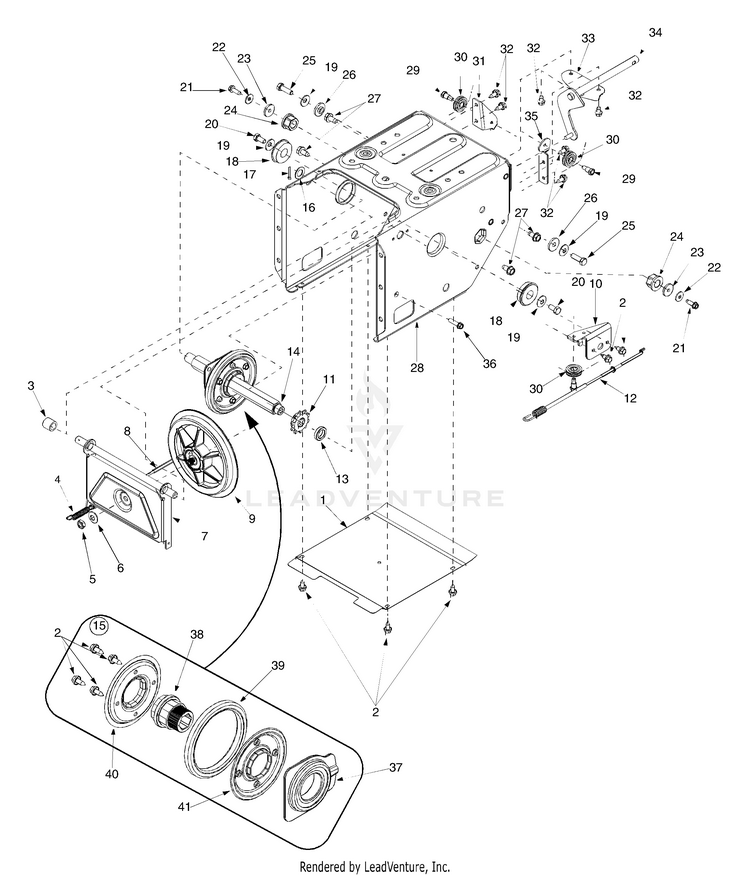

Frame

...
...
1
Track Frame Cover MTD-784-5648A-0637
...
2
Tap Screw 1/4-14 x.625 MTD-710-0896
...
3
Spacer.508 ID x.75 OD MTD-748-0190
...
4
Extension Spring MTD-932-0264
...
5
Jam Nut 3/8-24 MTD-712-0711
...
6
Bell Washer.401 ID x.87 OD MTD-736-0105
...
7
Friction Wheel Support Brkt. Ass'y. MTD-984-0021-0637
...
8
Drive Clutch Cable MTD-946-0898
...
9
Friction Wheel Disc Assembly MTD-956-0012A
...
10
Bracket-Guide MTD-784-5689A-0637
...
11
10T Sprocket MTD-713-0413
...
12
Auger Cable MTD-946-0897
...
13
Spacer, .675 x 1.0 x .23 MTD-950-0997
...
14
Hex Track Shaft MTD-711-1042
...
15
Friction Wheel Hub MTD-984-0042C
...
16
Flat Washer.536 ID x.93 OD MTD-736-0160
...
17
Cotter Pin MTD-714-0474
...
18
Ball Bearing, 17 x 40 x 12 MTD-941-0563
...
19
Bell Washer.34 ID x.872 OD MTD-736-0242
...
20
Hex Cap Screw 5/16-18 x.625 MTD-710-0538
...
21
Tap Screw 1/4-20 x.75 MTD-710-0875
...
22
SPRING WASHER BELL MTD-736-0270
...
23
Flat Washer 1/4 ID x.93 OD MTD-736-0176
...
24
Hex Flange Bearing MTD-741-1111
...
25
Hex Cap Screw 5/16-18 x 1" MTD-710-0643
...
26
Shoulder Spacer MTD-748-0234
...
27
Tap Screw 5/16-12 x.750 MTD-710-0726
...
28
Frame Assembly MTD-984-0031
...
29
Shoulder Screw, 1/4-28, .340 x .355 MTD-738-0924A
...
30
Cable Roller MTD-756-0625
...
31
Drive Cable Guide Bracket MTD-784-5688
...
32
Tap Screw 1/4-20 x.5 MTD-710-0599
...
33
Shift Frame Bracket MTD-784-5590
...
34
Rod Shift Assembly MTD-684-0014B-0637
...
35
Auger Cable Guide Bracket MTD-784-5687A
...
36
Tap Screw 1/4-20 x 1.250 MTD-710-0809
...
37
Friction Wheel Bearing MTD-618-0063A
...
38
Friction Wheel Hub MTD-984-0042C
...
39
Friction Wheel Rubber MTD-935-0243B
...
40
Friction Plate MTD-790-00011
...
41
Friction Plate MTD-790-00010

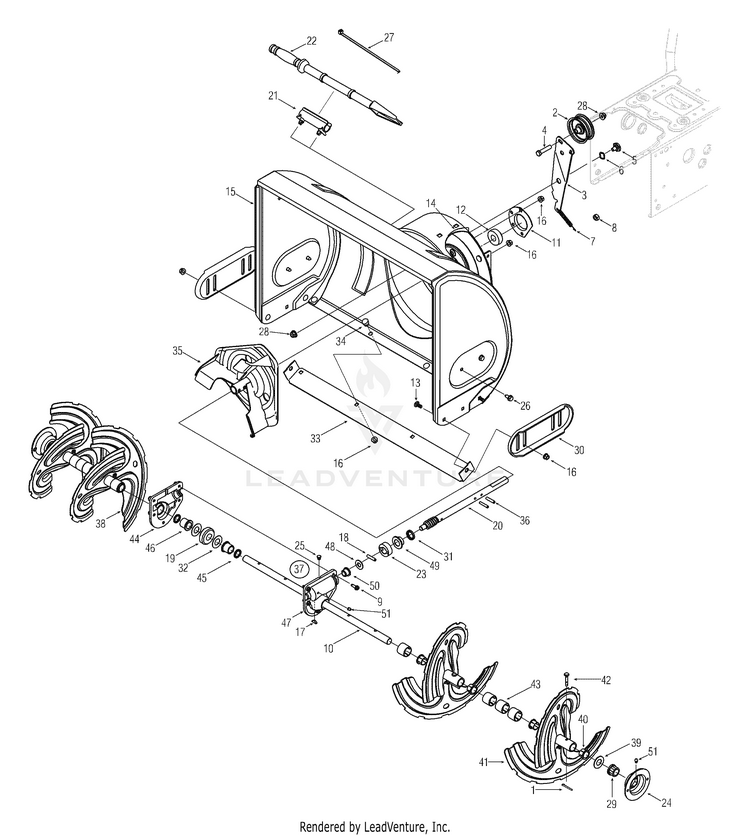

General Assembly

...
...
1
Cotter Pin MTD-714-0507
...
2
Flat Idler MTD-756-0178
...
3
Auger Idler Brkt. MTD-984-0064-0637
...
4
Hex Cap Screw 3/8-16 x 1.75 MTD-710-0347
...
5
Shoulder Screw MTD-738-0281
...
6
Wave Washer MTD-736-0174
...
7
Extension Spring, .38 OD x 3.6 MTD-932-0611
...
8
Hex Lock Nut, 5/16-18 MTD-712-3009
...
9
Self Tapping Screw, 1/4-20 x.75 MTD-710-0642
...
10
28" AUGER SHAFT MTD-711-06145
...
11
Housing MTD-05931A
...
12
Flange Ball Bearing, .75 x 1.85 MTD-941-0309
...
13
Carriage Bolt, 5/16-18 x.75 MTD-710-0451
...
14
Chute Reinforcement MTD-705-5226
...
15
28" AUGER HOUSING (MTD RED) MTD-684-04132A-0638
...
16
Flange Lock Nut 5/16-18 MTD-712-04063
...
17
KEY 3/16 x 5/8 H MTD-914-0161
...
18
Dowel Pin MTD-715-04021
...
19
WORM GEAR 20T MTD-917-04861
...
20
IMPELLER SHAFT MTD-717P0526
...
21
Cleanout Tool Mount MTD-731-11421
...
22
Chute Cleanout Tool MTD-931-2643
...
23
Thrust Collar MTD-718-04071
...
24
Bearing, 1" Hex MTD-790-00087A-0637
...
25
Grease Plug MTD-721-0325
...
26
Hex Screw 5/16-12 MTD-710-0726
...
27
Cable Tie MTD-725-0157
...
28
Flange Lock Nut 3/8-16 MTD-712-04065
...
29
Hex Flange Bearing, .75 ID MTD-941-0245
...
30
Skid Shoe MTD-790-00091
...
31
Grease Seal MTD-721-0327
...
32
Flat Washer,.76 x 1.5 x.030 MTD-736-0351
...
33
Shave Plate, 28" MTD-790-00118
...
34
Carriage Bolt 5/16-18 x 1.00 MTD-710-0451
...
35
12" IMPELLER (3 BLADE) (POWDER BLACK) MTD-684-06276-0637
...
36
Pin MTD-715-0114
...
37
Gear Assembly Complete, 28" MTD-618-04206
...
38
AUGER SPIRAL (RH) MTD-684-04108A
...
39
Flat Washer MTD-736-0188
...
40
FLANGE BUSHING MTD-741-0493C
...
41
AUGER SPIRAL (LH) MTD-684-04107A
...
42
Shear Pin, .25 x 1.50 MTD-738-04124A
...
43
Spacer, 1.25OD x.75ID x 1.00 Lg. MTD-731-04870
...
44
REDUCER HOUSING ASSEMBLY (RH) (Incl ref. 45 & 46) MTD-918-0123A
...
45
Oil Seal MTD-721-0179
...
46
FLANGE BEARING MTD-741-0661B
...
47
REDUCER HOUSING ASSEMBLY (LH) (Incl ref. 45 & 46) MTD-918-0124A
...
48
Flat Washer,.51 x 1.12 x.06 MTD-736-3084
...
49
Flange Bearing,.75 x 1.0 x.59 MTD-741-0662
...
50
Flange Bearing,.503 ID x.75 OD MTD-741-0663
...
51
GREASE FITTING MTD-937-3000

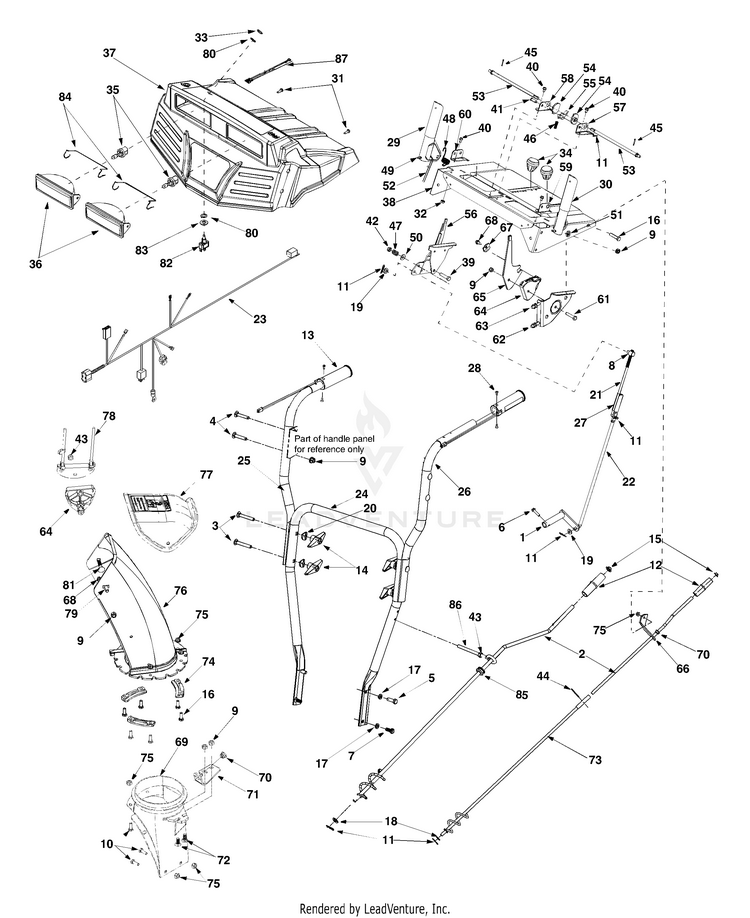

Handle

...
...
1
Shift Arm Assembly MTD-684-0008A-0637
...
2
Upper Chute Crank Model 1028 MTD-747-0737-0637
...
xx
Chute Crank Ass'y Model 1130 MTD-984-0022
...
3
Carriage Bolt 5/16-18 x 2.5" MTD-710-0572
...
4
Carriage Bolt 5/16-18 x 1.75 MTD-710-0458
...
5
Hex Bolt 5/16-18 x 1.0 MTD-710-0643
...
6
TT Screw 1/4-20 x 1.0 MTD-710-0788
...
7
Hex Bolt 5/16-18 x 0.75 MTD-710-1880
...
8
Ferrule MTD-911-0677
...
9
Flange Lock Nut MTD-712-04063
...
10
Carriage Screw, 1/4-20 x.75 MTD-710-0703
...
11
Hairpin Clip MTD-714-0104
...
12
Chute Directional Control Knob MTD-720-0201A
...
13
Heated Grip Model 1028 MTD-725-1757
...
xx
Grip Model 1130 MTD-720-0274
...
14
Handle Knob Assembly MTD-720-0284
...
15
Push Cap MTD-726-0100
...
16
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
...
17
LOCK WASHER 5/16 MTD-936-0119
...
18
Flat Washer MTD-736-0185
...
19
FLAT WASHER MTD-736-0275
...
20
Saddle Washer MTD-736-0451
...
21
Upper Shift Rod MTD-747-0620A
...
22
Lower Shift Rod MTD-747-0621
...
23
HARNESS ASSEMBLY Model 1028 MTD-929-04007
...
24
Lower Handle MTD-749-04138A
...
25
Upper Handle RH MTD-749-0952A
...
26
Upper Handle LH MTD-749-0953A
...
27
Shift Rod Connector MTD-950-0963
...
28
Screw, #10-16 x.625 MTD-710-0837
...
29
HANDLE-ENGAGEMENT (RH) MTD-684-0036A
...
30
HANDLE-ENGAGEMENT (LH) MTD-684-0037B
...
31
Screw, #10-16 x .625 MTD-710-04669
...
32
Hex Sems Nut 1/4-20 MTD-712-0271
...
33
Jam Nut, 15/32-32 Model 1028 MTD-712-0693
...
34
SHIFT KNOB MTD-920-0232
...
35
Headlight Bulb Model 1130 equipped with one (1) MTD-925-1759
...
36
Light Assembly Model 1130 equipped with one (1) MTD-925-1672
...
37
HANDLE PANEL 7 STYLE Model 1028 MTD-931-04068
...
xx
Handle Panel Model 1130 MTD-731-04067
...
38
Panel, Handle MTD-684-0102A
...
39
Hex Bolt 3/8-24 x 1.5 MTD-710-0459A
...
40
TT Screw 1/4-20 x 0.5 MTD-710-0599
...
41
Clevis Pin MTD-711-0653
...
42
Jam Lock Nut 3/8-24 MTD-712-0116
...
43
HEX NUT 5/16-18 MTD-712-3010
...
44
Click Pin Model 1028 MTD-714-0145
...
45
Cotter Pin MTD-714-0507
...
46
Compression Spring MTD-732-0145
...
47
Compression Spring MTD-732-0193
...
48
Torsion Spring MTD-732-0746
...
49
Rubber Bumper MTD-735-0199A
...
50
Bell Washer MTD-736-0105
...
51
Flat Washer MTD-736-0509
...
52
Cable "Z" Fitting MTD-946-0778
...
53
Cam Rod MTD-747-0877
...
54
Handle Lock Cam MTD-748-0362
...
55
Handle Lock Pawl MTD-948-0363
...
56
Shift Handle MTD-753-05395
...
57
Handle Support Bracket - LH MTD-784-5679-0637
...
58
Handle Support Bracket - RH MTD-784-5680-0637
...
59
Support Bracket LH MTD-784-5681
...
60
Handle Support Bracket - RH MTD-784-5682-0637
...
61
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
62
Chute Deflector Cable w/ Clip MTD-946-0901
...
63
Chute Deflector Control Cable MTD-946-0896
...
64
Chute Cable Guide MTD-731-1313C
...
65
Chute Tilt Handle MTD-784-5604A-0637
...
66
Chute Crank Bracket Model 1028 MTD-705-5266-0637
...
67
Special Washer MTD-736-0506A
...
68
Hi-Lo Screw 1/4-15 x 0.75 MTD-710-0895
...
69
Adapter Chute MTD-731-1379D
...
70
BUSHING .380 ID MTD-941-0475
...
71
Chute Crank Bracket MTD-784-5647-0637
...
72
Carriage Bolt 5/16-18 x 0.75 MTD-710-0451
...
73
Crank, Chute, 26.0 Model 1028 MTD-684-0053B-0637
...
74
Flange Keeper MTD-731-0851A
...
75
Flange Lock Nut 1/4-20 MTD-712-04064
...
76
Lower Chute MTD-731-1300E
...
77
UPPER REMOTE CHUTE WITH LABEL MTD-731-04427B
...
78
Cable Bracket MTD-784-5594
...
79
Carriage Bolt 5/16-18 x 1.0 MTD-710-04071
...
80
Toggle Switch Lock Ring Model 1028 MTD-716-0398
...
81
Carriage bolt 5/16-18 x 1.5 MTD-710-0262
...
82
Toggle Switch: Single Throw Model 1028 MTD-925-1756
...
83
FLAT WASHER.469 ID x .88 OD Model 1028 MTD-936-0226
...
84
Headlight Retainer Model 1130 equipped with one (1) MTD-747-1136
...
85
Rubber Grommet Model 1130 MTD-735-0234
...
86
Eye Bolt Model 1130 MTD-747-0697
...
87
Halogen Light Harness Model 1130 MTD-929-0059
...
...
...
...
...
Processing
