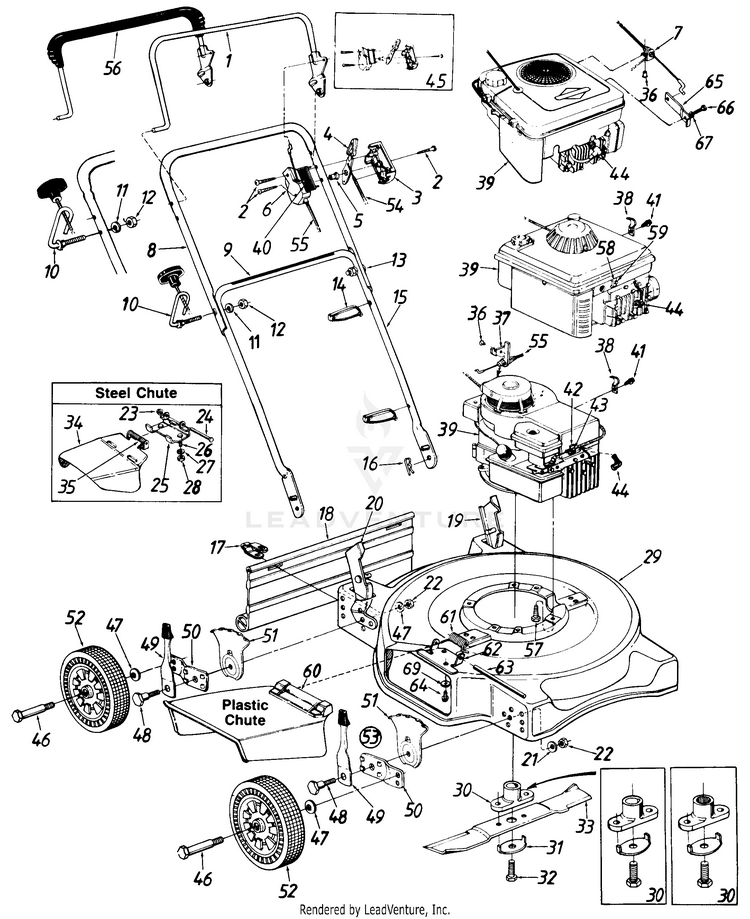

Timberland Mdl 119-074R041 Push Walk-Behind Mower

Model: Timberland Mdl 119-074R041

Save
 Part Not Listed?Part Not Listed?
product name

Parts

...
...
1
CONTROL HANDIE ASS'Y.-L.H. (Std.) MTD-14321
...
2
Truss Mach. Scr. #12 x 1.5" Lg. MTD-710-0796
...
3
PANEL MTD-731-0817
...
4
Throttle Control Lever MTD-931-0972
...
5
CONROL DISC PIN MTD-731-0524
...
6
CIUTCH PANEL HALF MTD-731-0816
...
7
BRACKET-CA (074R, 084R) MTD-16703
...
8
UPPER HANDLE MTD-749-0755
...
xx
UPPER HANDLE MTD-749-0754
...
9
Instruction Label-Handle MTD-777-5776
...
10
SCREW-RECOIL HANDLE GUIDE MTD-710-0842B
...
11
Lock Wash. 5/16" I.D. MTD-936-0119
...
12
HEX NUT 5/16-18 MTD-712-3010
...
13
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
14
Cable Tie MTD-725-0157
...
15
Lower Handle MTD-749-0928A-0637
...
xx
Lower Handle MTD-749-0928A-0637
...
16
Hairpin Cotter MTD-714-0104
...
17
HINGE CLIP MTD-17098P
...
18
Rear Flap MTD-731-0872B
...
19
BRACKET ASSEMBLY-H MTD-17189
...
20
BRACKET ASSY-HDLE-RH MTD-17188
...
21
BELL WASHER MTD-936-0356
...
22
Hex Nut 3/8-16 Thd.* MTD-712-0798
...
23
PUSH NUT (Optional Part) MTD-726-0106
...
24
PIVOT PIN (Optional Part) MTD-711-0555
...
25
ADAPTER PLATE (Optional Part) MTD-11130
...
26
Hex Bolt 1/4-20 x .50" Lg. (Optional Part) MTD-910-0289
...
27
L-Wash. 1/4" I.D. (Optional Part) MTD-936-0329
...
28
HEX NUT 1/4-20 (Optional Part) MTD-912-0287
...
29
DECK ASSEMBLY-20IN MTD-17036
...
xx
DECK ASSEMBLY-22IN MTD-97046
...
30
KIT-BLADE MTD-753-0462
...
xx
SPLINED BLADE ADAPTER KIT MTD-753-0485
...
31
KIT-BLADE MOUNTING MTD-753-0525
...
32
Hex Bolt 3/8-24 x 1.5" Lg. (Used w/Keyed Adapter) MTD-710-1044
...
xx
Hex Bolt 7/16-20 x 1.5" Lg. (Used w/Splined Adapter) MTD-710-0757
...
33
20" BLADE MTD-742-0520
...
xx
22" BLADE MTD-742-0522
...
34
CHUTE DEFLECTOR (Optional Part) MTD-931-1034B
...
35
TORSION SPRING (Optional Part) MTD-732-0253
...
36
RIVET (B&S) MTD-728-0171
...
37
BRACKET-CA (Model 072R, 076R, 079R, 082R, 086R, 089R Only) MTD-14924
...
38
CASING CLAMP (Model 072R, 076R, 079R, 082R, 086R, 089R Only) MTD-12894A
...
39
Engine MTD-NA
...
40
Throttle Label (072R, 073R, 075R, 077R, 082R, 083R, 085R, 087R) MTD-777-5773
...
xx
Throttle Label (074R, 076R, 079R, 084R, 086R, 089R) MTD-777-5774
...
41
Hex B-Tap Scr. #10 x .38" (Model 072R, 076R, 079R, 082R, 086R, 089R Only) MTD-910-0429
...
42
CLAMP-CONDUIT (072R, 082R) MTD-751-0369
...
43
Hex AB-Tap Scr. #8 x .38" Lg. (072R, 082R) MTD-710-0227
...
44
INSULATOR-SPARK PLUG (Optional Part) MTD-735-0639
...
45
CONTROL HOUSING COMP. MTD-753-0430
...
46
Axle Bolt MTD-NA
...
xx
SCREW 3/8-16X1.875 GR2 MTD-710-1020
...
xx
Axle Bolt MTD-738-0102
...
47
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
48
Shld. Bolt .50" Dia. x .357" MTD-738-0507B
...
49
Front Spring Lever MTD-94832
...
50
Pivot Bar MTD-15262B
...
51
Height Adjustment Plate MTD-787-01290A
...
52
Wheel Ass'y. Comp. MTD-NA
...
xx
WHEEL ASSEMBLY W/TIRE MTD-734-1162A
...
xx
7" WHEEL ASS'Y. COMP. MTD-734-1161A
...
xx
WHEEL ASSEMBLY W/TIRE (Use Axle Bolt 710-1020) MTD-734-0645
...
xx
WHEEL ASSEMBLY (Use Axle Bolt 710-1020) MTD-734-1259
...
xx
WHEEL ASSEMBLY W/TIRE (Use Axle Bolt 738-0102) MTD-734-0924
...
xx
T TREAD (Use Axle Bolt 738-0102) MTD-734-1260
...
xx
Wheels - Front (Use Axle Bolt 710-1020) MTD-753-08093
...
xx
ASS'Y. COMP. (WAFFLE TREAD) (Use Axle Bolt 738-0102) MTD-734-0812
...
53
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
54
Throttle Wire 55" Lg. (072R, 076R, 079R) MTD-946-0671A
...
xx
Throttle Control Wire 39" Lg. (073R, 075R) MTD-946-0630A
...
xx
Throttle Cable (074R, 077R, 084R, 087R) MTD-946-1115
...
xx
Throttle Wire 55" Lg. (082R, 086R, 089R) MTD-946-0671A
...
xx
Throttle Cable (083R, 085R) MTD-946-1115
...
55
THROTTLE CABLE (072R, 076R, 079R, 082R, 086R, 089R) MTD-746-0476A
...
xx
49" CONTROL CABLE (073R, 075R, 083R, 085R MTD-946-0478A
...
xx
CONTROL CABLE (074R, 084R) MTD-946-0477A
...
xx
49" CONTROL CABLE (077R, 087R) MTD-946-0478A
...
56
BAIL (LH) (Deluxe) MTD-731-0609
...
57
Hex L-Wash. Hd. Scr. 3/8-16 x 1 on Lg. MTD-710-0654A
...
58
CLIP-CASING (076R, 079R, 086R, 089R) MTD-751-0463
...
59
Hex Wash. Hd. Self-Tap Scr. (076R, 079R, 086R, 089R) MTD-710-0651
...
60
CHUTE DEFLECTOR MTD-931-1034B
...
61
Torsion Spring MTD-932-0593
...
62
PLATE-ADAPTER MTD-17032A
...
63
Hinge Pin MTD-747-0710A
...
64
Hex Self-Tap Scr. 1/4-20 x 5" Lg. MTD-710-0599
...
65
Mounting Bracket (074R, 084R) MTD-16704
...
66
Truss Mach. Scr. #10-24 x 5" Lg. (074R, 084R) MTD-710-0473
...
67
L-Wash. #10 I.D. (074R, 084R) MTD-736-0722
...
xx
L-Wash. 1/4" I.D. MTD-936-0329
...
69
SPRING WASHER BELL MTD-736-0270
...
...
...
...
...
