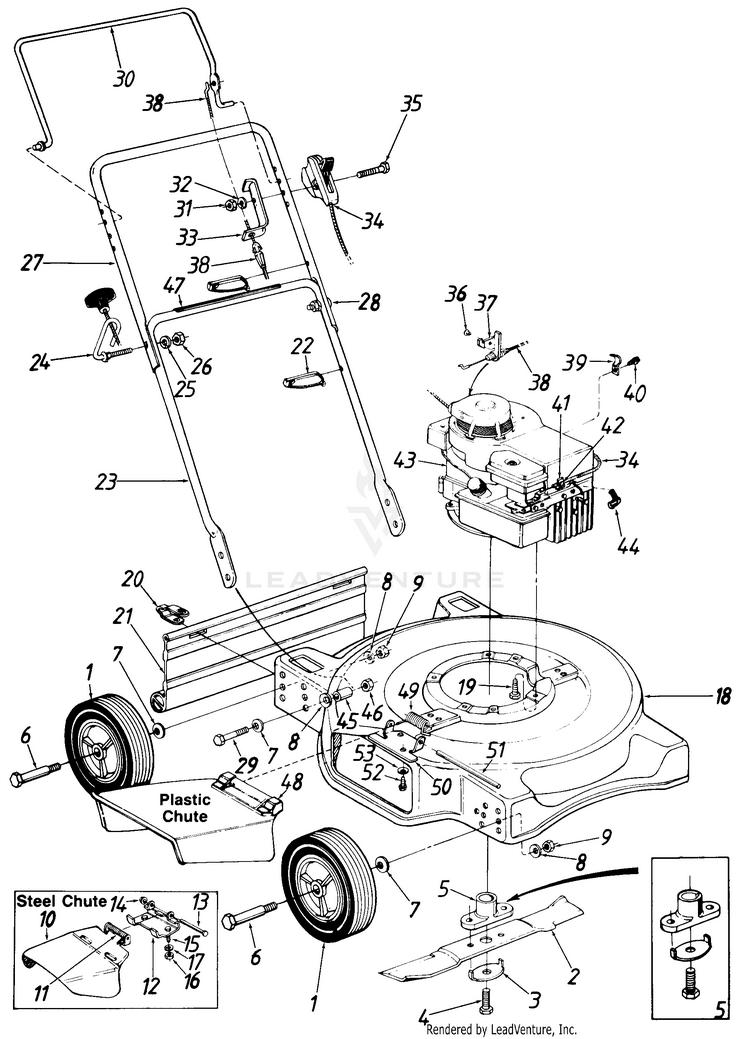

Timberland Mdl 119-050R041 Push Walk-Behind Mower

Model: Timberland Mdl 119-050R041

Save
 Part Not Listed?Part Not Listed?
product name

Parts

...
...
1
Wheel Ass'y. Complete MTD-NA
...
xx
WHEEL ASSEMBLY W/TIRE MTD-734-1170
...
xx
PLASTIC RIM (7 x 1.5) MTD-734-1165
...
xx
Wheel, 8" MTD-734-04585
...
xx
Twinline Tread (7 x 1.5) MTD-734-0639
...
xx
Waffle Tread (7 x 1.5) MTD-734-0637
...
xx
WHEEL ASSEMBLY W/TIRE MTD-734-0643
...
xx
WHEEL ASSEMBLY W/TIRE MTD-734-0645
...
xx
WHEEL ASSEMBLY W/TIRE- MTD-734-0876
...
xx
FRONT WHEEL-WAFFLE TREAD (7 x 1.50) MTD-734-0893
...
xx
WHEEL ASSEMBLY W/TIRE-8 x 1.75 TL MTD-734-0661
...
xx
ASS'Y. COMP. (WAFFLE TREAD) MTD-734-0812
...
2
20" BLADE MTD-742-0520
...
xx
22" BLADE MTD-742-0522
...
3
KIT-BLADE MOUNTING MTD-753-0525
...
4
Hex Bolt 3/8-24 x 1.5" Lg. MTD-710-1044
...
5
KIT-BLADE MTD-753-0462
...
6
SCREW:SHLDR:0.498X1.630:3/8-16 MTD-738-0533
...
7
Bell-Wash. .380" I.D. x .88" MTD-736-0105
...
8
Bell-Wash. .39" I.D. x 1.13" MTD-736-0331
...
9
Hex Nut 3/8-16 Thd.* MTD-712-0798
...
10
CHUTE DEFLECTOR (Optional Part) MTD-931-1034B
...
11
TORSION SPRING (Optional Part) MTD-732-0253
...
12
ADAPTER PLATE (Optional Part) MTD-11130
...
13
PIVOT PIN (Optional Part) MTD-711-0555
...
14
PUSH NUT (Optional Part) MTD-726-0106
...
15
Hex Bolt 1/4-20 x .50" Lg. (Optional Part) MTD-910-0289
...
16
HEX NUT 1/4-20 (Optional Part) MTD-912-0287
...
17
L-Wash. 1/4" I.D. MTD-936-0329
...
18
20" Deck Ass'y. MTD-17038
...
xx
22" Deck Ass'y. MTD-17043
...
19
Hex Wash. Hd. Scr. 3/8-16 x 1" Lg. MTD-710-0654A
...
20
HINGE CLIP MTD-17098P
...
21
Rear Flap MTD-731-0872B
...
22
Cable Tie MTD-725-0157
...
23
Lower Handle MTD-749-0928A-0637
...
xx
Lower Handle MTD-749-0928A-0637
...
24
SCREW-RECOIL HANDLE GUIDE MTD-710-0842B
...
25
Lock Wash. 5/16" I.D. MTD-936-0119
...
26
HEX NUT 5/16-18 MTD-712-3010
...
27
UPPER HANDLE MTD-749-0755
...
xx
UPPER HANDLE MTD-749-0754
...
28
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
29
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
30
HANDLE-CONTROL MTD-747-0550
...
31
Hex Nut 1/4-28 Thd. MTD-712-0138
...
32
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
33
BRACKET-CA MTD-16201
...
34
Throttle Control Ass'y. Comp.- 0 51 .6211 (B&S) MTD-946-0802A
...
xx
THROTTLE CONTROL 42.02" (Tecumseh) (Optional Part) MTD-946-0832A
...
35
SCREW 1/4-28 x 1.75 GR5 MTD-710-0559
...
36
RIVET (B&S) MTD-728-0171
...
37
BRACKET-CA (B&S) MTD-14924
...
38
Control Cable (B&S) MTD-946-0553
...
xx
Control Cable (Tec.) MTD-946-0557
...
39
CASING CLAMP (B&S) MTD-12894A
...
40
Hex B-Tap Scr. #10 x .38" (B&S) MTD-910-0429
...
41
CLAMP-CONDUIT (B&S) MTD-751-0369
...
42
Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg. (B&S) MTD-710-0227
...
43
Engine MTD-NA
...
44
INSULATOR-SPARK PLUG (Optional Part) MTD-735-0639
...
45
SPACER MTD-750-0727
...
46
Hex L-Nut 3/8-24 Thd. MTD-912-0355
...
47
Instruction Label-Handle MTD-777-5776
...
48
CHUTE DEFLECTOR MTD-931-1034B
...
49
Torsion Spring MTD-932-0593
...
50
PLATE-ADAPTER MTD-17032A
...
51
Hinge Pin MTD-747-0710A
...
52
Hex Self-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
53
SPRING WASHER BELL MTD-736-0270
...
...
...
...
...
