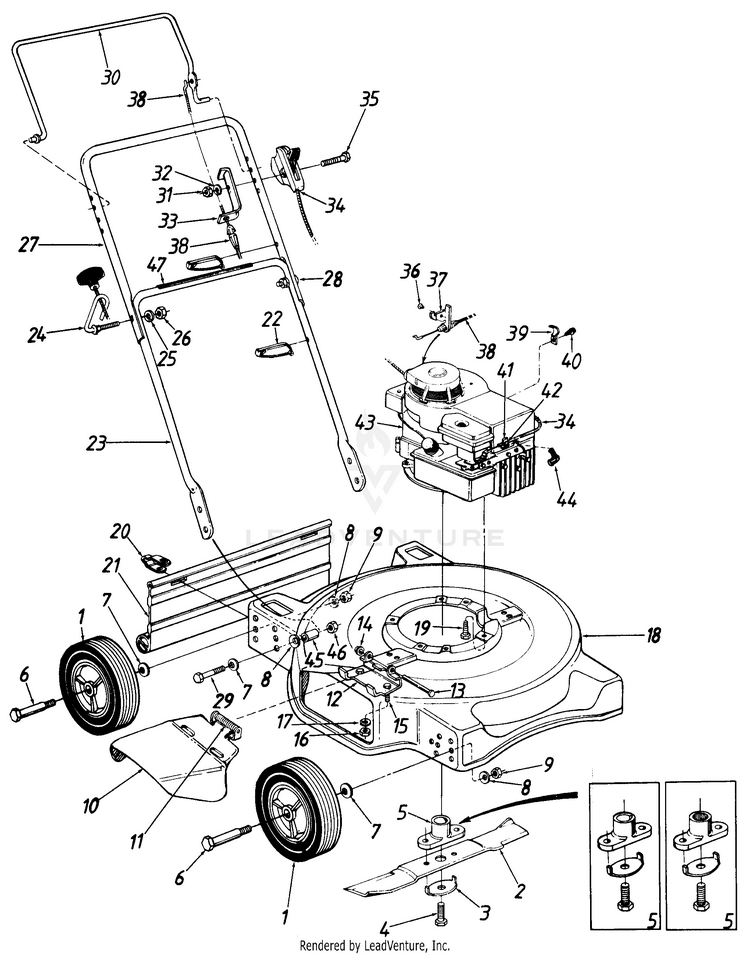

Timberland Mdl 118-050R041 Push Walk-Behind Mower

Model: Timberland Mdl 118-050R041

Save
 Part Not Listed?Part Not Listed?
product name

Parts

...
...
1
Wheel Ass'y. Complete MTD-NA
...
2
20" BLADE MTD-742-0520
...
xx
22" BLADE MTD-742-0522
...
3
KIT-BLADE MOUNTING MTD-753-0525
...
4
Hex Cap Screw 3/8-24 x 1.5 (Used w/Keyed Adaptor) MTD-710-0459A
...
xx
Hex Bolt 7/16-20 x 1.5" Lg. (Used w/Splined Adaptor) MTD-710-0757
...
5
KIT-BLADE MTD-753-0462
...
xx
SPLINED BLADE ADAPTER KIT MTD-753-0485
...
6
Shld. Bolt .498" Dia. x 1.64" Lg. (Refer to axle bolt & wheel information on related diagram) MTD-NA
...
7
Bell-Wash. .380" I.D. x .88" O.D. MTD-736-0105
...
8
Bell-Wash. .39 I.D. x 1.13 O.D. MTD-736-0331
...
9
Hex Nut 3/8-16 Thd.* MTD-712-0798
...
10
CHUTE DEFLECTOR MTD-931-1034B
...
11
TORSION SPRING MTD-732-0253
...
12
ADAPTER PLATE MTD-11130
...
13
PIVOT PIN MTD-711-0555
...
14
PUSH NUT MTD-726-0106
...
15
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
16
HEX NUT 1/4-20 MTD-912-0287
...
17
L-Wash. 1/4" I.D. MTD-936-0329
...
18
20" Deck Ass'y. MTD-17038
...
xx
22" Deck Ass'y. MTD-17043
...
19
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
20
HINGE CLIP MTD-17098P
...
21
Rear Flap MTD-731-0872B
...
22
Cable Tie MTD-725-0157
...
23
Lower Handle MTD-749-0928A-0637
...
24
OPE GUIDE BOLT MTD-710-0842
...
25
Lock Wash. 5/16" I.D. MTD-936-0119
...
26
HEX NUT 5/16-18 MTD-712-3010
...
27
UPPER HANDLE MTD-749-0754
...
28
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
29
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
30
HANDLE-CONTROL MTD-747-0550
...
31
Hex Nut 1/4-28 Thd.* MTD-712-0138
...
32
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
33
BRACKET-CA MTD-16201
...
34
Throttle Control Ass'y. Comp.- 0 51 .6211 (B&S) MTD-946-0802A
...
xx
THROTTLE CONTROL 42.02" (Tecumseh) Optional MTD-946-0832A
...
35
SCREW 1/4-28 x 1.75 GR5 MTD-710-0559
...
36
RIVET (B&S) MTD-728-0171
...
37
BRACKET-CA (B&S) MTD-14924
...
38
Control Cable 39" (B&S) MTD-946-0550
...
xx
Control Cable (Tec.) MTD-946-0557
...
39
CABLE CLAMP (B&S) MTD-12894
...
40
Hex B-Tap Scr. #10 x .38" (B&S) MTD-910-0429
...
41
CLAMP-CONDUIT (B&S) MTD-751-0369
...
42
Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg. (B&S) MTD-710-0227
...
43
Engine MTD-NA
...
44
INSULATOR-SPARK PLUG (Optional) MTD-735-0639
...
45
SPACER MTD-750-0727
...
46
Hex Lock Nut 3/8-24 Thd. MTD-712-0214
...
47
Instruction Label-Handle MTD-777-5776
...
...
...
...
...
