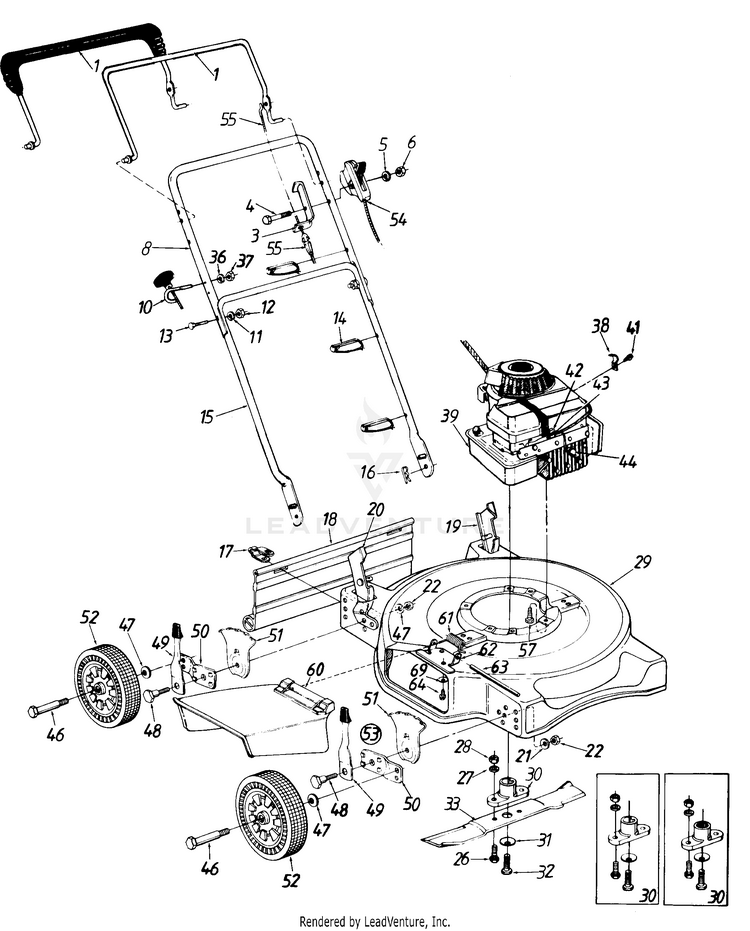

Timberland Mdl 074R Push Walk-Behind Mower

Model: Timberland Mdl 074R

Save
Part Not Listed?Part Not Listed?

product name

Parts

...
...
1
Control Handle Ass'y. (Std.) MTD-747-0748

...
xx
HANDLE ASSEMBLY MTD-731-1135

...
xx
SPRING WASHER BELL MTD-736-0270

...
3
Cable Brkt. MTD-17174

...
4
Hex Bolt 1/4-20 x 1.75" Lg. MTD-710-0136

...
xx
Hex Bolt 1/4-20 x 2" Lg. (Models 074R, 076R, 078R, 084R, 086R & 088R Only) MTD-710-0501

...
xx
Hex Bolt 1/4-20 x 1.25" Lg. (Used without Throttle Control) MTD-710-0106

...
5
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175

...
6
Hex Nut 1/4-20 Thd. MTD-912-0287

...
8
Upper Handle MTD-749-0756A

...
10
Rope Guide MTD-747-0779

...
11
Lock Wash. 5/16" I.D. MTD-936-0119

...
12
HEX NUT 5/16-18 MTD-712-3010

...
13
Curved Carriage Bolt 5/16-18 x 1.38" Lg. MTD-710-0671

...
14
Cable Tie MTD-725-0157

...
15
Lower Handle MTD-749-0928A-0637

...
16
Hairpin Cotter MTD-714-0104

...
17
Hinge Clip MTD-17098P

...
18
Rear Flap MTD-731-0872B

...
19
Handle Bracket Ass'y.-L.H. MTD-17189

...
20
Handle Bracket Ass'y.-R.H. MTD-17188

...
21
Bell Washer .39" I.d. x 1.38" O.D. MTD-936-0356

...
22
Hex Nut 3/8-16 Thd. MTD-712-0798

...
26
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1055

...
27
L-Wash. 3/8" I.D. MTD-736-0169

...
28
Hex Nut 3/8-24 Thd. MTD-712-0241

...
29
20" Deck Ass'y. MTD-17036

...
xx
22" Deck Ass'y. MTD-97046

...
30
Blade Adapter Kit (Keyed) MTD-753-0484

...
xx
Blade Adapter Kit (Splined) MTD-753-0485

...
31
Bell-Wash. .39" I.D. (Used w/ Keyed Adapter) MTD-736-0452

...
xx
Bell-Wash. .46" I.D. (Used w/ Splined Adapter) MTD-936-0453

...
32
Hex Bolt 3/8-24 x 1.5" Lg. (Used w/Keyed Adapter) MTD-710-1044

...
xx
Hex Bolt 7/16-20 x 1.5" Lg. (Used w/Splined Adapter) MTD-710-0757

...
33
20" Blade MTD-742-0520

...
xx
22" Blade MTD-742-0522

...
36
L-Wash. 1/4" I.D. MTD-936-0329

...
37
Hex Nut 1/4-20 Thd. MTD-912-0287

...
38
Cable Clampt MTD-12894A

...
39
Engine MTD-NA

...
41
Hex B-Tap Scr. #10 x .38" (Models 070R, 072R, 080R & 082R Only) MTD-910-0429

...
42
Cable Clamp (Models 070R, 072R, 080R & 082R Only) MTD-751-0369

...
43
Hex AB-Tap Scr. #8 x .38" (Models 070R, 072R, 080R & 082R Only) MTD-710-0227

...
44
Spark Plug Boot (Optional) MTD-735-0639

...
46
Axle Bolt MTD-NA

...
xx
Axle Bolt MTD-738-0102

...
xx
Axle Bolt MTD-738-0144

...
47
Bell-Wash. .400" I.D. x .88" MTD-736-0105

...
48
Shld. Bolt .50" Dia. x .357" MTD-738-0507B

...
49
Front Spring Lever MTD-94832

...
50
Pivot Bar MTD-15262B

...
51
Height Adjustment Plate MTD-787-01290A

...
52
Wheel Ass'y. Comp. MTD-NA

...
xx
Waffle Tread (8") Wheels w/o Brgs. MTD-734-1162A

...
xx
Waffle Tread (7") Wheels w/o Brgs. MTD-734-1161A

...
xx
Wheel, 8" MTD-734-04585

...
xx
Rib Tead (7") Wheels w/o Brgs. MTD-734-1170

...
xx
Wheels w/o Bearings (Gray - No Hub Cap) MTD-734-1781

...
53
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761

...
xx
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761

...
54
Throttle Control Ass'y. Comp.- 0 51 .6211 (Models 070R, 072R, 080R & 082R Only) MTD-946-0802A

...
xx
Throttle Control Ass'y. Comp.-49" Lg. (Models 074R, 076R, 078R, 084R, 086R, &088R Only) MTD-946-0821A

...
xx
THROTTLE CONTROL 42.02" (071R, 073R, 075R, 079R) MTD-946-0832A

...
xx
THROTTLE CONTROL 42.02" (081R, 083R, 085R, 089R) MTD-946-0832A

...
xx
THROTTLE CONTROL 42.02" (077R, 087R) MTD-946-0832A

...
55
Control Cable (070R, 072R, 074R, 076R, 078R, 084R, 086R, 088R) MTD-946-0553

...
xx
Control Cable 39" (080R, 082R) MTD-946-0550

...
xx
Control Cable (077R, 087R) MTD-946-0557

...
xx
Control Cable - 49" (071R, 073R, 075R, 079R, 081R, 083R, 085R, 089R) MTD-946-0552

...
57
Hex L-Wash. Hd. Scr. 3/8-16 x 1.0" Lg. MTD-710-0654A

...
60
Chute Deflector Ass'y. MTD-931-1034B

...
61
Torsion Spring MTD-932-0593

...
62
Chute Deflector Adapter MTD-17032A

...
63
Hinge Pin MTD-747-0710A

...
64
Hex Self-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599

...
69
UNKNOWN MTD-NA
...
...
...
