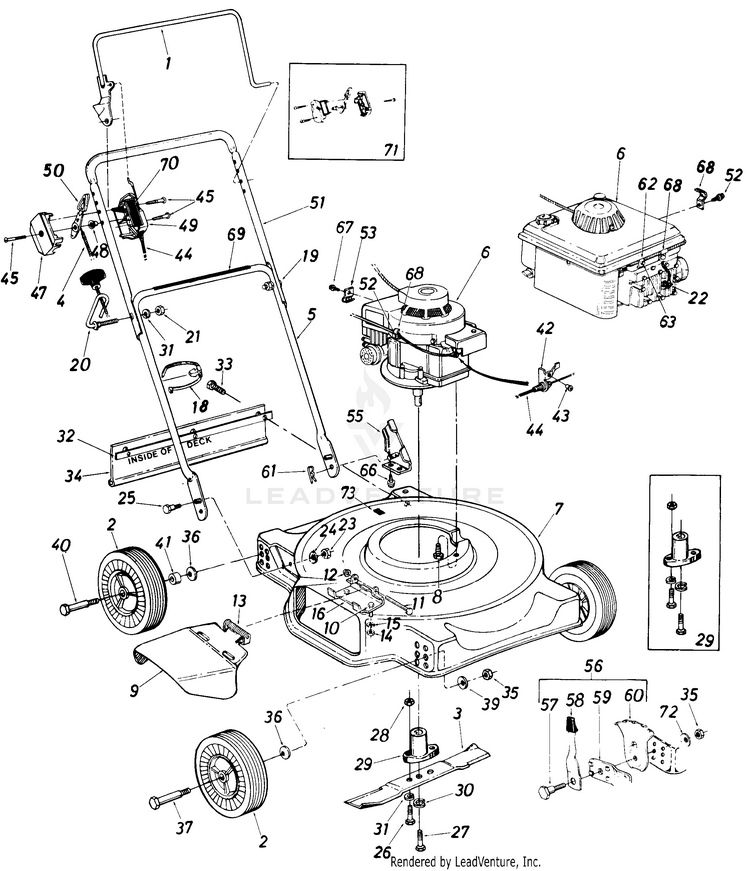

Timberland Mdl 072 Push Walk-Behind Mower

Model: Timberland Mdl 072

Save
 Part Not Listed?Part Not Listed?
product name

Parts

...
...
1
Control Handle Ass'y.-R.H. MTD-14320
...
xx
Control Handle Ass'y.-L.H. (Not Shown) MTD-14321
...
2
Wheel Ass'y. Comp. MTD-NA
...
xx
Plastic Rim (7 x 1.5) MTD-734-0840
...
xx
Plastic Rim (7 x 1.5) MTD-734-1161
...
xx
Plastic Rim (8 x 1.75) MTD-734-0841
...
xx
Plastic Rim (8 x 1.75) MTD-734-1162
...
xx
Steel Rim Twinline Tread (7 x 1.5) MTD-734-0639
...
xx
Steel Rim Waffle Tread (7 x 1.5) MTD-734-0637
...
xx
Steel Rim Twinline Tread (8 x 1.75) MTD-734-0643
...
xx
Steel Rim Waffle Tread (8 x 1.75) MTD-734-0645
...
xx
Steel Rim Twinline Tread (7 x 1.5) MTD-734-0876
...
xx
Steel Rim Waffle Tread (7 x 1.5) MTD-734-0893
...
xx
Steel Rim Twinline Tread (8 x 1.75) MTD-734-0661
...
xx
Steel Rim Waffle Tread (8 x 1.75) MTD-734-0812
...
3
20" Blade (070 & 072) MTD-742-0123
...
xx
22" Blade (080 & 082) MTD-942-0125B
...
4
Throttle Control Wire 39" Lg. MTD-946-0630A
...
xx
Throttle Cable (Optional Part) MTD-946-1115
...
xx
Throttle Wire 55" Lg. (Deluxe B&S Engine) MTD-946-0671A
...
5
Lower Handle MTD-749-0928A-0637
...
xx
Lower Handle MTD-749-0928A-0637
...
6
Engine MTD-NA
...
7
20" Deck Ass'y. (070) MTD-14994
...
xx
20" Deck Ass'y. (072) MTD-14995
...
xx
22" Deck Ass'y (080) MTD-14997
...
xx
22" Deck Ass'y. (082) MTD-14998
...
8
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
9
Chute Deflector Ass'y. MTD-931-1034B
...
10
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
11
Hinge Pin 1/4" Dia. x 3.88 Lg. MTD-711-0555
...
12
PUSH NUT MTD-726-0106
...
13
Torsion Spring MTD-732-0253
...
14
Hex Nut 1/4-20 Thd. MTD-912-0287
...
15
L-Wash. 1/4" I.D. MTD-936-0329
...
16
Deflector Hinge Plate MTD-11130
...
18
Cable Tie MTD-725-0157
...
19
Curved Carriage Bolt 5/16-18 x 1.38" Lg. MTD-710-0671
...
20
Rope Guide Bolt MTD-710-0842
...
21
HEX NUT 5/16-18 MTD-712-3010
...
22
Spark Plug Boot (Deluxe B&S Engine) MTD-735-0639
...
23
Hex Ins. L-Nut 5/16-18 Thd. (070 & 080) MTD-712-0429
...
24
Bell-Wash. .345" I.D. x .88" O.D. (070 & 080) MTD-736-0242
...
25
Shld. Bolt .437" Dia. x .268 (070 & 080) MTD-738-0296
...
26
Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5) Special MTD-710-0888
...
27
Hex Bolt 3/8-24 x 2.25" Lg. (Grade 5) MTD-710-0331
...
28
Hex Nut 5/16-24 Thd. MTD-912-3057
...
29
Blade Adapter Kit MTD-753-0348
...
30
L-Wash. 3/8" I.D.-H.D. MTD-736-0217
...
31
Lock Wash. 5/16" I.D. MTD-936-0119
...
32
Retainer Strip MTD-14846
...
33
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
34
Rear Flap Ass'y. MTD-731-1029
...
35
Hex Nut 3/8-16 Thd.* MTD-712-0798
...
36
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
37
Front Axle Bolt (070 & 080) MTD-738-0213
...
xx
Front Axle Bolt (072 & 082) MTD-738-0102
...
39
Bell-Wash. .39" I.D. x 1.13" O.D. (070 & 080) MTD-736-0331
...
40
Rear Axle Bolt (070 & 080) MTD-738-0509
...
xx
Rear Axle Bolt (072 & 082) MTD-738-0102
...
41
Spacer .511 I.D. x .70" O.D. (070 & 080) MTD-750-0515
...
42
Cable Bracket MTD-14924
...
43
Pop Rivet MTD-728-0171
...
44
Clutch Control Cable 45" Lg. (070) (Deluxe B&S Engine) MTD-946-0477A
...
xx
Conrol Cable 46 Lg. (072, 080, 082) MTD-946-0478A
...
xx
Conrol Cable 46 Lg. (Optional Part) MTD-946-0478A
...
45
Truss Mach. Scr. #12 x 1.50" MTD-710-0796
...
47
Control Panel Half MTD-731-0817
...
48
Control Disc Pin MTD-731-0524
...
49
Clutch Panel Half MTD-731-0816
...
50
Throttle Control Lever MTD-931-0972
...
51
Upper Handle (Chrome) MTD-749-0536
...
xx
Upper Handle (Painted) MTD-749-0538
...
52
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
53
Casing Clamp MTD-751-0369
...
55
Handle Mount Brkt. Ass'y. L.H. (072 & 082) MTD-12935
...
xx
Handle Mount Brkt. Ass'y. R.H. (Not Shown) (072 & 082) MTD-12936
...
56
Height Adj. Ass'y. Comp. (R.H.) (072 & 082) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) (Not Shown) (072 & 082) MTD-753-06761
...
57
Shoulder Bolt .50" Dia. (072 & 082) MTD-738-0507B
...
58
Front Spring Lever (072 & 082) MTD-94832
...
59
Pivot Bar (072 & 082) (7" wheel assembled in bottom hole, 8" wheel assembled in top hole) MTD-15262B
...
60
Height Adjustment Plate (072 & 082) MTD-787-01290A
...
61
Hairpin Cotter (072 & 082) MTD-714-0104
...
62
Casing Clamp (Deluxe B&S Engine) MTD-751-0442
...
63
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651
...
66
Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .50" Lg. (072 & 082) MTD-710-0603
...
67
Hex Wash. Hd. AB-Tap Scr. #8 x .38" Lg. MTD-710-0227
...
68
Cable Clip MTD-12894
...
69
Instruction Label-Handle MTD-777-5776
...
70
Control Label-Throttle MTD-777-5773
...
71
Kit-Control Housing Comp. MTD-753-0430
...
72
Bell Washer .39" I.d. x 1.38" O.D. (072 & 082) MTD-936-0356
...
73
Plastic Plug MTD-731-0564
...
xx
Hardware Pack (070 & 080) MTD-8070-000-7
...
xx
Hardware Pack (072 & 082) MTD-8072-000-7
...
...
...
