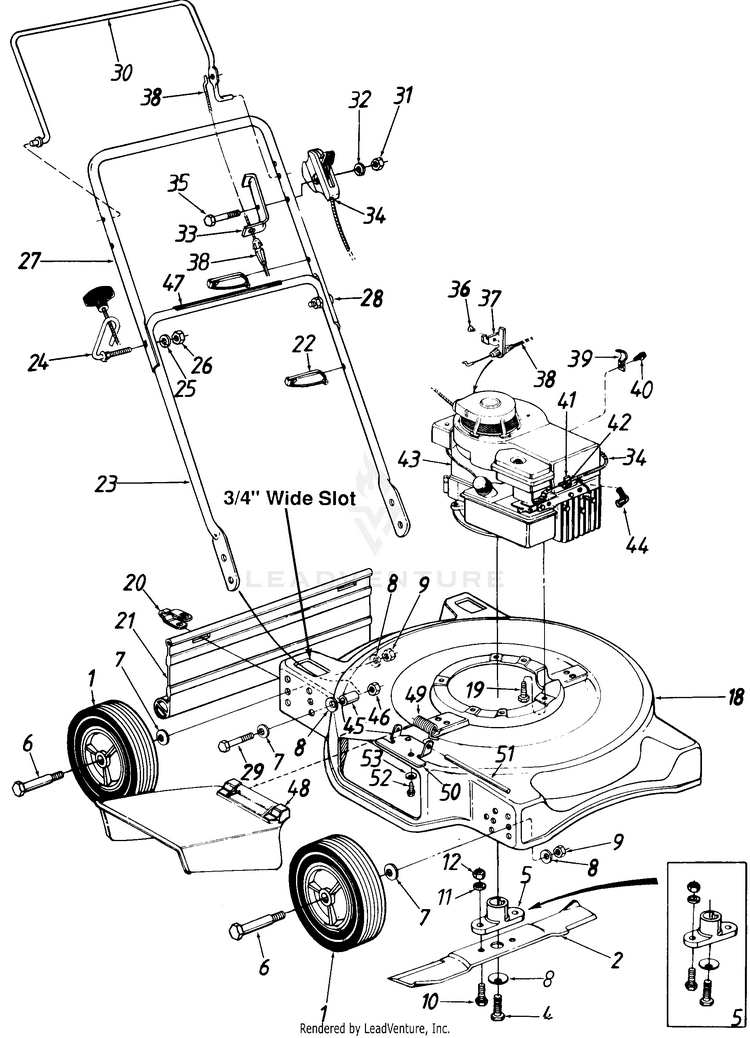

Timberland Mdl 050R Push Walk-Behind Mower

Model: Timberland Mdl 050R

Save
Part Not Listed?Part Not Listed?

product name

Parts

...
...
1
Wheel Ass'y. Complete MTD-NA

...
xx
Rib Tread (7") MTD-734-1170

...
xx
Wheel, 8" MTD-734-04585

...
xx
Waffle Tread (7") MTD-734-1161A

...
xx
Waffle Tread (8") MTD-734-1162A

...
xx
Bar Tread (7") MTD-734-1609

...
xx
Wheels w/o Bearings (Gray - No Hub Cap) MTD-734-1781

...
2
20" Blade MTD-742-0520

...
xx
22" Blade MTD-742-0522

...
4
Hex Bolt 3/8-24 x 1.5" Lg. MTD-710-1044

...
5
Blade Adapter Kit (Keyed) MTD-753-0484

...
6
Axle Bolt MTD-NA

...
xx
SCREW:SHLDR:0.498X1.630:3/8-16 MTD-738-0533

...
xx
Axle Bolt MTD-738-0213

...
xx
Axle Bolt MTD-738-0213

...
7
Bell-Wash. .380" I.D. x .88" MTD-736-0105

...
8
Bell-Wash. .39" I.D. x 1.13" MTD-736-0331

...
9
Hex Nut 3/8-16 Thd. MTD-712-0798

...
10
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1055

...
11
L-Wash. 3/8" I.D. MTD-736-0169

...
12
Hex Nut 3/8-24 Thd. MTD-712-0241

...
18
20" Deck Ass'y. MTD-17038

...
xx
22" Deck Ass'y. MTD-17043

...
19
Hex Wash. Hd. Scr. 3/8-16 x 1" Lg. MTD-710-0654A

...
20
Hinge Clip MTD-17098P

...
21
Rear Flap MTD-731-0872B

...
22
Cable Tie MTD-725-0157

...
23
Lower Handle MTD-749-0928A-0637

...
24
Rope Guide Bolt MTD-710-0842B

...
25
Lock Wash. 5/16" I.D. MTD-936-0119

...
26
HEX NUT 5/16-18 MTD-712-3010

...
27
Upper Handle MTD-749-0756

...
28
Curved Carriage Bolt 5/16-18 x 1.38" Lg. MTD-710-0671

...
29
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A

...
30
Control Handle MTD-747-0748

...
31
Hex Nut 1/4-20 Thd. MTD-912-0287

...
32
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175

...
33
Cable Mounting Bracket MTD-17174

...
34
Throttle Control (B&S) MTD-746-0800A

...
xx
THROTTLE CONTROL 42.02" (Tecumseh) MTD-946-0832A

...
35
Hex Bolt 1/4-20 x 1.75" Lg.* MTD-710-0136

...
xx
Hex Bolt 1/4-20 x 1.25" Lg. (Used w/out Throttle Control) MTD-710-0106

...
36
Pop Rivet (B&S) MTD-728-0171

...
37
Cable Bracket (B&S) MTD-14924

...
38
Control Cable (B&S) MTD-946-0553

...
xx
Control Cable (Tec.) MTD-946-0557

...
39
Casing Clamp (B&S) MTD-12894A

...
40
Hex B-Tap Scr. #10 x .38" (B&S) MTD-910-0429

...
41
Casing Clamp (B&S) MTD-751-0369

...
42
Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg. (B&S) MTD-710-0227

...
43
Engine MTD-NA

...
44
Spark Plug Boot (Optional) MTD-735-0639

...
45
Spacer .381" I.D. x .56" O.D. x.75" Lg. MTD-750-0727

...
46
Hex L-Nut 3/8-24 Thd. MTD-912-0355

...
47
Instruction Label-Handle MTD-777-5816

...
48
Chute Deflector Ass'y. MTD-931-1034B

...
49
Torsion Spring MTD-932-0593

...
50
Chute Deflector Adapter MTD-17032A

...
51
Hinge Pin MTD-747-0710A

...
52
Hex Self-Tap Scr. 1/4-20 x .5" MTD-710-0599

...
53
SPRING WASHER BELL MTD-736-0270
...
...
...
