Timberland 116-074-041 Push Walk-Behind Mower

Model: Timberland 116-074-041

Save
 Part Not Listed?Part Not Listed?
product name

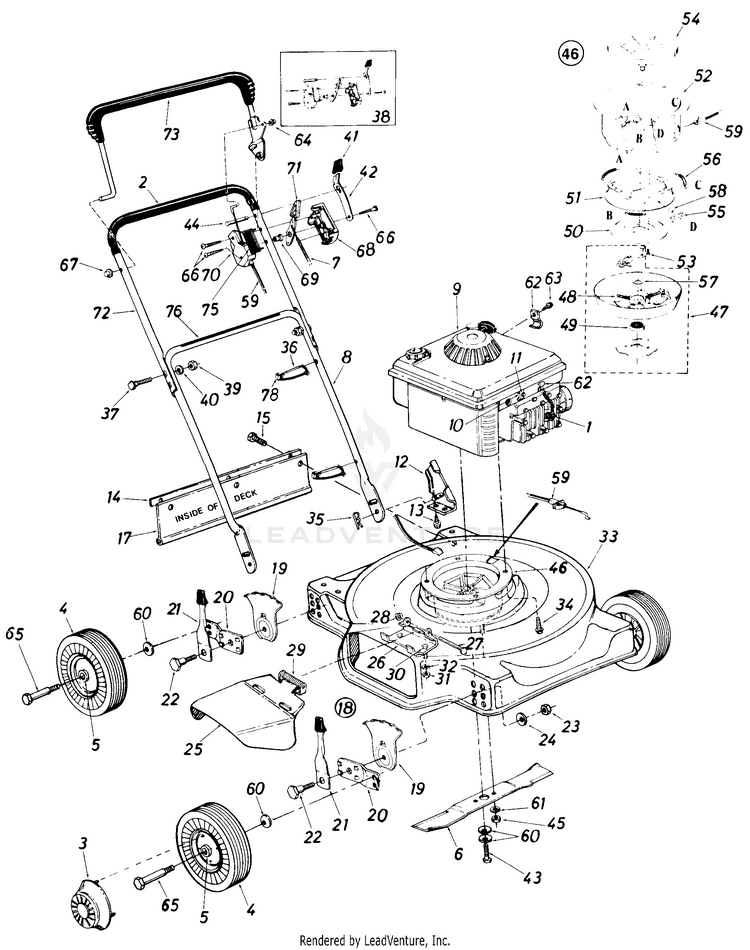

Parts

...
...
1
Spark Plug Boot MTD-735-0639
...
2
Grip Optional Part MTD-718-0145
...
3
Hub Cap MTD-NA
...
4
Wheel Ass'y. Comp. MTD-NA
...
xx
Plastic Rim (7 x 1.5) MTD-734-0840
...
xx
Plastic Rim (7 x 1.5) MTD-734-1161
...
xx
Plastic Rim (8 x 1.75) MTD-734-0841
...
xx
Plastic Rim (8 x 1.75) MTD-734-1162
...
xx
Steel Rim-Twinline (7 x 1.5) MTD-734-0639
...
xx
Steel Rim-Waffle (7 x 1.5) MTD-734-0637
...
xx
Steel Rim-Twinline (8 x 1.75) MTD-734-0643
...
xx
Steel Rim-Waffle (8 x 1.75) MTD-734-0645
...
xx
Steel Rim-Twinline (7 x 1.5) MTD-734-0876
...
xx
Steel Rim-Waffle (7 x 1.5) MTD-734-0893
...
xx
Steel Rim-Twinline (8 x 1.75) MTD-734-0661
...
xx
Steel Rim-Waffle (8 x 1.75) MTD-734-0812
...
5
Bearing MTD-NA
...
xx
Ball Brgs. 3/8" I.D. MTD-741-0267
...
xx
BALL BEARING MTD-941-0484
...
xx
Spacer (Use Axle Bolt 710-0347) MTD-750-0434
...
xx
Plastic Brg. 1/2" I.D. (2 per Wheel) MTD-741-0262
...
6
20" Blade (073 & 074) MTD-742-0220
...
xx
22" Blade (083 & 084) MTD-742-0222
...
7
Throttle Wire 55" Lg. MTD-946-0671A
...
8
Lower Handle MTD-749-0928A-0637
...
xx
Lower Handle MTD-749-0928A-0637
...
9
Engine MTD-NA
...
10
Casing Clamp MTD-751-0442
...
11
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651
...
12
Handle Mount Brkt. Ass'y.-L.H. MTD-12935
...
xx
Handle Mount Brkt. Ass'y.-R.H. (Not Shown) MTD-12936
...
13
Hex Wash. Hd. B-Tap Scr. 5/16-18 x .50" Lg. MTD-710-0603
...
14
Retaining Strip MTD-14846
...
15
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
17
Rear Flap Ass'y. MTD-731-1029
...
18
Height Adj. Ass'y. Comp. (R.H.) Optional Part MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) (Not Shown) Optional Part MTD-753-06761
...
19
Height Adjustment Plate Optional Part MTD-787-01290A
...
20
Pivot Bar (Optional Part) (7" wheel in bottom hole, 8" wheel in top hole) MTD-15262B
...
21
Front Spring Lever Optional Part MTD-94832
...
22
Shoulder Bolt .50" Dia. Optional Part MTD-738-0507B
...
23
Hex Nut 3/8-16 Thd. MTD-712-0798
...
24
Bell-Wash. .39" I.D. x 1.13" O.D. (073 & 083) MTD-736-0331
...
xx
Bell Washer .39" I.d. x 1.38" O.D. (074 & 084) MTD-936-0356
...
25
Chute Deflector Ass'y. MTD-931-1034B
...
26
Deflector Hinge Plate MTD-11130
...
27
Pivot Pin MTD-711-0555
...
28
PUSH NUT MTD-726-0106
...
29
Torsion Spring MTD-732-0253
...
30
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
31
Hex Nut 1/4-20 Thd. MTD-912-0287
...
32
L-Wash. 1/4" I.D. MTD-936-0329
...
33
20" Deck Ass'y. MTD-16300
...
xx
22" Deck Ass'y. MTD-16302
...
34
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
35
Intern. Cot. Pin 5/16" Dia. MTD-714-0104
...
36
Cable Tie MTD-725-0157
...
37
Curved Carriage Bolt 5/16-18 x 1.38" Lg. MTD-710-0671
...
38
Kit-Control Housing Comp. MTD-753-0431
...
39
HEX NUT 5/16-18 MTD-712-3010
...
40
Lock Wash. 5/16" I.D. MTD-936-0119
...
41
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
42
Lock Out Spring MTD-732-0401
...
43
Hex Cent. L-Bolt 3/8-24 x 2.00" Lg. MTD-710-0818
...
44
Lock Pin .75" Dia. x 1.80 MTD-711-0719
...
45
Hex Nut 3/8-24 Thd. MTD-712-0241
...
46
Blade Brake Clutch Ass'y. Comp. MTD-717-0482
...
47
Clutch Blade Housing Ass'y. MTD-14300
...
48
Comp. Spring .35" O.D. x 2.00" Lg. MTD-732-0396
...
49
BALL BEARING MTD-941-0600
...
50
Clutching Cone MTD-14304
...
51
Brake Cup Cone MTD-14305
...
52
Clutch Housing MTD-14306
...
53
Hex Wash. TT-Tap Cl.-Scr. 1/4-20 x .75" Lg. MTD-710-0875
...
54
Fan Adapter MTD-719-0256
...
55
Ball Block MTD-731-0520
...
56
Extension Spring .35" O.D. x 1.75" Lg. MTD-732-0397
...
57
Fl-Wash. .690" I.D. x 1.060" MTD-736-0333
...
58
Steel Ball .500" Dia. MTD-741-0326
...
59
Clutch Cable-43" (Incl. Ref. 64) MTD-746-0402A
...
60
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
61
L-Wash. 3/8" I.D. MTD-736-0169
...
62
Casing Clamp MTD-12894
...
63
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
64
Push Cap MTD-726-0111
...
65
Axle Bolt (Used w/o Height Adj.) MTD-738-0213
...
xx
Axle Bolt (Used w/Height Adj.) MTD-738-0102
...
66
Truss Mach. Hi-B Tap Scr. #12 x 1.50" Lg. MTD-710-0796
...
67
Cap Speed Nut 5/16" Rod MTD-726-0135
...
68
Control Panel Half MTD-731-0817
...
69
Control Disc Pin MTD-731-0524
...
70
Clutch Panel Half MTD-731-0816
...
71
Throttle Control Lever MTD-931-0972
...
72
Upper Handle (Chrome) MTD-749-0536
...
xx
Upper Handle (Painted) MTD-749-0538
...
73
Control Handle Ass'y. MTD-731-0609
...
75
Control Label-Throttle MTD-777-5772
...
76
Instruction Label-Handle MTD-777-5775
...
78
Cable Tie MTD-725-0157
...
xx
Hardware Pack (073) MTD-8073-000-6
...
xx
Hardware Pack (074, 083 & 084) MTD-8074-000-6
...
...
...
