Timberland 116-072-041 Push Walk-Behind Mower

Model: Timberland 116-072-041

Save
Part Not Listed?Part Not Listed?

product name

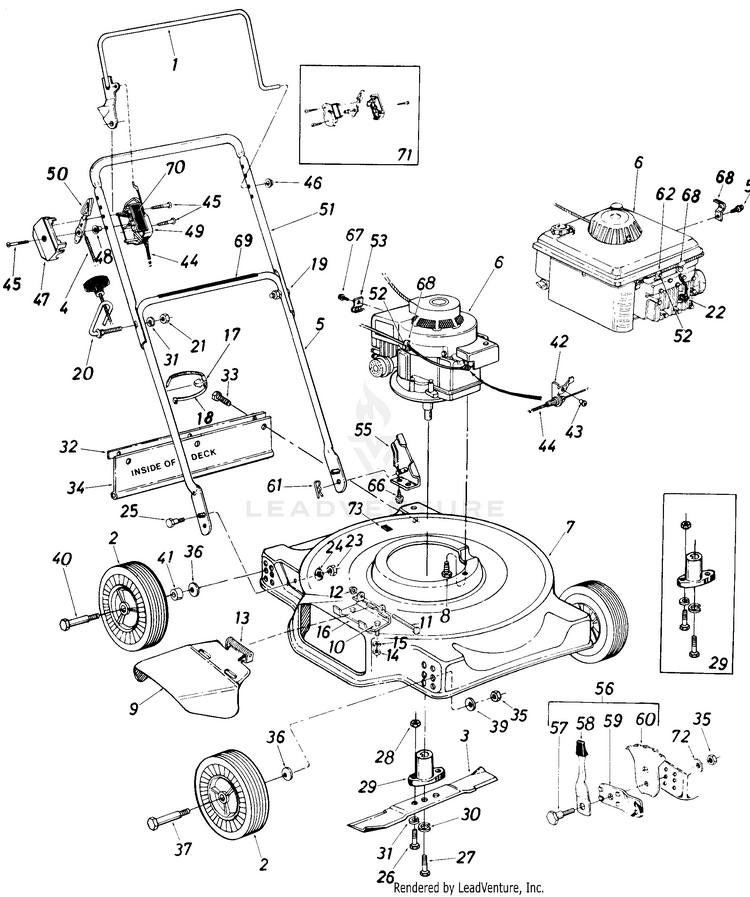

Parts

...
...
1
Control Handle Ass'y.-R.H. MTD-14320

...
2
Wheel Ass'y. Comp. MTD-NA

...
xx
Wheel-Plastic Rim (7 x 1.5) MTD-734-0840

...
xx
Wheel-Plastic Rim (7 x 1.5) MTD-734-1161

...
xx
Wheel-Plastic Rim (8 x 1.75) MTD-734-0841

...
xx
Wheel-Plastic Rim (8 x 1.75) MTD-734-1162

...
xx
Steel Rim-Twinline (7 x 1.5) MTD-734-0639

...
xx
Steel Rim-Waffle (7 x 1.5) MTD-734-0637

...
xx
Steel Rim-Tinline (8 x 1.75) MTD-734-0643

...
xx
Steel Rim-Waffle (8 x 1.75) MTD-734-0645

...
xx
Steel Rim-Twinline (7 x 1.5) MTD-734-0876

...
xx
Steel Rim-Waffle (7 x 1.5) MTD-734-0893

...
xx
Steel Rim-Twinline (8 x 1.75) MTD-734-0661

...
xx
Steel Rim-Waffle (8 x 1.75) MTD-734-0812

...
3
20" Blade (070 & 072) MTD-742-0123

...
xx
22" Blade (080 & 082) MTD-942-0125B

...
4
Throttle Control Wire 39" Lg. MTD-946-0630A

...
xx
Throttle Cable Optional Part MTD-946-1115

...
xx
Throttle Wire 55" Lg. Deluxe. Briggs & Stratton Engine MTD-946-0671A

...
5
Lower Handle MTD-749-0928A-0637

...
xx
Lower Handle MTD-749-0928A-0637

...
6
Engine MTD-NA

...
7
20" Deck Ass'y. (070) MTD-14994

...
xx
20" Deck Ass'y. (072) MTD-14995

...
xx
22" Deck Ass'y. (080) MTD-14997

...
xx
22" Deck Ass'y. (082) MTD-14998

...
8
TT Screw, 3/8-16 x 1.00 MTD-710-0654A

...
9
Chute Deflector Ass'y. MTD-931-1034B

...
10
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289

...
11
Hinge Pin 1/4" Dia. x 3.88 Lg. MTD-711-0555

...
12
PUSH NUT MTD-726-0106

...
13
Torsion Spring MTD-732-0253

...
14
Hex Nut 1/4-20 Thd. MTD-912-0287

...
15
L-Wash. 1/4" I.D. MTD-936-0329

...
16
Deflector Hinge Plate MTD-11130

...
17
Cable Tie MTD-725-0157

...
18
Cable Tie MTD-725-0157

...
19
Curved Carriage Bolt 5/16-18 x 1.38" Lg. MTD-710-0671

...
20
Rope Guide Bolt MTD-710-0842

...
21
HEX NUT 5/16-18 MTD-712-3010

...
22
Spark Plug Boot Deluxe. Briggs & Stratton Engine MTD-735-0639

...
23
Hex Ins. L-Nut 5/16-18 Thd. (070 & 080) MTD-712-0429

...
24
Bell-Wash. .345" I.D. x .88" O.D. (070 & 080) MTD-736-0242

...
25
Shld. Bolt .437" Dia. x .268 (070 & 080) MTD-738-0296

...
26
Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5) Special MTD-710-0888

...
27
Hex Bolt 3/8-24 x 2.25" Lg. (Grade 5) MTD-710-0331

...
28
Hex Nut 5/16-24 Thd. MTD-912-3057

...
29
Blade Adapter Kit MTD-753-0348

...
30
L-Wash. 3/8" I.D.-H.D. MTD-736-0217

...
31
Lock Wash. 5/16" I.D. MTD-936-0119

...
32
Retainer Strip MTD-14846

...
33
Hex Screw, 1/4-14 x 0.625" MTD-710-0896

...
34
Rear Flap Ass'y. MTD-731-1029

...
35
Hex Nut 3/8-16 Thd. MTD-712-0798

...
36
Bell-Wash. .400" I.D. x .88" MTD-736-0105

...
37
Front Axle Bolt (070 & 080) MTD-738-0213

...
xx
Front Axle Bolt (072 & 082) MTD-738-0102

...
39
Bell-Wash. .39" I.D. x 1.13" O.D. (070 & 080) MTD-736-0331

...
40
Rear Axle Bolt (070 & 080) MTD-738-0509

...
xx
Rear Axle Bolt (072 & 082) MTD-738-0102

...
41
Spacer. 511 I.D. x.70" O.D. (070 & 080) MTD-750-0515

...
42
Cable Bracket MTD-14924

...
43
Pop Rivet .156" Dia. x .379 MTD-728-0171

...
44
39" Control Cable-Green (070) Deluxe. Briggs & Stratton Engine MTD-746-0476

...
xx
Conrol Cable 46 Lg. (072, 080, 082) MTD-946-0478A

...
xx
Conrol Cable 46 Lg. Optional Part MTD-946-0478A

...
45
Truss Mach. Scr. #12 x 1.50" MTD-710-0796

...
46
Cap Speed Nut 5/16" Rod MTD-726-0135

...
47
Control Panel Half MTD-731-0817

...
48
Control Disc Pin MTD-731-0524

...
49
Clutch Panel Half MTD-731-0816

...
50
Throttle Control Lever MTD-931-0972

...
51
Upper Handle (Chrome) MTD-749-0536

...
xx
Upper Handle (Painted) MTD-749-0538

...
52
Hex B-Tap Scr. #10 x .38" MTD-910-0429

...
53
Casing Clamp MTD-751-0369

...
55
Handle Mount Brkt. Ass'y.-L.H. (072 & 082) MTD-12935

...
xx
Handle Mount Brkt. Ass'y.-R.H. (Not Shown) (072 & 082) MTD-12936

...
56
Height Adj. Ass'y. Comp. (R.H.) (072 & 082) MTD-753-06761

...
xx
Height Adj. Ass'y. Comp. (R.H.) (Not Shown) (072 & 082) MTD-753-06761

...
57
Shoulder Bolt .50" Dia. (072 & 082) MTD-738-0507B

...
58
Front Spring Lever (072 & 082) MTD-94832

...
59
Pivot Bar (072 & 082) (7" wheel in bottom hole, 8" wheel in top hole) MTD-15262B

...
60
Height Adjustment Plate (072 & 082) MTD-787-01290A

...
61
Hairpin Cotter (072 & 082) MTD-714-0104

...
62
Casing Clamp Deluxe. Briggs & Stratton Engine MTD-751-0442

...
66
Hex Wash. Hd. Self-Tap Scr. 5/16-18 x . 50 " Lg . (072 & 082) MTD-710-0603

...
67
Hex Wash. Hd. AB-Tap Scr. #8 x .38 " Lg . MTD-710-0227

...
68
Cable Clip MTD-12894

...
69
Instruction Label-Handle MTD-777-5776

...
70
Control Label-Throttle MTD-777-5773

...
71
Kit-Control Housing Comp. MTD-753-0430

...
72
Bell Washer .39" I.d. x 1.38" O.D. (072 & 082) MTD-936-0356

...
73
Plastic Plug MTD-731-0564

...
xx
Hardware Pack (070 & 080) MTD-8070-000-6

...
xx
Hardware Pack (072 & 082) MTD-8072-000-6
...
...
...
