Tecumseh TVM220-157402B Service Engines

Model: TVM220-157402B

Save Part Not Listed?
product name

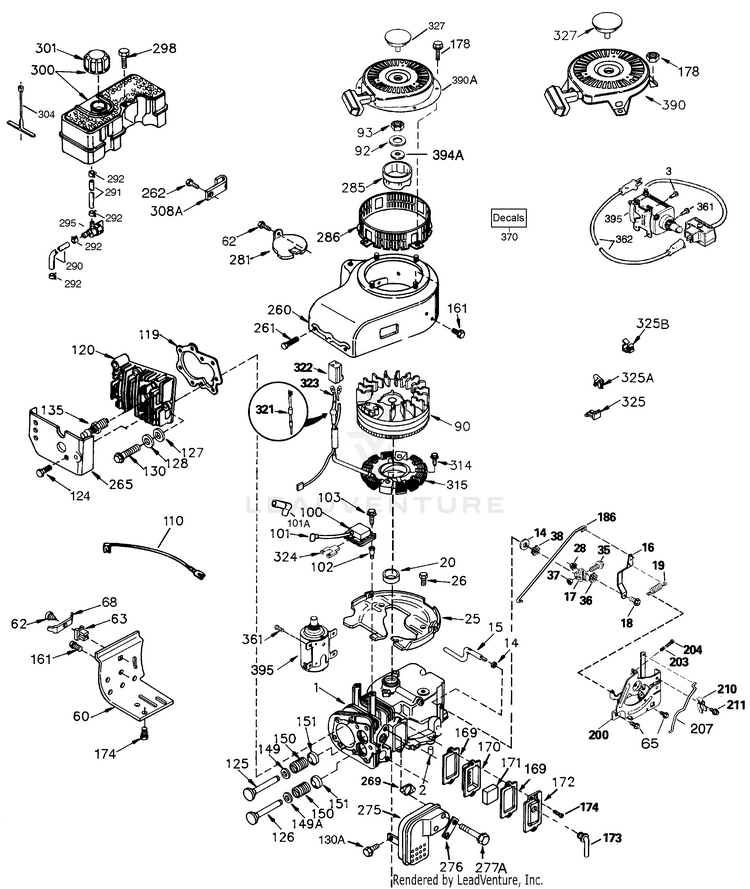

Engine Parts List #1

...
...
1
SHORT BLK V TPC-752297B
...
2
PIN TPC-27652
...
14
WASHER TPC-28277
...
15
GOVERNOR ROD TPC-35082
...
16
GOV LEVER TPC-32651
...
17
CLAMP TPC-29916
...
18
SCREW TPC-651028
...
19
SPRING TPC-34043
...
20
OIL SEAL TPC-35319
...
25
BAFFLE TPC-37861
...
26
SCREW TPC-650561
...
28
NUT TPC-30322
...
35
SCREW TPC-29826
...
36
WASHER TPC-29918
...
37
NUT TPC-29216
...
38
RET RING TPC-29642
...
60
EXTENSION TPC-33273A
...
62
SCREW TPC-650760
...
65
SCREW TPC-30200
...
68
TERMINAL TPC-33356
...
90
FLYWHEEL TPC-611090
...
92
WASHER TPC-650880
...
93
NUT TPC-650881
...
100
LAMINATION TPC-35135B
...
101
PLUG COVER TPC-610118
...
102
STUD TPC-651024
...
103
SCREW TPC-651007
...
110
GROUND WIRE TPC-35349
...
119
GASKET TPC-36451
...
120
CYL HEAD-NLA TPC-36449
...
124
SCREW TPC-651031
...
125
EXH VALVE OS TPC-27880A
...
125
EXH VALVE STD TPC-27878A
...
126
INT VALVE ST TPC-34035
...
127
WASHER TPC-650691
...
128
WASHER KIT TPC-730324
...
130
SCREW TPC-650694A
...
135
SPARK PLUG TPC-33636
...
149
VALVE CAP TPC-27882
...
150
VALVE SPRING TPC-27881
...
151A
INT VALVE SEAL TPC-35862
...
151
VALVE CAP TPC-32581
...
169
GASKET TPC-27896A
...
170
BREATHER TPC-28423
...
171
ELEMENT TPC-28424
...
172
COVER TPC-38014
...
173A
GROMMET TPC-28545
...
174
SCREW TPC-650128
...
178
NUT TPC-29752
...
186
GOV LINK TPC-33860
...
203
COMP SPRING TPC-31342
...
204
SCREW TPC-651029
...
207
GOV LINK TPC-33151
...
260
BLOWER HSG TPC-33635C
...
261
SCREW TPC-650788
...
264A
SCREW TPC-650802
...
265
COVER TPC-33272D
...
275
MUFFLER TPC-40003
...
276A
LOCK PLATE TPC-31588
...
277
SCREW TPC-650729
...
281
COVER TPC-33013
...
285
STARTER CUP TPC-35985C
...
290
FUEL LINE TPC-30705
...
292
CLAMP TPC-26460
...
298
SCREW TPC-28763
...
300
FUEL TANK-NLA TPC-33583B
...
301
FUEL CAP TPC-37844
...
325A
CLIP TPC-34246
...
327
STARTER PLUG TPC-35392
...
355
START HANDLE TPC-590701
...
361
SCREW TPC-650990
...
370
DECAL TPC-35274
...
370
DECAL TPC-34150
...
390
STARTER TPC-590788

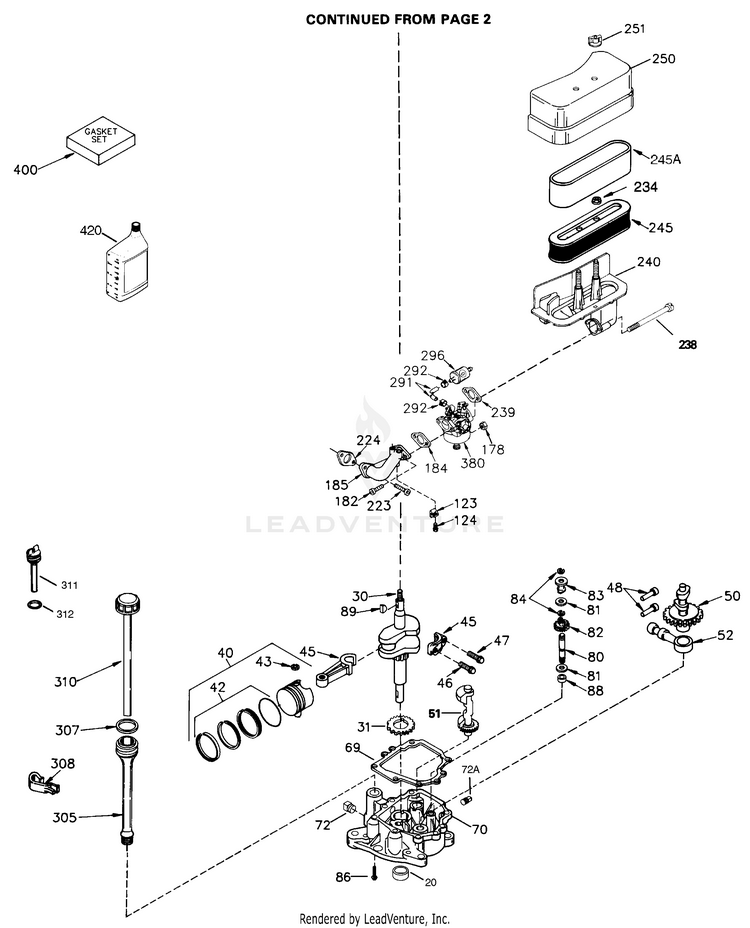

Engine Parts List #2

...
...
20
OIL SEAL TPC-35319
...
30
CRANKSHAFT TPC-35422A
...
31
GEAR TPC-35327
...
40
PISTON ASSY STD TPC-35776B
...
40
PISTON ASSY 010 TPC-35777A
...
42
RING SET 010 TPC-35780
...
42
RING SET STD TPC-35779
...
43
RET RING TPC-35772
...
45
CONN ROD TPC-36898A
...
47
SCREW TPC-651033A
...
48
VALVE LIFTER TPC-34034A
...
50
CAMSHAFT TPC-35381
...
51
WEIGHT TPC-35315A
...
52
OIL PUMP TPC-31356
...
69
GASKET TPC-35317
...
70
MTG FLANGE TPC-35711A
...
72
PIPE PLUG TPC-31927
...
80
GOV SHAFT TPC-35783
...
81
WASHER TPC-651080
...
81
WASHER TPC-651080
...
82
GEAR TPC-35378
...
83
GOV SPOOL TPC-30588A
...
84
RET RING TPC-29193
...
86
SCREW TPC-650833
...
88
SPACER TPC-31707A
...
89
KEY TPC-32589
...
123
BRACKET TPC-33261
...
124
SCREW TPC-651031
...
151A
INT VALVE SEAL TPC-35862
...
173A
GROMMET TPC-28545
...
178
NUT TPC-29752
...
182
SCREW TPC-30088A
...
184
GASKET TPC-33263
...
185
INTAKE PIPE TPC-34926
...
223
SCREW TPC-650378
...
224
GASKET TPC-27915A
...
234
NUT TPC-650825
...
238
SCREW TPC-650834
...
239
GASKET TPC-33629
...
240
CLEANER BODY TPC-35538B
...
245
AIR CLEANER TPC-35403
...
245A
AIR CLEANER TPC-35404
...
250
D/C (OBS) BASE TPC-3596-1
...
251
NUT TPC-650886
...
264A
SCREW TPC-650802
...
276A
LOCK PLATE TPC-31588
...
277
SCREW TPC-650729
...
292
CLAMP TPC-26460
...
305
FILLER TUBE TPC-35574
...
307
O RING TPC-35499
...
308
CLIP TPC-35437
...
310
DIPSTICK TPC-35576
...
355
START HANDLE TPC-590701
...
380
CARBURETOR TPC-640126
...
400
GASKET SET TPC-36450C
...
420
OIL SAE 30 TPC-730225A

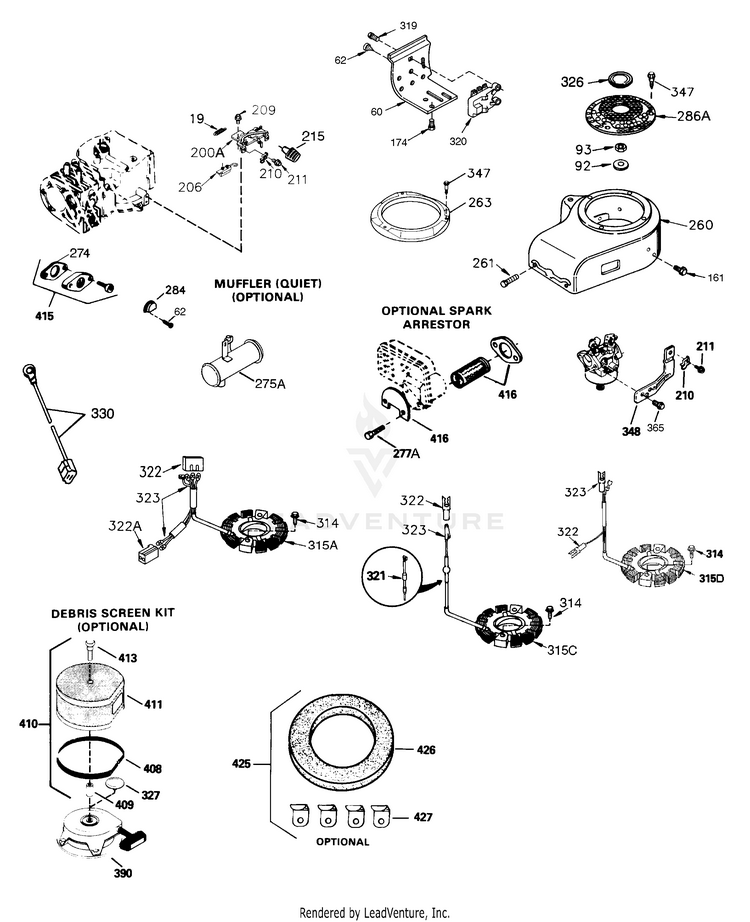

Engine Parts List #3

...
...
19
SPRING TPC-34043
...
60
EXTENSION TPC-33273A
...
62
SCREW TPC-650760
...
92
WASHER TPC-650880
...
93
NUT TPC-650881
...
151A
INT VALVE SEAL TPC-35862
...
173A
GROMMET TPC-28545
...
174
SCREW TPC-650128
...
200A
CONTROL ASSY TPC-33948A
...
215
KNOB TPC-32410
...
260
BLOWER HSG TPC-33635C
...
261
SCREW TPC-650788
...
264A
SCREW TPC-650802
...
276A
LOCK PLATE TPC-31588
...
277
SCREW TPC-650729
...
327
STARTER PLUG TPC-35392
...
355
START HANDLE TPC-590701
...
390
STARTER TPC-590788

RS3-590788 590788-RS3

...

No Parts Available for this Schematic

TEC-640126 5117 Mfg. No. 640126-TEC

...

No Parts Available for this Schematic
