Tecumseh TEC-632715 Carburetor Parts

Model: TEC-632715

Save
 Part Not Listed?Part Not Listed?
product name

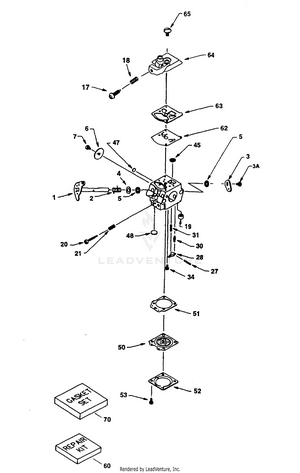

Carburetor

...
...
0
CARBURETOR TPC-640231
...
1
SHAFT & LEV TPC-632719
...
2
SPRING TPC-632724
...
3
CLIP TPC-632720
...
3A
SCREW TPC-632723
...
4
WASHER TPC-632313
...
5
WASHER TPC-632317
...
6
SHUTTER TPC-632292A
...
7
SCREW TPC-650506
...
17
ADJ SCREW TPC-632306
...
18
SPRING TPC-632725
...
19
CHECK VALVE TPC-632722
...
20
IDLE SCREW TPC-632726
...
21
SPRING TPC-632310
...
27
PIN TPC-632316
...
28
LEVER TPC-632318
...
30
INLET NEEDLE TPC-632721
...
31
SPRING TPC-632376
...
34
SCREW TPC-632304
...
45
SCREEN TPC-632315A
...
47
WELCH PLUG TPC-632298
...
48
WELCH PLUG TPC-632297
...
50
GASKET KIT TPC-632320A
...
51
GASKET TPC-632300A
...
52
COVER TPC-632289
...
53
SCREW TPC-650506
...
60
REPAIR KIT TPC-632716
...
62
DIAPHRAGM TPC-632476
...
63
GASKET TPC-632301
...
64
COVER TPC-632718
...
65
SCREW TPC-632305
...
70
GASKET KIT TPC-632717
...
...
...
