Tecumseh SBV-SBV-8219 4-Cycle Short Blocks Vertical

Model: SBV-SBV-8219

Save Part Not Listed?
product name

Engine Parts List #OHV15A

...
...
1
CYLINDER TPC-37526A
...
2
PIN TPC-27652
...
11
VALVE TPC-36302
...
11A
PLATE TPC-36303
...
15
GOVERNOR ROD TPC-37754
...
30
CRANKSHAFT TPC-36512
...
31
GEAR TPC-36515A
...
38
RET RING TPC-37109
...
40
PISTON ASSY 010 TPC-36313
...
40
PISTON ASSY 020 TPC-36314
...
40
PISTON ASSY STD TPC-36312
...
41
PISTON & PIN 10 TPC-36310
...
41
PISTON ASSY STD TPC-36312
...
41
PISTON & PIN 20 TPC-36311
...
42
RING SET STD-NLA TPC-36315
...
42
RING SET 020 TPC-36317
...
42
RING SET 010 TPC-36316
...
43
RET RING TPC-35772
...
45
CONN ROD TPC-36318A
...
46
SCREW TPC-651063
...
48
VALVE LIFTER TPC-36321
...
50A
CAMSHAFT KIT TPC-730656
...
50
CAMSHAFT TPC-36533A
...
51A
WEIGHT TPC-36514
...
51
WEIGHT TPC-36513
...
52
OIL PUMP TPC-37305
...
52B
O RING TPC-36333
...
52C
COVER TPC-36334
...
52D
SCREW TPC-650888
...
52A
SHAFT TPC-36331
...
62
SCREW TPC-650994
...
69
GASKET TPC-36565
...
70
MTG FLANGE TPC-37304A
...
72A
PIPE PLUG TPC-28483
...
72
PIPE PLUG TPC-31927
...
72B
PIPE PLUG TPC-28534
...
75
OIL SEAL TPC-36301
...
75A
OIL SEAL TPC-510337
...
80
GOV SHAFT TPC-35712
...
81
WASHER TPC-651080
...
82
GEAR TPC-37756
...
83
GOV SPOOL TPC-35322
...
84
RET RING TPC-29193
...
86
SCREW TPC-650970
...
86
SCREW TPC-650970
...
119
GASKET TPC-37493
...
154A
KIT TPC-730636A
...
159
GASKET TPC-35952
...
161
SCREW TPC-30063
...
169
GASKET TPC-36304
...
172
COVER TPC-36305
...
173
TUBE TPC-36306
...
243
SCREW TPC-650902
...
325
CLIP TPC-36342
...
325B
CLIP TPC-37230
...
365
SCREW TPC-650767
...
382
SCREEN TPC-36328
...
385
BALL TPC-570673
...
386
COMP SPRING TPC-36329
...
387
COTTER PIN TPC-37652
...
477
SCREW TPC-650971
...
478
COVER TPC-36336
...
479
GASKET TPC-36335

Engine Parts List #OHV15B

...
...
14
WASHER TPC-651052
...
16
GOV LEVER TPC-37758
...
17
CLAMP TPC-29916
...
18
SCREW TPC-651028
...
19
SPRING TPC-37766
...
28
NUT TPC-30322
...
35
SCREW TPC-29826
...
36
WASHER TPC-29918
...
37
NUT TPC-29216
...
38
RET RING TPC-37109
...
187
GASKET TPC-36490
...
212A
BUSHING TPC-36288
...
224
GASKET TPC-36352
...
239
GASKET TPC-36358
...
243
SCREW TPC-650902
...
303
FUEL FITTING TPC-32958
...
365
SCREW TPC-650767
...
370
DECAL TPC-34028

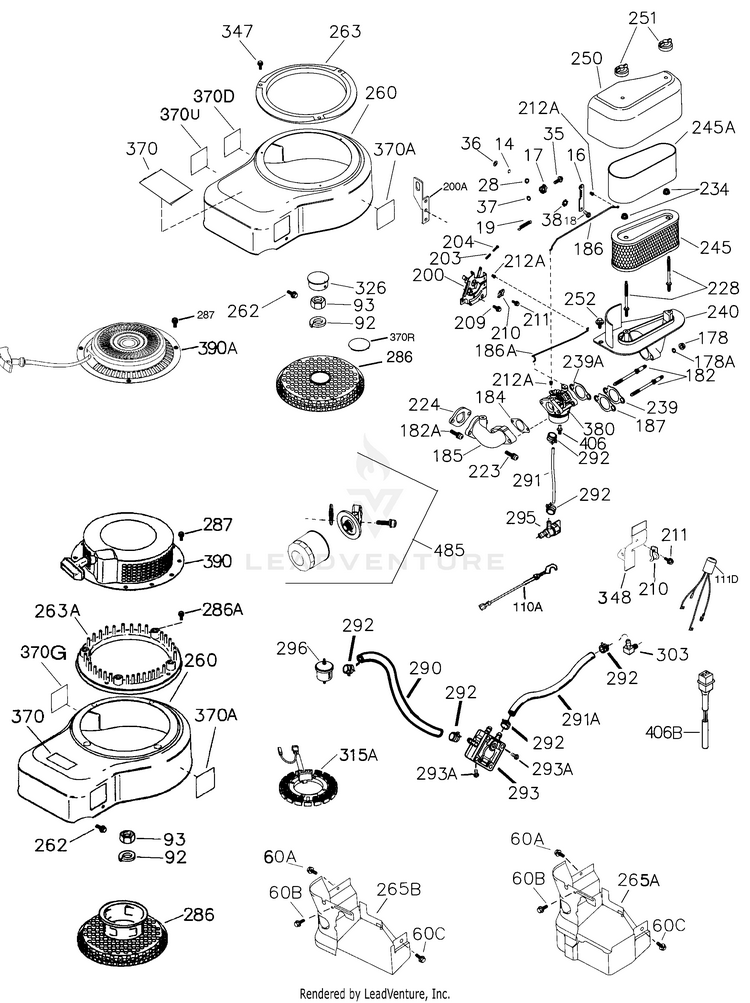

Schematic Image Zoomed
