Tecumseh SBV-SBV-511C 4-Cycle Short Blocks Vertical

Model: SBV-SBV-511C

Save Part Not Listed?
product name

Engine Parts List

...
...
1B
PIPE PLUG TPC-28534
...
1A
BUSHING TPC-35400
...
1
CYLINDER TPC-35399B
...
2
WASHER TPC-28277
...
3
GOVERNOR ROD TPC-35324
...
5
CLAMP TPC-29916
...
8
OIL SEAL TPC-35319
...
11
CRANKSHAFT TPC-35336B
...
12
GEAR TPC-35327
...
13
PIN TPC-27652
...
14
SCREW TPC-29826
...
17
NUT TPC-29216
...
18
RET RING TPC-29642
...
19A
PISTON ASSY 020 TPC-34862A
...
19
PISTON ASSY 020 TPC-34862A
...
19A
PISTON ASSY STD TPC-35776B
...
19
PISTON ASSY STD TPC-35776B
...
19A
PISTON ASSY 010 TPC-35777A
...
19
PISTON ASSY 010 TPC-35777A
...
20
RING SET 010 TPC-35780
...
20
RING SET STD TPC-35779
...
20
RING SET 020 TPC-35781
...
21
RET RING TPC-35772
...
22
CONN ROD TPC-36898A
...
23
SCREW TPC-651063
...
23A
SCREW TPC-651033A
...
24
VALVE LIFTER TPC-35313A
...
25
CAMSHAFT TPC-35939
...
26
WEIGHT TPC-35315A
...
29
GASKET TPC-35317
...
30
MTG FLANGE TPC-35401A
...
30A
GASKET (OBS) FUEL CAP TPC-35-377
...
31
OIL PUMP TPC-31356
...
32
PIPE PLUG TPC-31927
...
33
OIL SEAL TPC-35319
...
34
GOV SHAFT TPC-35712
...
35
SPACER TPC-31707A
...
36
WASHER TPC-651080
...
37
GEAR TPC-35321
...
38
GOV SPOOL TPC-35322
...
39
RET RING TPC-29193
...
40
SCREW TPC-650833
...
49
GASKET TPC-35306A
...
60
O RING TPC-33481
...
61
ROD TUBE TPC-35475
...
62
ROCKER HSG TPC-35310
...
63
O RING TPC-33484
...
64
WASHER TPC-650168
...
65
SCREW TPC-32610A
...
66
O RING TPC-33509
...
67
O RING TPC-34410
...
68
VALVE CAP TPC-33510
...
69
VALVE SPRING TPC-33507
...
70
VALVE RET TPC-33508
...
71
O RING TPC-35295
...
72
GUIDE TPC-35296
...
73
STUD TPC-650878
...
74
ROCKER ARM KIT TPC-730221A
...
75
BEARING TPC-35298
...
76
NUT TPC-28264
...
77
PUSH ROD TPC-35466
...
78
O RING TPC-35299B
...
79
COVER TPC-35300A
...
80
SCREW TPC-650879
...
81
NUT TPC-650903
...
82
GASKET TPC-27896A
...
98
GASKET TPC-33515A
...
170
DECAL TPC-36261

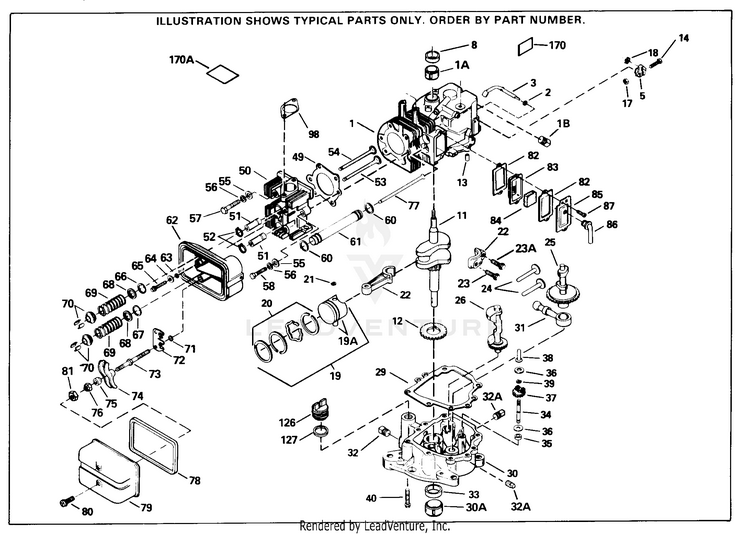

Schematic Image Zoomed
