Tecumseh SBV-710385 Vertical 2-Cycle Short Blocks

Model: SBV-710385

Save Part Not Listed?
product name

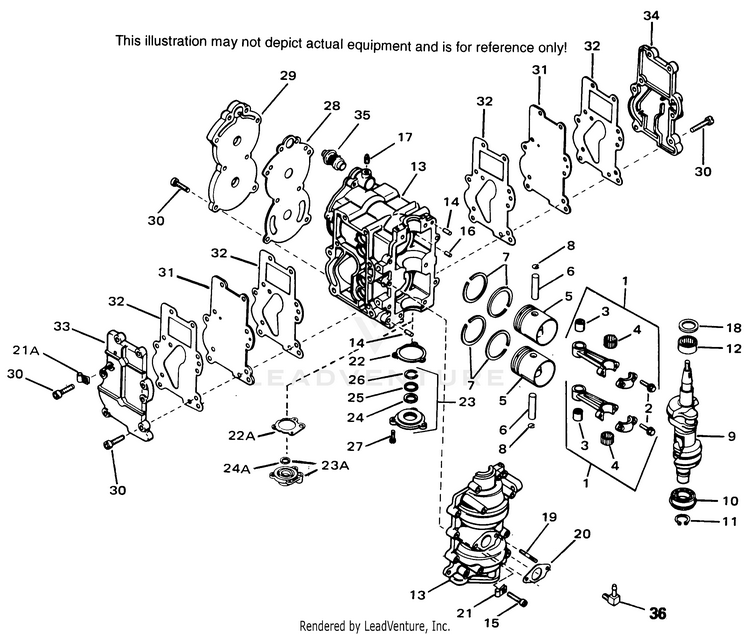

Engine Parts List

...
...
1
CONN ROD TPC-310241
...
2
SCREW TPC-650702
...
3
BEARING TPC-530104A
...
4
BEARING TPC-530152
...
5
PISTON & PIN TPC-310242C
...
6
PISTON PIN TPC-310178
...
7
RING SET TPC-310268
...
8
RET RING TPC-310167
...
9
CRANKSHAFT TPC-290510A
...
10
BEARING TPC-530147
...
11
RET RING TPC-570614
...
12
BEARING TPC-530148A
...
13
CYLINDER TPC-250258A
...
14
DOWEL PIN TPC-570615
...
15
SCREW TPC-650769
...
16
DOWEL PIN TPC-570616
...
17
PIPE PLUG TPC-28534
...
18
OIL SEAL TPC-510305A
...
19
CARB STUD TPC-650700
...
20
GASKET TPC-510309A
...
22
GASKET TPC-510306
...
28
GASKET TPC-510307A
...
32
GASKET TPC-510308A
