Tecumseh SBH-SBH-577A 4-Cycle Short Blocks Horizontal

Model: SBH-SBH-577A

Save Part Not Listed?
product name

Engine Parts List

...
...
1
CYLINDER TPC-35677A
...
2
PIN TPC-27652
...
14
WASHER TPC-28277
...
15
GOVERNOR ROD TPC-35685
...
17
CLAMP ASSY TPC-35687A
...
18
SCREW TPC-651018
...
20
OIL SEAL TPC-35319
...
30
CRANKSHAFT TPC-35701A
...
31
GEAR TPC-35327
...
35
SCREW TPC-29826
...
36
WASHER TPC-29918
...
37
NUT TPC-29216
...
38
RET RING TPC-29642
...
40
PISTON ASSY 020 TPC-35341A
...
40
PISTON ASSY STD TPC-35339A
...
40
PISTON ASSY 010 TPC-35340A
...
41
PISTON & PIN 10 TPC-35430
...
41
PISTON & PIN 20 TPC-35431
...
41
PISTON & PIN ST TPC-35329
...
42
PISTON ASSY STD TPC-34866A
...
42
RING SET 020 TPC-34868A
...
42
RING SET 010 TPC-34867A
...
43
RET RING TPC-31919
...
45
CONN ROD TPC-36898A
...
46
SCREW TPC-651063
...
47
SCREW TPC-651033A
...
48
VALVE LIFTER TPC-35313A
...
50
CAMSHAFT TPC-35682A
...
51
WEIGHT TPC-35315A
...
69
GASKET TPC-35683
...
70
CYL COVER TPC-35684B
...
71
GASKET (OBS) FUEL CAP TPC-35-377
...
72
PIPE PLUG TPC-27642
...
75
OIL SEAL TPC-35319
...
80
GOV SHAFT TPC-35751
...
81
WASHER TPC-651080
...
82
GEAR TPC-35321
...
83
GOV SPOOL TPC-35322
...
84
RET RING TPC-29193
...
86
SCREW TPC-650833
...
87
SCREW TPC-650832
...
141
O RING TPC-33481
...
144
O RING TPC-33484
...
147
O RING TPC-33509
...
148
O RING TPC-34410
...
152
O RING TPC-35295
...
157
NUT TPC-28264
...
159
O RING TPC-35299B
...
161
SCREW TPC-650879
...
162
NUT TPC-650903
...
169
GASKET TPC-27896A
...
184
GASKET TPC-33515A
...
370
DECAL TPC-36261

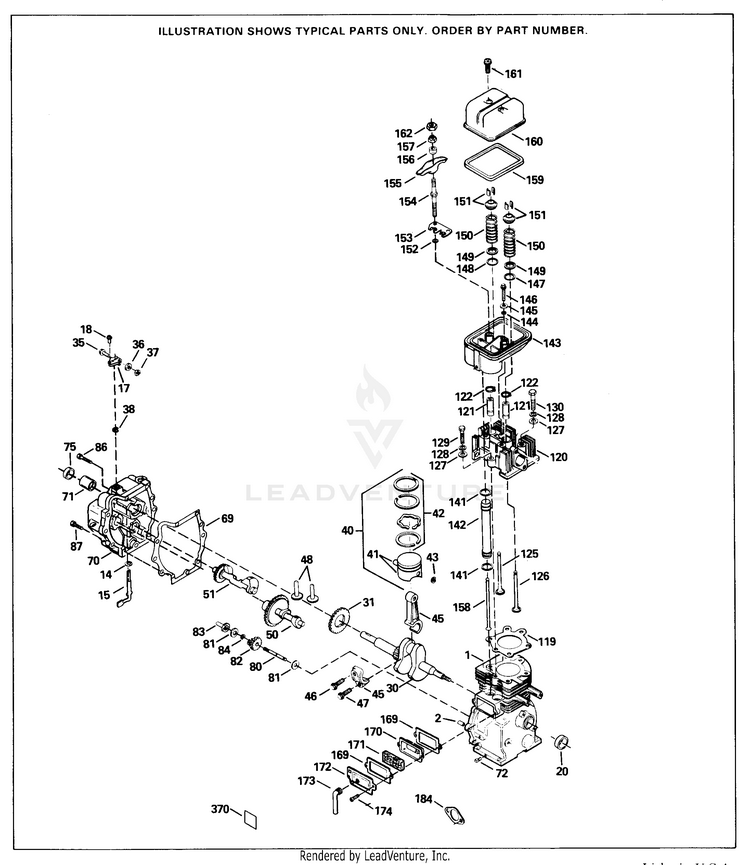

Schematic Image Zoomed
