Tecumseh SBH-710470A Horizontal 2-Cycle Short Blocks

Model: SBH-710470A

Save Part Not Listed?
product name

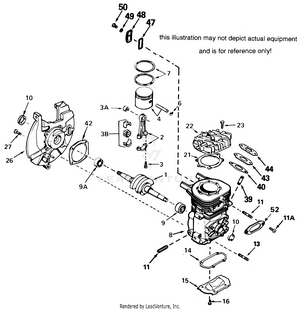

Engine Parts List

...
...
1
CRANKSHAFT TPC-290609
...
2
CONN ROD TPC-310235C
...
3
SCREW TPC-650633
...
3B
BEARING TPC-530150A
...
3A
BEARING TPC-530104A
...
4
PISTON & PIN TPC-310283A
...
6
RET RING TPC-310167
...
7
RING SET TPC-310289A
...
9
CAGED BEARING TPC-530105
...
9A
BEARING TPC-530110
...
10
OIL SEAL TPC-510319
...
11
STUD TPC-650883
...
11A
SCREW TPC-650911
...
14
GASKET TPC-510323A
...
15
COVER PLATE TPC-570644
...
16
SCREW TPC-650579
...
21
GASKET TPC-510274A
...
22
CYL HEAD TPC-250240B
...
23
SCREW TPC-650477
...
26
HOUSING BASE TPC-350396
...
27
SCREW TPC-650911
...
39
SCREW TPC-650959
...
40
GASKET TPC-510326A
...
42
GASKET TPC-510292A
...
44
GASKET TPC-510326A
...
52
GASKET TPC-510207A
