Tecumseh RS12-590714 Starter

Model: RS12-590714

Back To Assemblies

Save Part Not Listed?
product name

Recoil Starter

...
...
0
STARTER TPC-590714
...
1
NUT TPC-650995
...
2A
WASHER TPC-650997
...
2
WASHER TPC-650996
...
3
RETAINER TPC-590724
...
4
WASHER TPC-650998
...
5
BRAKE SPRING TPC-590727
...
6
STARTER DOG TPC-590726
...
7
SPRING TPC-590725
...
8
PULLEY TPC-590728
...
9
START SPRING TPC-590729
...
11
STARTER HSG TPC-590723
...
12
STARTER ROPE TPC-590756
...
13
START HANDLE TPC-590731

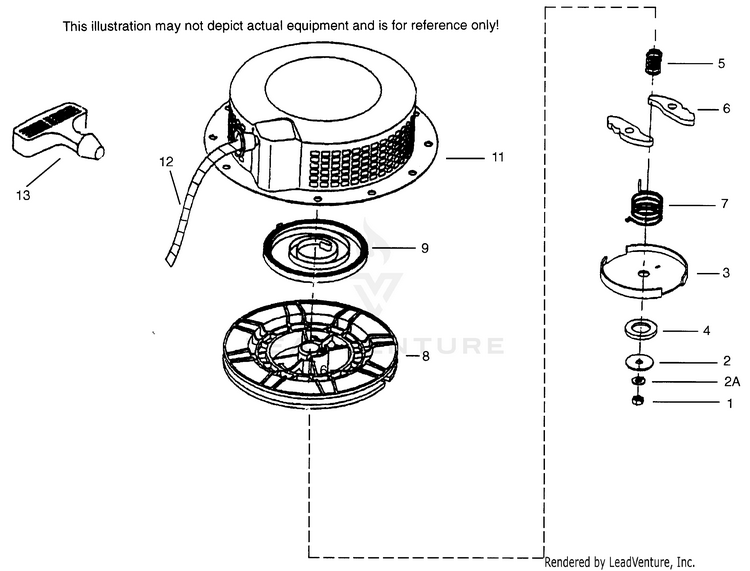

Schematic Image Zoomed
