Tecumseh RS-590749A Starter

Model: RS-590749A

Save Part Not Listed?
product name

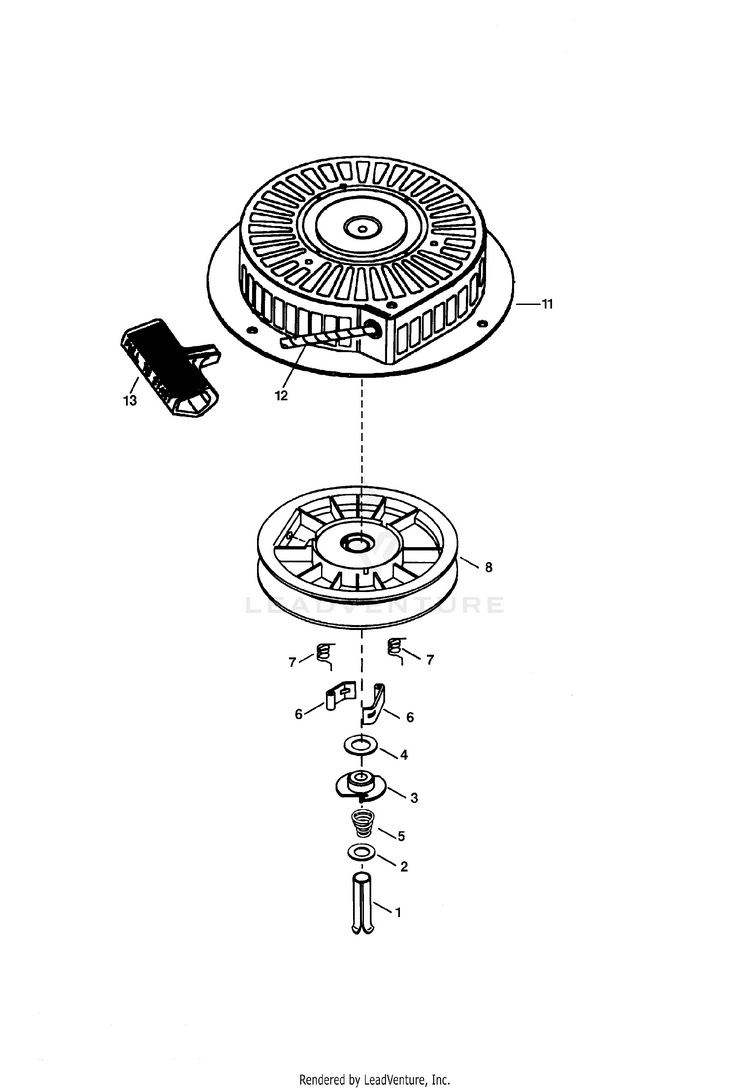

Recoil Starter

...
...
0
STARTER TPC-590789
...
1
SPRING PIN TPC-590599A
...
2
WASHER TPC-590600
...
3
RETAINER TPC-590679
...
4
WASHER TPC-590601
...
5
SPRING TPC-590678
...
6
STARTER DOG TPC-590680
...
7
SPRING TPC-590412
...
8
PULLEY ASSY TPC-590682
...
11
STARTER HSG TPC-590750B
...
12
STARTER ROPE TPC-590535
...
13
START HANDLE TPC-590574
