Tecumseh MG-610941A Magneto Parts

Model: MG-610941A

Save
Part Not Listed?Part Not Listed?
product name

Magneto

...
...
0

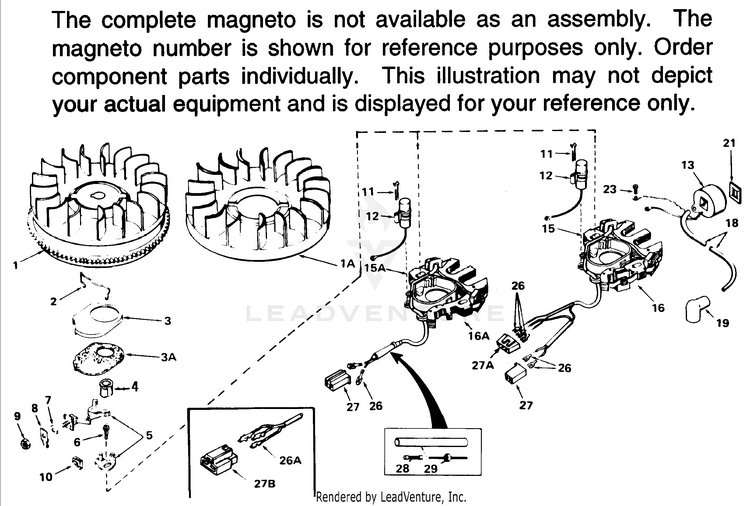

"Magneto This magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually as shown in parts breakdown. TPC-610941A

...
1A
FLYWHEEL FAN TPC-610933

...
1
FLYWHEEL TPC-610936B

...
2
COVER SPRING TPC-30836

...
3A

...
4
BREAKER CAM TPC-30552

...
5
BREAKER SET TPC-30547A

...
6

...
7

...
8
TERMINAL TPC-33356


...
10
WIPER FELT TPC-30549

...
11

...
12
CONDENSER TPC-30548B

...
13

...
14
SPRING TPC-29629

...
15
STATOR ASSY TPC-610821A

...
16
CORE & PLATE TPC-30834

...
17
GEN COIL TPC-33030

...
18
LEAD WIRE TPC-30554

...
19
SLEEVE TPC-30840

...
20
SHIELD TPC-30838

...
21

...
22

...
23

...
32A

...
33

...
36
TERMINAL TPC-610822

...
37
CONNECTOR TPC-610823
...
...
...
