Tecumseh HXL840-8604B 4-Cycle Horizontal

Model: HXL840-8604B

Save Part Not Listed?
product name

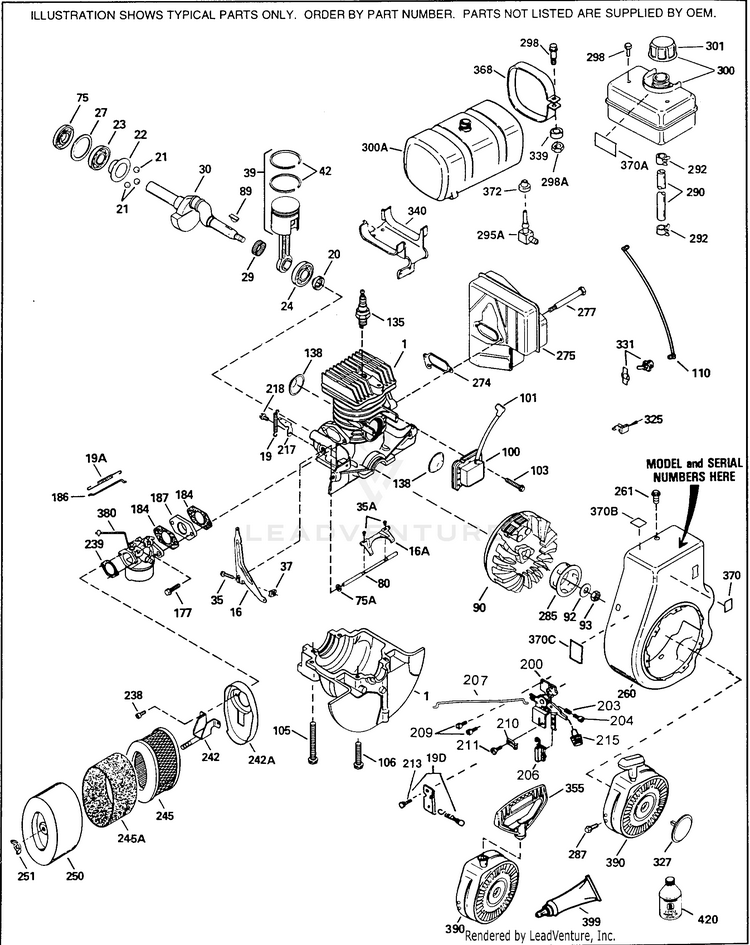

Engine Parts List

...
...
1
CYLINDER TPC-250300A
...
16
GOV LEVER TPC-490317
...
16A
GOV LEVER TPC-490304
...
19D
SPRING & BRKT TPC-33857
...
19A
SPRING TPC-490318
...
19
SPRING TPC-34663
...
20
OIL SEAL TPC-510340
...
21
BALL TPC-570673
...
22
SLIDE RING TPC-510338
...
23
BEARING TPC-530158
...
24
BEARING TPC-530161
...
27
RETAINER TPC-530159
...
29
BEARING TPC-530164
...
30
CRANKSHAFT TPC-290661
...
35A
SCREW TPC-650506
...
35
SCREW TPC-29826
...
37
NUT TPC-29216
...
39
PISTON & ROD TPC-310291A
...
42
RING SET TPC-310278
...
75
OIL SEAL TPC-510339
...
75A
OIL SEAL TPC-510337
...
80
GOV SHAFT TPC-490305
...
89
KEY TPC-611191
...
90
FLYWHEEL TPC-611190
...
92
WASHER TPC-650815
...
93
NUT TPC-650816
...
100
LAMINATION TPC-34443D
...
101
PLUG COVER TPC-610118
...
103
SCREW TPC-651007
...
105
SCREW TPC-650892
...
106
SCREW TPC-650891
...
110
GROUND WIRE TPC-611072
...
135
SPARK PLUG TPC-611049
...
138
COVER TPC-570683
...
177
SCREW TPC-650959
...
184
GASKET TPC-510326A
...
186
GOV LINK TPC-490319
...
187
SPACER TPC-570438A
...
200
CONTROL ASSY TPC-570710
...
203
COMP SPRING TPC-31342
...
204
SCREW TPC-651029
...
207
LINK TPC-490323
...
209
SCREW TPC-650821
...
210
CLIP TPC-27793
...
211
SCREW TPC-650837
...
213
SCREW TPC-28942
...
238
SCREW TPC-651081
...
239
GASKET TPC-35815
...
242A
BRACKET TPC-33266
...
242
BRACKET TPC-33267
...
245
AIR CLEANER TPC-33268
...
250
CLEANER COV TPC-33269A
...
251
NUT TPC-650825
...
260
BLOWER HSG TPC-350456
...
261
SCREW TPC-650894
...
274
GASKET TPC-510343A
...
275
MUFFLER TPC-390326
...
277
SCREW TPC-650893
...
285
STARTER CUP TPC-34449A
...
287
SCREW TPC-650926
...
327
STARTER PLUG TPC-35392
...
370
DECAL--Discontinued TPC-550223
...
370B
DECAL TPC-550230A
...
370A
DECAL TPC-35977
...
380
CARBURETOR TPC-632683
...
390
STARTER TPC-590732A
...
399
SEALER TPC-510334
...
420
OIL 2 CYCLE TPC-730227D

RS-590688 590688-RS

...

No Parts Available for this Schematic

TEC-632683 1553 Mfg. No. 632683-TEC

...

No Parts Available for this Schematic
