Tecumseh HM70-132018F 4-Cycle Horizontal

Model: HM70-132018F

Save Part Not Listed?
product name

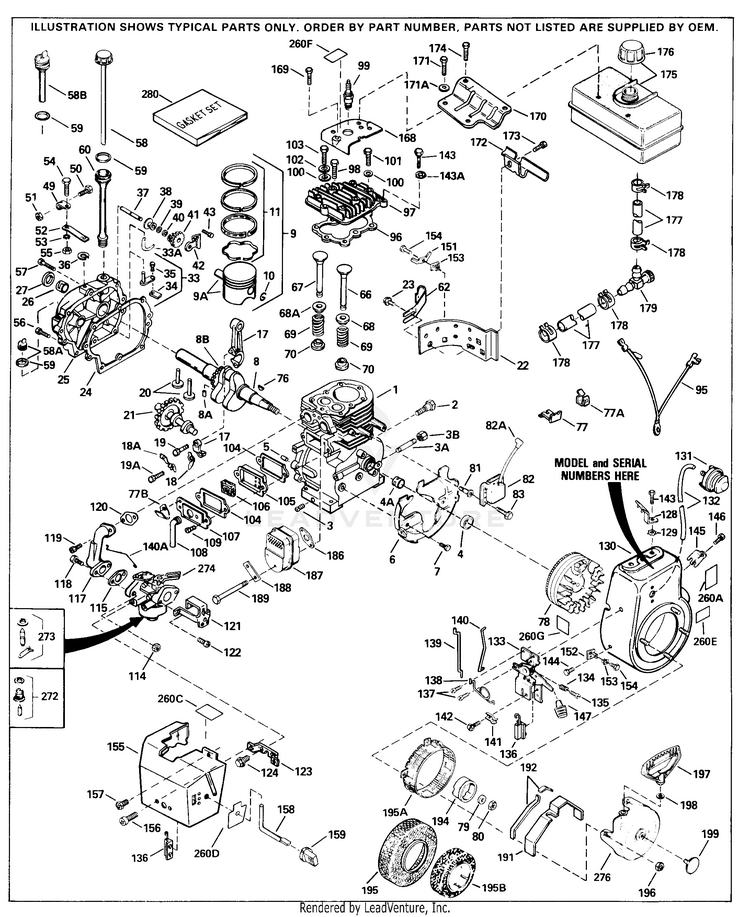

Engine Parts List #1

...
...
1
CYLINDER TPC-35385
...
3
PIPE PLUG TPC-27642
...
4
OIL SEAL TPC-35319
...
5
PIN TPC-27652
...
6
BAFFLE TPC-37861
...
6
BAFFLE TPC-37853
...
6
BAFFLE TPC-35256A
...
7
SCREW TPC-650561
...
8B
GEAR TPC-33245
...
8
CRANKSHAFT TPC-35372A
...
8A
GROOVE PIN TPC-29783
...
9A
PISTON ASSY STD TPC-40049
...
9
PISTON ASSY STD TPC-40049
...
9A
PISTON & PIN 20 TPC-34331A
...
9
PISTON ASSY 010 TPC-40012
...
9A
PISTON ASSY 010 TPC-40012
...
9
PISTON ASSY 020 TPC-34554
...
10
RET RING TPC-27888
...
11
RING SET 010 TPC-34333
...
11
RING SET 020 TPC-34334
...
11
PISTON ASSY STD TPC-40049
...
17
CONN ROD TPC-36897A
...
18A
LOCK PLATE TPC-32590
...
18
OIL DIPPER TPC-35374
...
19
SCREW TPC-651063
...
19A
SCREW TPC-651033A
...
20
VALVE LIFTER TPC-34034A
...
21
CAMSHAFT TPC-35375
...
22
EXTENSION TPC-33273A
...
23
SCREW TPC-650128
...
24
GASKET TPC-37342
...
25
CYL COVER TPC-38027
...
26
GASKET (OBS) FUEL CAP TPC-35-377
...
27
OIL SEAL TPC-35319
...
33A
GOVERNOR ROD TPC-30699C
...
33
GOVERNOR ROD TPC-30699C
...
34
GOV YOKE TPC-30700
...
35
SCREW TPC-650494
...
36
RET RING TPC-29642
...
37
GOV SHAFT TPC-37587
...
38
GOV SPOOL TPC-30588A
...
39
WASHER TPC-651080
...
40
RET RING TPC-29193
...
41
GEAR TPC-35378
...
42
BRACKET TPC-33369
...
43
SCREW TPC-650965
...
49
CLAMP TPC-29916
...
50
SCREW TPC-29826
...
51
NUT TPC-29216
...
52
GOV LEVER TPC-33454A
...
53
WASHER TPC-29918
...
54
SCREW TPC-651018
...
55
NUT TPC-30322
...
56
SCREW TPC-650832
...
57
SCREW TPC-650833
...
58
DIPSTICK TPC-35941
...
59
GASKET TPC-29673
...
66
EXH VALVE STD TPC-27878A
...
66
EXH VALVE OS TPC-27880A
...
67
INT VALVE ST TPC-34035
...
67
INTAKE VALVE OS TPC-34036
...
68
VALVE CAP TPC-27882
...
68A
INT VALVE SEAL TPC-35862
...
69
VALVE SPRING TPC-27881
...
70
VALVE CAP TPC-32581
...
76
KEY TPC-32589
...
78
FLYWHEEL TPC-611090
...
79
WASHER TPC-650880
...
80
NUT TPC-650881
...
81
STUD TPC-651024
...
82A
PLUG COVER TPC-610118
...
82
LAMINATION TPC-35135B
...
83
SCREW TPC-651007
...
96
GASKET TPC-34923A
...
97
CYL HEAD TPC-34030B
...
98
SCREW TPC-650711
...
98
SCREW TPC-6021A
...
98
SCREW--NLA TPC-650692
...
99
SPARK PLUG TPC-33636
...
100
WASHER TPC-650691
...
101
SCREW TPC-650727
...
102
WASHER KIT TPC-730324
...
103
SCREW TPC-650694A
...
104
GASKET TPC-27896A
...
105
BREATHER TPC-28423
...
106
ELEMENT TPC-28424
...
107
VALVE COVER TPC-28425
...
108
TUBE TPC-35350
...
109
SCREW TPC-650128
...
114
NUT TPC-29752
...
115
Gasket TPC-26756
...
117
INTAKE PIPE TPC-34707A
...
119
SCREW TPC-650378
...
120
GASKET TPC-27915A
...
128
STOP LEVER TPC-30747
...
129
WASHER TPC-650890
...
130
BLOWER HSG TPC-33375E
...
133
CONTROL ASSY TPC-34677
...
134
COMP SPRING TPC-31342
...
135
SCREW TPC-651029
...
136
TERMINAL TPC-610973
...
137
SCREW TPC-650821
...
138
SPRING TPC-34663
...
139
GOV LINK TPC-34661
...
140
GOV LINK TPC-33878
...
143
SCREW TPC-650788
...
144
SCREW/LOCKWASHER ASSEMBLY TPC-29747C
...
145
COVER TPC-33013
...
146
SCREW TPC-650760
...
147
KNOB TPC-32410
...
158
CHOKE ROD TPC-34586
...
168
COVER TPC-33272D
...
169
SCREW TPC-650737
...
169
SCREW TPC-650802
...
169
SCREW TPC-650273
...
169
SCREW TPC-650738
...
170
TANK BRACKET TPC-34154
...
171
SCREW TPC-650273
...
172
TANK BRACKET TPC-34155
...
173
SCREW TPC-650561
...
174
SCREW TPC-650665
...
175
FUEL TANK TPC-34156A
...
176
FUEL CAP TPC-33032
...
176
FUEL CAP TPC-33032
...
176
FUEL CAP TPC-34210
...
176
FUEL CAP TPC-37845
...
177
FUEL LINE TPC-30705
...
177
FUEL LINE TPC-29774
...
178
CLAMP TPC-26460
...
186
GASKET TPC-35865
...
187
MUFFLER TPC-34185B
...
188
LOCK PLATE TPC-31588
...
189
SCREW TPC-650729
...
194
STARTER CUP TPC-37966
...
195A
SCREEN TPC-35446
...
196
NUT TPC-29752
...
199
STARTER PLUG TPC-35392
...
260G
DECAL TPC-34686A
...
273
INLET NEEDLE KIT TPC-631021B
...
274
CARBURETOR TPC-632464
...
276
STARTER TPC-590685B
...
280
GASKET SET TPC-33279L

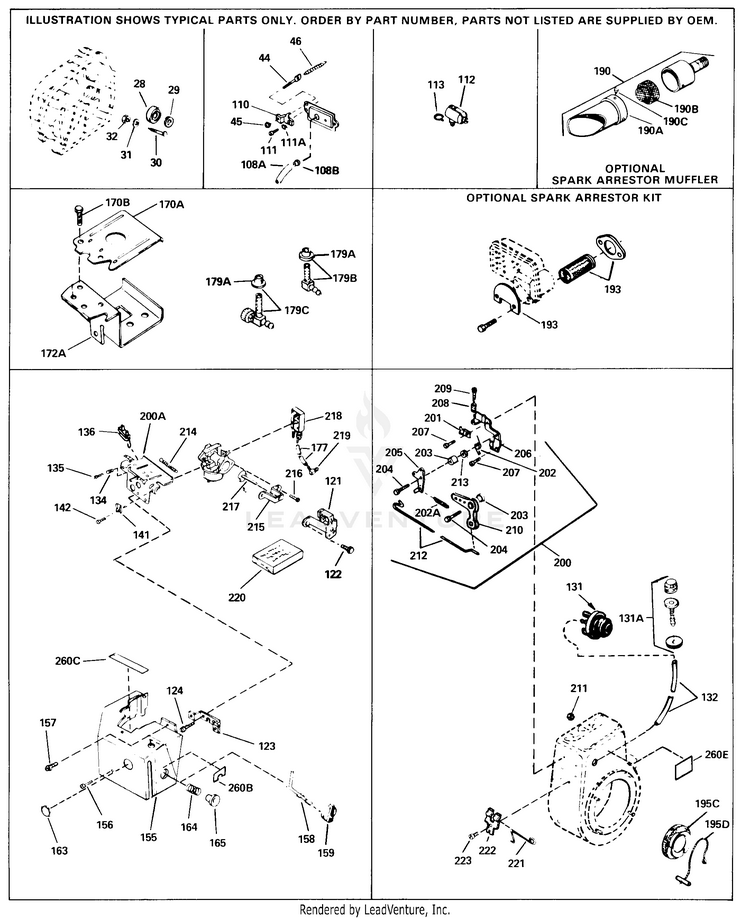

Engine Parts List #2

...
...
98
SCREW--NLA TPC-650692
...
98
SCREW TPC-6021A
...
98
SCREW TPC-650711
...
134
COMP SPRING TPC-31342
...
135
SCREW TPC-651029
...
136
TERMINAL TPC-610973
...
158
CHOKE ROD TPC-34586
...
177
FUEL LINE TPC-29774
...
177
FUEL LINE TPC-30705
...
190
MUFFLER TPC-36248
...
190C
SCREW TPC-650578
...
190A
COVER TPC-33700
...
190B
SCREEN TPC-33323
...
193
SCREEN KIT TPC-34479A

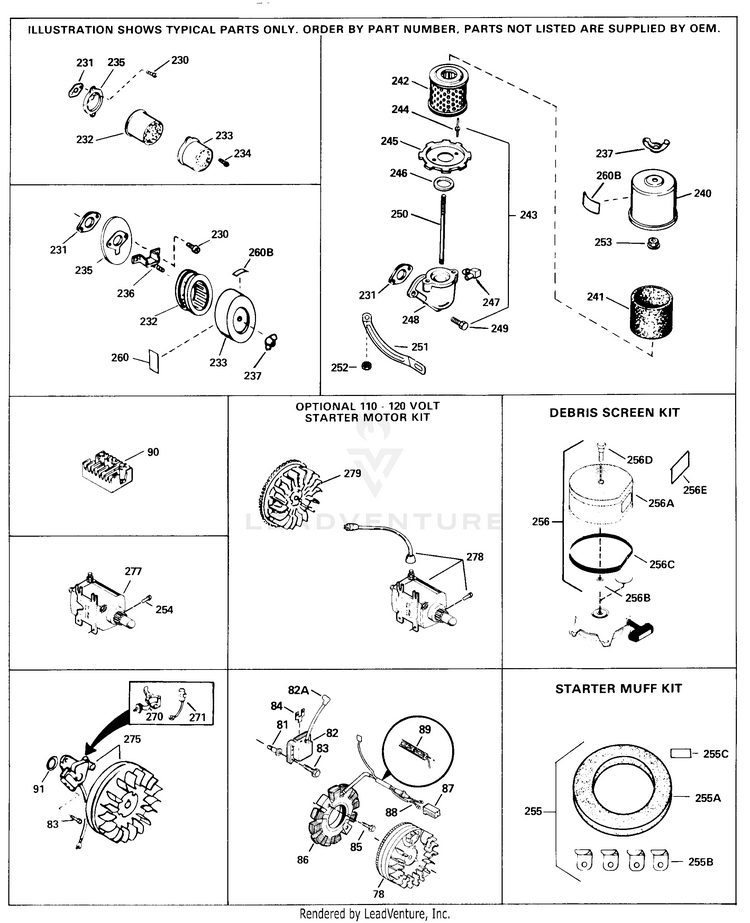

Engine Parts List #3

...
...
78
FLYWHEEL TPC-611090
...
81
STUD TPC-651024
...
82A
PLUG COVER TPC-610118
...
82
LAMINATION TPC-35135B
...
83
SCREW TPC-651007
...
98
SCREW TPC-6021A
...
98
SCREW TPC-650711
...
98
SCREW--NLA TPC-650692
...
230
SCREW TPC-651081
...
231
GASKET TPC-27272A
...
232
AIR CLEANER TPC-33268
...
233
CLEANER COV TPC-33269A
...
235
BRACKET TPC-33266
...
236
BRACKET TPC-33267
...
237
NUT TPC-650825
...
255
KIT TPC-730572
...
255C
DECAL TPC-34870
...
255A
AIR CLEANER TPC-34687
...
255B
BRACKET TPC-34869
...
256A
DEBRIS SCREEN TPC-35568
...
256E
DECAL TPC-34387
...
256
KIT TPC-730573
...
256C
SCREEN SEAL TPC-35570
...
256B
SPACER TPC-35569
...
256D
SCREW TPC-650907
...
260
DECAL TPC-36261
...
278
STARTER KIT TPC-33329E
...
279
FLYWHEEL TPC-611091
...
279
FLYWHEEL TPC-610847

CA-632464 1264 Mfg. No. 632464-CA

...

No Parts Available for this Schematic

ES110-1-33329D 1-33329D-ES110 33329D-ES110-1

...

No Parts Available for this Schematic

RS6-590633 590633-RS6

...

No Parts Available for this Schematic
