product name

Tecumseh ES-32386 Starter

Model: ES-32386

Save
 Part Not Listed?Part Not Listed?
product name

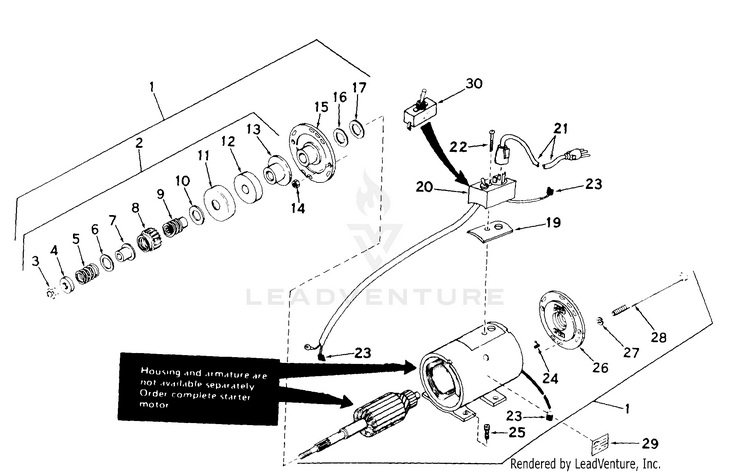

Electric Starter

...
...
1
STARTER KIT TPC-33328D
...
2
DRIVE ASSY TPC-30003
...
3
NUT TPC-30004
...
4
PINION STOP TPC-28692
...
5
SPRING TPC-28693
...
6
WASHER TPC-28694
...
7
SLEEVE TPC-28695
...
8
GEAR & SHAFT TPC-30005
...
9
GEAR & SHAFT TPC-30006
...
10
WASHER TPC-650791
...
11
CUSHION CUP TPC-30008
...
12
CUSHION TPC-30009
...
13
WASHER TPC-30010
...
14
NUT TPC-30011
...
15
END CAP TPC-31590
...
16
WASHER TPC-31591
...
16
WASHER TPC-30015
...
16
WASHER TPC-30014
...
17
WASHER TPC-31592
...
19
GASKET TPC-32464
...
20
RECTIFIER TPC-32467
...
21
ELEC CORD TPC-32450B
...
22
SCREW TPC-30674
...
23
BRUSH & SPR TPC-32466
...
24
BRUSH SPRING TPC-30021
...
25
SCREW TPC-30063
...
26
END CAP TPC-32465
...
27
WASHER TPC-30012
...
28
SCREW TPC-30023
...
29
DECAL TPC-32453
...
30
SWITCH TPC-31604
...
...
...
