product name

Tecumseh ES-30867 Starter

Model: ES-30867

Save
 Part Not Listed?Part Not Listed?
product name

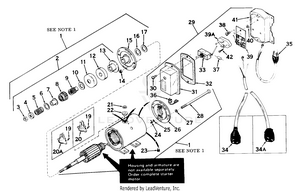

Electric Starter

...
...
1
STARTER KIT TPC-33328D
...
2
DRIVE ASSY TPC-30003
...
3
NUT TPC-30004
...
4
PINION STOP TPC-28692
...
5
SPRING TPC-28693
...
6
WASHER TPC-28694
...
7
SLEEVE TPC-28695
...
8
GEAR & SHAFT TPC-30005
...
9
GEAR & SHAFT TPC-30006
...
10
WASHER TPC-650791
...
11
CUSHION CUP TPC-30008
...
12
CUSHION TPC-30009
...
13
WASHER TPC-30010
...
14
NUT TPC-30011
...
15
END CAP TPC-31590
...
16
WASHER TPC-30015
...
16
WASHER TPC-31591
...
16
WASHER TPC-30014
...
17
WASHER TPC-31592
...
19
SCREW TPC-31594
...
20
RECEPTACLE TPC-31595
...
21
WASHER TPC-31596
...
22
BUSHING TPC-31597
...
23
BRUSH TPC-31598
...
24
BRUSH SPRING TPC-30021
...
25
INSULATION TPC-31599
...
26
END CAP TPC-31600
...
27
WASHER TPC-30012
...
28
SCREW TPC-30023
...
29
CRANKSHAFT TPC-32669A
...
30
SCREW TPC-650760
...
31
COVER TPC-31602
...
32
GASKET TPC-31603
...
33
SWITCH TPC-31604
...
34
CABLE ASSY TPC-31605
...
35
CABLE ASSY TPC-31606
...
36
BUSHING TPC-31607
...
37
THYRECTOR TPC-31608
...
38
SCREW TPC-31609
...
39
BRIDGE TPC-31610A
...
40
WASHER TPC-31596
...
41
BASE TPC-31611
...
...
...
