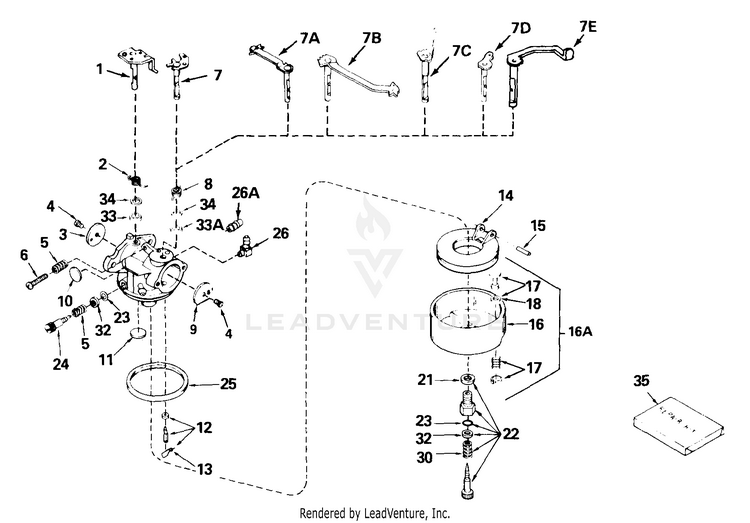

Tecumseh CA-631563 Carburetor Parts

Model: CA-631563

Save Part Not Listed?
product name

Carburetor

...
...
1
SHAFT & LEV TPC-31834
...
2
SPRING TPC-631767
...
3
SHUTTER TPC-631036
...
4
SCREW TPC-650506
...
5
SPRING TPC-630766
...
6
SCREW TPC-651025
...
7
SHAFT & LEV TPC-630973
...
8
SPRING TPC-632045
...
9
SHUTTER TPC-631037
...
10
WELCH PLUG TPC-630748
...
11
WELCH PLUG TPC-631027
...
12
INLET NEEDLE KIT TPC-631021B
...
13
CLIP TPC-631022
...
14
FLOAT TPC-632019A
...
15
FLOAT SHAFT TPC-631024
...
16A
FLOAT BOWL TPC-631951
...
17
DRAIN ASSY TPC-27136A
...
18
GASKET TPC-27554
...
21
GASKET TPC-27110A
...
22
POWER SCREW TPC-631026
...
23
O RING TPC-630740
...
24
ADJ SCREW TPC-631838
...
25
GASKET TPC-631028A
...
26
FUEL FITTING TPC-632527
...
30
SPRING TPC-630738
...
32
WASHER TPC-630739
...
35
REPAIR KIT TPC-631029
