Tecumseh AV600-660035F 2-Cycle Vertical

Model: AV600-660035F

Save Part Not Listed?
product name

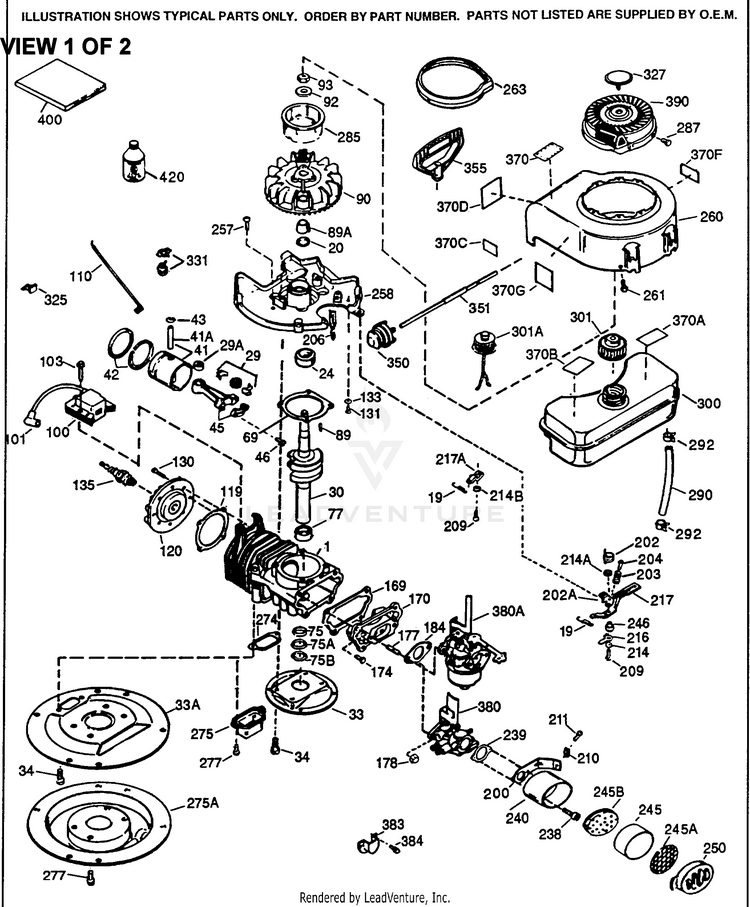

Engine Parts List #1

...
...
1
CYLINDER TPC-250261B
...
19
GOV SPRING TPC-490298
...
24
BEARING TPC-530110
...
27
OIL SEAL TPC-510319
...
28A
RETAINER TPC-510143
...
28
OIL SEAL TPC-510145
...
28B
RET SPRING TPC-510142
...
29A
BEARING TPC-530104A
...
29
BEARING TPC-530150A
...
30
CRANKSHAFT TPC-290479
...
41
PISTON & PIN TPC-310283A
...
42
RING SET TPC-310289A
...
43
RET RING TPC-310167
...
45
CONN ROD TPC-310235C
...
46
SCREW TPC-650633
...
69
GASKET TPC-510292A
...
77
BEARING TPC-530143A
...
89
KEY TPC-610961
...
92
WASHER TPC-650815
...
93
NUT TPC-650390
...
101
PLUG COVER TPC-610118
...
110
GROUND WIRE TPC-610974
...
119
GASKET TPC-510274A
...
120
CYL HEAD TPC-250240B
...
130
SCREW TPC-650477
...
131
SCREW TPC-650910
...
135
SPARK PLUG TPC-33636
...
169
GASKET TPC-510323A
...
170
REED PLATE TPC-470153B
...
174
SCREW TPC-650579
...
178
NUT TPC-29752
...
184
GASKET TPC-510110A
...
202A
SPRING TPC-570416
...
206
TERMINAL TPC-610973
...
209
SCREW TPC-650544
...
214
WASHER TPC-650583
...
214B
SPACER TPC-570413
...
216
ADJ LEVER TPC-570623
...
217
CONT LEVER TPC-570622
...
238
SCREW TPC-650431
...
239
GASKET TPC-35815
...
240
CLEANER BODY TPC-450208
...
245B
SCREEN TPC-29962
...
245
AIR CLEANER TPC-29961
...
246
BUSHING TPC-570412
...
250
CLEANER COV TPC-450216
...
257
SCREW TPC-650911
...
258
HOUSING BASE TPC-350405A
...
261
SCREW TPC-650958
...
274
GASKET TPC-510257A
...
290
FUEL LINE TPC-29774
...
292
CLAMP TPC-26460
...
300
FUEL TANK TPC-410233
...
301A
FUEL CAP TPC-410285
...
325
CLIP TPC-611021
...
370A
DECAL TPC-550206
...
370B
DECAL TPC-550206
...
370
DECAL TPC-34686A
...
380
CARBURETOR TPC-631944
...
400
GASKET SET TPC-510295A
...
422
OIL 2 CYCLE TPC-730227D

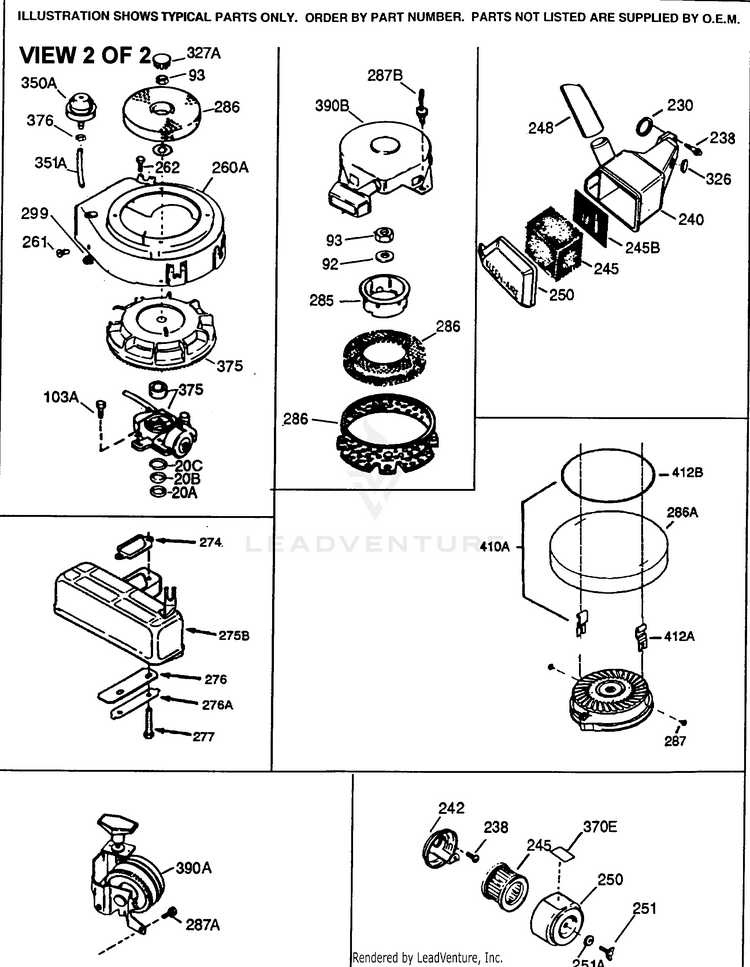

Engine Parts List #2

...
...
27
OIL SEAL TPC-510319
...
28B
RET SPRING TPC-510142
...
28
OIL SEAL TPC-510145
...
28A
RETAINER TPC-510143
...
92
WASHER TPC-650815
...
93
NUT TPC-650390
...
103A
SCREW TPC-650747
...
238
SCREW TPC-650431
...
240
CLEANER BODY TPC-450208
...
245
AIR CLEANER TPC-29961
...
245B
SCREEN TPC-29962
...
250
CLEANER COV TPC-450216
...
260A
BLOWER HSG TPC-350374
...
261
SCREW TPC-650958
...
262
SCREW TPC-650597
...
274
GASKET TPC-510257A
...
286A
SCREEN TPC-32237
...
287A
SCREW TPC-650823
...
327A
PLUG BUTTON TPC-32236
...
375
MAGNETO TPC-610793A
...
390A
STARTER TPC-590457
...
422
OIL 2 CYCLE TPC-730227D

MG-610793A 610793A-MG

...

No Parts Available for this Schematic

RS-590457 590457-RS

...

No Parts Available for this Schematic

TEC-631944 1372 Mfg. No. 631944-TEC

...

No Parts Available for this Schematic
