Tecumseh AV600-660-18B 2-Cycle Vertical

Model: AV600-660-18B

Save Part Not Listed?
product name

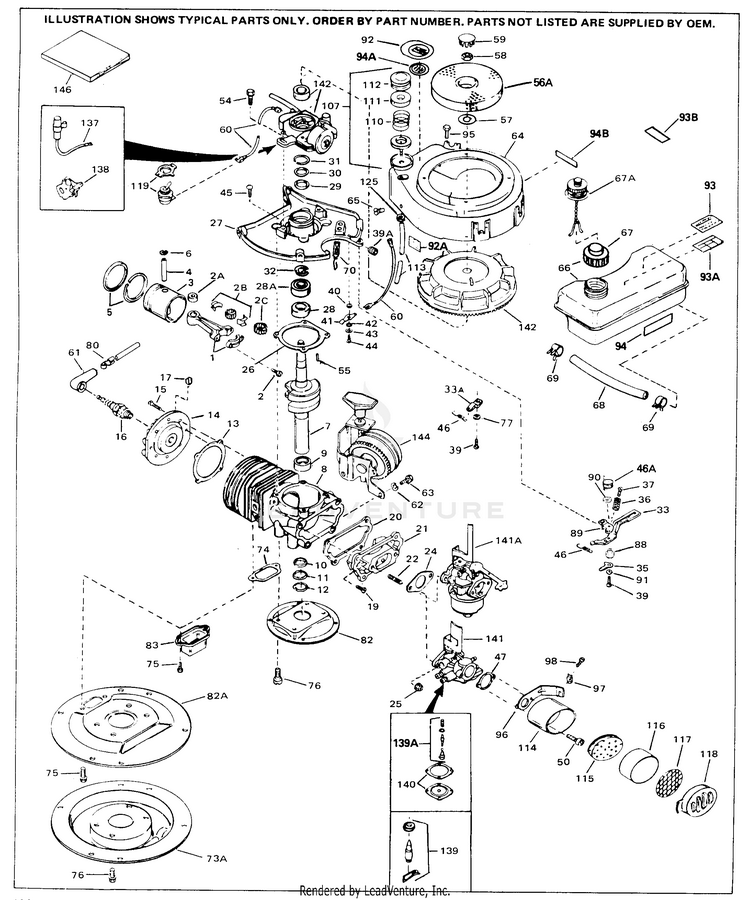

Engine Parts List #1

...
...
1
CONN ROD TPC-310235C
...
2
SCREW TPC-650633
...
2B
BEARING TPC-530150A
...
2A
BEARING TPC-530104A
...
3
PISTON & PIN TPC-310283A
...
4
PISTON PIN TPC-310264
...
5
RING SET TPC-310289A
...
6
RET RING TPC-310167
...
7
CRANKSHAFT TPC-290485
...
8
CYLINDER TPC-250263B
...
9
BEARING TPC-530143A
...
10
OIL SEAL TPC-510145
...
11
RETAINER TPC-510143
...
12
RET SPRING TPC-510142
...
13
GASKET TPC-510274A
...
14
CYL HEAD TPC-250240B
...
15
SCREW TPC-650477
...
16
SPARK PLUG TPC-33636
...
19
SCREW TPC-650579
...
20
GASKET TPC-510323A
...
21
REED PLATE TPC-470153B
...
22
CARB STUD TPC-650700
...
24
GASKET TPC-510110A
...
25
NUT TPC-650456
...
25
NUT TPC-29752
...
26
GASKET TPC-510292A
...
27
HOUSING BASE TPC-350405A
...
28A
BEARING TPC-530110
...
29
OIL SEAL TPC-510105
...
30
RETAINER TPC-510106A
...
31
RET SPRING TPC-510109A
...
32
RET SPRING TPC-570630
...
33
CONT LEVER TPC-570421
...
35
ADJ LEVER TPC-570415
...
36
COMP SPRING TPC-31342
...
37
SCREW TPC-651029
...
39
SCREW TPC-650544
...
43
WASHER TPC-650469
...
44
SCREW TPC-650910
...
45
SCREW TPC-650911
...
46
GOV SPRING TPC-570417
...
47
GASKET TPC-35815
...
50
SCREW TPC-650431
...
54
SCREW TPC-650747
...
55
KEY TPC-610961
...
56A
SCREEN TPC-32237
...
57
WASHER TPC-650815
...
58
NUT TPC-650390
...
59
PLUG BUTTON TPC-32236
...
60
GROUND WIRE TPC-610974
...
61
PLUG COVER TPC-610118
...
62
WASHER TPC-650168
...
63
SCREW TPC-650823
...
64
BLOWER HSG TPC-350374
...
65
SCREW TPC-650356
...
66
FUEL TANK TPC-410233
...
67
FUEL CAP TPC-410238
...
68
FUEL LINE TPC-29774
...
68
FUEL LINE TPC-30705
...
69
CLAMP TPC-26460
...
70
TERMINAL TPC-610973
...
73A
MUFFLER COVER TPC-390297
...
74
GASKET TPC-510314A
...
76
SCREW TPC-650797
...
82A
ADAPTER TPC-330175
...
88
BUSHING TPC-570412
...
89
SPRING TPC-570416
...
90
SPACER TPC-570413
...
91
WASHER TPC-650583
...
92
DECAL--Discontinued TPC-550223
...
93A
DECAL TPC-550206
...
93
DECAL TPC-550206
...
94B
DECAL TPC-550207
...
95
SCREW TPC-650767
...
137
CONDENSER TPC-30548B
...
138
BREAKER SET TPC-30547A
...
139
INLET NEEDLE KIT TPC-631021B
...
141A
CARBURETOR TPC-632074
...
142
MAGNETO TPC-610793A
...
144
STARTER TPC-590457
...
146
GASKET SET TPC-510295A

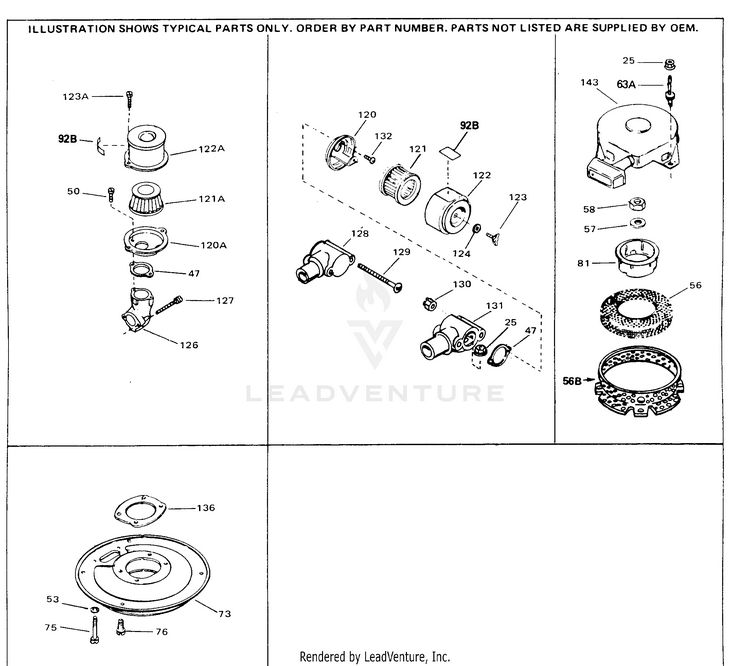

Engine Parts List #2

...
...
25
NUT TPC-650456
...
25
NUT TPC-29752
...
47
GASKET TPC-35815
...
50
SCREW TPC-650431
...
57
WASHER TPC-650815
...
58
NUT TPC-650390
...
76
SCREW TPC-650797
...
92B
DECAL TPC-550201
...
120
CLEANER BASE TPC-450230
...
121
AIR CLEANER TPC-450229
...
122
CLEANER COV TPC-450231
...
123
SCREW TPC-650715
...
124
WASHER TPC-650518

CA-632074 1164 Mfg. No. 632074-CA

...

No Parts Available for this Schematic

MG-610793A 610793A-MG

...

No Parts Available for this Schematic

RS-590457 590457-RS

...

No Parts Available for this Schematic
