Task Force 132-431E062 (95179) (1992) Lawn Tractor

Model: 132-431E062 (95179) (1992)

Back To Assemblies

Save Part Not Listed?
product name

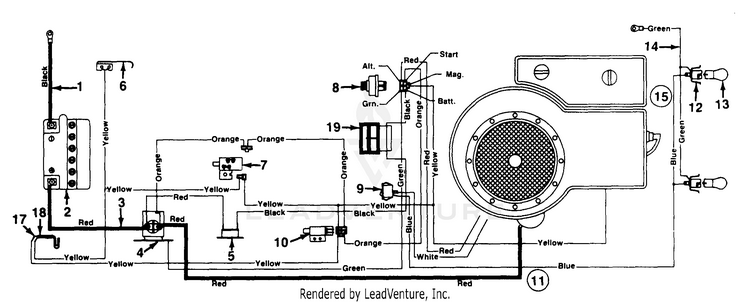

Electrical System

...
...
1
WIRE MTD-725-0976A
...
2
BATTERY MTD-753-0607
...
3
WIRE W/BOOT MTD-725-1351
...
xx
WIRE W/BOOT (Style 1) MTD-725-0926
...
4
Solenoid MTD-925-1426A
...
5
CIRCUIT BREAKER MTD-753-0685
...
6
KIT-SAFETY SWITCH MTD-753-0580
...
7
SAFETY SWITCH MTD-925-0819A
...
8
Ignition Switch MTD-925-0267B
...
9
Light Switch MTD-925-0634
...
10
SWITCH MTD-925-04039
...
11
WIRE HARNESS MTD-725-1475
...
xx
WIRE HARNESS-B&S Style 1 MTD-629-0031
...
xx
WIRE HARNESS-TEC Style 1; New Part MTD-629-0032
...
12
HEADLIGHT SOCKET (1/4 TURN) Style 0 MTD-925-1649A
...
xx
SHORT LAMP SOCKET Style 2, 5, 7 MTD-925-1650
...
xx
SQ HEADLIGHT SOCKET Style 1 MTD-925-1651
...
13
Miniature Lamp 12V Socket Type MTD-925-0963
...
14
WIRE MTD-725-0916A
...
15
WIRE HARNESS MTD-629-0084
...
xx
WIRE HARNESS (Style 1) MTD-629-0086
...
?16
Head Light Not Shown) MTD-925-0222
...
17
Outer Seat Spring Switch MTD-925-1303
...
18
Safety Switch (Seat) MTD-725-1439
...
19
Ammeter (Style 1) MTD-925-0925
