Tanaka TPE-270PN Edger

Model: TPE-270PN

Save Part Not Listed?
product name

Popular Parts

Popular Parts

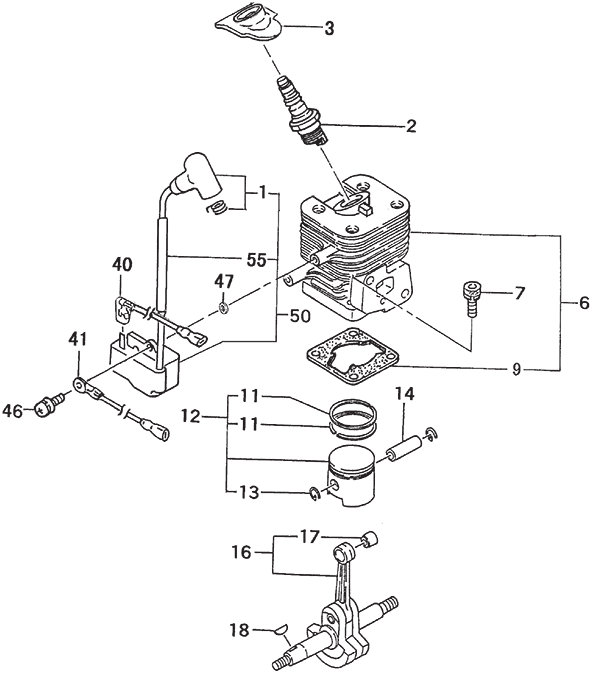

Tanaka TPE-270PN

...
...
1
Cap, Spark Plug Ass'Y HIT-157-01680-90
...
2
Plug, Spark HIT-018-11610-21
...
3
Cover, Spark Plug, Rubber HIT-255-01680-20
...
6
Set, Cylinder HIT-001-01680-90
...
7
Bolt, Hex, 5X18,S HIT-994-61050-184
...
9
Gasket, Cylinder HIT-017-01680-200
...
11
Ring, Piston HIT-041-01601-200
...
12
Set, Piston HIT-030-01680-90
...
13
Circlip, Piston Pin HIT-039-00000-201
...
14
Pin, Piston HIT-037-01700-200
...
16
Crankshaft HIT-046-01680-80
...
17
Bearing, Needle, F-910 HIT-999-62091-325
...
18
Key, Woodruff, 3X13X4.5 HIT-068-10100-200
...
40
Cord, Stop HIT-178-01680-80
...
41
Cord, Earth HIT-274-01680-80
...
46
Screw, Ws, 4X18 HIT-994-16040-186
...
47
Washer, Special HIT-182-0186A-201
...
50
Coil, Ignition Ass'Y HIT-167-21743-90
...
55
Tube, Insulator HIT-250-01680-20

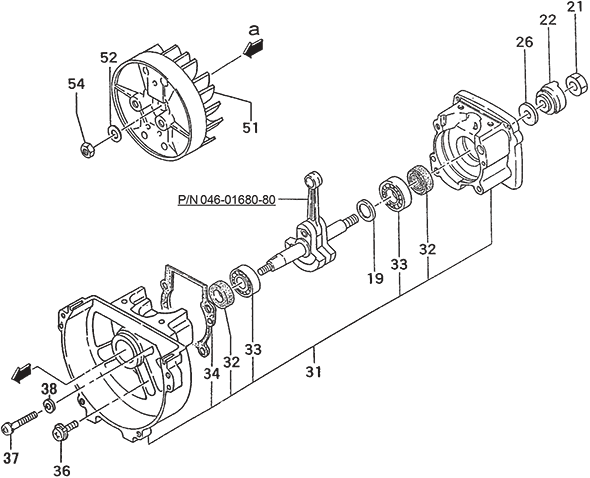

Tanaka TPE-270PN

...
...
19
Shim, 12.2X19X.10, Shims Are "As Needed" To Obtain Correct Side Clearance HIT-330-00200-210
...
19
Shim, 12.2X19X.15 HIT-330-00200-220
...
19
Shim, 12.2X19X.20 HIT-330-00200-230
...
19
Shim, 12.2X19X.30 HIT-330-00200-240
...
21
Nut, 8 HIT-991-01080-011
...
22
Pulley, Starter, Crankcase Assy Includes, Bearings, Seals And Gaskets HIT-798-01630-200
...
26
Washer, Clutch B HIT-359-10112-203
...
31
Crankcase, Assy HIT-072-01680-90
...
32
Seal,Oil, Tc12227 HIT-999-66122-206
...
33
Bearing, Ball, 6001 HIT-999-61600-100
...
34
Gasket, Crankcase HIT-090-01680-20
...
36
Screw, 5X25 HIT-994-14050-251
...
37
Screw, 5X38 HIT-990-11050-381
...
38
Washer, S,5 HIT-992-10050-012
...
51
Rotor, Magneto, Magneto Includes Starter Pawls HIT-155-21743-80
...
52
Washer,8 HIT-992-00080-011
...
54
Nut,8 HIT-991-01080-011

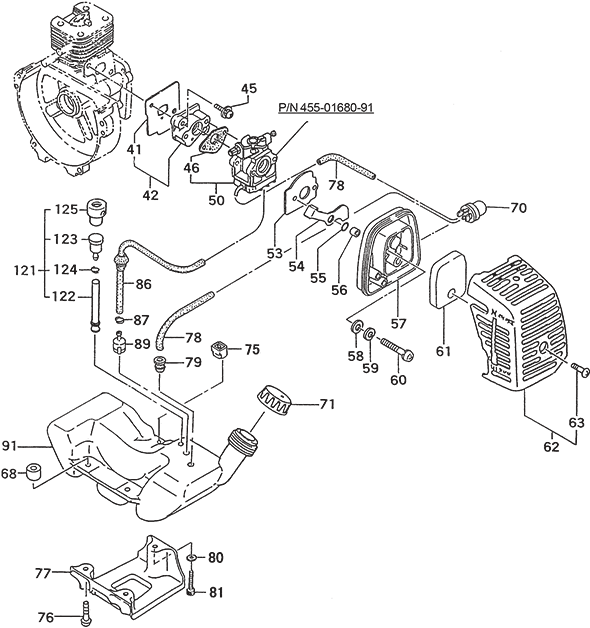

Tanaka TPE-270PN

...
...
41
Gasket, Inlet Manifold HIT-403-0097A-21
...
42
Set, Carb Insulator HIT-404-0097A-90
...
45
Screw 5X24Ws HIT-994-16050-241
...
46
Gasket, Carburetor HIT-402-0602K-21
...
50
Set, Carburetor HIT-455-01680-91
...
53
Base, Cleaner HIT-436-0162V-20
...
54
Valve, Choke HIT-528-01680-20
...
55
O-Ring, S-8 HIT-999-67008-012
...
56
Collar, Cleaner HIT-470-0602N-200
...
57
Body, Cleaner HIT-423-0637C-800
...
58
Washer, Small,5 HIT-992-00050-011
...
59
Washer, S,5 HIT-992-10050-012
...
60
Screw, 5X60 HIT-990-11050-602
...
61
Element, Cleaner HIT-446-0637C-200
...
62
Set, Cleaner Cover HIT-452-01680-90
...
63
Bolt, Cleaner Cover HIT-380-0637C-200
...
68
Collar C HIT-659-04300-20
...
70
Pump, Priming HIT-442-25143-800
...
71
Cap, Tank Ass'Y HIT-595-01680-90
...
75
Collar, Tank Fixing HIT-649-01680-20
...
76
Bolt, Hex 5X20 HIT-994-63050-204
...
77
Stand, Engine HIT-940-04300-20
...
78
Pipe, Fuel, 2.5X4X80 HIT-700-02504-080
...
79
Grommet, Fuel Pipe HIT-534-32710-200
...
80
Washer,5 HIT-992-01050-061
...
81
Bolt, Hex, 5X30S HIT-994-61050-304
...
86
Pipe, Fuel, Ass'Y HIT-223-0162V-900
...
87
Clip 6.3 HIT-680-00731-201
...
89
Filter, Fuel HIT-675-04042-80
...
91
Tank HIT-591-01685-20
...
121
Vent, Air Assy HIT-564-00070-90
...
122
Pipe, Air Vent HIT-565-05032-20
...
123
Air Vent Valve Assy HIT-646-3252L-90
...
124
Clip 6.3 HIT-680-00731-201
...
125
Cover, Air Vent HIT-561-00070-20

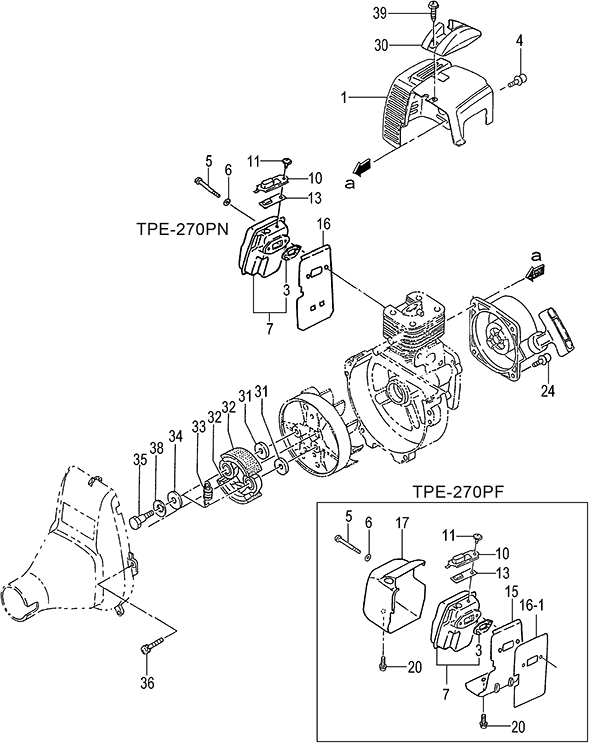

Tanaka TPE-270PN

...
...
4-1
Protector, Muffler HIT-7380168120
...
4-3
Gasket, Muffler, Tpe-270Pf HIT-7370168020
...
4-3
Gasket, Muffler, Tpe-270Pn HIT-7370165A201
...
4-4
Screw, Ps, 4X18 HIT-99415040182
...
4-5
Screw, Hex, 6X65 HIT-99053060653
...
4-6
Washer,6 HIT-99201060011
...
4-7
Set, Muffler, Tpe-270Pf HIT-7040168090
...
4-7
Set, Muffler, Tpe-270Pn HIT-7040168790
...
4-10
Pipe, Tail HIT-7210440020
...
4-11
Screw, 4X8/S HIT-99434040081
...
4-13
Arrester, Spark HIT-7320440020
...
4-15
Cover, Tpe-270Pf HIT-7360168022
...
4-16
Shield, Heat, Tpe-270Pf HIT-1330168020
...
4-16
Shield, Heat, Tpe-270Pn HIT-1330168720
...
4-17
Cover, Muffler A HIT-7350168080
...
4-20
Screw, 5X8 P, Tpe-270Pf HIT-99413050081
...
4-20
Screw, 5X10/Ps, Tpe-270Pf HIT-99415050101
...
4-24
Screw, 4X14/Ps HIT-99415040142
...
4-30
Cover, Spark Plug HIT-2570168120
...
4-31
Washer, Clutch, B HIT-35902103200
...
4-32
Shoe, Clutch HIT-29001620800
...
4-33
Spring, Clutch HIT-3420630B200
...
4-34
Washer, Clutch A HIT-3480602R200
...
4-35
Bolt, Step HIT-3570075T200
...
4-36
Screw, 5X16/Ws HIT-99416050162
...
4-38
Washer,8 HIT-99205080030
...
4-39
Screw, Tapping, 4.5X16 HIT-99072045164

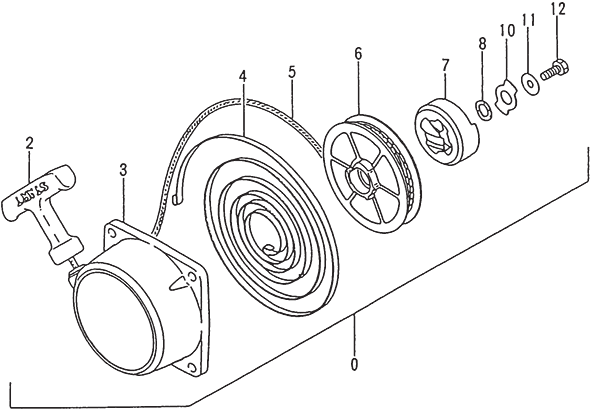

Tanaka TPE-270PN

...
...
5-0
Starter, Recoil Ass'Y HIT-7620094090
...
5-2
Handle, Starter HIT-78500940200
...
5-3
Body, Starter HIT-77200940801
...
5-4
Spring, Recoil HIT-78000940200
...
5-5
Rope, Starter HIT-78300940200
...
5-6
Reel, Starter Rope, Prior To S/N V218191 HIT-77400940200
...
5-6
Reel, Starter Rope, S/N V218191 And After HIT-7740163021
...
5-7
Pawl, Starter HIT-7880163021
...
5-8
Washer, Starter Pulley HIT-80105015200
...
5-10
Plate, Friction HIT-8370501521
...
5-11
Shim, Starter Pulley, Prior To S/N V218191 HIT-82205015200
...
5-11
Shim, Starter Pulley, S/N V218191 And After HIT-8220423020
...
5-12
Bolt, Set HIT-8390423020

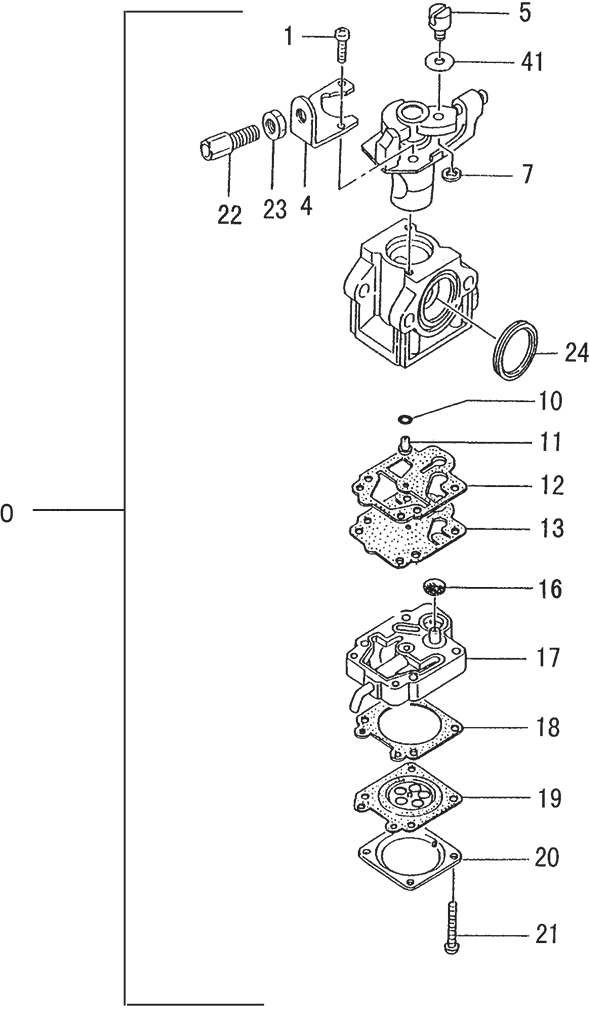

Tanaka TPE-270PN

...
...
XX
Carburetor Set, Includes Gasket HIT-4550168091
...
1
Screw, Throttle Set HIT-51425100200
...
4
Stay, Adjust, Cable HIT-54425164200
...
5
Swivel, Contained In Carburetor Repair Kit P/N 650-25124-900 HIT-53925120200
...
7
Ring, Stop (Not Available Individually) HIT-48925120200
...
10
O-Ring HIT-55025100200
...
11
Jet, Main Long #38 HIT-5992001W38
...
17
Body, Pump Ass'Y HIT-5752514780
...
20
Cover, Diaphragm HIT-47625004200
...
21
Screw, Set HIT-54825101200
...
22
Adjuster, Cable HIT-61425137200
...
23
Nut,6 HIT-99101060013
...
24
Gasket, Cleaner HIT-4310634C200
...
41
Washer, Thrust HIT-5492516520

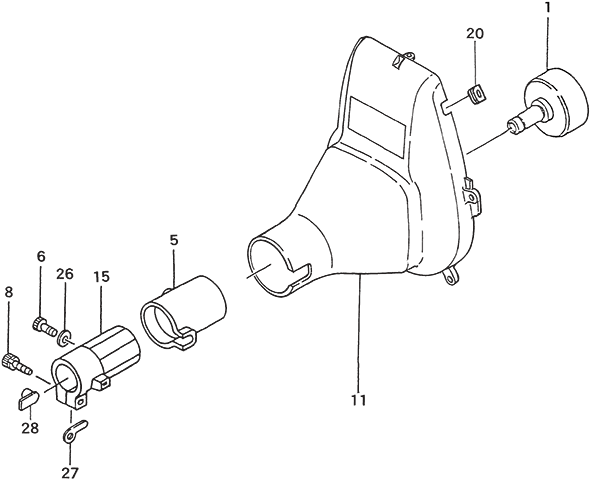

Tanaka TPE-270PN

...
...
1
Clutch Drum HIT-289-0099E-80
...
5
Cushion, Rubber HIT-599-00980-21
...
6
Bolt, Hex, 5X16 HIT-990-51050-163
...
8
Bolt, Hex Hole, 5X25S HIT-994-61050-254
...
11
Case, Fan HIT-112-01680-80
...
15
Pipe Holder, Tpe HIT-360-00996-20
...
20
Grommet, Primary Cord HIT-203-11660-200
...
26
Washer,5 HIT-992-01050-061
...
27
Washer, Gear Case HIT-324-37350-20
...
28
Fitting, Metal HIT-361-00990-20

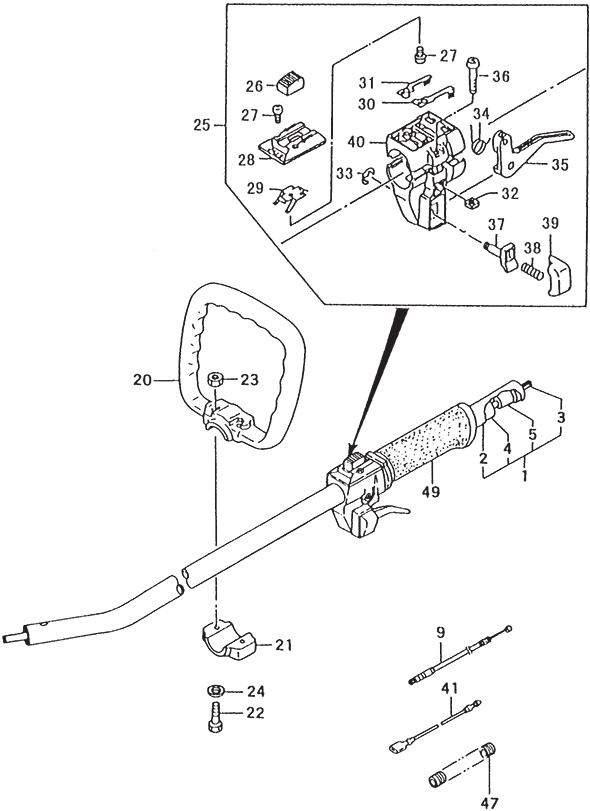

Tanaka TPE-270PN

...
...
1
Set, Drive Shaft Pipe HIT-353-37290-90
...
2
Pipe, Drive Shaft HIT-341-37290-20
...
3
Shaft, Flexible HIT-344-37290-20
...
4
Liner, Flexible HIT-350-37290-20
...
5
Spacer HIT-320-37290-20
...
9
Wire, Throttle HIT-885-37394-80
...
20
Handle HIT-500-33316-20
...
21
Bracket, Handle A HIT-506-33316-200
...
22
Bolt, P, 6X40 HIT-990-23060-401
...
23
Nut,6 HIT-991-01060-011
...
24
Washer,6 HIT-992-01060-011
...
25
Lever, Throttle Ass'Y HIT-870-37286-90
...
26
Switch, Stop HIT-162-37101-200
...
27
Screw, Tapping, 3X8 HIT-993-42030-081
...
28
Base, Stop Switch HIT-259-37101-200
...
29
Spring, Stop Switch HIT-262-37101-200
...
30
Terminal, Earth B HIT-177-37101-200
...
31
Terminal, Earth A HIT-176-37101-200
...
32
Nut, Special HIT-315-33340-20
...
33
Ring, Stop,6 HIT-993-55060-001
...
34
Spring, Return HIT-832-37101-200
...
35
Lever, Throttle HIT-880-37101-200
...
36
Screw, 5X20 HIT-994-31050-201
...
37
Shaft, Lock Button HIT-853-37101-200
...
38
Spring, Lock, Button HIT-958-37101-200
...
39
Button, Lock HIT-956-37101-200
...
40
Body, Stop Button,B HIT-260-33317-20
...
41
Cord, Stop 430Mm HIT-178-37394-80
...
47
Tube, Protection HIT-164-10019-00
...
49
Grip, Shaft HIT-504-37300-200

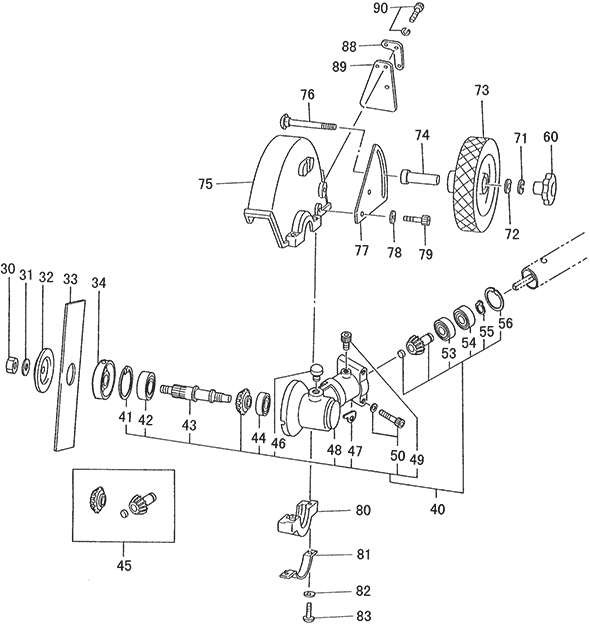

Tanaka TPE-270PN

...
...
30
Nut, 8/L.H. HIT-991-06080-001
...
31
Washer,8 HIT-992-01080-011
...
32
Cap, Cutter Holder HIT-311-37290-20
...
33
Blade, Tpe-250 HIT-435-37290-20
...
34
Holder, Cutter HIT-310-37290-22
...
40
Case, Gear, Assy HIT-300-37290-90
...
41
Ring, Stop, C-32 In HIT-993-51032-002
...
42
Bearing, Ball 6201D HIT-999-61620-103
...
43
Shaft, Gear HIT-304-37290-20
...
44
Bearing, Ball, 628 HIT-999-61628-000
...
45
Set, Gear/Pinion HIT-301-37290-00
...
46
Bolt, 8X10 HIT-994-23080-100
...
47
Washer, Gear Case HIT-324-33410-201
...
48
Case, Gear HIT-300-37290-21
...
49
Bolt, Hex.Hole, 5X10 HIT-990-51050-103
...
50
Bolt, Hex Hole, 5X25S HIT-994-61050-254
...
53
Bearing, Ball,609 HIT-999-61609-000
...
54
Bearing, Ball, 609Z HIT-999-61609-002
...
55
Ring, Stop, C9 HIT-993-50009-002
...
56
Ring, Stop, C-28,In HIT-993-51024-002
...
60
Handle, Lock HIT-210-37290-80
...
71
Washer, S,8 HIT-992-10080-012
...
72
Washer,8 HIT-992-01080-011
...
73
Wheel, Tpe,6" HIT-120-37294-80
...
74
Collar HIT-049-37294-20
...
75
Guard, Blade Tpe-2510 HIT-441-37290-22
...
76
Bolt, Special HIT-314-37294-20
...
77
Stay, Wheel HIT-481-37294-20
...
78
Washer, S,6 HIT-992-10060-062
...
79
Bolt, Hex, 6X15 HIT-990-53060-153
...
80
Bracket, Cover HIT-442-37290-21
...
81
Holder, Blade Guard HIT-445-37294-20
...
82
Washer, S,6 HIT-992-10060-062
...
83
Hex, Hole Bolt 6X35 HIT-990-53060-353
...
88
Holder, Mud Flap HIT-496-37290-20
...
89
Flap, Mud HIT-500-37290-20
...
90
Bolt, Hex, 5X12S HIT-994-61050-124

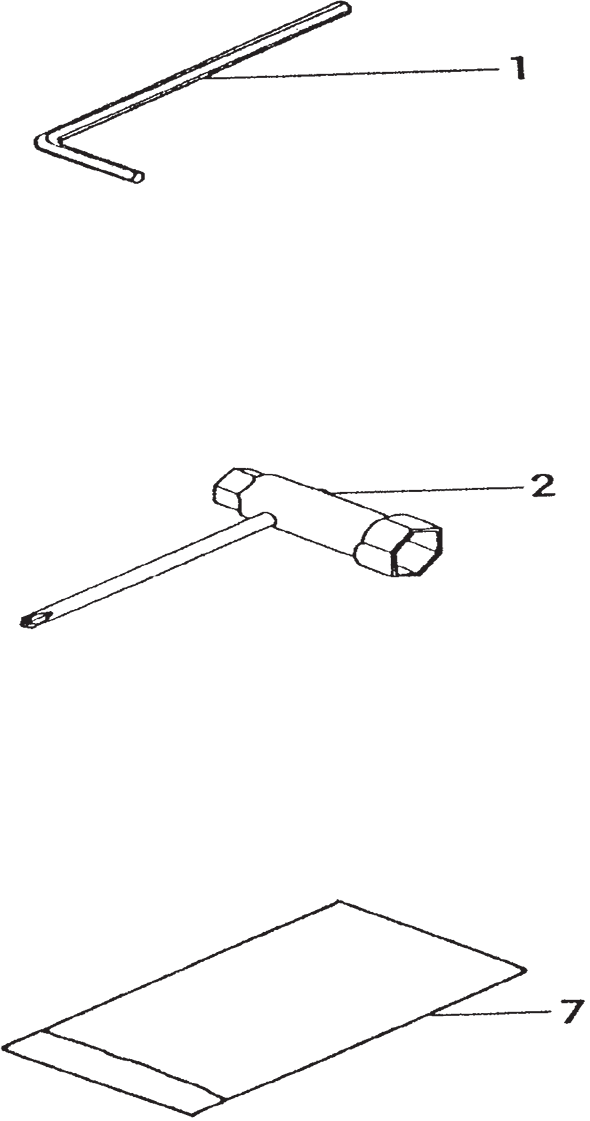

Tanaka TPE-270PN

...
...
1
Spanner, Combi, 13X19 HIT-829-20000-80
...
2
Wrench, Hex,4 HIT-813-20000-200
...
7
Bag, Tool HIT-948-39907-200

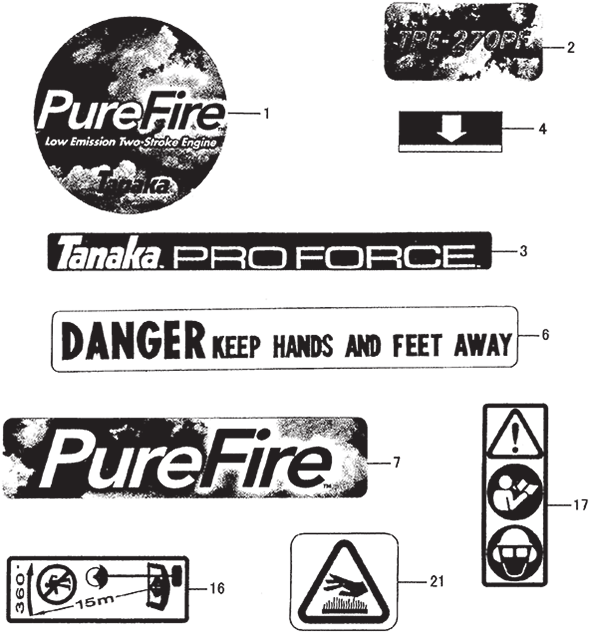

Tanaka TPE-270PN

...
...
1
Plate, Name, Purefire HIT-906-01680-20
...
2
Plate, Name, Tpe-270Pf HIT-906-47295-20
...
3
Decal, Pro-Force B HIT-951-31310-200
...
4
Decal, Level HIT-923-33700-20
...
6
Decal, Caution HIT-919-33111-201
...
7
Decal, Symbol, Pf HIT-929-38100-20
...
16
Decal, Caution HIT-919-37286-20
...
17
Decal, Caution HIT-920-32466-20
...
21
Decal, Caution HIT-921-01681-20
