product name

Tanaka TPB-350Gx 35cc PowerBoard

Model: TPB-350Gx

Save Part Not Listed?
product name

Tanaka TPB-350Gx

...
...
1
Handlebar,Racing HIT-31552
...
2
Throttle Lever Assembly HIT-30799
...
2-3
Cable,Throttle HIT-31228
...
3
Lever,Brake, Includes Hardware - Not Sold Separately HIT-30801
...
3-1
Cable,Brake HIT-31229
...
4
Grip,Handle HIT-30798
...
25
Nut HIT-31658
...
87
Switch,Button HIT-30806
...
111
Cover,Stop Button HIT-30938
...
119
Bolt,M6Xp1.0X20 HIT-31563
...
120
Steering Stem Cap HIT-31564
...
121
Steering Stem HIT-31565
...
122
Bolt,M6Xp1.0X15 HIT-31566
...
123
Bolt,M6Xp1.0X42 HIT-31567
...
124
Steering Pipe HIT-31568

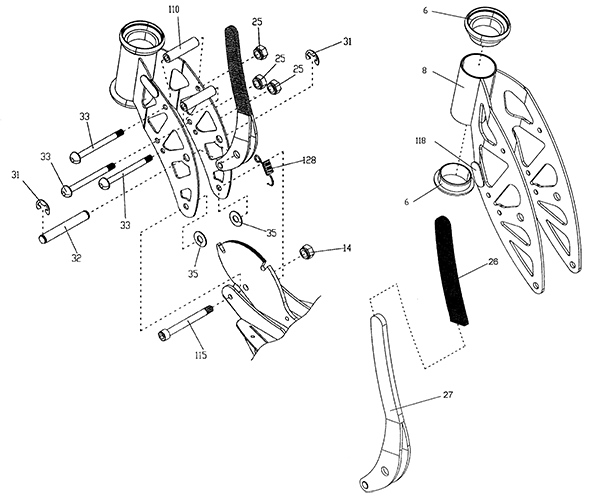

Tanaka TPB-350Gx

...
...
6
Spacer,Front Handle HIT-30845
...
8
Tube,Head (Grey) HIT-31659
...
14
Nut,M8Xp1.25 HIT-30821
...
25
Nut,M6Xp1.0 HIT-30936
...
26
Grip,Folding Handle HIT-30870
...
27
Handle,Folding,(Grey) HIT-31661
...
31
Ring,E HIT-30862
...
32
Pin,Head Tube HIT-30863
...
33
Bolt HIT-30868
...
35
Washer HIT-30864
...
110
Spacer,T-937 HIT-31078
...
115
Bolt HIT-31663
...
118
Pad,Cushion HIT-31664
...
128
Spring,Folding Handle HIT-31662

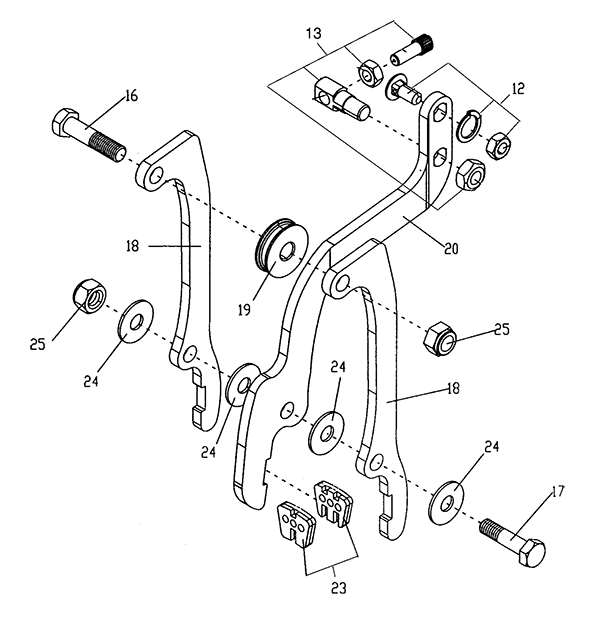

Tanaka TPB-350Gx

...
...
12
Kit,Brake Arm Hdwe HIT-30851
...
13
Kit,Brake Cable Receiver HIT-30852
...
16
Bolt HIT-30855
...
17
Bolt HIT-30859
...
18
Arm,Brake,(Small) HIT-30854
...
19
Wheel,Brake HIT-30856
...
20
Arm,Brake,(Large) HIT-30853
...
23
Brake Pad Set HIT-30930
...
24
Washer HIT-30860
...
25
Nut,M6Xp1.0 HIT-30936

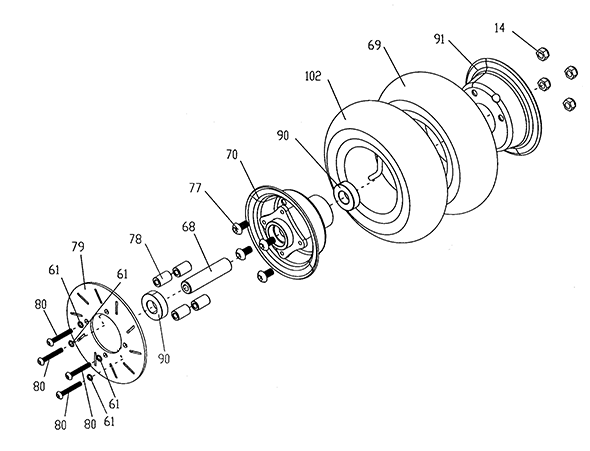

Tanaka TPB-350Gx

...
...
14
Nut,M8Xp1.25 HIT-30821
...
61
Washer,Spring M6 HIT-30830
...
68
Spacer,T-789 HIT-30827
...
69
Tire,10" HIT-30823
...
70
Hub,(Weld) HIT-30825
...
77
Bolt,M8Xp1.25X15 HIT-30826
...
78
Spacer,Brake,T-790 HIT-30828
...
79
Disc,Brake HIT-30829
...
80
Bolt,M6Xp1.0X32 HIT-30831
...
90
Bearing,6200-2Rs HIT-30883
...
91
Hub,(5 Holes) HIT-30822
...
102
Tube,Tire HIT-30911

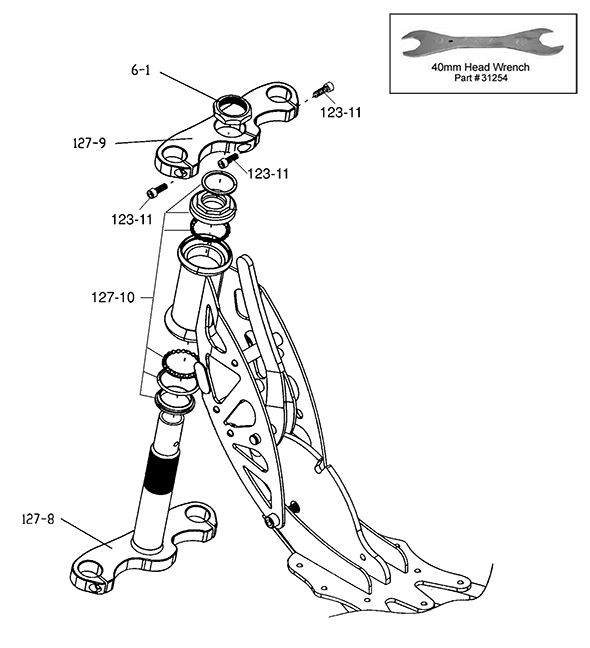

Tanaka TPB-350Gx

...
...
6-1
Octagon 1.25" HIT-31554
...
123-11
Screw,Chrome HIT-31730
...
127-8
Triple Clamp,Bottom HIT-31580
...
127-9
Triple Clamp,Top HIT-31581
...
127-10
Head Bearing Kit HIT-31671

Tanaka TPB-350Gx

...
...
15
Spring,S-043 HIT-31080
...
29
Nut,M10Xp1.5 HIT-30880
...
97
Cap,Cable End HIT-31082
...
112
Brake Wire Conduit HIT-31665
...
116
Spacer HIT-31667
...
117
Spacer HIT-31666
...
119
Screw HIT-31668
...
121
Screw HIT-31669
...
121
Shock,(L) HIT-31573
...
125-1
Handle Stem Connector HIT-31569
...
126
Bolt,M10Xp1.5X160 HIT-31571
...
127-1
Shock,(R) HIT-31572
...
128
Nut,Top,Triple Clamp HIT-31706

Tanaka TPB-350Gx

...
...
25
Nut,M6Xp1.0 HIT-30936
...
31
Decal,Deck,Paverunner HIT-31672
...
36
Screw,Board HIT-30912
...
37-1
Deck,Wood,Paverunner 350 HIT-31083
...
129
Grip Tape,Paverunner HIT-31673

Tanaka TPB-350Gx

...
...
10
Washer,Spring HIT-30819
...
14
Nut,M8Xp1.25 HIT-30821
...
25
Nut,M6Xp1.0 HIT-30936
...
38
Frame,Paverunner,Grey HIT-31674
...
39
Pedal,Rear Brake HIT-30817
...
40
Bolt,K-236 HIT-30816
...
81
Stand,Kick HIT-30812
...
82
Bolt,M5Xp0.8X15 HIT-30810
...
83
Nut,M6Xp1.0 HIT-30936
...
84
Nut,M5Xp0.8 HIT-30809
...
88
Washer HIT-30818
...
89
Washer HIT-30813
...
92
Spring,Kick Stand HIT-30811
...
100
Washer,Rubber HIT-30815
...
104
Cap,Flat HIT-31087
...
105
Bolt,M5Xp0.8X15 HIT-30810
...
106
Bolt HIT-31675
...
107
Washer HIT-31676
...
118
Pad,Cushion HIT-31664

Tanaka TPB-350Gx

...
...
29
Nut,M10Xp1.5 HIT-30880
...
41
Complete Replacement Engine,35Cc HIT-TC-355
...
41
Complete Replacement Engine,40Cc HIT-PF-4000
...
41
Complete Replacement Engine,47Cc HIT-TC-4700
...
43
Spacer,Short HIT-30917
...
45
Bolt,M6Xp1.0X25,Rd Hd HIT-31150
...
47
Bearing,6000-2Rs HIT-30834
...
48
Spacer,T-804 HIT-31091
...
49
Bolt,M6Xp1.0X35,Rd Hd HIT-31383
...
52
Spacer,T-693 HIT-31092
...
55
Belt,Clutch,(Small) HIT-30923
...
56
Spacer,T-797 HIT-31093
...
57
Fender HIT-30915
...
60
Bolt,M10Xp1.5X45 HIT-31094
...
61
Washer,Spring M6 HIT-30830
...
62
Bolt,K-222 HIT-31095
...
63
Screw,M6Xp1.0X40 HIT-31096
...
63-1
Nut HIT-31677
...
64
Bolt,M6Xp1.0X10 HIT-31097
...
65
Plate,Support,Grey HIT-31678
...
73
Belt,Drive,(Large) HIT-30921
...
93
Mounting Ring HIT-30959

Tanaka TPB-350Gx

...
...
14
Nut,M8Xp1.25 HIT-30821
...
24
Washer HIT-31100
...
29
Nut,M10Xp1.5 HIT-30880
...
46
Bolt,Axle 10X145 HIT-30891
...
61
Washer,Spring M6 HIT-30830
...
66
Screw,Rear Axle Tension HIT-30881
...
66-1
Base,Adjuster HIT-31679
...
66-2
Nut,Adjuster HIT-31680
...
67
Spacer,Rear Wheel,(L) HIT-30886
...
68
Spacer HIT-30884
...
69
Tire,10" HIT-30823
...
70
Hub,(Weld) HIT-30825
...
72
Pulley,Rear Drive HIT-30887
...
74
Guard,Belt HIT-30888
...
75
Bolt,6X20 HIT-30889
...
76
Screw HIT-30890
...
77
Bolt,M8Xp1.25X15 HIT-30826
...
90
Bearing,6200-2Rs HIT-30883
...
91
Hub,(5 Holes) HIT-30822
...
102
Tube,Tire HIT-30911
...
103
Spacer,Rear Wheel (R) HIT-30882

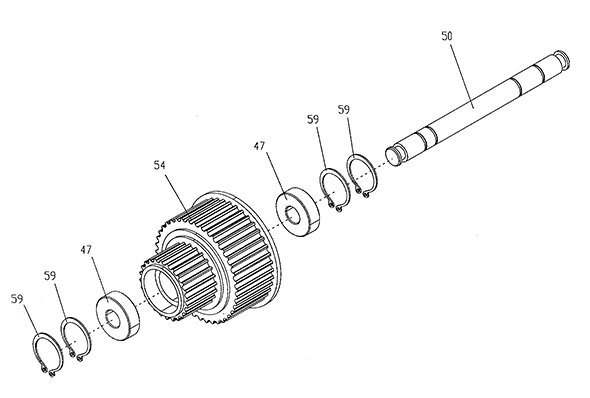

Tanaka TPB-350Gx

...
...
47
Bearing,6000-2Rs HIT-30834
...
50
Shaft,T-796 HIT-30832
...
54
Gear,Large HIT-30835
...
59
Ring,C HIT-30833

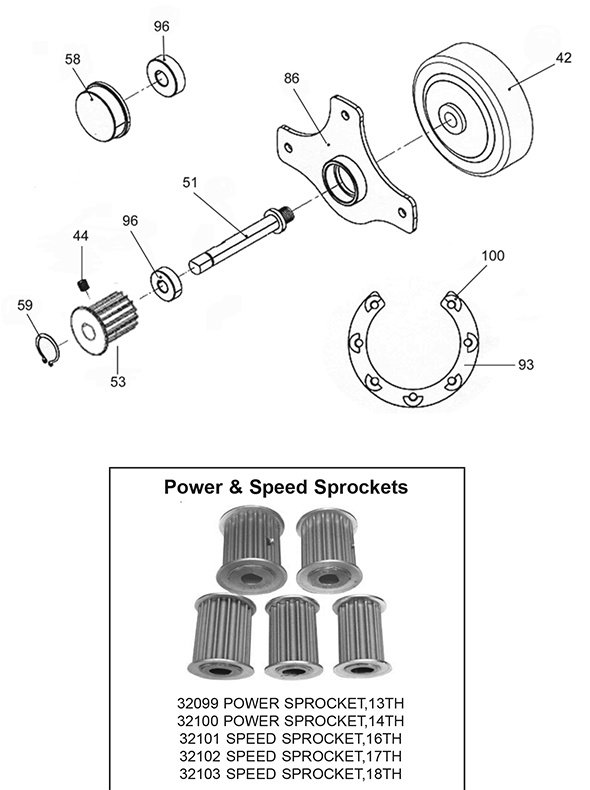

Tanaka TPB-350Gx

...
...
42
Drum,Clutch HIT-30836
...
44
Bolt,M5Xp0.8X5 HIT-30839
...
51
Shaft,Clutch HIT-30838
...
51
Shaft,Clutch, Long,4In HIT-70100
...
53
Sprocket,(Small) HIT-30840
...
58
Holder,Bearing HIT-30842
...
59
Ring,C HIT-30841
...
86
Plate,Mounting HIT-30837
...
93
Mounting Ring HIT-30959
...
96
Bearing,6000-2Rs HIT-30834
...
100
Washer,Rubber HIT-30844
