Tanaka THT-2100-E2 Hedge Trimmer

Model: THT-2100-E2

Save Part Not Listed?
product name

Tanaka THT-2100-E2

...
...
1
Spark Plug Cap Assembly HIT-6687476
...
2
Spark Plug Bpm6A HIT-6685085
...
3
Cylinder Set HIT-6685480
...
4
Hex. Hole Bolt M5X18/S HIT-6684586
...
7
Cylinder Gasket HIT-6685744
...
8
Piston Ring HIT-6686118
...
9
Piston Set, Spare HIT-6685891
...
9
Piston Assembly HIT-6685869
...
10
Piston Pin HIT-6686015
...
11
Piston Pin Cir Clip HIT-6684590
...
12
Crank Shaft Comp. HIT-6686205
...
12
Crank Shaft Comp. HIT-6686208
...
27
Ignition Coil Assembly HIT-6697150
...
28
Hex. Hole Bolt M4X18/Ws HIT-6684599
...
36
Insulator Tube 50L HIT-6684597
...
37
Cord 200M HIT-6687918
...
38
Ignition Coil Comp HIT-6695939

Tanaka THT-2100-E2

...
...
21
Crank Case Assembly HIT-6686574
...
22
Crankcase Gasket HIT-6686720
...
23
Oil Seal Tb 12227 HIT-6684607
...
24
Ball Bearing 6001C3 HIT-6695535
...
25
Gear Shaft Shim 0.10 HIT-6689177
...
25
Gear Shaft Shim 0.15 HIT-6689178
...
25
Gear Shaft Shim 0.20 HIT-6684604
...
25
Gear Shaft Shim 0.30 HIT-6684605
...
26
Anti-Vibe Rubber HIT-6691822
...
30
Hex. Socket Hd. Bolt M5X30 S HIT-6684786
...
31
Magneto Rotor Comp. HIT-6687389
...
31
Magneto Rotor Comp. HIT-6687396
...
32
Washer M8 HIT-6684611
...
33
S. Washer M8 HIT-6684971
...
34
Hex. Nut M8 HIT-6684612
...
35
Stud Bolt 6X22 HIT-6686771

Tanaka THT-2100-E2

...
...
25
Intake Pipe Gasket HIT-6689891
...
26
Carb. Insulator Set Spare HIT-6689966
...
27
Hex. Hole Bolt 5X25Ws HIT-6695515
...
30
Carburetor Gasket HIT-6689839
...
33
O-Ring P-15 HIT-6695670
...
35
Cleaner Body Comp. HIT-6690119
...
36
Collar 7.5 HIT-6690804
...
37
Choke Valve HIT-6691274
...
38
Wave Washer 8 HIT-6684658
...
39
Blow Over Check Board HIT-6690843
...
40
S. Washer 5 HIT-6684662
...
41
Screw M5X60 HIT-6684660
...
43
Cleaner Sponge HIT-6690364
...
44
Cleaner Cover Assembly HIT-6690415
...
45
Special Screw HIT-6689737
...
46
Carburetor Set Spare HIT-6690481
...
46
Carburetor Set Wyl 120 HIT-6690487
...
50
Shield Tube Assembly HIT-6685247
...
51
Clip 6.3 Dia. HIT-6684619
...
52
Pump Filter Body Comp HIT-6684620
...
53-1
Fuel Tank HIT-6691562
...
53-2
Fuel Tank HIT-6691580
...
53
Tank Wht HIT-6691649
...
54
Tank Cap Assembly HIT-6691768
...
54-1
Tank Cap D Assembly Orange HIT-6691716
...
55
Collar 5.8 HIT-6692244
...
56
Tank Cap Chain HIT-6684625
...
58
Hex. Hole Bolt 5X18Ps HIT-6695505
...
61
Swivel Cap HIT-6684628
...
70
Priming Pump Comp HIT-6685139
...
77
Fuel Pipe 2.5X4X80 HIT-6692347
...
78
Fuel Pipe 2.5X4X70 HIT-6692346
...
79
Return Grommet HIT-6684627
...
121-1
Air Vent Assembly HIT-6691388
...
121
Air Vent Assembly HIT-6691386
...
121
Air Vent Assembly HIT-6691389
...
122-1
Air Vent Pipe HIT-6691397
...
122
Air Vent Pipe HIT-6691395
...
123
Air Vent Valve Assembly HIT-6692172
...
123
Air Vent Valve Assembly HIT-6692171
...
124
Clip 5.5 HIT-6692305
...
125
Air Vent Rubber Cap HIT-6691369

Tanaka THT-2100-E2

...
...
3
Muffler Protector HIT-6692795
...
4
Muffler Gasket HIT-6692744
...
5
Heat Shield HIT-6697252
...
6
Muffler Set, Spare HIT-6692483
...
7
Washer 5 HIT-6684661
...
8
Hex. Socket Hd. Bolt M5X50 HIT-6685114
...
11
Fancase Comp., Vermilion HIT-6687010
...
12
Recoil Spring HIT-6684675
...
13
Starter Rope Reel HIT-6693066
...
15
Set Screw HIT-6693633
...
16
Starter Pulley Assembly HIT-6693405
...
17
Grommet HIT-6688085
...
18
Starter Rope HIT-6693168
...
19
Starter Handle HIT-6693234
...
20
Hex. Hole Bolt 4X15/Ps HIT-6684682
...
21
Muffler Special Gasket HIT-6692886
...
22

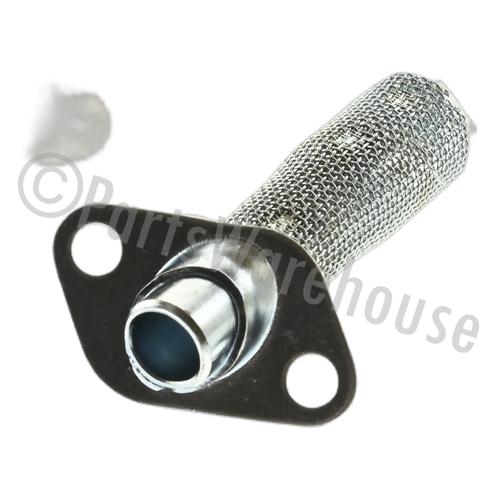

Tail Pipe Set HIT-6692657
...
24
Machine Screw (W/Sp. Washer) HIT-6685109
...
47
Clutch Assembly 48Mm HIT-6688494
...
61
Tapping Screw D4.5X16 HIT-6684636
...
62
Bolt 4X12Ps HIT-6695141
...
65
Starter Pawl Spring HIT-6684684
...
66
Starter Pawl HIT-6693319

Tanaka THT-2100-E2

...
...
1
Throttle Set Screw HIT-6684698
...
5
Swivel HIT-6684697
...
7
Stop Ring HIT-6684696
...
10
O-Ring HIT-6684695
...
11
Main Jet #35 HIT-6691873
...
11
Main Jet #34.5 HIT-6691888
...
13
Pump Gasket HIT-6691457
...
14
Pump Diaphragm HIT-6684693
...
17
Inlet Screen HIT-6684700
...
18
Pump Body Comp. HIT-6691430
...
19
Diaphragm Gasket HIT-6690837
...
19
Diaphragm Packing HIT-6685220
...
20
Metering Diaphragm Comp. HIT-6690827
...
21
Diaphragm Cover HIT-6685222
...
22
Set Screw HIT-6691312

Tanaka THT-2100-E2

...
...
1
Gear Case Comp. HIT-6688671
...
2
Stop Ring C-15, Outer HIT-6692585
...
3
Ball Bearing #6002Z, 32Mm/Od HIT-6695538
...
4
Ball Bearing #6002Z, 32Mm/Od HIT-6695538
...
5
Clutch Drum Comp. HIT-6688570
...
6
Gear Shaft HIT-6688960
...
7
Guide Plate HIT-6686612
...
8
Cam Rod HIT-6686811
...
9
Gear 2 HIT-6688974
...
10
Gear Case Gasket HIT-6688909
...
11
Gear Case Cover HIT-6692100
...
12
Cutter Guide, 625Mm HIT-6687135
...
12
Cutter Guide, 625.5L M6 HIT-6687137
...
13
Protection Plate HIT-6687285
...
14
Hex Hole Flush Screw 6X16 HIT-6695073
...
14
Hex. Hole Flush Bolt 6X25 HIT-6695075
...
15
Cutter A (591.5L) HIT-6687084
...
16
Grease Seal A HIT-6686654
...
17
Washer 7 Black HIT-6687187
...
18
Cutter Fixing Bolt A HIT-6687160
...
18
Fixing Bolt Ta M6 HIT-6687158
...
19
Cutter Fixing Nut HIT-6687155
...
19
Flange Nut 6 HIT-6695170
...
21
Hex. Hole Bolt T4X10S HIT-6695484
...
21
Hex. Hole Bolt M4X12/S HIT-6684595
...
22
Grease Nipple Comp. HIT-6688643
...
23
Hex. Hole Bolt T6X14 HIT-6695058
...
23
Hex. Hole Bolt T6X18/S HIT-6695495
...
30
Support Plate HIT-6690764
...
31
Special Washer B HIT-6684822
...
32
Nut 6 Ups-P HIT-6695175
...
33
Washer 6 HIT-6684639
...
60
Gear Case B HIT-6688844
...
67
Cord Clamp Comp. HIT-6688004
...
69
Cutter Cover HIT-6687299
...
69
Cutter Cover HIT-6687301
...
71
S. Washer 6 HIT-6695219
...
72
Spring Nut 6 HIT-6695475
...
81
Washer 6 HIT-6684639
...
82
Hex. Hole Bolt 4X10S HIT-6695484

Tanaka THT-2100-E2

...
...
1
Spark Plug Cap HIT-6687476
...
2
Spark Plug Bpm6A HIT-6685085
...
3
Cylinder Assembly HIT-6685480
...
4
Hex. Hole Bolt M5X18/S HIT-6684586
...
5
Cylinder Gasket HIT-6685744
...
6
Piston Ring HIT-6686118
...
7
Piston Set. Spare, Till Y307700 HIT-6685891
...
7
Piston Assembly, Since Y307701 HIT-6685869
...
8
Piston Pin HIT-6686015
...
9
Piston Pin Circlip HIT-6684590
...
10
Crank Shaft Comp., Till F029050 HIT-6686205
...
10
Crank Shaft Comp, Since F029051 HIT-6686208
...
12
Ignition Coil Assembly HIT-6697150
...
13
Hex.Hole Bolt M4X18/Ws HIT-6684599
...
14
Insulator Tube 50L HIT-6684597
...
15
Cord 200M HIT-6687918
...
16
Ignition Coil Comp HIT-6695939
...
25
Handle A HIT-6686270
...
25-1
Handle, Spare HIT-6695871
...
26
Stop Switch Comp. HIT-6687764
...
27
Button Shop HIT-6688366
...
28
Screw 3X10 HIT-6684913
...
29
Throttle Lever HIT-6688226
...
30
Safety Lever HIT-6688235
...
31
Throttle Lever Spring HIT-6688243
...
31
Crank Case Assembly HIT-6686574
...
32
Crank Case Gasket HIT-6686720
...
33
Handle B HIT-6686307
...
33-1
Handle, Spare HIT-6695871
...
33
Oil Seal Tb 12227 HIT-6684607
...
34
Ball Bearing 6001 C3 HIT-6695535
...
35
Cap HIT-6693002
...
35
Gear Shaft Shim 0.10 HIT-6689177
...
35
Gear Shaft Shim 0.15 HIT-6689178
...
35
Gear Shaft Shim 0.20 HIT-6684604
...
35
Gear Shaft Shim 0.30 HIT-6684605
...
36
Tapping Screw 4X18 HIT-6695263
...
36
AntiVibe Rubber HIT-6691822
...
37
Hex. Socket Hd. Bolt M5X30 S HIT-6684786
...
38
Magneto Rotor Comp., Till F029050 HIT-6687389
...
38
Magneto Rotor Comp., Since F029051 HIT-6687396
...
39
Washer M8, Till F029050 HIT-6684611
...
40
S.Washer 8, Till F029050 HIT-6684971
...
41
Hex. Nut M8 HIT-6684612
...
42
Stud Bolt 6X22 HIT-6686771
...
47
Throttle Wire Comp., 4T HIT-6693912
...
48
Stop Button Mark HIT-6694585
...
50
Screw 5X45S HIT-6695350
...
51
Nylon Nut M5 HIT-3055491
...
53
Screw 6X18Ps HIT-669-5401
...
55
Small Washer 5 HIT-6684864
...
61
Front Handle HIT-6688096
...
61
Intake Pipe Gasket HIT-6689891
...
62
Carb. Insulator Set.Spare HIT-6689966
...
63
Washer M5 HIT-6684918
...
63
Brake Shaft Washer HIT-6689680
...
63
Hex. Hole Bolt 5X25Ws HIT-6695515
...
64
Spring Washer 5 HIT-6684834
...
64
Carburetor Gasket HIT-6689839
...
65
Hex. Hole Bolt 5X40 HIT-6695054
...
65
ORing P15 HIT-6695670
...
66
Cleaner Body Comp. HIT-6690119
...
67
Collar 7.5 HIT-6690804
...
68
Choke Valve HIT-6691274
...
69
Wave Washer 8 HIT-6684658
...
70
Blow Over Check Board HIT-6690843
...
71
S. Washer 5 HIT-6684662
...
72
Screw M5X60 HIT-6684660
...
73
Protection Tube, 140L HIT-6687522
...
73
Cleaner Sponge HIT-6690364
...
74
Cleaner Cover Assembly HIT-6690415
...
75
Combi. Box Spanner 10X19, Plus HIT-6685997
...
75
Special Screw HIT-6689737
...
76
Hex. Bar Wrench 4Mm HIT-6684813
...
76
Carburetor Set. Spare, Till U244200 HIT-6690481
...
76
Carburetor Set. Wyl120, Since U244201 HIT-6690487
...
77
Shield Tube HIT-6685247
...
78
Clip.6.3 Dia HIT-6684619
...
79
Pump Filter Body Comp. HIT-6684620
...
80
Fuel Tank, Till T245720 HIT-6691562
...
81
Fuel Tank, Till U244200 HIT-6691580
...
82
Collar 5.8 HIT-6692244
...
82
Tank Wht, Since U244201 HIT-6691649
...
83
Tank Cap Assembly Black, Since T245721 HIT-6691768
...
84
Collar 5.8 HIT-6692244
...
85
Hex. Hole Bolt 5X18Ps HIT-6695505
...
86
Swivel Cap, Since A099001 HIT-6684628
...
87
Priming Pump Comp, Since U244201 HIT-6685139
...
88
Fuel Pipe 2.5X4X80, Since U244201 HIT-6692347
...
89
Fuel Pipe 2.5X4X70, Since U244201 HIT-6692346
...
90
Return Grommet, Since U244201 HIT-6684627
...
91
Air Vent Assembly, Since T245721 HIT-6691388
...
91
Air Vent Assembly, Till U244200 HIT-6691388
...
92
Air Vent Assembly, Till V093280 HIT-6691386
...
92
Air Vent Assembly, Since V093281 HIT-6691389
...
93
Air Vent Pipe, Since T245721 HIT-6691397
...
93
Air Vent Pipe, Till U244200 HIT-6691397
...
94
Air Vent Pipe, Since U244201 HIT-6691395
...
95
Air Vent Valve Assembly, Since T245721 HIT-6692172
...
95
Air Vent Valve Assembly, Till V093280 HIT-6692172
...
95
Air Vent Valve Assembly, Since V093281 HIT-6692171
...
96
Clip 5.5, Since T245721 HIT-6692305
...
96
Clip 5.5, Till U244200 HIT-6692305
...
97
Air Vent Rubber Cap, Since T245721 HIT-6691369
...
97
Air Vent Rubber Cap, Till U244200 HIT-6691369
...
98
Tank Cap D Assembly. Orange, Till T245720 HIT-6691716
...
99
Tank Cap Chain, Till T245720 HIT-6684625
...
111
Muffler Protector HIT-6692795
...
112
Muffler Gasket HIT-6692744
...
113
Heat Shield HIT-6687252
...
114
Muffler Set. Spare HIT-6692483
...
115
Washer 5 HIT-6684661
...
116
Hex. Socket Hd. Bolt M5X50 HIT-6685114
...
117
Fan Case Comp.. Vermilion HIT-6687010
...
118
Recoil Spring HIT-6684675
...
119
Starter Rope Reel HIT-6693066
...
120
Set Screw HIT-6693633
...
121
Starter Pulley Assembly HIT-6693405
...
122
Grommet HIT-6688050
...
123
Rope HIT-6693168
...
124
Starter Handle HIT-6693237
...
125
Hex. Hole Bolt 4X15/Ps HIT-6684682
...
126
Muffler Special Gasket HIT-6692886
...
127
Tail Pipe Set HIT-6692657
...
128
Machine Screw (W/Sp. Washer) M4X8 HIT-6685109
...
129
Clutch HIT-6688494
...
130
Tapping Screw D4.5X16 HIT-6684636
...
131
Bolt 4X12Ps HIT-6695441
...
132
Starter Pawl Spring HIT-6684684
...
133
Starter Pawl HIT-6693319
...
151
Throttle Set Screw HIT-6684698
...
152
Swivel HIT-6684697
...
153
Stop Ring HIT-6684696
...
154
ORing HIT-6684695
...
155
Main Jet #35, Till U244200 HIT-6691873
...
155
Main Jet #34.5, Since U244201 HIT-6691888
...
156
Pump Gasket HIT-6691457
...
157
Pump Diaphragm HIT-6684693
...
158
Inlet Screen HIT-6684700
...
159
Pump Body Comp., Since U244201 HIT-6691430
...
160
Diaphragm Gasket, Till U244200 HIT-6690837
...
160
Diaphragm PackingMetering, Since U244201 HIT-6685220
...
161
Metering Diaphragm Comp. HIT-6690827
...
162
Diaphragm CoverMetering HIT-6685222
...
163
Set Screw HIT-6691312
...
181
Gear Case Comp. HIT-6688671
...
182
Stop Ring C15. Outer HIT-6695285
...
183
Ball Bearing #6002Z. 32Mm/Od HIT-6695538
...
184
Ball Bearing #6002Z. 32Mm/Od HIT-6695538
...
185
Clutch Drum Comp. HIT-6688570
...
186
Gear Shaft HIT-6688960
...
187
Guide Plate HIT-6686612
...
188
Cam Rod HIT-6686811
...
189
Gear 2 HIT-6688974
...
190
Gear Case Gasket HIT-6688909
...
191
Gear Case Cover HIT-6692100
...
192
Cutter Guide. 625Mm, Till A302050 HIT-6687135
...
192
Cutter Guide 625.5L M6, Since A302051 HIT-6687137
...
193
Protection Plate, Since S278771 HIT-6687285
...
193
Protection Plate, Till A302050 HIT-6687285
...
194
Hex Hole Flush Screw 6X16, Till A302050 HIT-6695073
...
194
Hex. Hole Flush Bolt 6X25, Since A302051 HIT-6695075
...
195
Cutter A (591.5L) HIT-6687084
...
196
Grease Seal A HIT-6686654
...
197
Washer 7 Black HIT-6687187
...
198
Cutter Fixing Bolt A, Till A302050 HIT-6687160
...
198
Fixing Bolt A M6, Since A302051 HIT-6687158
...
199
Cutter Fixing Nut, Till A302050 HIT-6687155
...
199
Flange Nut 6, Since A302051 HIT-6695170
...
200
Hex. Hole Bolt 4X10S, Till A302050 HIT-6695484
...
200
Hex. Socket Hd. Bolt (W/Sp.Washer) M4X12, Since A302051 HIT-6684595
...
201
Grease Nipple Comp. HIT-6688643
...
202
Hex. Hole Bolt 6X14, Till A099000 HIT-6695058
...
202
Hex. Hole Bolt 6X18/S, Since A099001 HIT-6695495
...
203
Support Plate, Since A302051 HIT-6690764
...
204
Special Washer B,Since A302051 HIT-6684822
...
205
Nut 6 UpsP, Since A302051 HIT-6695175
...
206
Washer 6, Since A302051 HIT-6684639
...
207
Gear Case B, Since A302051 HIT-6688844
...
208
Cord Clamp Comp HIT-6688004
...
209
Cutter Cover, Till S278770 HIT-6687299
...
209
Cutter Cover, Till V026260 HIT-6687301
...
209
Cutter Cover, Till A176400 HIT-6687299
...
209
Cutter Cover, Since A176401 HIT-6687301
...
210
S.Washer 6, Till A099000 HIT-6695219
...
211
Spring Nut 6 HIT-6695475
...
212
Washer 6, Since S278771 HIT-6684639
...
212
Washer 6, Till V231028 HIT-6684639
...
212
Washer 6, Since V239636 HIT-6684639
...
212
Washer 6, Till A302050 HIT-6684639
...
213
Hex. Hole Bolt 4X10S, Since A302051 HIT-6695484
...
231
Handle A, Since S008501 HIT-6686270
...
232
Stop Switch Comp. HIT-6687764
...
233
Button Stop HIT-6688366
...
234
Screw 3X10 HIT-6684913
...
235
Throttle Lever HIT-6688226
...
236
Safety Lever HIT-6688235
...
237
Throttle Lever Spring, Till R259561 HIT-6688243
...
238
Handle B, Since S008501 HIT-6686307
...
239
Cap HIT-6693002
...
240
Tapping Screw 4X18 HIT-6695263
...
241
Throttle Wire Comp. 4T HIT-6693912
...
242
Stop Button Mark HIT-6694585
...
243
Screw 5X45S HIT-6695350
...
244
Nylon Nut M5 HIT-305491
...
245
Screw 6X18Ps HIT-6695401
...
246
Small Washer 5 HIT-6684864
...
248
Washer M5 (Black), Till V279241 HIT-6684918
...
248
Brake Shaft Washer, Since V279242 HIT-6689680
...
249
Spring Washer 5 HIT-6684834
...
250
Hex. Hole Bolt 5X40 HIT-6695054
...
251
Protection Tube. 140L HIT-6687522
...
252
Collar 5.8, Since S008501 HIT-6692244
...
253
Handle . Spare, Till S008500 HIT-6695871
...
254
Handle . Spare, Till S008500 HIT-6695871
...
255
Combi. Box Spanner 10X19 .Plus HIT-6685997
...
256
Hex. Bar Wrench 4Mm HIT-6684813
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
