Tanaka TCP-210 Pump

Model: TCP-210

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Tanaka TCP-210

...
...
1-1
Cap, Spark Plug Ass'Y HIT-1570650091
...
1-2
Plug, Spark HIT-181161021
...
1-3
Set, Cylinder HIT-10650090
...
1-3
Cylinder Set HIT-0010650A90
...
1-4
Screw, 5X20/Ws HIT-99416050201
...
1-7
Gasket, Cylinder HIT-170650020
...
1-8
Ring, Piston HIT-4100601210
...
1-9
Set, Piston HIT-300650090
...
1-9
Piston Set HIT-0300650A90
...
1-10
Pin, Piston HIT-3706500200
...
1-11
Circlip, Piston Pin HIT-3901620200
...
1-12
Crankshaft HIT-0460650A800
...
1-13
Bearing, Needle, F-810 HIT-99962081225
...
1-27
Coil, Ignition HIT-1672153280
...
1-28
Screw, Ws, 4X18 HIT-99416040186
...
1-36
Tube, Insulator HIT-25006500200

Tanaka TCP-210

...
...
2-21
Crankcase, Ass'Y HIT-0720650A900
...
2-22
Gasket, Crankcase HIT-9006500200
...
2-23
Oil Seal HIT-99966122206
...
2-24
Bearing, Ball, 6001 HIT-99961600100
...
2-25
Shim, 12.2X19X.10 HIT-33000200210
...
2-25
Shim, 12.2X19X.15 HIT-33000200220
...
2-25
Shim, 12.2X19X.20 HIT-33000200230
...
2-25
Shim, 12.2X19X.30 HIT-33000200240
...
2-26
Cushion HIT-59900601200
...
2-30
Screw, 5X30/S HIT-99414050301
...
2-31
Rotor, Magneto HIT-1552152380
...
2-32
Washer, 8 HIT-99201080011
...
2-33
Washer, S, 8 HIT-99210080012
...
2-34
Nut, 8 HIT-99101080011

Tanaka TCP-210

...
...
3-25
Gasket, Intake HIT-40306500200
...
3-26
Set, Carb Insulator HIT-4040650090
...
3-27
Screw, 5X25Ws HIT-99416050252
...
3-30
Gasket, Carburetor HIT-40206500200
...
3-33
O-Ring, P15 HIT-99967015000
...
3-35
Body, Cleaner HIT-4230650081
...
3-36
Collar HIT-47006500200
...
3-37
Lever, Choke HIT-52806500200
...
3-38
Washer HIT-99204080030
...
3-39
Board, Blow Over Check HIT-47601700200
...
3-40
Washer, S, 5 HIT-99210050012
...
3-41
Screw, 5X60 HIT-99011050602
...
3-43
Element, Cleaner HIT-4460650020
...
3-44
Cover, Cleaner, W/Bolt HIT-4520650091
...
3-45
Bolt, Cleaner Cover HIT-3800637C200
...
3-46
Carburetor Set HIT-45525146900
...
3-46
Carburetor Set HIT-4550650A90
...
3-50-1
Pipe, Fuel HIT-70053005130
...
3-50
Pipe, Fuel, Ass'Y HIT-2230650090
...
3-51
Clip 6.3 HIT-68000731201
...
3-52
Filter, Fuel HIT-6750608A900
...
3-52
Filter, Fuel HIT-6750404280
...
3-53-1
Tank Set HIT-5910650A00
...
3-53
Tank, Fuel HIT-5910650C21
...
3-54
Cap, Tank HIT-5950650A90
...
3-54
Cap, Fuel Black, Non Vent HIT-5950656B90
...
3-55
Collar HIT-65900801200
...
3-58
Bolt, Hex 5X18Ps HIT-99463050185
...
3-121
Vent, Air Ass'Y HIT-5640661190
...
3-122
Pipe, Air Vent HIT-5650441020
...
3-123
Valve HIT-6460661290

Tanaka TCP-210

...
...
4-3
Protector, Muffler HIT-7380650A201
...
4-4
Gasket, Muffler HIT-73706500200
...
4-5
Shield, Heat HIT-13306500200
...
4-6
Muffler HIT-7060650B800
...
4-7
Washer, 5 HIT-99201050011
...
4-8
Bolt, Hex, 5X50 HIT-99051050503
...
4-21
Gasket, Muffler HIT-75104200201
...
4-22
Pipe, Tail HIT-7210650A800
...
4-24
Screw, 4X8/S HIT-99434040081
...
4-61
Screw, Tapping, 4.5X16 HIT-99072045164
...
4-62
Bolt, Ps, 4X12 HIT-99425040128

Tanaka TCP-210

...
...
5-11
Case, Fan HIT-1120650A80
...
5-12
Spring, Recoil HIT-78006097200
...
5-13
Pulley, Starter HIT-77406097200
...
5-14
Washer, Rope Reel HIT-80106091200
...
5-15
Screw, Set HIT-8390201020
...
5-16
Pulley, Starter, Ass'Y HIT-79806500900
...
5-17
Grommet HIT-2030604A202
...
5-18
Rope, Starter HIT-78306097200
...
5-19
Handle, Starter HIT-78506410200
...
5-20
Screw, Ps, 4X16 HIT-99415040162
...
5-65
Spring, Starter Pawl HIT-79006097200
...
5-66
Pawl, Starter HIT-7880650020

Tanaka TCP-210

...
...
6-0
Carburetor, Ass'Y HIT-45525146900
...
6-0
Carburetor, Ass'Y HIT-4550650A90
...
6-1
Screw, Throttle Set HIT-54825140200
...
6-5
Swivel HIT-53925120200
...
6-7
Ring, Stop HIT-48925100200
...
6-8
Valve,Throttle HIT-48825146800
...
6-10
O-Ring HIT-55025100200
...
6-11
Jet, Main, 41 HIT-5992000W410
...
6-11
Jet, Main, 44 HIT-5992000W440
...
6-15
Plate, Pump HIT-52325100201
...
6-16
Palate, Circuit HIT-52225100200
...
6-17
Screen, Inlet HIT-57825007200
...
6-18
Body, Pump HIT-57525140800
...
6-21
Cover, Diaphragm HIT-47625004200
...
6-22
Screw, Set HIT-54825101200
...
6-22
Kit, Carb Repair HIT-65025140900

Tanaka TCP-210

...
...
7-2
Plate, End HIT-30031240200
...
7-8
O-Ring, 1517-35 HIT-99967151735
...
7-12
Handle HIT-9031240200
...
7-15
Bolt, Hex, 5X25 HIT-99051050253
...
7-16
Washer HIT-37031240200
...
7-21
Nut, Flange 8 HIT-99183080001
...
7-29
Flange, Coupling HIT-3330650A200
...
7-31
Screw, S, 6X16 HIT-99414060161
...
7-35
Wire, Throttle HIT-8850650A800
...
7-37
Lever, Throttle HIT-87002201910
...
7-2
Plate, End HIT-3003124920
...
7-8
O-Ring, G140 HIT-99967140010
...
7-12
Handle HIT-903124920
...
7-15
Bolt, 5X25 HIT-99021050250
...
7-16
Washer HIT-3703124020
...
7-31
Screw, 5X16/S HIT-99414050161

Tanaka TCP-210

...
...
8-1
Casing HIT-33031240200
...
8-3
Chamber, Volute HIT-31031240200
...
8-4
Impeller HIT-3131240200
...
8-5
Plate, Suction HIT-32031240200
...
8-6
Seal, Mechanical, Ass'Y HIT-16031240900
...
8-7
Gasket, Volute Chamber HIT-31131240200
...
8-9
Packing, Suction Plate HIT-35031240800
...
8-10
Plug, Priming HIT-36031240200
...
8-11
O-Ring, P-24 HIT-99967024000
...
8-17
Bolt, Tapping 8X40P HIT-99473084013
...
8-18
Bolt, 6X20S HIT-99424060201
...
8-22
Nut, Water Coupling HIT-5331240200
...
8-23
Coupling, Water, B HIT-5231240200
...
8-24
Gasket, Coupling HIT-5431240200
...
8-27
Shim, Impeller, 0.30 HIT-3431240200
...
8-27
Shim, Impeller, 0.60 HIT-3431240210
...
8-1
Casing HIT-3303124920
...
8-3
Chamber, Volute HIT-3103124920
...
8-4
Impeller HIT-313124920
...
8-5
Plate, Suction HIT-3203124920
...
8-6
Seal, Mechanical HIT-1603124990
...
8-9
Packing, Suction Plate HIT-3503124980
...
8-10
Plug, Priming HIT-3603124990
...
8-17
Bolt, Flange, 8X35 HIT-99451080350
...
8-18
Bolt, Flange, 6X16 HIT-99451060160
...
8-22
Coupling Assy HIT-503124990
...
8-24
Gasket, Coupling HIT-543124920

Tanaka TCP-210

...
...
9-10
Coupling HIT-2231221210
...
9-13
Bed HIT-8031240210
...
9-13
Bed, A HIT-803124920
...
9-14
Cushion, Rubber HIT-31231240200
...
9-14
Cushion, A HIT-3123124920
...
9-19
Screw, 5X14 Tapping HIT-99314051412
...
9-19
Screw, Tapping,5X14 HIT-99311051402
...
9-25
Clamp, Hose, 33Mm HIT-13231223200
...
9-26
Strainer HIT-10031240800
...
9-27
Hose HIT-18031200200
...
9-30
Spanner, Combi, 13X19 HIT-8292000080

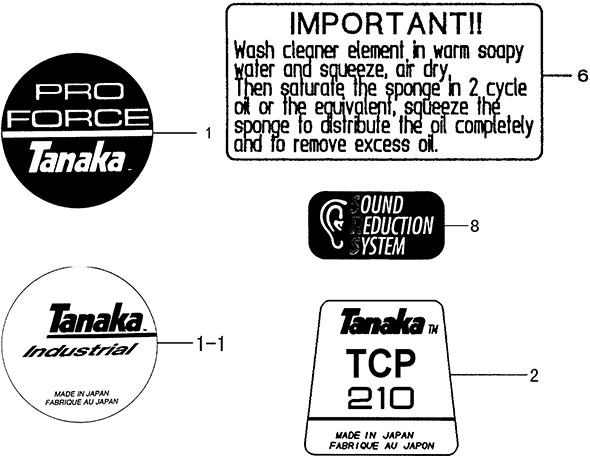

Tanaka TCP-210

...
...
10-1
Decal, Pro-Force A HIT-95037900200
...
10-2
Decal HIT-9060650A200
...
10-6
Decal, Caution HIT-9083316021
...
10-8
Decal, Srs HIT-91106500200
...
40179
Decal, Industrial HIT-9293210A200
