Tanaka TC47R 47cc Engine

Model: TC47R

Save Part Not Listed?
product name

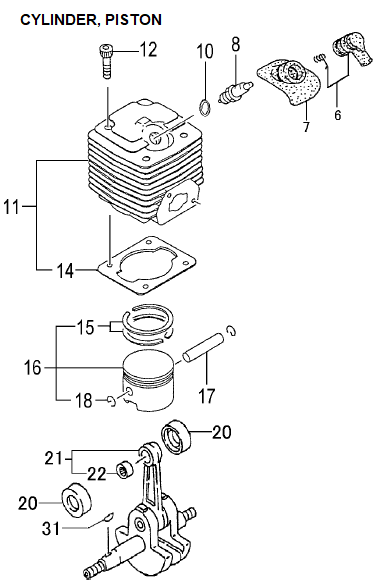

Tanaka TC47R

...
...
6
Cap, Spark Plug Assembly HIT-15711666900
...
7
Cover, Spark Plug, Rubber HIT-25504200200
...
8
Plug, Spark HIT-0181166021
...
10
Shim, Spark Plug HIT-1820425120
...
11
Cylinder Set, Tc47R Includes Cylinder Gasket HIT-0010428690
...
12
Bolt, Hex, 5X18, S HIT-99461050184
...
14
Gasket, Cylinder HIT-0170422021
...
15
Ring, Piston HIT-04104090210
...
16
Piston Set Includes Rings And Circlips HIT-0300422U90
...
17
Pin, Piston, 10X35 HIT-03710100200
...
18
Circlip, Piston Pin HIT-03901000200
...
20
Collar, Piston Pin HIT-0360409020
...
21
Crankshaft HIT-0460422080
...
22
Bearing, Needle HIT-99962101480
...
31
Key, Woodruff, 3X13X5 HIT-06802000200

Tanaka TC47R

...
...
19
Nut, 10 HIT-99111100013
...
23
Pawl, Starter HIT-7880162V20
...
24
Spring, Pawl, Starter HIT-7900162V200
...
25
Pawl, Starter Assembly HIT-7980422090
...
26
Crankcase Assembly, Tc47R Includes Bearings, Seals And Gasket HIT-0720428690
...
27
Gasket, Crankcase HIT-09004200210
...
28
Seal, Oil, Ud15257 HIT-99966152564
...
29
Bearing, Ball, #6202 HIT-99961620200
...
30
Washer, Crankshaft 15X22 HIT-07002401201
...
32
Shim, 15.2X20X.05 HIT-07102007200
...
32
Shim, 15.2X20X.10 HIT-07102007210
...
32
Shim, 15.2X20X.15 HIT-07102007220
...
32
Shim, 0.20 HIT-07111600230
...
32
Shim, 0.30 HIT-07111600240
...
33
Ring, Stop, 5 HIT-99355050000
...
34
Pulse Fitting, Tc47R HIT-4221074020
...
36
Bolt, Hex, 6X45 HIT-99053060453
...
37
Washer, S, 6 HIT-99210060062
...
38
Hex, Hole Bolt 6X35 HIT-99053060353
...
46
Nut, 6 HIT-99101060013
...
47
Receiver, Outer HIT-89401401201
...
51
Rotor, Magneto HIT-1552053780
...
52
Washer, 10 HIT-99200100011
...
54
Nut, 10 HIT-99111100011
...
55
Coil, Ignition HIT-1672053780
...
56
Screw, 5X18, Ws HIT-99416050181
...
60
Clamp, Cord HIT-19810246800
...
63
Clamp, Cord HIT-19805015800
...
66
Case, Fan, Polished HIT-1120428222
...
67
Screw, 6X20S HIT-99414060202
...
68
Grommet HIT-2030604A202
...
69
Grommet, Primary Cord HIT-20306000200
...
70
Cord, Stop, 240L HIT-1780656280
...
75
Clamp, Cord HIT-19810246800
...
82
Pipe, Fuel HIT-70053005130

Tanaka TC47R

...
...
27
Cushion, Fuel Tank HIT-65504200200
...
31
Gasket, Intake HIT-4030422021
...
32
Insulator Set, Tc47R HIT-4040422190
...
33
Gasket, Carburetor, Tc47R HIT-4020422120
...
45
Carburetor, Tc47R HIT-4550428690
...
49
Screw, 5X18, Ws HIT-99416050181
...
51
Lever, Choke HIT-49504200200
...
63
Pipe, Fuel, 3X5X230 HIT-22301251901
...
64
Clip 6.3 HIT-68000731201
...
65
Filter, Fuel HIT-67501630900
...
66
Tank, WTAN-E, Tc47R HIT-5910423K21
...
70
Cap, Tank, Black HIT-5950651690
...
71
Throttle Wire For Powerboards HIT-8850428281
...
72
Throttle Wire For Powerkarts HIT-8850428680
...
76
Band, Holding, Tank HIT-60304201200
...
77
Cushion HIT-65204201200
...
78
Screw, 5X16Ps HIT-99415050162
...
79
Bolt, Hex, 5X55 HIT-99051050553
...
80
Washer, S, 5 HIT-99210050062
...
96
Chain HIT-62632810200

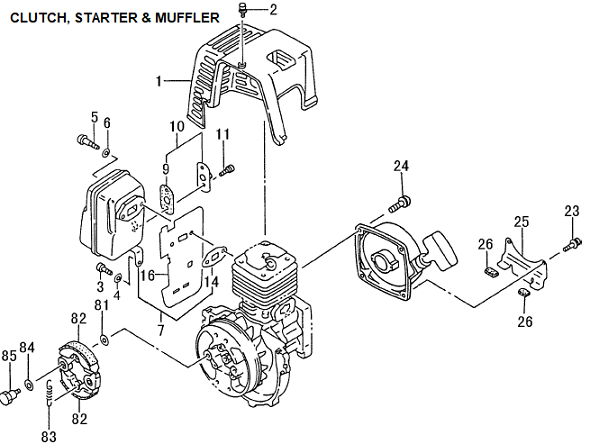

Tanaka TC47R

...
...
1
Protector, Muffler HIT-7380422020
...
2
Screw, 5X12Ps HIT-99415050122
...
3
Bolt, Hex, 5X12S HIT-99461050124
...
4
Washer, 5 HIT-99201050061
...
5
Screw, Hex, 6X65 HIT-99053060653
...
6
Washer, 6 HIT-99201060011
...
7
Muffler HIT-7040422S90
...
9
Gasket, Muffler HIT-75104200201
...
10
Tail Pipe Set HIT-7210430090
...
11
Screw, 4X8 HIT-99414040081
...
14
Gasket, Muffler HIT-73704230200
...
16
Shield, Heat HIT-1330423020
...
23
Screw, 5X18Ps HIT-99415050182
...
24
Screw, Ps, 5X25 HIT-99415050252
...
25
Bracket, Tank HIT-65304200200
...
26
Cushion, Tank HIT-65506100200
...
81
Washer, Clutch B HIT-35910112203
...
82
Shoe, Clutch HIT-2900427080
...
83
Spring, Clutch HIT-3420427020
...
84
Washer, Wave, 10 HIT-99204100030
...
85
Bolt, Step, Clutch HIT-3570136U200

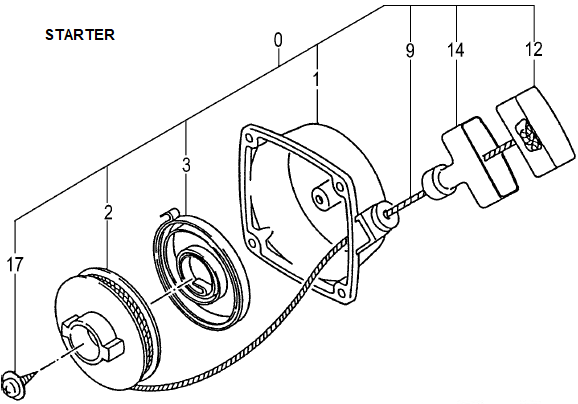

Tanaka TC47R

...
...
XX
Starter, Recoil Assembly HIT-7620422090
...
1
Body, Recoil Starter HIT-7720422080
...
2
Reel, Starter Rope HIT-7690422020
...
3
Spring, Recoil HIT-7790422020
...
9
Rope, Starter HIT-7830427020
...
12
Cap, Handle HIT-8350422020
...
14
Handle, Starter HIT-7850422020
...
17
Screw, Set HIT-8390422020

Tanaka TC47R

...
...
XX
Carburetor, Tc47R HIT-4550428690
...
2
Screen, Inlet HIT-57825007200
...
3
Pump Body, Tc47R HIT-5752532480
...
4
Set, Screw HIT-51425012200
...
9
Diaphragm Cover, Tc47R HIT-4762531120
...
10
Valve Spring, Tc47R HIT-4772530720
...
11
Needle Valve HIT-6032501220
...
12
Screw, Set, Hinge Pin HIT-54625001200
...
13
Pin, Hinge HIT-60525001200
...
14
Lever, Control HIT-47325012200
...
16
Screw, Idle Adjust HIT-46225006200
...
17
Spring, Idle Adjust HIT-46325012200
...
26
Low Adjust Screw, Tc47R HIT-4612531120
...
27
High Adjust Screw, Tc47R HIT-4602531120
...
28
Spring, Adjust HIT-62325054200
...
29
Screw, Set HIT-54825012200

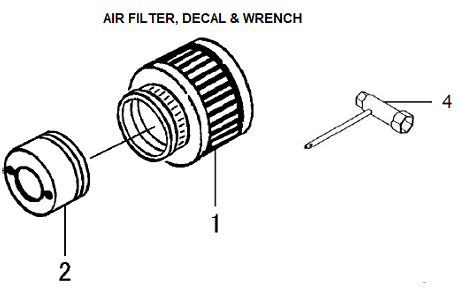

Tanaka TC47R

...
...
1
Air Filter HIT-31273
...
2
Velocity Stack Only, Tc47R HIT-32289
...
3
Decal, Tc47R HIT-9060428620
...
4
Spanner, Combi, 17X19 HIT-8262000080
