Tanaka TBL7800R BackPack Blower

Model: TBL7800R

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Tanaka TBL7800R

...
...
1
Cylinder Set Includes Gasket HIT-0011600590
...
2
Gasket, Cylinder HIT-0171600520
...
3
Bolt, Cylinder HIT-0261600520
...
4
Cover, Cylinder HIT-0161600520
...
5
Screw, A, 5X8 HIT-8063190520
...
10
Cover, Port S HIT-0501600520
...
11
Cover, Port F HIT-0511600520
...
12
Screw, C, 4X16 HIT-8083190520
...
13
Gasket, Port Cover HIT-0521600520
...
20
Crankcase Assembly Includes Bearings, Seals And Gasket HIT-0721600590
...
21
Gasket, Crankcase HIT-0901600520
...
22
Bearing, Ball, 6302C828 HIT-8013190520
...
23
Seal, Oil, 16278 HIT-99966162775
...
24
Seal, Oil, 16428 HIT-99966164275
...
25
Ring, Stop, C42 HIT-99351042002
...
26
Screw, E, 5X30 HIT-8103190520
...
27
Cover, Coil HIT-1951600520
...
28
Screw, C, 4X16 HIT-8083190520
...
29
Screw, F, 6X45 HIT-8113190520
...
30
Piston Set Includes Rings And Circlips HIT-0301600590
...
31
Ring, Piston HIT-0411600520
...
32
Pin, Piston HIT-0371600520
...
33
Circlip HIT-0391600520
...
34
Bearing, Needle HIT-8003190520
...
35
Collar, Piston Pin HIT-0361600520
...
36
Crankshaft HIT-0461600580
...
38
Nut, Flywheel, M10 HIT-0661600520
...
39
Key, Woodruff HIT-0681600520
...
40
Flywheel Assembly HIT-1551600580
...
41
Coil, Ignition HIT-1531600590
...
42
Cap, Spark Plug HIT-1571600590
...
44
Tube HIT-2501600520
...
45
Grommet HIT-2021600520
...
46
Screw, C, 4X16 HIT-8083190520
...
47
Cord, Stop HIT-1781600580
...
48
Plug, Spark HIT-0181600520
...
60
Pulley, Starter Assembly HIT-7981600590

Tanaka TBL7800R

...
...
6
Insulator Set Includes Gasket HIT-4041600590
...
7
Screw, B, 5X20 HIT-8073190520
...
8
Gasket, Insulator HIT-4031600520
...
9
Gasket, Carburetor HIT-4021600520
...
14
Muffler Assembly HIT-7051600590
...
15
Arrester, Spark HIT-7321600580
...
17
Bolt, Muffler S, 6X70 HIT-7501600520
...
18
Screw, D, 6X14 HIT-8093190520
...
19
Gasket, Muffler HIT-7371600520
...
49
Starter Assembly HIT-7621600590
...
50
Reel, Starter Rope HIT-7681600520
...
51
Spring, Recoil HIT-7791600520
...
52
Washer, Starter HIT-7861600520
...
53
Spring, Friction HIT-8361600520
...
54
Plate, Friction HIT-8371600520
...
55
Washer HIT-8011600520
...
56
Bolt, Set HIT-8391600520
...
57
Rope HIT-7831600520
...
58
Handle, Starter HIT-7851600520
...
59
Cap, Starter Handle HIT-8331600520
...
61
Screw, G, 5X16 HIT-8123190520
...
62
Carburetor Set Includes Gasket HIT-4551600590
...
63
Oring, P7 HIT-99967007000
...
64
Body, Air Cleaner HIT-4231600590
...
65
Valve, Choke HIT-5281600520
...
66
Lever, Choke HIT-5251600520
...
67
Bolt, Choke, 4X12 HIT-4511600520
...
68
Gasket, Cleaner HIT-4571600520
...
69
Blow Over Check Board A HIT-4761600520
...
70
Cover, Air Filter HIT-4141600590
...
72
Blow Over Check Board B HIT-4781600520
...
73
Bolt, Air Filter Cover HIT-4501600580
...
74
Filter, Air HIT-4441600520
...
75
Cover, Carburetor HIT-2012526820
...
80
Air Filter Assembly HIT-4101600590
...
81
Screw, H, 5X62 HIT-8133190520
...
82
Muffler Assembly Includes Gasket HIT-7041600590

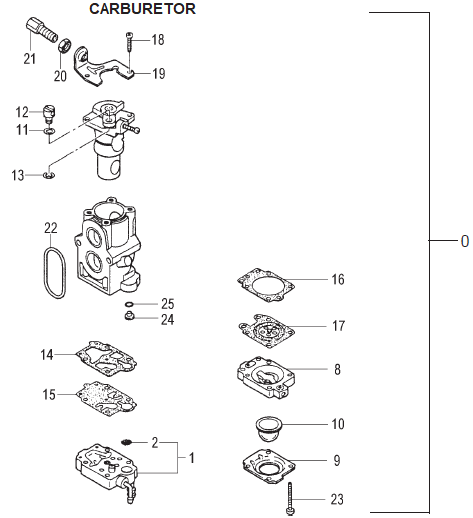

Tanaka TBL7800R

...
...
XX
Carburetor Set Includes Gasket HIT-4551600590
...
1
Body, Pump HIT-5752529290
...
2
Screen, Inlet HIT-57825007200
...
8
Pump, Priming HIT-4422515180
...
9
Cover, Diaphragm HIT-4762515120
...
10
Bulb, Priming HIT-44725108200
...
11
Washer, Thrust HIT-5492516520
...
12
Swivel HIT-53925120200
...
13
Ring, Stop HIT-48925100200
...
18
Screw, Throttle Set HIT-51425100200
...
19
Stay, Adjust, Cable HIT-54425164200
...
20
Nut, 6 HIT-99101060013
...
21
Adjuster, Cable HIT-61425137200
...
22
Gasket, Cleaner HIT-4311600520
...
23
Screw, Set HIT-5482515120
...
24
Jet, Main, #58 HIT-5992000W58
...
25
Oring HIT-55025100200

Tanaka TBL7800R

...
...
1
Fan Case, E HIT-0103190580
...
2
Fan Case S HIT-0113190580
...
3
Screw, I, 5X25 HIT-8143190520
...
4
Pipe, Elbow HIT-2703190520
...
5
Oring, G95 HIT-99967095010
...
6
Bolt, Fan Case, Long HIT-1371600520
...
7
Nut, Lock 5 HIT-99178050010
...
8
Cover, Intake HIT-0543190580
...
9
Screw, I, 5X25 HIT-8143190520
...
10
Clamp, Cord HIT-1983190580
...
11
Screw, J, 5X14 HIT-8153190520
...
12
Tube HIT-2833190520
...
15
Fan HIT-1273190580
...
16
Screw, K, 6X35 HIT-8163190520
...
17
Cover, Muffler HIT-7381600520
...
18
Screw, I, 5X25 HIT-8143190520
...
21
Frame HIT-0203190590
...
23
Cushion HIT-0213190520
...
24
Clip, Cushion HIT-0463190520
...
25
Strap, Shoulder HIT-0223190520
...
26
Cover, Dust HIT-0503190580
...
27
Screw, Dust Cover HIT-0253190590
...
28
Cushion HIT-0303190580
...
29
Washer HIT-0273190520
...
30
Screw, L, 5X40 HIT-8173190520
...
31
Screw, M, 5X16 HIT-8253190520
...
32
Cushion HIT-0313190580
...
33
Nut, Frame, M6 HIT-0323190520
...
34
Tank, Fuel HIT-5911600580
...
35
Cap, Tank HIT-5951600590
...
39
Chain, Tank Cap HIT-6261600520
...
40
Pipe, Fuel HIT-2231600590
...
41
Filter, Fuel HIT-6751600590
...
42
Clip HIT-6801600520
...
43
Bolt, Tank HIT-6063190520
...
44
Clip HIT-6803190520
...
50
Handle, Carrying HIT-5903190520
...
59
Screw, N, 5X20 HIT-8263190520
...
60
Nut, Handle, M5 HIT-2823190520

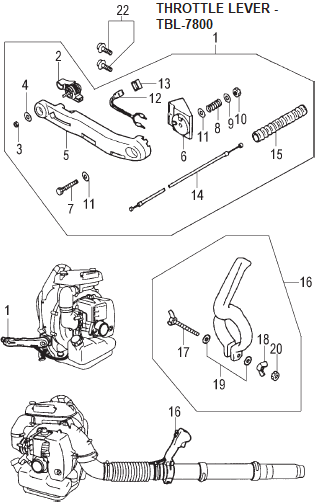

Tanaka TBL7800R

...
...
1
Throttle Lever Assembly, L HIT-8713190590
...
2
Lever, Throttle HIT-2633190590
...
3
Nut, Lock 5 HIT-99178050010
...
4
Washer, 5 HIT-99201050011
...
5
Arm, Throttle Lever HIT-2503190520
...
6
Bracket, Throttle Lever HIT-0403190580
...
7
Bolt HIT-7933190520
...
8
Spring HIT-8921600520
...
9
Special Washer A HIT-8443190520
...
10
Nut, Flange, M6 HIT-0293190520
...
11
Washer, 8 HIT-99201080011
...
12
Button, Stop HIT-1701600580
...
13
Cover, Stop Button HIT-2661600520
...
14
Wire, Throttle HIT-8853190580
...
15
Tube, 7X300 HIT-1640703000
...
16
Grip Assembly HIT-2483190590
...
17
Bolt, Wing HIT-4651600520
...
18
Nut, Wing, 6 HIT-99161060012
...
19
Washer HIT-2403190520
...
20
Nut, Cap HIT-99153060013
...
22
Screw, M, 5X16 HIT-8253190520

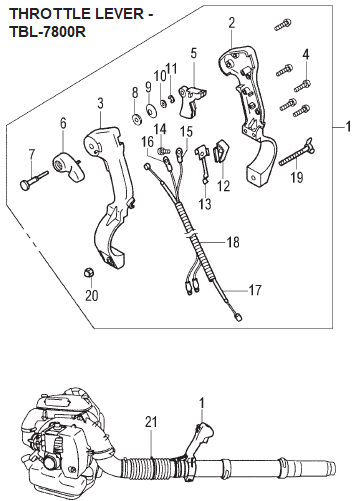

Tanaka TBL7800R

...
...
1
Throttle Lever Assembly, R HIT-8713190690
...
2
Grip, R HIT-2483190620
...
3
Grip, L HIT-2623190680
...
4
Screw, A, 4X14 HIT-8063190620
...
5
Throttle Lever HIT-2633190620
...
6
Lever HIT-2493190620
...
7
Shaft, Lever HIT-3393190620
...
8
Washer HIT-2403190620
...
9
Special Washer HIT-8443190620
...
10
Washer HIT-2403190520
...
11
Ring, Stop HIT-99354006002
...
12
Switch, Stop HIT-1621600520
...
13
Spring, Stop Switch HIT-2621600520
...
14
Screw, B, 4X10 HIT-8073190620
...
15
Cord HIT-1731600580
...
16
Cord HIT-1741600580
...
17
Wire, Throttle HIT-8853190680
...
18
Tube, 7X940 HIT-1640709400
...
19
Bolt, Wing HIT-4653190620
...
20
Nut, Cap HIT-99153060013
...
21
Clamp HIT-2293190620

Tanaka TBL7800R

...
...
1
Decal, Tbl7800 HIT-9063190520
...
2
Decal, Tbl7800R HIT-9063190620
...
3
Decal, Caution A HIT-9193190520
...
4
Decal, Caution B HIT-9203190520
...
61
Pipe, Flexible HIT-1013190520
...
62
Pipe, Swivel HIT-1023190520
...
63
Pipe, Straight HIT-1033190520
...
64
Pipe, Straight HIT-3053190520
...
65
Band, Pipe HIT-1003190520
...
66
Band, Pipe HIT-2673190520
...
68
Spanner, 8X10 HIT-8543190520
...
69
Wrench, 19X16 HIT-8533190520
