Tanaka TBL-505 BackPack Blower

Model: TBL505

Save Part Not Listed?
product name

Tanaka TBL505

...
...
1
Cap, Spark Plug Assembly HIT-15711666900
...
2
Plug, Spark HIT-01802233200
...
3
Cylinder R203951 Carb Approved Units HIT-0020503220
...
6
Nut, 6 HIT-99101060011
...
7
Washer, S, 6 HIT-99210060012
...
8
Cylinder R203650 HIT-00205015201
...
8
Cylinder R203651 HIT-0020502421
...
9
Gasket, Cylinder HIT-01702100202
...
10
Ring, Piston HIT-04105000200
...
11
Piston HIT-03105004810
...
12
Pin, Piston HIT-0370100020
...
13
Circlip, Piston Pin HIT-03905004200
...
16
Crankshaft HIT-04605004831
...
17
Bearing, Needle, F1010B HIT-99962101004
...
18
Key, Woodruff, 3X13X5 HIT-06802000200
...
19
Washer, Crankshaft HIT-07010700200
...
20
Shim, 17.7X23X.05 HIT-07111109200
...
20
Shim, 17.7X23X.10 HIT-07111109210
...
20
Shim, 17.7X23X.15 Shims Are "As Needed To Obtain Correct HIT-07111109220
...
20
Shim, 17.7X23X.20 Cs Side Clearance. HIT-07111109230
...
20
Shim, 17.7X23X.30 HIT-07111109240
...
21
Ring, Stop, 5 Q234211 HIT-99355050000
...
22
Pawl, Starter Q234211 HIT-7880162V20
...
24
Spring, Pawl, Starter Q234211 HIT-7900162V200
...
26
Crankcase Assembly Includes Bearings, Seals, & Gaskets HIT-0720503190
...
27
Ball Bearing #6303 HIT-99961630312
...
28
Seal, Oil, #17307 HIT-99966173000
...
29
Gasket, Crankcase HIT-09005004211
...
30
Stud, 6X26 HIT-10012000200
...
36-1
Pulley, Starter Q234210 HIT-79805015200
...
36
Pawl, Starter Assembly Q234211 HIT-7980422090
...
37
Nut, 10 HIT-99111100013
...
41
Plate, Case HIT-66505004201
...
43
Washer, S, 5 HIT-99210050012
...
44
Screw, 5X10 HIT-99011050101
...
46
Clamp, Cord HIT-19800701201
...
47
Washer, 5 HIT-99201050011
...
48
Screw, 5X10 HIT-99011050101
...
51
Grommet HIT-2030604A202
...
56
Exciter HIT-1622151980
...
57
Washer, Small, 5 HIT-99200050011
...
58
Washer, S, 5 HIT-99210050012
...
59
Screw, 5X22 HIT-99011050221
...
61
Cover, Coil HIT-19505015201
...
62
Washer, S, 5 HIT-99210050012
...
63
Screw, 5X10 HIT-99011050101
...
66
Coil, Ignition HIT-16721519802
...
67
Washer, 4 HIT-99201040011
...
68
Washer, S, 4 HIT-99210040012
...
69
Screw, 4X15 HIT-99011040151
...
71
Washer, S, 6 HIT-99210060012
...
72
Screw, 6X35 HIT-99011060351
...
76
Rotor, Magneto N013860 HIT-15521519800
...
76
Rotor, Magneto N013861 HIT-1552152680
...
77
Washer, 10 HIT-99200100011
...
79
Nut, 10 HIT-99111100011
...
81
Screw, 5X15 HIT-99011050151
...
82
Washer, S, 5 HIT-99210050012
...
83
Washer, 5 HIT-99201050011
...
84
Short Block, Tbl455500505 R203650 HIT-SB455
...
84
Short Block, Tbl460, 505C R203651 HIT-SB4610

Tanaka TBL505

...
...
2
Screw, 5X16 HIT-99011050161
...
3
Washer, S, 5 HIT-99210050012
...
4
Washer, 5 HIT-99201050011
...
6
Gasket, Muffler HIT-7370500420
...
7
Muffler, Assembly HIT-70505008900
...
8
Pipe, Muffler HIT-71905008800
...
9
Arrester, Spark HIT-73205008200
...
10
Gasket, Tail Pipe HIT-7510500820
...
11
Pipe, Tail HIT-72105008801
...
12
Washer, S, 4 HIT-99210040012
...
13
Screw, 4X10 HIT-99011040101
...
14
Gasket, Muffler HIT-75105004212
...
15
Washer, 8 HIT-99201080011
...
16
Bolt, Special HIT-75005004201
...
17
Washer, 6 HIT-99201060011
...
18
Washer, S, 6 HIT-99210060012
...
19
Screw, 6X12 HIT-99011060121
...
20
Screw, Mx20 HIT-99011050201
...
21
Washer, S, 5 HIT-99210050012
...
22
Washer, 5 HIT-99201050011
...
23
Screw, 6X20 HIT-99011060201
...
24
Washer, S, 6 HIT-99210060012
...
25
Washer, 6 HIT-99201060011
...
26
Protector, Muffler HIT-73805015200
...
27
Screw, 6X10 HIT-99011060101
...
28
Washer, S, 6 HIT-99210060012
...
30
Shroud, Cylinder HIT-01605004200
...
36
Gasket, Insulator R203651 HIT-4030501521
...
37
Insulator, Carburetor R203650 HIT-40405015801
...
37
Insulator, Carb. (Ca) R203651 HIT-4040502480
...
38
Washer, 5 HIT-99201050011
...
39
Washer, S, 5 HIT-99210050012
...
40
Screw, 5X25 HIT-99011050251
...
41
Gasket, Carburetor R203650 HIT-4020174020
...
41
Gasket, Carburetor R203651 HIT-4020602K21
...
42
Bracket R203650 HIT-87805015200
...
44
Nut, 6 HIT-99101060013
...
45
Receiver, Outer HIT-89401401201
...
46
Pump, Priming R203650 HIT-44225016801
...
47
Washer, 10 Inner Toothed HIT-99220100010
...
48
Nut, 10 HIT-99111100011
...
49
Pipe, Fuel, 2.5X4X100 HIT-70002504100
...
50
Pipe, Fuel, 2.5X4X105 R203650 HIT-70002504105
...
50
Pipe, Fuel 2.5X4X80 R203651 HIT-7000250408
...
51
Grommet, Fuel Pipe HIT-53432710200
...
52
Pipe, Fuel, 3X5X280 HIT-22305015900
...
53
Clip, 5.2 HIT-68004001200
...
54
Filter, Fuel HIT-67501630900
...
55
Cap, Tank T236710 HIT-5950502490
...
55
Cap, Tank T236711 HIT-5950130890
...
57
Tank, Set Tbl505 R203650 Ref. Bulletin Pi3061 HIT-5910501800
...
57
Tank, Tbl505 (Ca) T236710 HIT-5910503282
...
57
Tank, Fuel T236711 HIT-5910503382
...
58
Plate, Tank Plate Not Shown HIT-6050501820
...
59
Clamp, Cord HIT-19805015800
...
60
Inner, Tank Cap Fits Old Cap Only (Not Shown) HIT-6290080390
...
61
Base, Cleaner HIT-43605015200
...
62
Seal, Dust HIT-20105015200
...
63
Rod, Choke HIT-52305015801
...
64
Valve, Choke HIT-52805015201
...
65
Shim, Choke Valve HIT-7080501520
...
66
Washer, Small, 5 HIT-99200050011
...
67
Washer, S, 5 HIT-99210050012
...
68
Screw, 5X50 HIT-99011050501
...
71
Band, Cleaner HIT-46605015801
...
72
Tube, Cleaner HIT-43705015200
...
73
Gasket, Cleaner HIT-43105015201
...
74
Core, Cleaner HIT-42505015200
...
75
Element, Cleaner HIT-44405015200
...
76
Body, Cleaner HIT-42333111201
...
79
Muffler HIT-70605008801
...
80
Cover, Air Vent HIT-5610007020
...
81
Valve HIT-6460661290
...
82
Clip, 5.5 HIT-68000206200
...
83
Pipe, Air Vent HIT-5650503220
...
84
Vent, Air Assembly T236711 HIT-5640661190

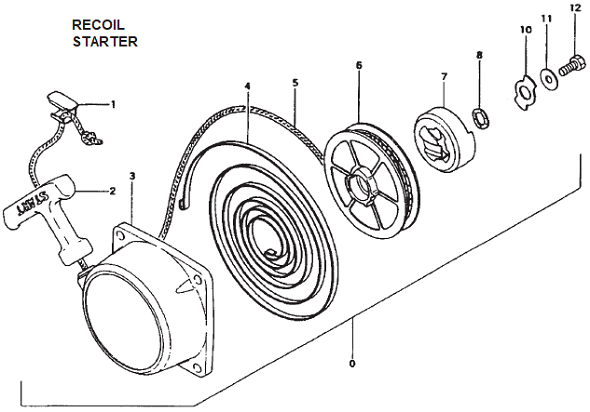

Tanaka TBL505

...
...
XX
Starter, Recoil Assembly Q234210 HIT-7620501591
...
XX
Starter, Recoil Assembly Q234211 HIT-7620422090
...
1
Metal, Starter Handle Q234210 HIT-81506000200
...
1
Cap, Handle Q234211 HIT-8350422020
...
2
Handle, Starter HIT-7850422020
...
3
Body, Recoil Starter Q234210 HIT-77205015800
...
3
Body, Recoil Starter Q234211 HIT-7720422080
...
4
Spring, Recoil Q234210 HIT-77906000200
...
4
Spring, Recoil Q234211 HIT-7790422020
...
5
Rope, Starter, 3.8X1070 Q234210 HIT-78305004200
...
5
Rope, Starter Q234211 HIT-7830422020
...
6
Reel, Starter Rope Q234210 HIT-76905015200
...
6
Reel, Starter Rope Q234211 HIT-7690422020
...
7
Pawl, Starter Q234210 HIT-7880501521
...
8
Washer, Starter Pulley Q234210 HIT-80105015200
...
10
Friction Plate Q234210 HIT-8370501521
...
11
Shim, Pulley Q234210 HIT-82205015200
...
12
Bolt Q234210 HIT-8390423020
...
12
Screw, Set Q234211 HIT-8390422020

Tanaka TBL505

...
...
XX
Carburetor Assembly R203650 HIT-45525037900
...
1
Screw, Set HIT-51425001200
...
2
Body, Pump HIT-57525012200
...
6
Shaft, Throttle Carb. Gasketdia. Kit HIT-46425031800
...
7
Spring, Throttle (Not Available Individually) HIT-48625035200
...
8
Screw, Shutter HIT-46725003200
...
9
Valve, Throttle HIT-48825001200
...
10
Plate, Stop HIT-55925012200
...
11
Sleeve HIT-43725031200
...
12
Lever, Throttle HIT-49125035200
...
13
Ring, Stop HIT-48925008200
...
14
Swivel HIT-53925101200
...
15
Spring, Idle Adjust HIT-46325032200
...
16
Screw, Idle Adjust HIT-46225032200
...
17
Spring, Adjust, Hilow HIT-62325032200
...
18
Screw, Idle Adjust HIT-46125035200
...
19
Screw, Low Adjust HIT-46025035200
...
21
Spring, Valve HIT-47725012200
...
24
Screw, Set, Hinge Pin HIT-54625001200
...
27
Purge, Air HIT-45425032800
...
28
Cover, Diaphragm HIT-47625032200
...
29
Screw, Set HIT-54825016200
...
30
Carburetor Assembly R203651 HIT-4552518490
...
32
Body, Pump HIT-5752515380
...
33
Pump, Priming HIT-4422515180
...
34
Cover, Diaphragm HIT-4762515120
...
35
Bulb, Priming HIT-44725108200
...
40
Jet, Main #55 HIT-5992000W55
...
42
Ring, Stop HIT-48925100200
...
43
Swivel HIT-53925120200
...
45
Screw, Throttle Set HIT-51425100200
...
46
Stay, Adjust, Cable HIT-54425164200
...
47
Nut, 6 HIT-99101060013
...
48
Adjuster, Cable HIT-61425137200
...
49
Gasket, Cleaner HIT-4310634C200
...
50
Screw, Set HIT-5482515120
...
51
Washer, Thrust HIT-5492516520

Tanaka TBL505

...
...
6
Screw, 5X35 HIT-99011050351
...
7
Washer, 5 HIT-99201050011
...
8
Case, Fan E HIT-0103131380
...
9
Fan N013860 HIT-12731307200
...
9
Fan N013861 HIT-1270501820
...
10
Washer, S, 6 HIT-99210060042
...
11
Bolt, 6X30 HIT-99021060302
...
12
Case, Fan, S HIT-01131310200
...
13
Nut, 5 HIT-99101050011
...
14
Screen HIT-05031307200
...
15
Screw, Tapping, 5X20 HIT-99311050202
...
16
Pipe, Blow HIT-27031310200
...
17
Band, Pipe HIT-10031310200
...
18
Collar HIT-06031310200
...
20
Screw, 6X35 HIT-99011060351
...
21
Washer, 6 HIT-99201060011
...
22
Gasket, Oil Seat HIT-59331310200
...
23
Plate, Air Guide HIT-01231310200
...
24
Nut, 6 HIT-99101060011
...
25
Nut, 6, Special HIT-0293131420
...
29
Washer, S, 6 HIT-99210060012
...
30
Washer, 3.2X25 HIT-0273131320
...
31
Screw, 6X16 HIT-99011060161
...
36
Frame HIT-0203131380
...
37
Cushion N180785 HIT-03031307200
...
39
Nut, Special HIT-0293131320
...
40
Strap Shoulder HIT-0193131980
...
44
Screw, 6X16 HIT-99014060161
...
45
Strap Shoulder HIT-0193131980
...
46
Cushion HIT-0213131880
...
49
Fastener HIT-0463131320
...
51
Ring, Holding HIT-0453131320
...
55
Nut, Lock, 6 HIT-99178060010
...
56
Screw, 6X25 HIT-99011060251
...
57
Washer, S, 6 HIT-99210060012
...
58
Washer, 6 HIT-99201060011
...
59
Lever, Throttle HIT-26331310200
...
60
Spring, Throttle Lever HIT-33331310200
...
61
Ball, Steel 532 HIT-33431310200
...
62
Collar HIT-25631310200
...
63
Switch, Stop HIT-16201300900
...
65
Cord, Stop HIT-17805015800
...
66
Knob HIT-3353131380
...
67
Arm, Throttle Lever HIT-25031310200
...
68
Bracket, Throttle Lever HIT-0403131320
...
69
Nut, 8 HIT-99178080010
...
70
Pin, Split HIT-99290200150
...
71
Washer, 6 HIT-99201060011
...
72
Washer, S, 6 HIT-99210060012
...
73
Screw, 6X20 HIT-99011060201
...
74
Cover, Throttle Lever Arm HIT-24731310200
...
75
Screw, Tapping, 4X10 HIT-99311040102
...
76
Nut, 6 HIT-99101060011
...
77
Wire, Throttle R203650 HIT-88505015800
...
77
Wire, Throttle (Ca) R203651 HIT-8850502480
...
78
Tube, Protection HIT-16410027000
...
79
Oring, P70 HIT-99967070020

Tanaka TBL505

...
...
1
Pipe, Flexible HIT-10131310200
...
2
Pipe, Swivel HIT-10231310200
...
3
Pipe, Straight, Long HIT-10331310200
...
4
Pipe, Bent HIT-10431310200
...
6
Clamp, Wire 92 HIT-11031310200
...
7
Screw Driver, Straight HIT-86420000210
...
8
Spanner, Combi, 17X19 HIT-8262000080
...
9
Handle, 8X120 HIT-95120000200
...
10
Pipe, Straight, Short HIT-30531310200
...
11
Clamp, Wire 78 HIT-11131305200
...
15
Fan Head Optional HIT-27331307200
...
21
Nut, Wing, 6 HIT-99161060012
...
22
Washer, 6 HIT-99201060011
...
23
Handle, Tbl HIT-26724
...
24
Bolt, Wing 6X50 HIT-99060060501

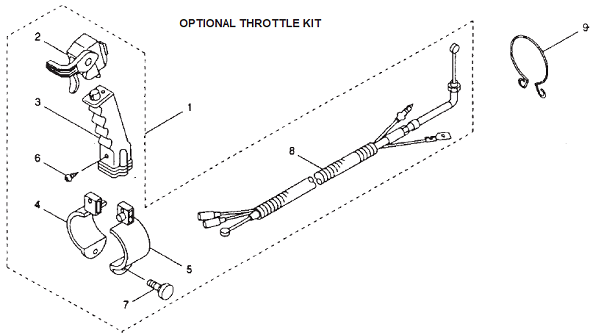

Tanaka TBL505

...
...
1
Kit, Throttle, Tbl HIT-29603
...
2
Lever, Throttle HIT-29873
...
3
Grip HIT-29878
...
4
Band, (Right) HIT-29880
...
5
Band, (Left) HIT-29879
...
6
Screw, 5X20 HIT-29881
...
7
Bolt, Knob HIT-29882
...
8
Wire.Throttle, Assembly HIT-29883
...
9
Clamp HIT-29884
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
