product name

Tanaka TBCSF Smart Fit Multi-Task Tool Attachment

Model: TBCSF

Save Part Not Listed?
product name

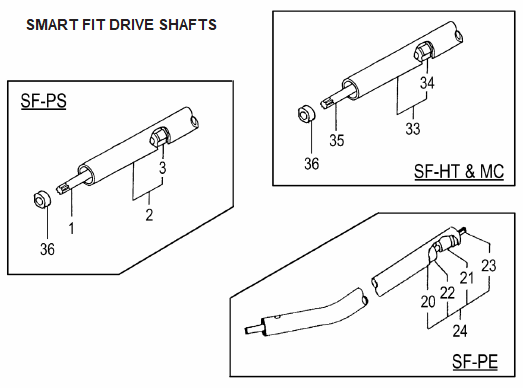

Tanaka TBCSF

...
...
1
Shaft, Drive HIT-0363248920
...
2
Pipe, Drive Shaft HIT-3413248980
...
3
Bushing HIT-3473836090
...
20
Pipe, Drive Shaft HIT-3413729920
...
21
Spacer HIT-3203729020
...
22
Liner, Drive Shaft HIT-3503729920
...
23
Shaft, Flex HIT-3443729920
...
24
Drive Shaft Assembly HIT-3533729990
...
33
Drive Shaft Pipe HIT-3413846680
...
34
Bushing HIT-3473836090
...
35
Shaft, Drive B HIT-0363819020
...
36
Bushing HIT-3473846620

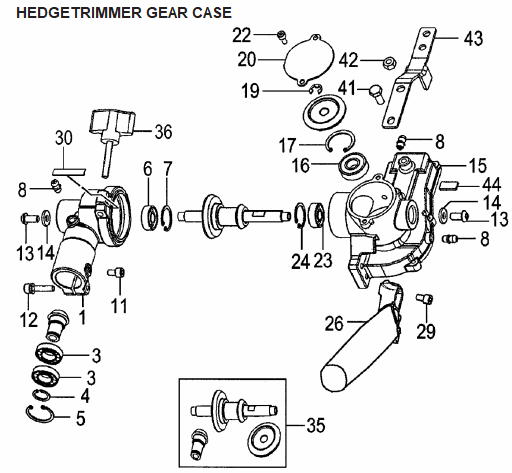

Tanaka TBCSF

...
...
1
Case, Gear, A, 24Mm HIT-3003228721
...
3
Bearing, Ball, #6901Zz HIT-99961690101
...
4
Ring, Stop, S12, Outer HIT-99352012002
...
5
Ring, Stop, C24, In HIT-99351024002
...
6
Bearing, Ball, #608Z HIT-99961608013
...
7
Ring, Stop, C22, In HIT-99351022002
...
8
Fitting, Grease HIT-30032250801
...
11
Bolt, Hex.Hole, 5X10 HIT-99051050103
...
12
Bolt, Hex Hole, 5X25S HIT-99461050254
...
13
Screw, Hex Hole 6X12 HIT-99053060125
...
14
Washer, Special, B HIT-87132600200
...
15
Case, Gear B HIT-3013228620
...
16
Bearing, Ball, #6000Dd HIT-99961600014
...
17
Ring, Stop, In, C26 HIT-99351026002
...
19
Ring, Stop, E6 HIT-99355060000
...
20
Cover, Gear Case A HIT-3273228020
...
22
Bolt, Hex, 4X8 HIT-99051040085
...
23
Bearing, Ball, #608Z HIT-99961608013
...
24
Ring, Stop, C22, In HIT-99351022002
...
26
Handle HIT-2103228620
...
29
Bolt, Hex, 6X15 HIT-99053060153
...
30
Seal, D HIT-883228720
...
35
Gear & Pinion Set HIT-3023228600
...
36
Knob, Handle, A HIT-5123228680
...
41
Bolt, Plus, 6X14 HIT-99023060141
...
42
Nut, 6 HIT-99101060041
...
43
Plate, Support HIT-4623228620
...
44
Seal, Grease, B HIT-0863228620

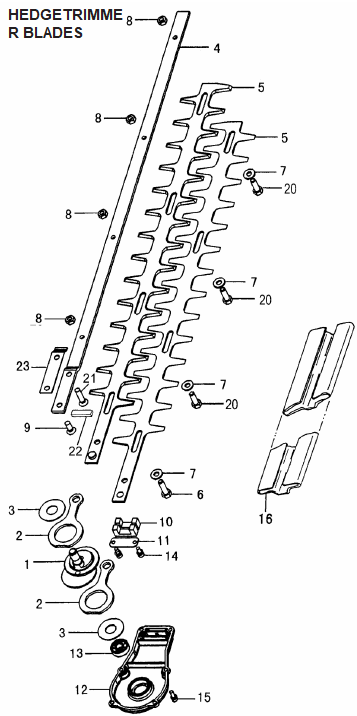

Tanaka TBCSF

...
...
1
Shaft, Cam HIT-1003228280
...
2
Rod, Cam HIT-1013316022
...
3
Plate, Guide HIT-0753228020
...
4
Guide, Cutter HIT-1223228621
...
5
Blade, A, Ds, 22" HIT-1203228721
...
6
Bolt, Fixing, A, M6 HIT-1243228720
...
7
Washer, 7 HIT-12933202201
...
8
Nut, Flange, 6 HIT-99182060001
...
9
Bolt, Hex, 6X16 HIT-99052060165
...
10
Seal, Grease, A HIT-0853228620
...
11
Holding, Plate HIT-1053228020
...
12
Cover, Gear Case HIT-3283228022
...
13
Bearing, Ball, #608Z HIT-99961608013
...
14
Bolt, Hex, 4X10, S HIT-99461040104
...
15
Bolt, Hex, 4X12 HIT-99461040124
...
16
Cover, Cutter, 22" HIT-1383316820
...
20
Bolt, Cutter Fixing, B HIT-1253228720
...
21
Bolt, Hex Flush, 6X25 HIT-99052060255
...
22
Seal, C HIT-0873228620
...
23
Spacer HIT-2963228620

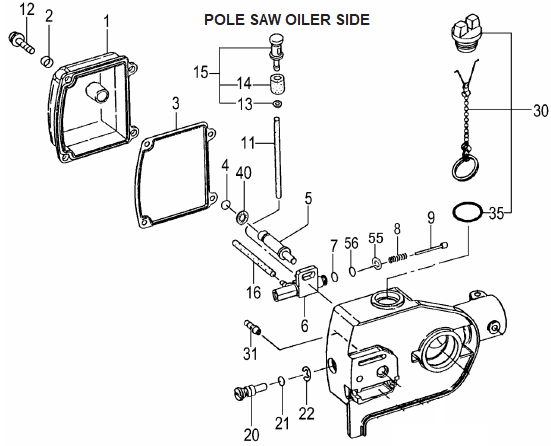

Tanaka TBCSF

...
...
1
Cover, Oil Tank HIT-0413230420
...
2
Collar 3 HIT-0313230420
...
3
Gasket, Oil Tank HIT-4223230421
...
4
Oring, P5 HIT-99967005000
...
5
Bolt, Step, A HIT-3823230420
...
6
Pump, Oil HIT-0713234480
...
7
Oring, P5 HIT-99967005000
...
8
Spring, Oil Pump HIT-4493230420
...
9
Piston, Oil Pump HIT-0733230481
...
11
Pipe, Fuel 3X5X60 HIT-7005300506
...
12
Screw, 4X12, Ws HIT-99416040126
...
13
Washer, 5 HIT-99201050011
...
14
Filter, Fine Mesh HIT-4873234520
...
15
Filter Assembly, Fine Mesh HIT-4863234590
...
16
Pipe, Fuel 3X5X75 HIT-7005300507
...
20
Adjuster, Oil Pump HIT-5013230421
...
21
Oring, P5 HIT-99967005000
...
22
Ring, Stop, 6 HIT-99355060001
...
30
Cap, Oil Tank HIT-6243230492
...
31
Banjo, Oil Pump HIT-0823230420
...
35
Oring, P15 HIT-99967015000
...
40
Nut, Push HIT-9923008000
...
55
Washer, 2 HIT-99201020011
...
56
Oring HIT-99967001413

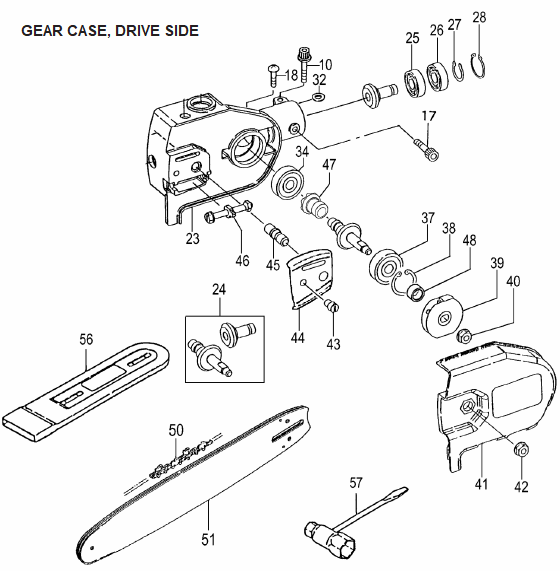

Tanaka TBCSF

...
...
10
Bolt, Hex Hole 5X22S HIT-99461050224
...
17
Bolt, Hex.Hole, 5X10 HIT-99051050103
...
18
Screw, 6X8 HIT-99431060081
...
23
Case, Gear HIT-0193230422
...
24
Set, Gear, Pinion HIT-3013230400
...
25
Bearing, Ball, #609 HIT-99961609000
...
26
Bearing, Ball, #609Z HIT-99961609002
...
27
Ring, Stop, C9 HIT-99350009002
...
28
Ring, Stop, C24, In HIT-99351024002
...
32
Washer, Recoil Starter HIT-78600601200
...
34
Bearing, Ball HIT-99961627000
...
37
Bearing, Ball 638Z HIT-99961638002
...
38
Ring, Stop, In, C28 HIT-99351028002
...
39
Sprocket, 38 HIT-3193230480
...
40
Nut, Flange, 6 HIT-99182060001
...
41
Cover, Side HIT-0393230480
...
42
Nut, Clamp, Bar HIT-12132600200
...
43
Knock Pin HIT-1223234421
...
44
Plate, Guide HIT-4613234420
...
45
Bolt, Chain Tightening HIT-1013234421
...
46
Tensioner, Chain HIT-1163230490
...
47
Cam HIT-4523234420
...
48
Collar HIT-0313234420
...
50
Chain, 10" HIT-1273230420
...
51
Bar, 10" HIT-1103230420
...
56
Cover, Bar, 10", Black HIT-9413233320
...
57
Spanner, Combo HIT-88332600200

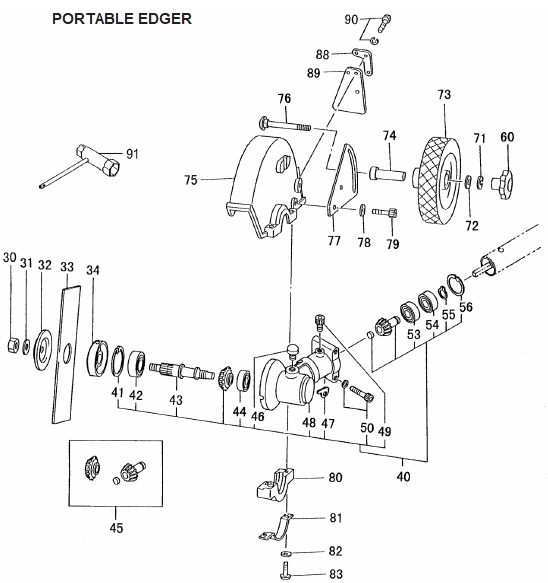

Tanaka TBCSF

...
...
30
Nut, 8L.H. HIT-99106080001
...
31
Washer, 8 HIT-99201080011
...
32
Cap, Cutter Holder HIT-3113729020
...
33
Blade, Tpe250 HIT-4353729020
...
34
Holder, Cutter HIT-3103729022
...
40
Case, Gear, Assembly HIT-3003729090
...
41
Ring, Stop, C32 In HIT-99351032002
...
42
Bearing, Ball #6201D HIT-99961620103
...
43
Shaft, Gear HIT-3043729020
...
44
Bearing, Ball, #628 HIT-99961628000
...
45
Set, Gearpinion HIT-3013729000
...
46
Bolt, 8X10 HIT-99423080100
...
47
Washer, Gear Case HIT-32433410201
...
48
Case, Gear HIT-3003729021
...
49
Bolt, Hex.Hole, 5X10 HIT-99051050103
...
50
Bolt, Hex Hole, 5X25S HIT-99461050254
...
53
Bearing, Ball, #609 HIT-99961609000
...
54
Bearing, Ball, #609Z HIT-99961609002
...
55
Ring, Stop, C9 HIT-99350009002
...
56
Ring, Stop, C24, In HIT-99351024002
...
60
Handle, Lock HIT-2103729080
...
71
Washer, S, 8 HIT-99210080012
...
72
Washer, 8 HIT-99201080011
...
73
Wheel, Tpe, 6" HIT-1203729480
...
74
Collar HIT-0493729420
...
75
Guard, Blade HIT-4413729022
...
76
Bolt, Special HIT-3143729420
...
77
Stay, Wheel HIT-4813729420
...
78
Washer, S, 6 HIT-99210060062
...
79
Bolt, Hex, 6X15 HIT-99053060153
...
80
Bracket, Cover HIT-4423729021
...
81
Holder, Blade Guard HIT-4453729420
...
82
Washer, S, 6 HIT-99210060062
...
83
Hex, Hole Bolt 6X35 HIT-99053060353
...
88
Holder, Mud Flap HIT-4963729020
...
89
Flap, Mud HIT-5003729020
...
90
Bolt, Hex, 5X12S HIT-99461050124
...
91
Spanner, Combi, 13X19 HIT-8292000080

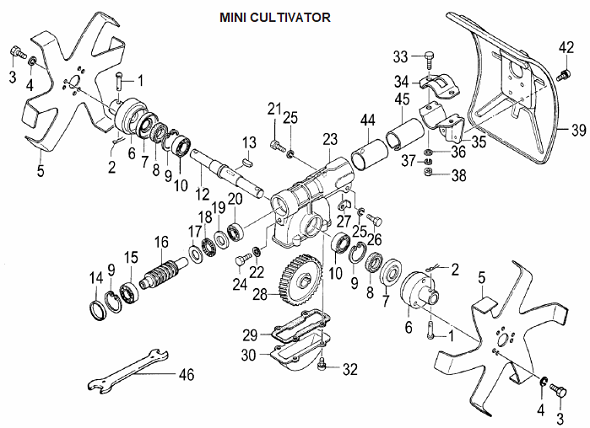

Tanaka TBCSF

...
...
1
Pin, Lock HIT-40039907200
...
2
Pin HIT-ASP100
...
3
Bolt, 6X12 HIT-99021060121
...
4
Washer, S, 6 HIT-99210060012
...
5
Tine, Tmc HIT-82039907200
...
6
Holder, Cutter HIT-31039907200
...
7
Cover, Protection HIT-30739907200
...
8
Seal, Oil, #15286 HIT-99966152863
...
9
Ring, Stop, In, C28 HIT-99351028002
...
10
Bearing, Ball, #6902 HIT-99961690200
...
12
Shaft, Drive HIT-30439907200
...
13
Key, Woodruff, 5X22X7X14 HIT-12032201200
...
14
Cap, Gear Case HIT-32239907200
...
15
Bearing, Ball, 6001Zz HIT-99961600101
...
16
Shaft, Worm HIT-00233130200
...
17
Washer, Thrust, 1226 HIT-99962122669
...
18
Bearing, Thrust Needle HIT-99962122668
...
19
Washer, Step HIT-32139907200
...
20
Bearing, Ball, #6901Zz HIT-99961690101
...
21
Bolt, 6X12 HIT-99021060121
...
22
Gasket, Drain HIT-72701040201
...
23
Case, Gear HIT-30039907200
...
24
Bolt, 6X12 HIT-99021060121
...
25
Washer, S, 6 HIT-99210060012
...
26
Bolt, 6X25 HIT-99021060251
...
27
Spacer HIT-2490630G201
...
28
Wheel, Gear HIT-30139909200
...
29
Gasket, Gear Case HIT-31839907200
...
30
Cover, Gear Case HIT-32339907200
...
32
Screw, S, 5X10 HIT-99414050101
...
33
Bolt, 6X18 HIT-99021060181
...
34
Bracket HIT-4423732520
...
35
Holder, Cover, Tmc HIT-4453314020
...
36
Washer, Small, 6 HIT-99200060011
...
37
Washer, S, 6 HIT-99210060012
...
38
Nut, 6 HIT-99101060011
...
39
Cover, Safety HIT-44139907200
...
42
Screw, 5X14Ps HIT-99415050141
...
44
Collar, B HIT-34833130200
...
45
Collar HIT-29439909200
...
46
Spanner, 8X10 HIT-80120000200

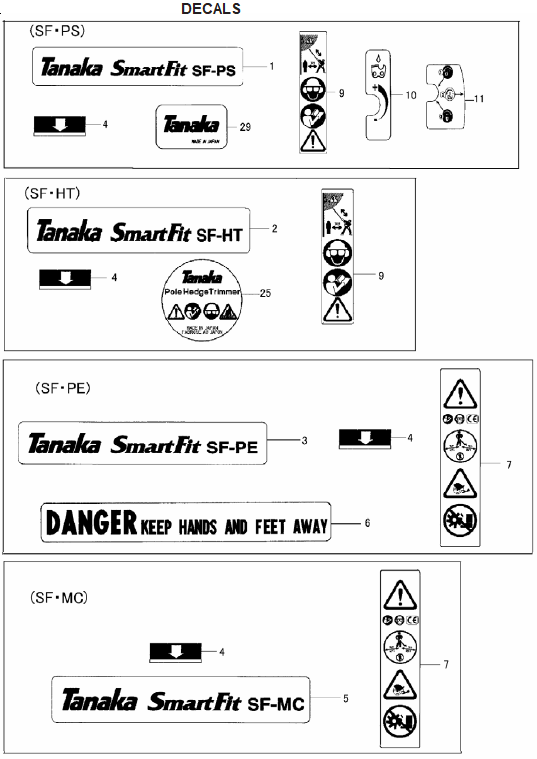

Tanaka TBCSF

...
...
1
Decal, Sf, Ps HIT-9293248820
...
2
Decal, Sf, Ht HIT-9293223720
...
3
Decal, Sf, Pe HIT-9293729920
...
4
Decal HIT-92337400200
...
5
Decal, Symbol, Sf, Me HIT-9293314220
...
6
Decal, Caution HIT-91933111201
...
7
Decal, Caution HIT-9193729920
...
9
Decal HIT-9073230420
...
10
Decal, Oil HIT-9213234520
...
11
Decal, Oil Adjustment HIT-9223234520
...
25
Decal, A HIT-9193229020
...
29
Decal HIT-9293248420

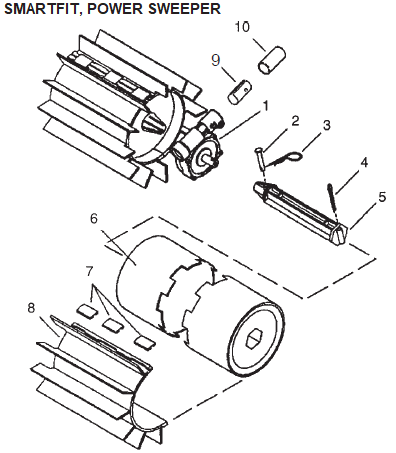

Tanaka TBCSF

...
...
1
Case, Gear, Sweeper HIT-32375
...
2
Pin, Clevis, Sweeper HIT-32369
...
3
Pin, TAN-Ch, Sweeper HIT-32368
...
4
Pin, Cotter, Sweeper HIT-32367
...
5
Axle, Drum, Sweeper HIT-32366
...
6
Drum, Sweeper HIT-32364
...
7
Clip, Belt, Sweeper HIT-32365
...
8
Belt, Sweeper HIT-32363
...
9
Spacer, 24 To 26Mm HIT-32373
...
10
Protector, Tube, Sweeper HIT-32372

Tanaka TBCSF

...
...
1
Shaft, Drive B HIT-0363819020
...
2
Shaft, Drive HIT-3413847880
...
3
Bushing HIT-3473836090
...
4
Decal, Level HIT-92337400200
...
5
Bushing HIT-3473846620
