product name

Tanaka TBC-250SF Hedge Trimmer

Model: TBC-250SF

Save Part Not Listed?
product name

Tanaka TBC-250SF

...
...
1-1
Cap, Spark Plug Ass'Y HIT-1570168090
...
1-2
Plug, Spark HIT-181161021
...
1-6
Cylinder, Set Includes Gasket HIT-10304590
...
1-7
Bolt, Hex, 5X18, S HIT-99461050184
...
1-9
Gasket, Cylinder HIT-170300221
...
1-11
Ring, Piston HIT-4101601200
...
1-12
Piston Set Includes Piston Rings And Circlips HIT-300704590
...
1-13
Circlip, Piston Pin HIT-3901620200
...
1-14
Pin, Piston HIT-370704520
...
1-16
Crankshaft HIT-460304581
...
1-17
Bearing, Needle, F-810 HIT-99962081225
...
1-18
Key, Woodruff, 3X13X4.5 HIT-6810100200
...
1-40
Cord, Stop HIT-1780168080
...
1-41
Cord, Earth HIT-2740168080
...
1-46
Bolt, Hext 4X18Ws HIT-99464040184
...
1-47
Washer, Special HIT-1820186A201
...
1-50
Coil, Ignition HIT-1672101090

Tanaka TBC-250SF

...
...
2-19
Shim, 12.2X19X.10 HIT-33000200210
...
2-19
Shim, 12.2X19X.15 HIT-33000200220
...
2-19
Shim, 12.2X19X.20 HIT-33000200230
...
2-19
Shim, 12.2X19X.30 HIT-33000200240
...
2-31
Crankcase Ass'Y Includes Gasket, Seals And Bearings HIT-720304590
...
2-32
Seal, Oil, 12227 HIT-99966122240
...
2-33
Bearing, Ball, 6001 C3 HIT-99961600115
...
2-34
Gasket, Crankcase HIT-900304520
...
2-36
Bolt, Hex, 5X16,S HIT-99461050164
...
2-51
Rotor, Magneto HIT-1552174380
...
2-52
Washer, 7 HIT-99201070011
...
2-54
Nut, Flywheel HIT-6600000200

Tanaka TBC-250SF

...
...
3-80
Gasket, Inlet Manifold HIT-4030702021
...
3-81
Insulator Set Includes Gasket HIT-4040702091
...
3-82
Screw 5X24Ws HIT-99416050241
...
3-85
Gasket HIT-4020656A200
...
3-86
Plate, Choke, 2.0 HIT-5280652N22
...
3-88
Body, Air Cleaner HIT-4230652N80
...
3-89
Cleaner, Element HIT-4460652N20
...
3-90
Cover, Air Cleaner Assy HIT-4520304690
...
3-91
Bolt, Cleaner Cover HIT-4500702480
...
3-94
Screw, 5X55 HIT-99011050552
...
3-95
Washer, S, 5 HIT-99210050012
...
3-96
Washer, Small, 5 HIT-99200050011
...
3-98
Carburetor Set Includes Gasket HIT-4550304590
...
3-99
Lever, Choke HIT-5230652N20
...
3-100
Tank, Fuel HIT-5910304520
...
3-109
Collar HIT-65900801200
...
3-110
Grommet, Fuel Pipe HIT-53432710200
...
3-111
Pipe, Fuel, 3X5X62 HIT-70003005062
...
3-112
Filter, Fuel HIT-6750404280
...
3-113
Clip 6.3 HIT-68000731201
...
3-114
Pipe, Fuel, Ass'Y HIT-2230162V900
...
3-115
Bolt, Hex, 5X20Ps HIT-99463050205
...
3-116
Bolt, Hex 5X20 HIT-99463050204
...
3-117
Cap, Tank (Black/Red) HIT-5950300290
...
3-118
Screw, Tapping, 4X15 HIT-99075040154
...
3-119
Washer, 4 HIT-99201040011
...
3-126
Air Cleaner Ass'Y HIT-4100304690

Tanaka TBC-250SF

...
...
4-1
Protector, Muffler HIT-7380304620
...
4-4
Screw, Ps, 4X18 HIT-99415040182
...
4-5
Screw, Hex.Hole HIT-99053060553
...
4-6
Washer, 6 HIT-99201060011
...
4-7
Muffler Set Includes Gasket HIT-7040304590
...
4-10
Pipe, Tail HIT-7210440020
...
4-11
Screw, 4X18Ws HIT-99436040081
...
4-13
Arrester, Spark HIT-7320440020
...
4-15
Cover, Muffler B HIT-7360304580
...
4-16
Gasket, Muffler HIT-7370168020
...
4-17
Shield, Heat HIT-7350304580
...
4-20
Screw, 5X10/Ps HIT-99415050101
...
4-24
Screw, Ps, 4X18 HIT-99415040182
...
4-30
Protector, Spark Plug HIT-2570304520
...
4-31
Washer, Clutch, B HIT-35902103200
...
4-32
Shoe, Clutch HIT-29001620800
...
4-33
Spring, Clutch HIT-3420630B200
...
4-34
Plate, Clutch A HIT-3480630A20
...
4-35
Bolt, Step HIT-3570075T200
...
4-36
Screw, 5X20/Ps HIT-99415050202
...
4-38
Washer, 8 HIT-99205080030
...
4-39
Screw, Tapping, 4.5X16 HIT-99072045164

Tanaka TBC-250SF

...
...
5-0
Starter Ass'Y HIT-7620304590
...
5-1
Body, Starter HIT-7720304580
...
5-2
Pulley, Starter HIT-7740304520
...
5-3
Spring, Recoil HIT-7790304520
...
5-4
Arm, Swing HIT-7770304520
...
5-5
Screw, Set HIT-8390304520
...
5-6
Stay, Pulley HIT-7710304520
...
5-7
Rope, Starter HIT-7830304520
...
5-8
Handle, Starter HIT-7850304520
...
5-9
Nut, Special 5Mm HIT-3153334020
...
5-22
Pulley, Starter HIT-7980304520
...
5-24
Bolt, Hex, 4X18Ws HIT-99464040185

Tanaka TBC-250SF

...
...
6-0
Carburetor Set Includes Gasket HIT-4550304590
...
6-2
Body, Pump HIT-5752515380
...
6-3
Pump, Priming HIT-4422515180
...
6-4
Cover, Diaphragm HIT-4762515120
...
6-5
Bulb, Priming HIT-44725108200
...
6-10
Jet, Main Long 38 HIT-5992001W38
...
6-11
O-Ring HIT-55025100200
...
6-12
Ring, Stop HIT-48925100200
...
6-13
Swivel HIT-53925120200
...
6-15
Screw, Throttle Set HIT-51425100200
...
6-16
Stay, Adjust, Cable HIT-54425164200
...
6-17
Nut, 6 HIT-99101060013
...
6-18
Adjuster, Cable HIT-61425137200
...
6-19
Gasket, Cleaner HIT-4310634C200
...
6-20
Screw, Set HIT-5482515120
...
6-21
Washer, Thrust HIT-5492516520
...
6-201
Screen, Inlet HIT-57825007200

Tanaka TBC-250SF

...
...
7-1
Shaft, Clutch HIT-2890707880
...
7-3
Ring, Stop, C-12 Ex HIT-99350012002
...
7-5
Cushion, Rubber HIT-5990098021
...
7-6
Bolt, Hex, 5X16 HIT-99051050163
...
7-8
Bolt, Hex Hole, 5X25S HIT-99461050254
...
7-11
Case, Fan Includes Bearing HIT-1120304580
...
7-15
Pipe Holder, Tpe HIT-3600099620
...
7-26
Washer, 5 HIT-99201050061
...
7-27
Washer, Gear Case HIT-3243735020
...
7-28
Fitting, Metal HIT-3610099020

Tanaka TBC-250SF

...
...
8-1
Shaft, Drive A HIT-353846680
...
8-2
Drive Shaft Pipe HIT-3413846680
...
8-3
Bushing HIT-3473836090
...
8-20
Case, Joint HIT-2803846690
...
8-21
Spacer HIT-3203331820
...
8-22
Spacer HIT-36033315200
...
8-23
Washer, Clutch HIT-35810112201
...
8-24
Ring, Stop, C-10 Ex HIT-99350010002
...
8-25
Washer, Special, A HIT-87032600200
...
8-26
Knob, Handle HIT-5123338P20
...
8-27
Bolt, 6X50 HIT-99021060504
...
8-28
Hex, Hole Bolt 6X35 HIT-99053060353
...
8-29
Washer, S, 6 HIT-99210060062
...
8-30
Washer, Black, 6 HIT-99200060061
...
8-31
Nut, Cap 6 HIT-99142060012
...
8-32
Bolt, Hex, 5X12 HIT-99051050123
...
8-33
Drive Shaft Pipe HIT-3413846680
...
8-34
Bushing HIT-3473836090
...
8-35
Shaft, Drive B HIT-363819020
...
8-36
Bushing HIT-3473846620
...
8-40
Washer, S, 5 HIT-99210050062

Tanaka TBC-250SF

...
...
9-4
Nut, 6 HIT-99101060041
...
9-5
Handle HIT-5003728620
...
9-6
Bracket, Handle, A HIT-50637300200
...
9-7
Grip, Handle HIT-5033738E20
...
9-8
Bolt, 6X43 HIT-99423060432
...
9-9
Wire, Throttle HIT-8853739480
...
9-10
Screw, Tapping 5X20 HIT-99311052012
...
9-11
Washer, Brake Shaft HIT-36832350200
...
9-16
Collar, Hanger HIT-3343836020
...
9-17
Hanger, 24Mm HIT-3353836090
...
9-18
Hanger Bracket HIT-3373836080
...
9-19
Screw, 5X25Ws HIT-99416050252
...
9-25
Lever, Throttle Ass'Y HIT-8703728690
...
9-26
Switch, Stop HIT-1623710120
...
9-27
Screw, Tapping, 3X8 HIT-99342030081
...
9-28
Base, Stop Switch HIT-25937101200
...
9-29
Spring, Stop Switch HIT-26237101200
...
9-30
Terminal, Earth B HIT-17737101200
...
9-31
Terminal, Earth A HIT-17637101200
...
9-32
Nut, Special HIT-3153334020
...
9-33
Ring, Stop, 6 HIT-99355060001
...
9-34
Spring, Return HIT-83237101200
...
9-35
Lever, Throttle HIT-88037101200
...
9-36
Screw, 5X20 HIT-99431050201
...
9-37
Shaft, Lock Button HIT-85337101200
...
9-38
Spring, Lock, Button HIT-95837101200
...
9-39
Button, Lock HIT-95637101200
...
9-40
Body, Stop Button, B HIT-2603331720
...
9-41
Cord, Stop 430Mm HIT-1783739480
...
9-48
Tube, Protection 7X190 HIT-1640701901
...
9-49
Grip, Shaft HIT-50437300200
...
9-50
Strap, Shoulder HIT-746191

Tanaka TBC-250SF

...
...
10-1
Gear Case Assy, 24 HIT-3003815991
...
10-2
Bolt, Hex Hole, 5X25S HIT-99461050254
...
10-4
Ring, Stop, C22, In HIT-99351022002
...
10-5
Ring, Stop, Outer 10 HIT-99357010002
...
10-6
Bearing, Ball, 6900Z HIT-99961690002
...
10-7
Bearing, Ball, 6900 HIT-99961690000
...
10-9
Case, Gear HIT-3003815021
...
10-11
Bolt, Hex, 5X12S HIT-99461050124
...
10-12
Bolt, Fitting, M8 HIT-3163815020
...
10-13
Bearing, Ball, 609 HIT-99961609000
...
10-15
Shaft, Gear HIT-3043815020
...
10-16
Bearing, Ball 6201D HIT-99961620103
...
10-17
Ring, Stop, C-32 In HIT-99351032002
...
10-18
Holder, Cutter HIT-3103815020
...
10-23
Washer, Gear Case HIT-3243815020
...
10-26
Screw, Hex Hole 6X25 HIT-99481060254
...
10-28
Bracket, Safety Guard HIT-4423741720
...
10-29
Guard Kit HIT-4413758700
...
10-30
Holder, Guard HIT-4453815020
...
10-32
Limiter, Line HIT-7973815020
...
10-34
Screw, Tapping, 5X20 HIT-99317052002
...
10-35
Set, Gear Pinion HIT-3013815000
...
10-37
Spacer, Bracket HIT-44437609900
...
10-38
Bolt, Hex, 5X12S HIT-99461050124
...
10-40
Nut, 6 HIT-99101060011
...
10-41
Washer, 6 HIT-99201060011

Tanaka TBC-250SF

...
...
11-0
Head, Semi-Auto, 5" HIT-746451
...
11-2
Adapter, 10X1.25 Lhf HIT-3563383B20
...
11-3
Body, Cutting HIT-7863383020
...
11-4
Nut, Special HIT-3153383020
...
11-5
Spring, Reel HIT-7933383020
...
11-6
Reel HIT-7873383020
...
11-7
Cap, Body HIT-7893383020
...
11-8
Eyelet HIT-7883383020
...
11-10
Washer, 12 HIT-99201120011
...
11-30
Wrench, Hex, 4 HIT-81320000200
...
11-31
Spanner, Combi, 17X19 HIT-8262000080

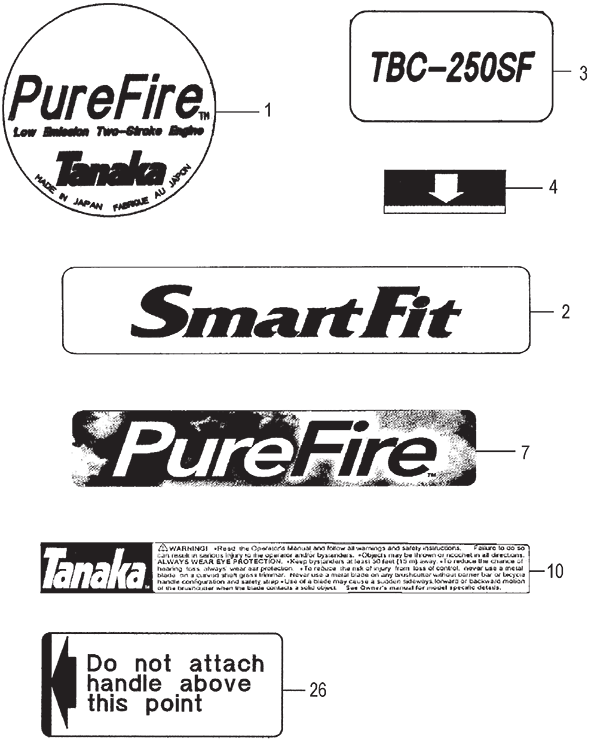

Tanaka TBC-250SF

...
...
12-1
Decal HIT-9060304520
...
12-2
Decal, Smart Fit HIT-9293846620
...
12-3
Decal, Tbc-250Sf HIT-9064822620
...
12-4
Decal, Level HIT-92337400200
...
12-7
Decal, Symbol, Pf HIT-9293810020
...
12-10
Decal, Caution A HIT-9193782020
...
12-26
Decal, Level HIT-9233738F20

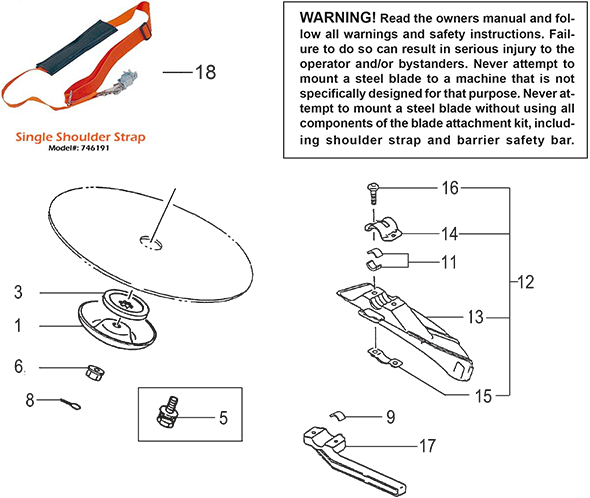

Tanaka TBC-250SF

...
...
1
Cover, Protection, B, 8Mm HIT-30833410200
...
1
Cover, Bolt Protector, 10Mm HIT-3083786120
...
3
Cap, Cutter Holder, 8Mm HIT-3113754720
...
3
Cap, Cutter Holder, 10Mm HIT-3113815020
...
5
Bolt, Flanged, 10X1.25, Lh HIT-3123338620
...
6
Nut, Fixing L.H. 8X1.25 HIT-3133754720
...
6
Nut, Fixing L.H.,10X1.25 HIT-3133833220
...
8
Pin, Cotter 2X20 (10 Pack) HIT-3273718090
...
9
Spacer, Bracket For Use With Barrier Bar, 24Mm Shafts HIT-44437609200
...
11
Spacer, Bracket HIT-44437609200
...
12
Kit, Blade Guard HIT-30060
...
13
Guard, Safety HIT-4413738020
...
14
Bracket, Safety Guard HIT-4423369921
...
15
Holder, Guide HIT-4453738020
...
16
Screw, Hex Hole 6X25 HIT-99481060254
...
17
Bar, Barrier 26Mm HIT-5203339820
...
18
Strap, Shoulder, Pss-175 Includes Mounting Bracket/Hardware HIT-746191
