Tanaka QEG-300 Generator

Model: QEG-300

Save Part Not Listed?
product name

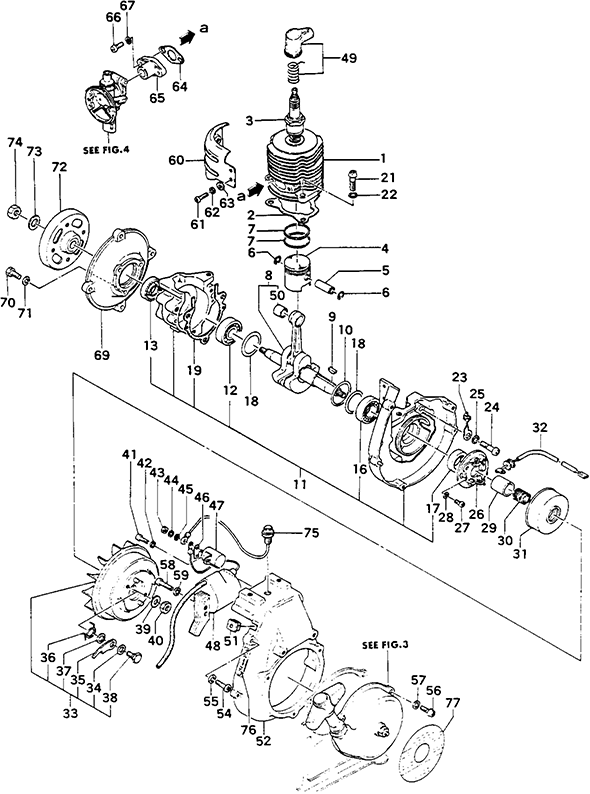

Tanaka QEG-300

...
...
1-001
Cylinder Comp. HIT-002-00500-804
...
1-002
Cylinder Gasket HIT-017-00501-202
...
1-003
Spark Plug Bm6A HIT-018-00502-200
...
1-004
Piston HIT-031-00500-200
...
1-005
Piston Pin 9X24 HIT-037-00000-200
...
1-006
Piston Pin Circlip HIT-039-00000-201
...
1-007
Piston Ring HIT-041-00000-200
...
1-008
Crank Shaft Comp. HIT-046-00501-803
...
1-009
Wood-Ruff Key 3X13X5 HIT-068-02000-200
...
1-010
Crank Shaft Washer 15X22 HIT-070-02401-201
...
1-011
Crank Case Ass'Y HIT-072-00501-900
...
1-012
Ball Bearing 6201 HIT-999-61620-100
...
1-013
Oil Seal 12287 HIT-999-66122-821
...
1-016
Ball Bearing 6002 HIT-999-61600-200
...
1-017
Oil Seal 15257 HIT-999-66152-500
...
1-018
Crank Shaft Washer 12X18 HIT-070-00601-201
...
1-019
Crank Case Gasket HIT-090-00501-202
...
1-021
Screw 6X20 HIT-990-11060-201
...
1-022
S.Washer 6 HIT-992-10060-012
...
1-023
Cord Clamp HIT-198-00501-200
...
1-024
Screw 6X22 HIT-990-11060-221
...
1-025
S.Washer 6 HIT-992-10060-012
...
1-026
Contact Breaker Ass'Y HIT-159-20702-900
...
1-027
Screw 4X10 HIT-990-11040-101
...
1-028
Washer 4 HIT-992-01040-011
...
1-029
Magneto Cam HIT-246-20701-201
...
1-030
Cam Support Spring HIT-247-01000-201
...
1-031
Contact Point Cover HIT-191-00501-201
...
1-032
Primary Cord Comp. HIT-173-20702-804
...
1-033
Magneto Rotor Ass'Y HIT-155-21708-900
...
1-034
Washer S HIT-992-01050-011
...
1-035
Starter Pawl HIT-788-00601-203
...
1-036
Starter Pawl Spring HIT-790-00601-203
...
1-037
Starter Pawl Shim 0.6T HIT-822-00601-200
...
1-038
Step Bolt HIT-793-10200-201
...
1-039
Flywheel Washer HIT-065-00000-200
...
1-040
Flywheel Nut 12 HIT-066-00000-200
...
1-041
Screw 4X8 HIT-990-11040-081
...
1-042
S.Washer 4 HIT-992-10040-012
...
1-043
Hex. Nut 3 HIT-991-01030-011
...
1-044
S.Washer 3 HIT-992-10030-012
...
1-045
Washer 3 HIT-992-01030-011
...
1-046
Terminal Tab HIT-205-00501-200
...
1-047
Condenser Comp. HIT-177-20701-801
...
1-048
Ignition Coil Comp. HIT-167-20710-801
...
1-049
Spark Plug Cap Ass'Y HIT-157-04000-900
...
1-050
Piston Pin Bushing HIT-038-00000-200
...
1-051
Secondary Cord Grommet HIT-202-10200-201
...
1-052
Fan Case Comp. HIT-112-00535-801
...
1-054
Screw 5X20 HIT-990-11050-201
...
1-055
S.Washer 5 HIT-992-10050-012
...
1-056
Screw 4X12 HIT-990-11040-121
...
1-057
S.Washer 4 HIT-992-10040-012
...
1-058
Screw 5X20 HIT-990-11050-201
...
1-059
S. Washer 5 HIT-992-10050-012
...
1-060
Flash Pan HIT-132-00502-201
...
1-061
Screw 4X8 HIT-990-11040-081
...
1-062
S. Washer 4 HIT-992-10040-012
...
1-063
Washer 4 HIT-992-01040-011
...
1-064
Inlet Manifold Gasket HIT-403-00001-200
...
1-065
Inlet Manifold HIT-393-00005-203
...
1-066
Screw 5X16 HIT-990-11050-161
...
1-067
S. Washer 5 HIT-992-10050-012
...
1-069
Housing HIT-113-30200-200
...
1-070
Bolt 6X18 HIT-990-21060-181
...
1-071
S.Washer 6 HIT-992-10060-012
...
1-072
Coupling HIT-028-30800-200
...
1-073
Washer 7 HIT-992-01070-011
...
1-074
Nut 7 HIT-991-01070-011
...
1-075
Stop Button Comp. HIT-170-00503-800
...
1-076
Choke Mark HIT-908-02005-200
...
1-077
Starter Mark Qeg HIT-913-00501-200
...
1-077
Starter Mark Aquabug HIT-913-30907-201

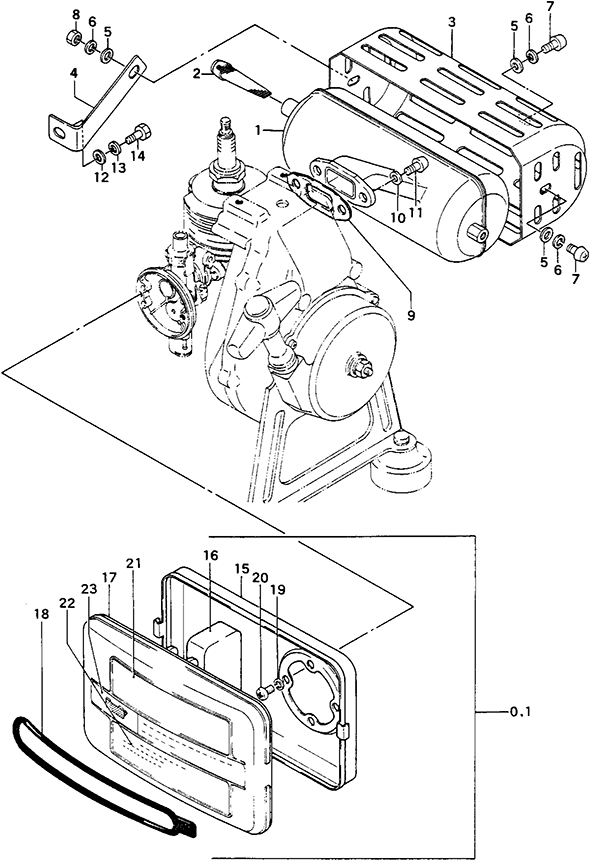

Tanaka QEG-300

...
...
2-001
Muffler Comp. HIT-706-30807-810
...
2-002
Spark Arrester Comp. HIT-732-00555-800
...
2-003
Heat Shield HIT-738-30807-210
...
2-004
Muffler Stay HIT-760-30807-210
...
2-005
Washer 6 HIT-992-01060-011
...
2-006
S.Washer 6 HIT-992-10060-012
...
2-007
Screw 6X6 HIT-990-11060-061
...
2-008
Hex Nut 6 HIT-991-01060-011
...
2-009
Muffler Gasket HIT-737-00531-201
...
2-010
S.Washer 5 HIT-992-10050-012
...
2-011
Screw 5X12 HIT-990-11050-121
...
2-012
Washer 6 HIT-992-01060-011
...
2-013
S.Washer 6 HIT-992-10060-012
...
2-014
Bolt 6X15 W/Plus HIT-990-23060-151
...
2-000.1
Air Cleaner Ass'Y HIT-424-30800-900
...
2-015
Air Cleaner Body Comp HIT-423-00535-802
...
2-016
Air Cleaner Element A HIT-444-00535-200
...
2-017
Air Cleaner Cover HIT-424-00535-201
...
2-018
Cleaner Band HIT-438-30800-200
...
2-019
S.Washer 4 HIT-992-10040-012
...
2-020
Screw 4X8 HIT-990-11040-081
...
2-021
Name Plate Qeg-250 HIT-904-30809-200
...
2-021
Name Plate Qeg-300 HIT-904-30800-230
...
2-021
Name Plate Aqb-250 HIT-904-30810-200
...
2-021
Name Plate Aqb-300 HIT-904-30907-200
...
2-022
Caution Mark Qeg HIT-894-30803-200
...
2-022
Caution Mark Aquabug HIT-874-30907-200
...
2-023
Fuel Caution Mark Qeg HIT-900-30804-200
...
2-023
Fuel Caution Mark Aquabug HIT-900-30907-200

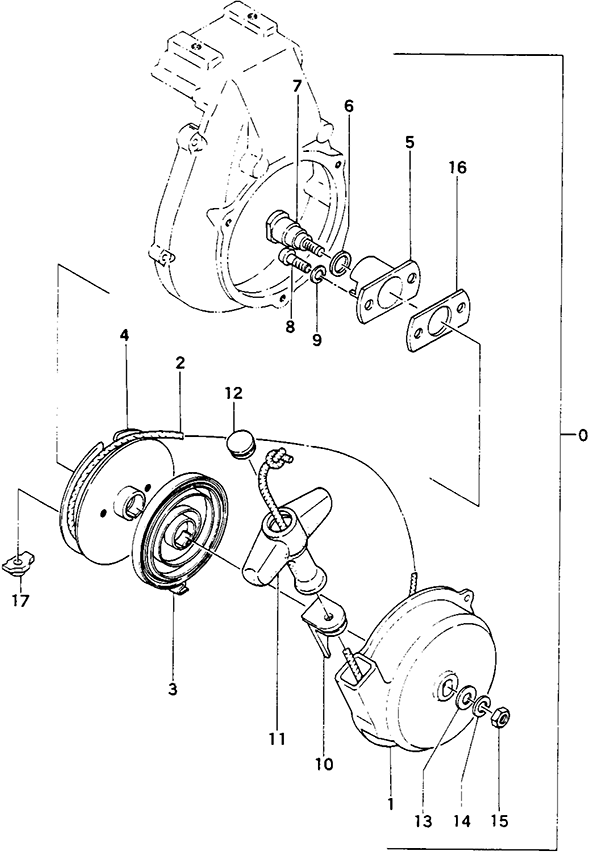

Tanaka QEG-300

...
...
3-000
Recoil Starter Ass'Y HIT-756-00535-902
...
3-001
Recoil Starter Body HIT-772-01014-200
...
3-002
Starter Rope HIT-783-01006-201
...
3-003
Recoil Spring HIT-779-01006-201
...
3-004
Starter Rope Reel HIT-774-01006-204
...
3-005
Pulley Shaft/Outer HIT-773-01006-206
...
3-006
Starter Pulley Shim HIT-814-00500-200
...
3-007
Pulley Shaft HIT-776-01006-207
...
3-008
Screw 5X12 HIT-990-11050-121
...
3-009
S. Washer 5 HIT-992-10050-012
...
3-010
Rope Guide HIT-780-01006-201
...
3-011
Starter Handle HIT-785-10207-201
...
3-012
Starter Handle Cap HIT-833-10207-200
...
3-013
Washer 6 HIT-992-01060-011
...
3-014
S. Washer 6 HIT-992-10060-012
...
3-015
Hex. Nut 6 HIT-991-01060-011
...
3-016
Pulley Shaft/Outer Collar HIT-823-00535-202
...
3-017
Rope Receive HIT-782-00546-200

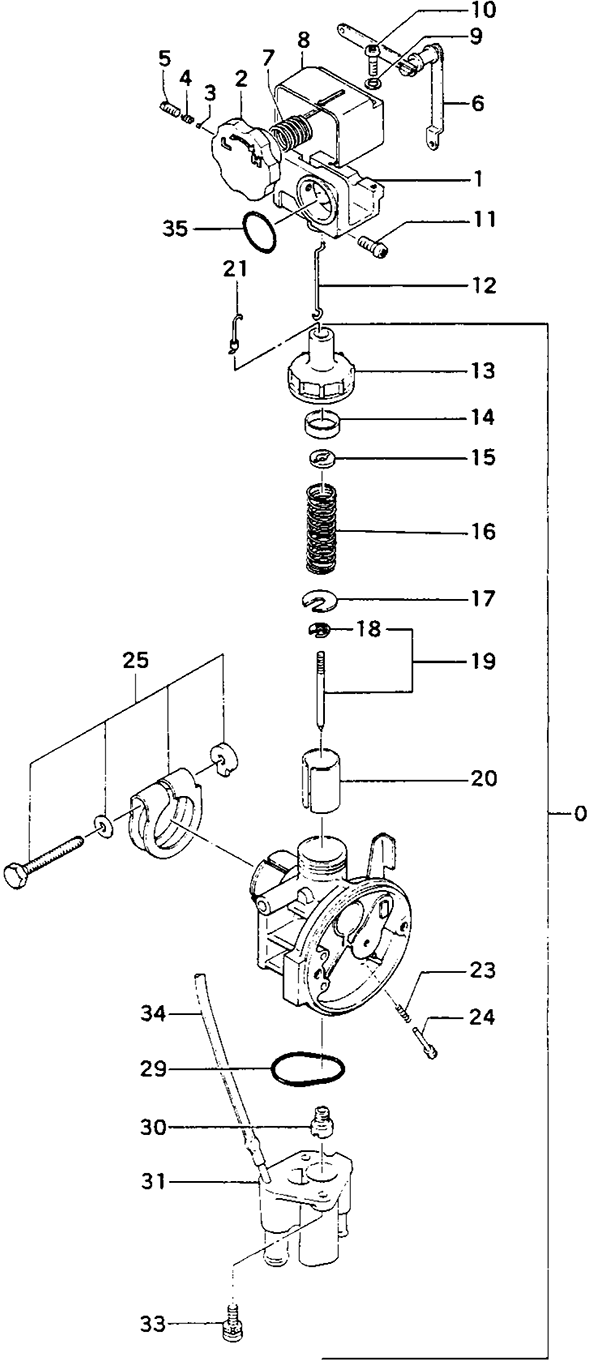

Tanaka QEG-300

...
...
4-000
Carburetor Ass'Y Qeg/Aqb-250 HIT-455-22014-900
...
4-000
Carburetor Ass'Y Qeg/Aqb-300 HIT-455-22007-905
...
4-001
Governor Control Knob Base HIT-340-30800-201
...
4-002
Governor Control Knob HIT-341-30800-201
...
4-003
Steel Ball 1/8 HIT-673-01100-200
...
4-004
Choke Spring HIT-496-26000-200
...
4-005
Set Screw HIT-990-80040-100
...
4-006
Link Shaft Comp. HIT-348-30800-800
...
4-007
Governor Spring A HIT-397-30800-201
...
4-008
Control Knob Base Cover HIT-343-30800-200
...
4-009
Small Washer 3 HIT-992-00030-011
...
4-010
Screw 3X12 HIT-990-11030-121
...
4-011
Screw 4X8 HIT-990-11040-081
...
4-012
Throttle Rod B HIT-516-22007-200
...
4-013
Link Motion Cap HIT-498-30800-200
...
4-014
Collar HIT-526-22007-200
...
4-015
Throttle Spring Clamp HIT-535-22007-200
...
4-016
Throttle Spring HIT-486-22007-200
...
4-017
Throttle Spring Receiver 250 HIT-619-22912-200
...
4-017
Throttle Spring Receiver 300 HIT-619-22602-200
...
4-018
Jet Needle Clip Qeg/Aqb-250 HIT-593-22909-200
...
4-018
Jet Needle Clip Qeg/Aqb-300 HIT-593-22904-200
...
4-019
Jet Needle Ass'Y Qeg/Aqb-250 HIT-592-22000-900
...
4-019
Jet Needle Ass'Y Qeg/Aqb-300 HIT-592-22303-900
...
4-020
Throttle Valve HIT-591-22005-200
...
4-021
Throttle Rod A Comp. HIT-515-22007-800
...
4-023
Adjust Spring HIT-623-22000-200
...
4-024
Adjust Screw HIT-622-22000-200
...
4-025
Body Band Ass'Y HIT-561-22602-900
...
4-029
Chamber Gasket HIT-607-22000-200
...
4-030
Main Jet HIT-599-22000-260
...
4-031
Float Chamber Comp. HIT-580-22007-800
...
4-033
Screw 4X10/S HIT-994-34040-100
...
4-034
Air Vent Pipe HIT-565-00535-200
...
4-035
O-Ring P15 HIT-999-67015-000

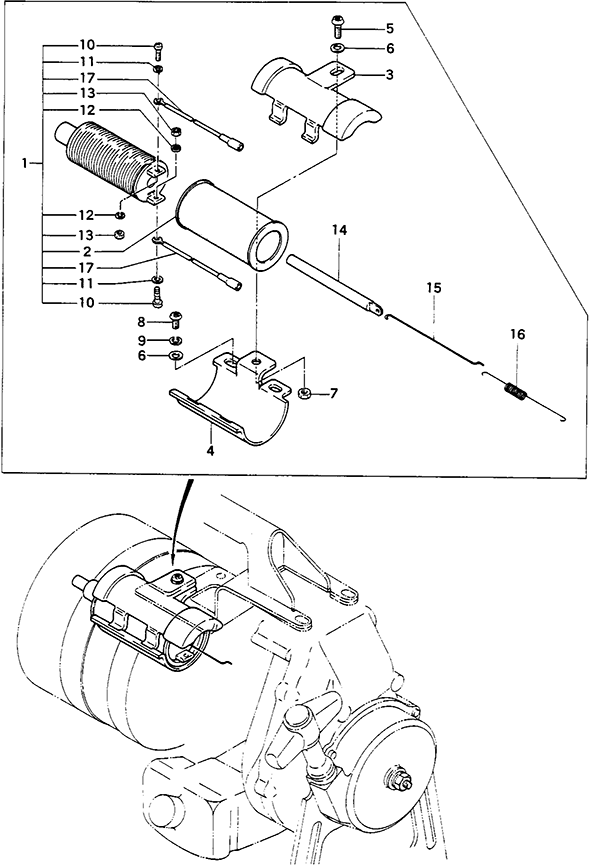

Tanaka QEG-300

...
...
5-001
Governor Ass'Y HIT-405-30800-900
...
5-002
Governor Cover Rubber HIT-368-30600-202
...
5-003
Governor Cover HIT-368-30800-200
...
5-004
Governor Base A HIT-366-30800-200
...
5-005
Screw 5X12 HIT-990-11050-121
...
5-006
Washer 5 HIT-992-01050-011
...
5-007
Hex. Nut 5 HIT-991-01050-011
...
5-008
Screw 5X10 HIT-990-11050-101
...
5-009
S.Washer 5 HIT-992-10050-012
...
5-010
Screw 3X8 HIT-990-11030-081
...
5-011
Small Washer 3 HIT-992-00030-011
...
5-012
S.Washer 3 HIT-992-10030-012
...
5-013
Hex. Nut 3 HIT-991-01030-011
...
5-014
Governor Plunger HIT-266-30700-201
...
5-015
Governor Rod HIT-395-30800-200
...
5-016
Governor Rod Spring HIT-376-30800-200
...
5-017
Terminal Lead 4 Comp HIT-813-30800-801

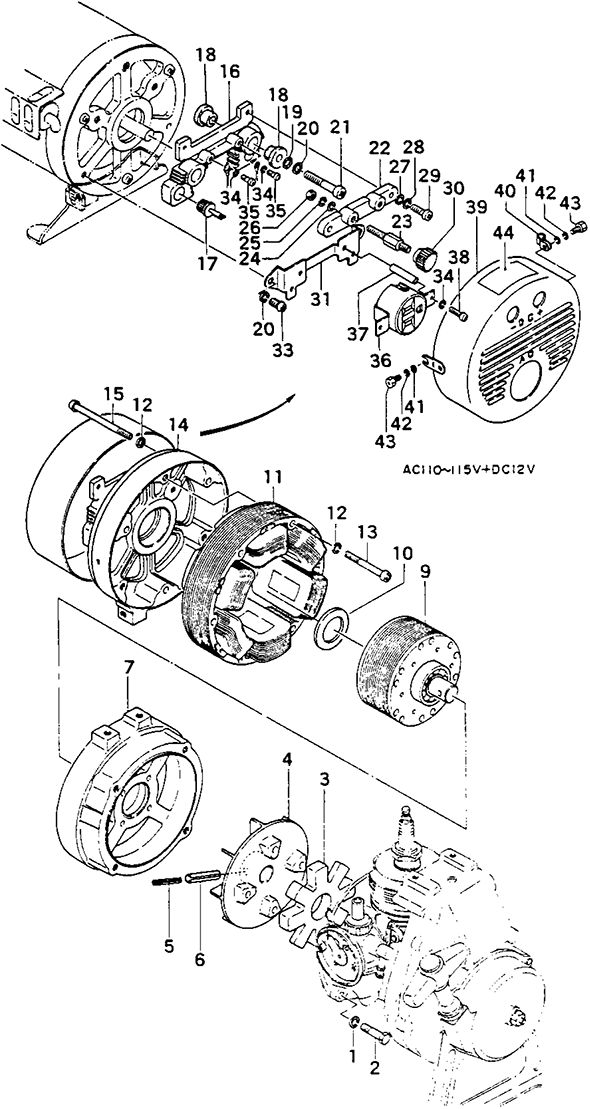

Tanaka QEG-300

...
...
6-001
S.Washer 6 HIT-992-10060-012
...
6-002
Bolt 6X18 HIT-990-21060-181
...
6-003
Coupling Rubber HIT-030-30200-200
...
6-004
Coupling Fan HIT-027-30200-200
...
6-005
Spring Pin 3.5X28 HIT-993-24035-280
...
6-006
Spring Pin 6X28 HIT-993-24060-280
...
6-007
Rear Case Comp. HIT-105-30200-201
...
6-009
Rotor Ass'Y HIT-006-30800-900
...
6-010
Shim 0.1 HIT-108-30200-200
...
6-011
Stator Core Ass'Y Qeg/Aqb-250 HIT-067-30809-900
...
6-011
Stator Core Ass'Y Qeg/Aqb-300 HIT-067-30803-900
...
6-012
S.Washer 6 HIT-992-10060-012
...
6-013
Screw 6X45 HIT-990-11060-451
...
6-014
Front Case Comp. HIT-110-30800-800
...
6-015
Screw 6X65 HIT-990-11060-651
...
6-016
Diode Base HIT-231-30805-200
...
6-017
12 Diode HIT-174-30800-200
...
6-018
Diode Base Bushing A HIT-232-30803-200
...
6-019
Washer 6 HIT-992-01060-011
...
6-020
S.Washer 6 HIT-992-10060-012
...
6-021
Screw 6X35 HIT-990-11060-351
...
6-022
Dc Terminal Base HIT-295-30805-200
...
6-023
Dc Terminal HIT-160-30805-200
...
6-024
Washer 5 HIT-992-01050-011
...
6-025
S.Washer 5 HIT-992-10050-012
...
6-026
Hex. Nut 5 HIT-991-01050-011
...
6-027
Washer 5 HIT-992-01050-011
...
6-028
S.Washer 5 HIT-992-10050-012
...
6-029
Screw 5X14 HIT-990-11050-141
...
6-030
Dc Terminal Cap Comp. HIT-161-30805-801
...
6-031
Ac Receptacle Base Comp. HIT-235-30805-800
...
6-033
Screw 6X8 HIT-990-11060-081
...
6-034
S.Washer 4 HIT-992-10040-012
...
6-035
Screw 4X8 HIT-990-11040-081
...
6-036
Socket Ass'Y HIT-409-30803-900
...
6-037
Socket Collar HIT-410-30407-200
...
6-038
Screw 4X30 HIT-990-11040-301
...
6-039
Case Cover Comp. Qeg/Aqb-250 HIT-184-30809-800
...
6-039
Case Cover Comp. Qeg/Aqb-300 HIT-184-30805-800
...
6-040
Cord Clamp HIT-198-00701-201
...
6-041
Washer 4 HIT-992-01040-011
...
6-042
S.Washer 4 HIT-992-10040-012
...
6-043
Bolt 4X10 HIT-990-23040-101
...
6-044
Battery Caution Mark HIT-888-30809-200

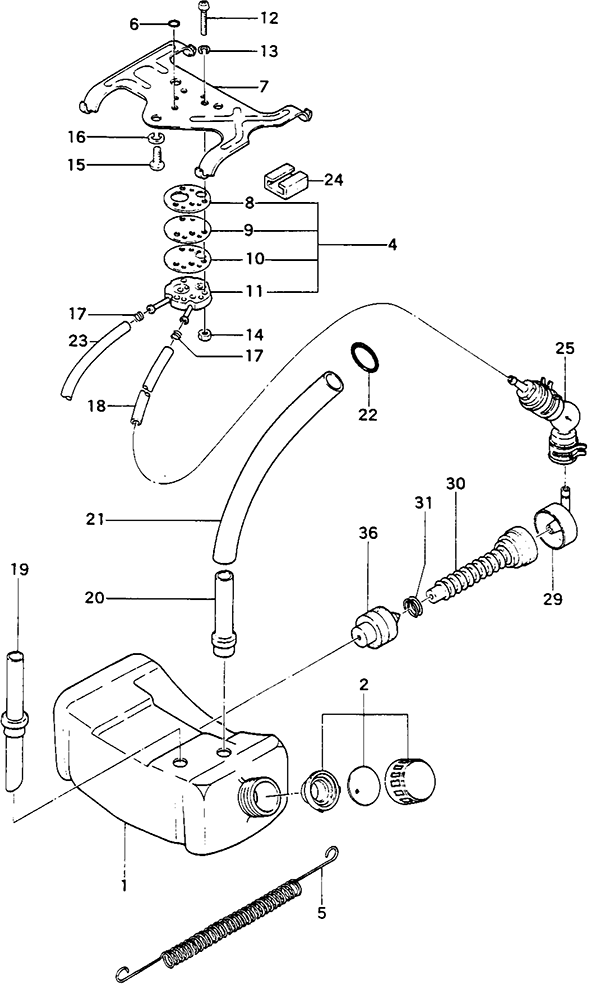

Tanaka QEG-300

...
...
7-001
Tank Comp. HIT-591-00535-210
...
7-002
Tank Cap Ass'Y HIT-595-00539-900
...
7-004
Pump Ass'Y HIT-593-00535-900
...
7-005
Fuel Tank Band HIT-648-00502-200
...
7-006
O-Ring P4 HIT-999-67004-000
...
7-007
Fuel Tank Bracket HIT-653-00502-200
...
7-008
Pump Gasket HIT-671-04001-213
...
7-009
Pump Diaphragm HIT-670-04003-200
...
7-010
Free Valve HIT-674-04001-211
...
7-011
Pump Suction Side Comp. HIT-667-00601-810
...
7-012
Screw 4X12 HIT-990-11040-121
...
7-013
S.Washer 4 HIT-992-10040-011
...
7-014
Nut 4 HIT-991-01040-013
...
7-015
Screw 6X10 HIT-990-11060-101
...
7-016
S.Washer 6 HIT-992-10060-012
...
7-017
Fuel Pipe Stoper HIT-701-00702-200
...
7-018
Fuel Pipe 3X5X120 HIT-700-03005-120
...
7-019
Return Pipe A HIT-532-00535-202
...
7-020
Return Pipe HIT-530-00502-202
...
7-021
Fuel Pipe HIT-700-14508-255
...
7-022
O-Ring P15 HIT-999-67015-000
...
7-023
Fuel Pipe 3X5X120 HIT-700-03005-120
...
7-024
Fuel Tank Cushion Rubber A HIT-655-04001-200
...
7-025
Primer Pump Ass'Y HIT-593-00638-900
...
7-029
Rubber Pipe Cap HIT-500-33202-205
...
7-030
Rubber Pipe HIT-678-00206-203
...
7-031
Clip 7 HIT-680-04019-210
...
7-036
Pump Filter Body Ass'Y HIT-675-00206-900

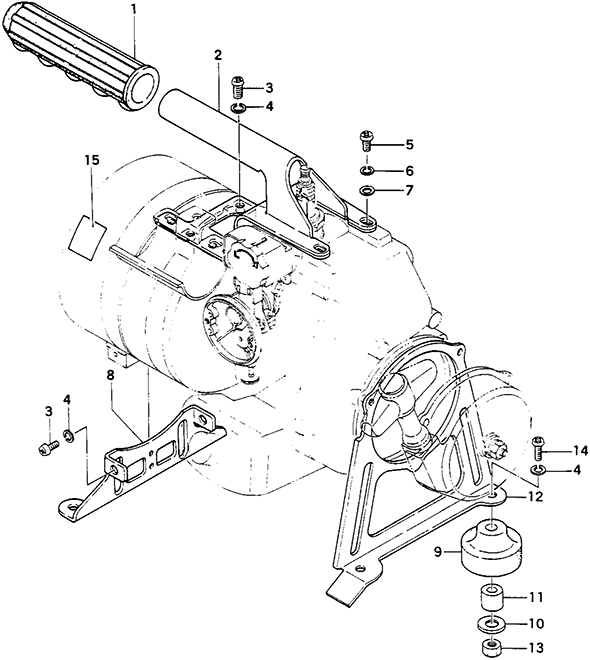

Tanaka QEG-300

...
...
8-001
Handle Grip HIT-266-30600-201
...
8-002
Handle Ass'Y HIT-259-30800-900
...
8-003
Screw 6X12 HIT-990-11060-121
...
8-004
S.Washer 6 HIT-992-10060-012
...
8-005
Screw 5X14 HIT-990-11050-141
...
8-006
S.Washer 5 HIT-992-10050-012
...
8-007
Washer 5 HIT-992-01050-011
...
8-008
Frame B HIT-249-30800-200
...
8-009
Rubber Base HIT-312-30200-200
...
8-010
Clutch Washer B HIT-359-02103-200
...
8-011
Collar HIT-321-30410-200
...
8-012
Frame A HIT-248-30800-200
...
8-013
Hex. Nut 6 HIT-991-01060-011
...
8-014
Screw 6X25 HIT-990-11060-251
...
8-015
Model Mark Qeg/Aqb-250 HIT-912-30809-200
...
8-015
Model Mark Qeg/Aqb-300 HIT-912-30803-210

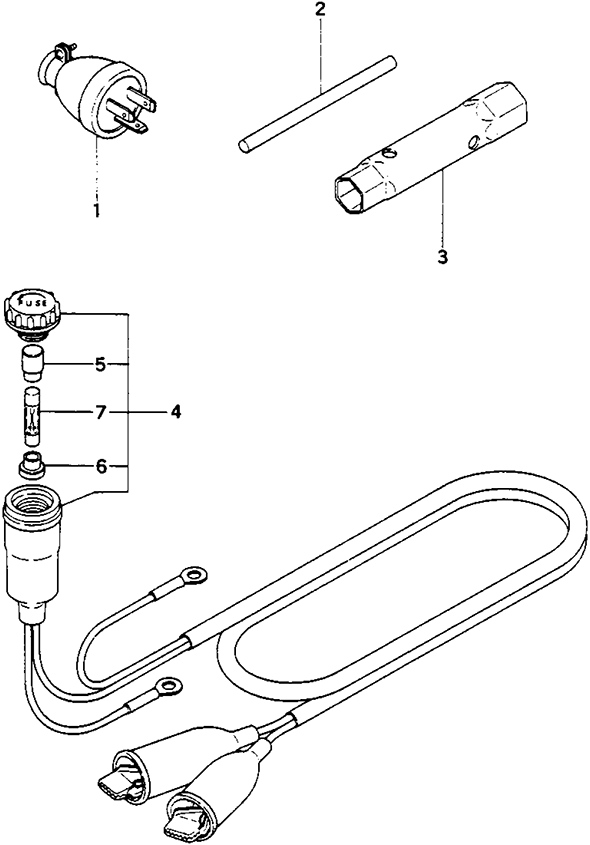

Tanaka QEG-300

...
...
9-001
Plug Comp. HIT-925-30204-800
...
9-002
Handle 8X120 HIT-951-20000-200
...
9-003
Box Spanner 17X19 HIT-826-20000-200
...
9-004
Battery Lead Ass'Y 10A HIT-787-30803-900
...
9-004
Battery Lead Ass'Y 20A HIT-787-30809-900
...
9-005
Fuse Holder A HIT-297-30809-200
...
9-006
Fuse Holder B HIT-298-30809-200
...
9-007
Fuse/10A HIT-190-30401-201
...
9-007
Fuse/20A HIT-190-30809-210
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
