Tanaka PB-SM805S-GP Power Board

Model: PB-SM805S

Save Part Not Listed?
product name

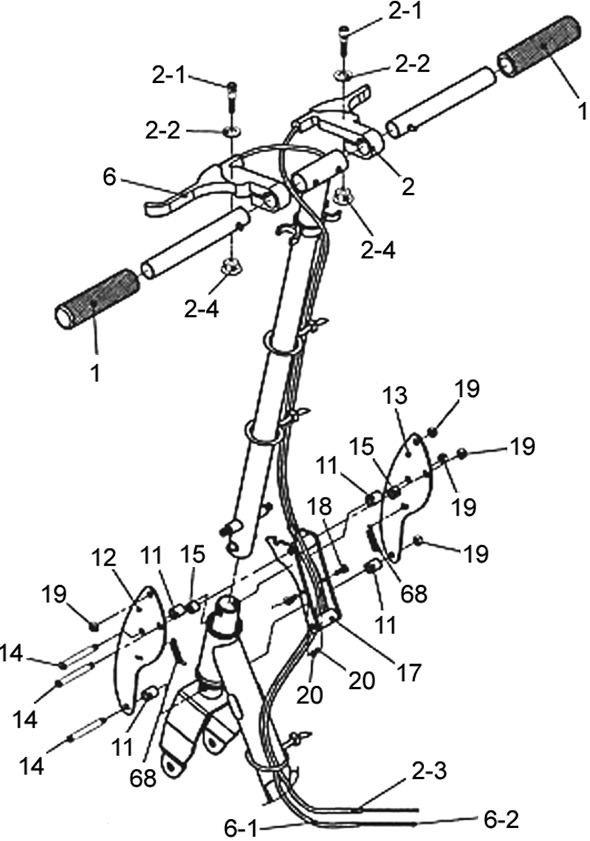

Tanaka PB-SM805S

...
...
1-1
Grip, Handle HIT-30798
...
1-2
Lever, Throttle HIT-31348
...
1-2-1
Bolt, M6Xp1.0X31 HIT-31302
...
1-2-2
Washer HIT-31303
...
1-2-3
Cable, Throttle HIT-31304
...
1-2-4
Nut, M6 HIT-31305
...
1-6
Lever, Brake HIT-31207
...
1-6-1
Spacer, Brake Cable HIT-31306
...
1-6-2
Cable, Brake, Lite HIT-31349
...
1-11
Spacer, T-848 HIT-31208
...
1-12
Brace, Handle Bar, (L) HIT-31377
...
1-13
Brace, Handle Bar HIT-31378
...
1-14
Stud, K-264 HIT-31211
...
1-15
Spacer, T-849 HIT-31212
...
1-17
Handle, Folding HIT-31307
...
1-18
Bolt, M5Xp0.8X15 HIT-30810
...
1-19
Nut, M8Xp1.25 HIT-30821
...
1-20
Nut, M5Xp0.8 HIT-30809
...
1-68
Spring, S-064 HIT-31213

Tanaka PB-SM805S

...
...

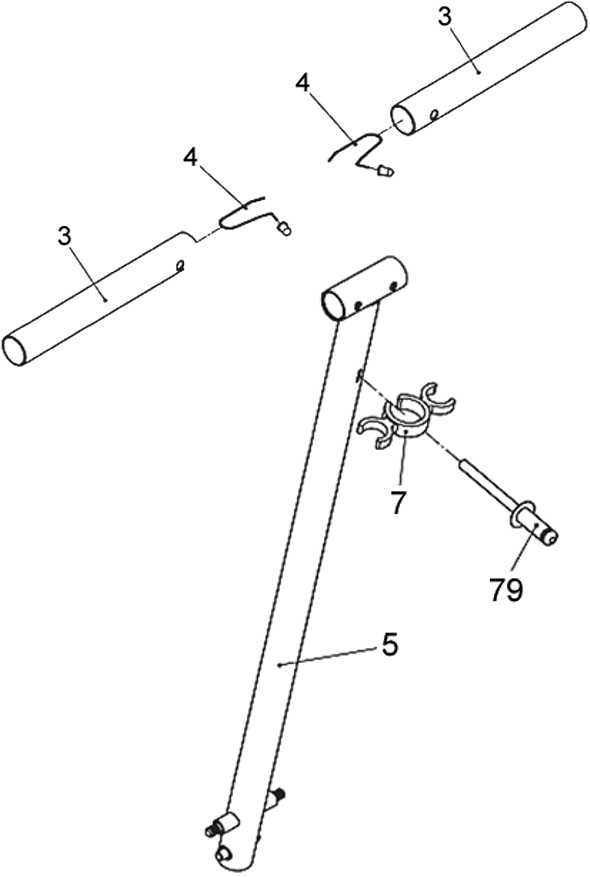

2-3
Stem, Handle Bar HIT-31164
...
2-4
Pin, Handle HIT-31165
...
2-5
Handle, Stem HIT-31160
...
2-7
Handle Holder HIT-31161
...
2-79
Rivet HIT-31163

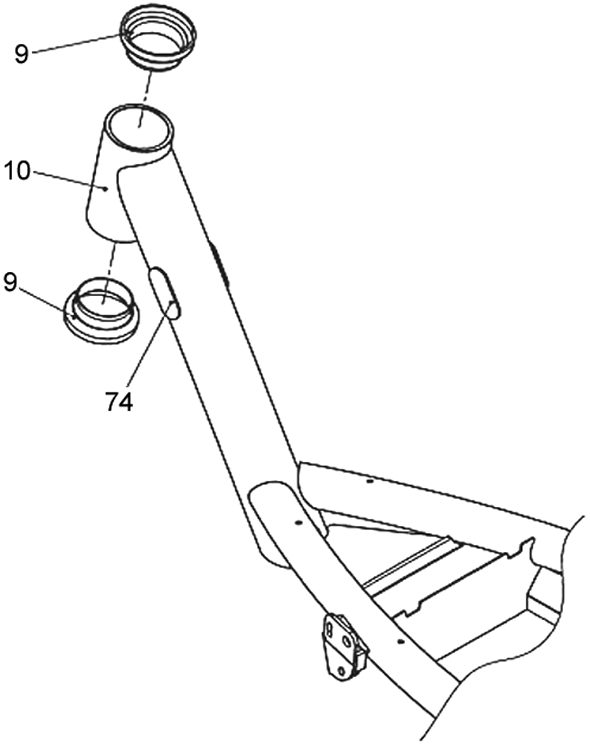

Tanaka PB-SM805S

...
...
3-9
Spacer, Front Handle HIT-31166
...
3-10
Frame, Xtr Lite HIT-31167
...
3-74
Pad, Rubber HIT-31168

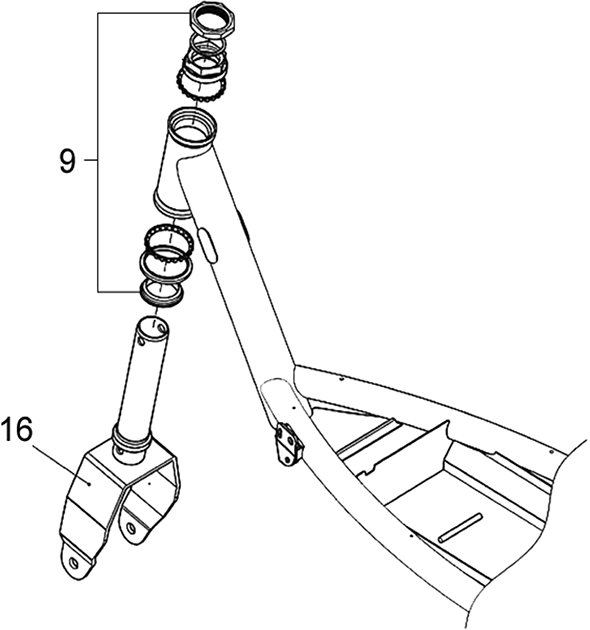

Tanaka PB-SM805S

...
...
4-1
Head Kit HIT-31204
...
4-16
Stem, Handle Bar HIT-31379

Tanaka PB-SM805S

...
...

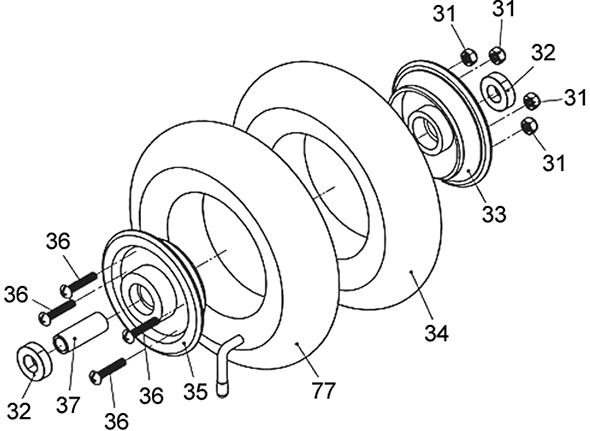

5-31
Nut, M6Xp1.0 HIT-30936
...
5-32
Bearing, 6000-2Rs HIT-30834
...
5-33
Hub, Front, (R), Lite HIT-31187
...
5-34
Tire, Xtr-Lite HIT-31170
...
5-35
Hub, Front, (L), Lite HIT-31188
...
5-36
Bolt, M6Xp1.0X29 HIT-31189
...
5-37
Spacer, Front Wheel, T-844 HIT-31190
...
5-77
Tube, Tire HIT-31183

Tanaka PB-SM805S

...
...

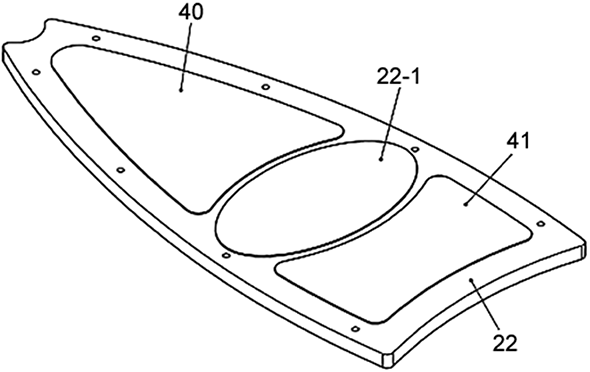

6-22
Deck, Xtr Lite HIT-31157
...
6-22-1
Decal, Xtr-Lite HIT-31308
...
6-40
Tape, Deck, Lite, Front HIT-31158
...
6-41
Tape, Deck, Lite, Back HIT-31159

Tanaka PB-SM805S

...
...

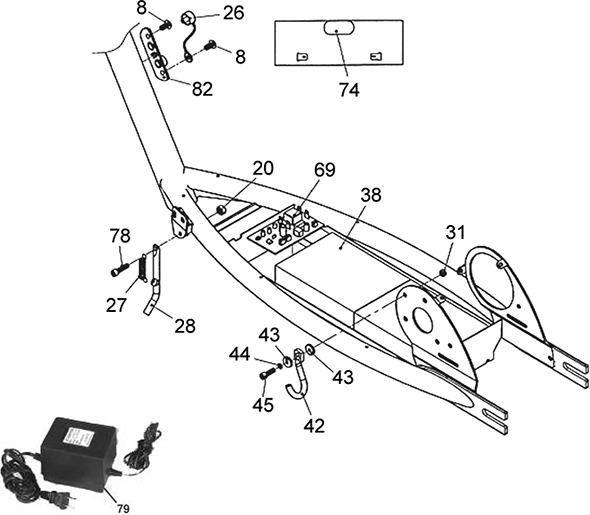

7-8
Bolt, M6Xp1.0X10 HIT-31097
...
7-20
Nut, M5Xp0.8 HIT-30809
...
7-26
Cover, Charger HIT-31191
...
7-27
Spring, Kick Stand HIT-31192
...
7-28
Kick Stand HIT-31193
...
7-31
Nut, M6Xp1.0 HIT-30936
...
7-38
Battery Set, Lite HIT-31195
...
7-42
Hook, T-862-A HIT-31196
...
7-43
Washer HIT-31197
...
7-44
Washer, Spring M6 HIT-30830
...
7-45
Bolt, M6Xp1.0X20 HIT-31198
...
7-69
Controller, 805-S HIT-31350
...
7-74
Plate, Round HIT-31376
...
7-78
Bolt, M5Xp0.8X20 HIT-31309
...
7-79
Battery Charger HIT-31237
...
7-82
Charging Base HIT-31310

Tanaka PB-SM805S

...
...

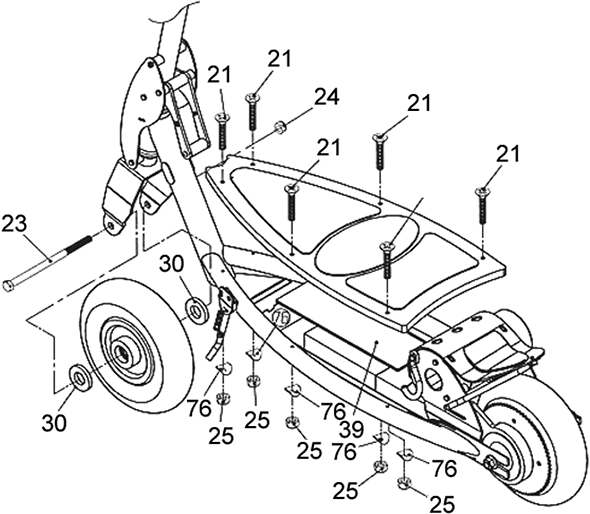

8-21
Bolt, M4Xp0.7X45 HIT-31220
...
8-23
Bolt, M10X1.5X90 HIT-31221
...
8-24
Nut, M10Xp1.5 HIT-30880
...
8-25
Nut, M4Xp0.7 HIT-31222
...
8-30
Washer HIT-31223
...
8-39
Insulator, Battery, Lite HIT-31224
...
8-76
Washer HIT-31225

Tanaka PB-SM805S

...
...

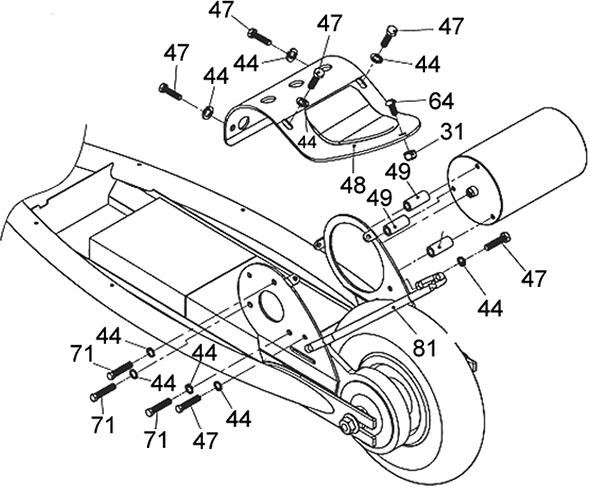

9-31
Nut, M6Xp1.0 HIT-30936
...
9-44
Washer, Spring M6 HIT-30830
...
9-47
Bolt, Hex HIT-31381
...
9-48
Fender HIT-31311
...
9-49
Spacer, T-952 HIT-31217
...
9-64
Bolt, M6Xp1.0X13 HIT-31132
...
9-71
Bolt, M6Xp1.0X50 HIT-31218
...
9-81
Brace, Fender HIT-31219

Tanaka PB-SM805S

...
...

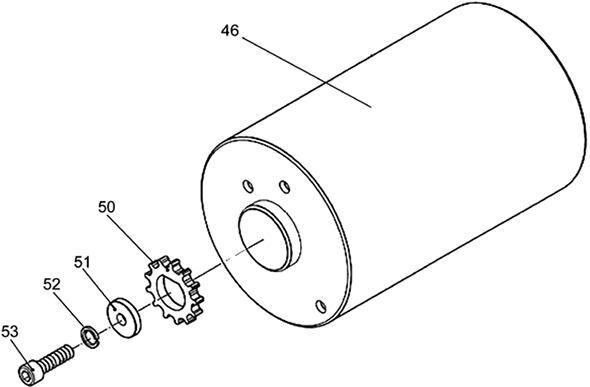

10-46
Motor, 250W HIT-31312
...
10-50
Gear, Small, 805S HIT-31368
...
10-51
Spacer, T-842 HIT-31186
...
10-52
Washer, Spring, M5 HIT-31121
...
10-53
Bolt, M5Xp0.8X15 HIT-30810

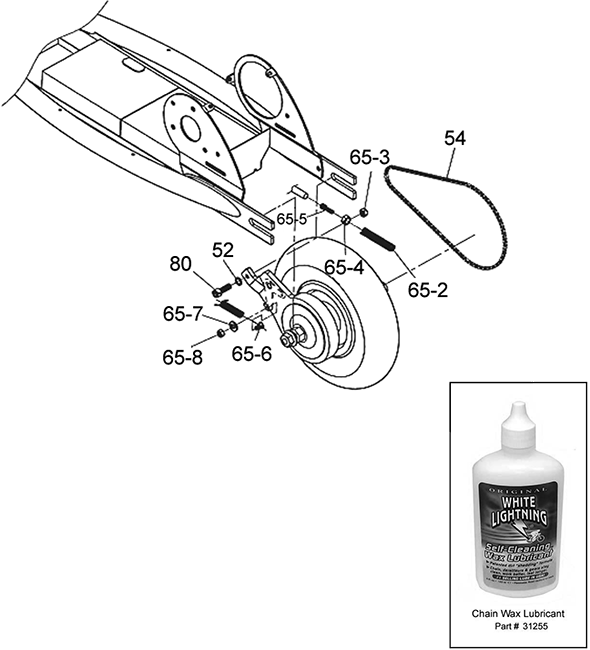

Tanaka PB-SM805S

...
...
11-52
Washer, Spring,M5 HIT-31121
...
11-54
Chain, Xtr Lite HIT-31214
...
11-65-2
Spring HIT-31313
...
11-65-3
Nut HIT-31314
...
11-65-4
Nut, Adjust HIT-31315
...
11-65-5
Screw, Adjust HIT-31321
...
11-65-6
Screw HIT-31322
...
11-65-7
Washer HIT-31323
...
11-65-8
Nut HIT-31324
...
11-80
Bolt, M5Xp0.8X16 HIT-31215

Tanaka PB-SM805S

...
...

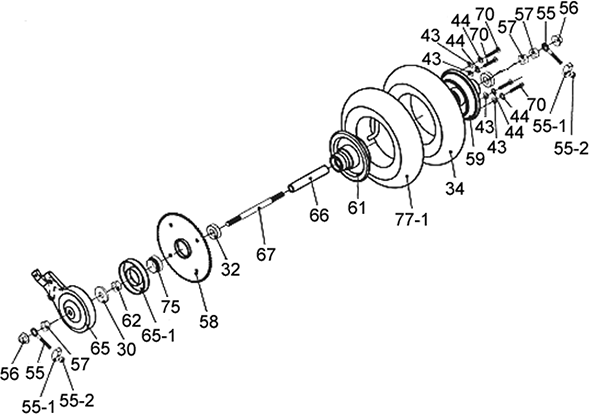

2-65-1
Brake Drum HIT-31374
...
12-30
Washer HIT-31169
...
12-32
Bearing, 6000-2Rs HIT-30834
...
12-34
Tire, Xtr-Lite HIT-31170
...
12-43
Washer HIT-31171
...
12-44
Washer, Spring M6 HIT-30830
...
12-55
Screw, M6Xp1.0X40 HIT-31096
...
12-55-1
Adjuster HIT-31325
...
12-55-2
Nut, M6Xp1.0 HIT-30814
...
12-56
Bolt HIT-31172
...
12-57
Bolt HIT-31173
...
12-58
Gear, Big, 805S HIT-31369
...
12-59
Hub, Rear, 805S HIT-31370
...
12-61
Hub, Rear, 805S, (L) HIT-31371
...
12-62
Bolt HIT-31177
...
12-65
Drum, Brake HIT-31178
...
12-66
Spacer, T-846 HIT-31179
...
12-67
Axle, Rear Wheel HIT-31373
...
12-70
Bolt, M6Xp1.0X45 HIT-31372
...
12-75
Spacer, T-913 HIT-31182
...
12-77-1
Tube, Tire HIT-31183
