product name

Tanaka PB-SM804 Power Board

Model: PB-SM804

Save Part Not Listed?
product name

Tanaka PB-SM804

...
...

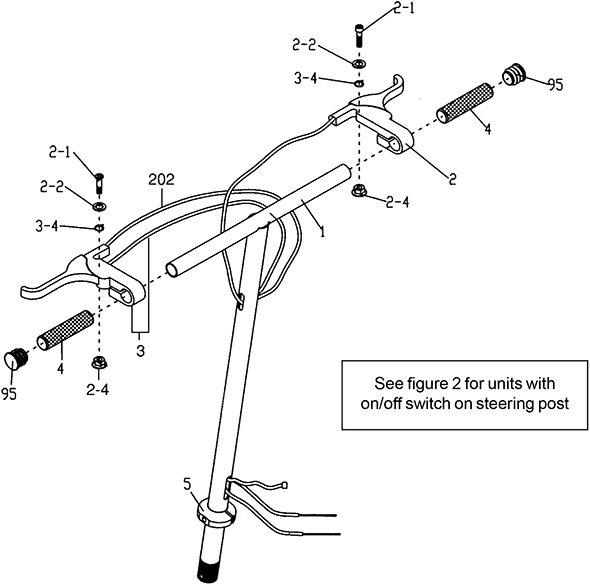

1-1
T-Handle, Assy Chrome HIT-30990
...
1-2
Lever, Throttle, W-Wire HIT-30992
...
1-2-1
Bolt, M6Xp1.0X13 HIT-31503
...
1-2-2
Washer HIT-31504
...
1-2-4
Nut, M6 HIT-31505
...
1-3
Lever, Brake, W-Stop Wire HIT-30993
...
1-3-4
Spring, Lever HIT-31506
...
1-4
Grip, Handle HIT-30798
...
1-5
Handle Bar Sleeve HIT-31071
...
1-95
Cap, Handle Grip HIT-31070
...
1-202
Cable, Brake HIT-31229

Tanaka PB-SM804

...
...

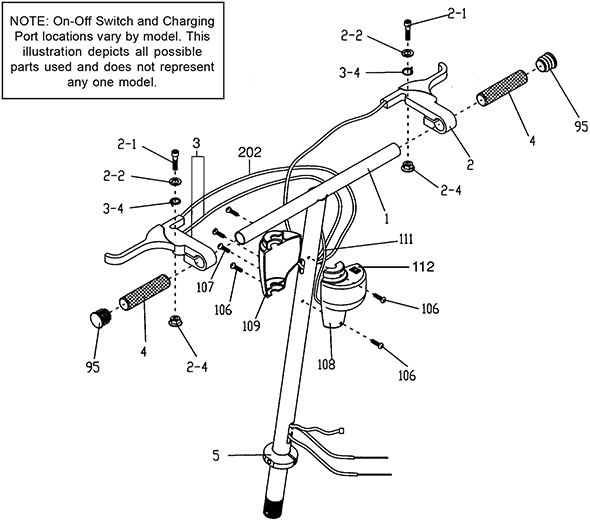

2-1
T-Handle, Chrome, W-Holes HIT-32060
...
2-2
Lever, Throttle, W-Wire HIT-30992
...
2-2-1
Bolt, M6Xp1.0X13 HIT-31503
...
2-2-2
Washer HIT-31504
...
2-2-4
Nut, M6 HIT-31505
...
2-3
Lever, Brake, W-Stop Wire HIT-30993
...
2-3-4
Spring, Lever HIT-31506
...
2-4
Grip, Handle HIT-30798
...
2-5
Handle Bar Sleeve HIT-31071
...
2-95
Cap, Handle Grip HIT-31070
...
2-106
Screw HIT-31831
...
2-107
Screw HIT-31834
...
2-108
Housing, Switch, Front HIT-31621
...
2-109
Housing, Switch, Rear HIT-31622
...
2-111
Wire HIT-32043
...
2-112
Switch, Rocker, 3-Wire HIT-31744
...
2-202
Cable, Brake HIT-31229

Tanaka PB-SM804

...
...

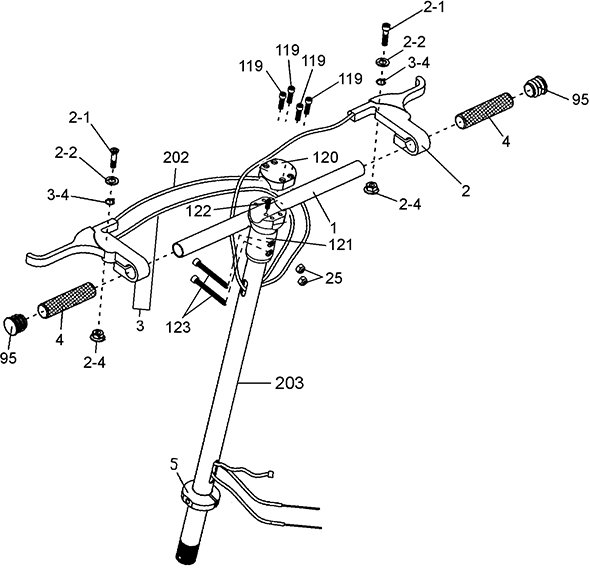

3-1
Handle Bar, Straight,Xtr HIT-32088
...
3-2
Lever, Throttle, W-Wire HIT-30992
...
3-2-1
Bolt, M6Xp1.0X13 HIT-31503
...
3-2-2
Washer HIT-31504
...
3-2-4
Nut, M6 HIT-31505
...
3-3
Lever, Brake, W-Stop Wire HIT-30993
...
3-3-4
Spring, Lever HIT-31506
...
3-4
Grip, Handle HIT-30798
...
3-5
Handle Bar Sleeve HIT-31071
...
3-25
Nut HIT-31658
...
3-95
Cap, Handle Grip HIT-31070
...
3-119
Bolt, M6Xp1.0X20 HIT-31563
...
3-120
Steering Stem Cap HIT-31564
...
3-121
Steering Stem HIT-31565
...
3-122
Bolt, M6Xp1.0X15 HIT-31566
...
3-123
Bolt, M6Xp1.0X42 HIT-31567
...
3-202
Cable, Brake HIT-31229
...
3-203
Steering Stem, Chrome HIT-32089

Tanaka PB-SM804

...
...

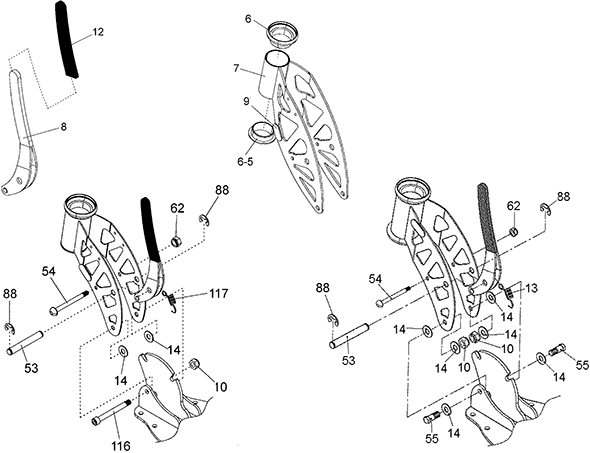

4-6
Spacer, Head, Upper HIT-31118
...
4-6-5
Spacer, Head, Lower HIT-32046
...
4-7
Tube, Head, Black HIT-30854
...
4-7
Tube, Head, Green HIT-31393
...
4-7
Tube, Head, Graphite HIT-31395
...
4-8
Handle, Folding, Black HIT-30954
...
4-8
Handle, Folding, Green HIT-31394
...
4-8
Handle, Folding, Graphite HIT-31396
...
4-9
Cushion, Head Tube HIT-30850
...
4-10
Nut, M8Xp1.25 HIT-30821
...
4-12
Grip, Folding Handle HIT-30870
...
4-13
Spring, Folding Handle HIT-30869
...
4-14
Washer HIT-31137
...
4-53
Pin, T-687 HIT-31138
...
4-54
Bolt, K-180 HIT-31139
...
4-55
Bolt, K-257 HIT-31140
...
4-62
Nut, M6Xp1.0 HIT-30936
...
4-88
Ring,E HIT-31141
...
4-116
Pin, Head To Frame HIT-31836
...
4-117
Spring, Folding Handle HIT-31835

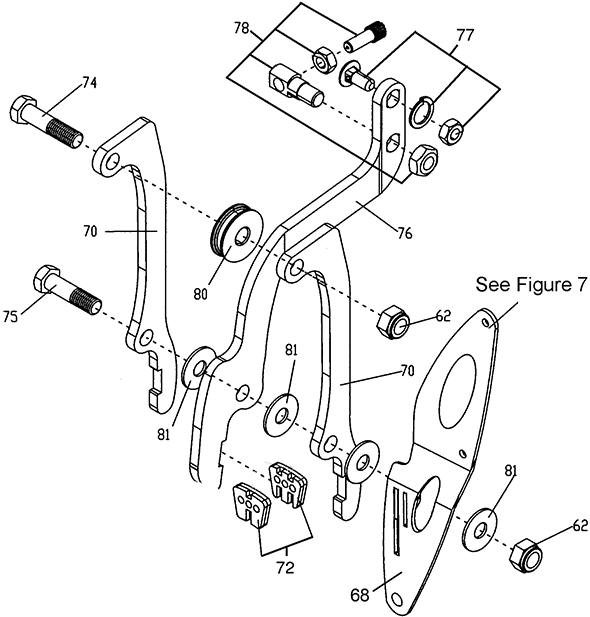

Tanaka PB-SM804

...
...
5-62
Nut, M6Xp1.0 HIT-30936
...
5-68
Left Front Fork (Chrome) HIT-30861
...
5-70
Arm, Brake, (Small) HIT-30854
...
5-72
Brake Pad Set HIT-30930
...
5-74
Bolt HIT-30855
...
5-75
Bolt HIT-30859
...
5-76
Arm, Brake, (Large) HIT-30853
...
5-77
Kit, Brake Arm Hdwe HIT-30851
...
5-78
Kit, Brake Cable Receiver HIT-30852
...
5-80
Wheel, Brake HIT-30856
...
5-81
Washer HIT-30860

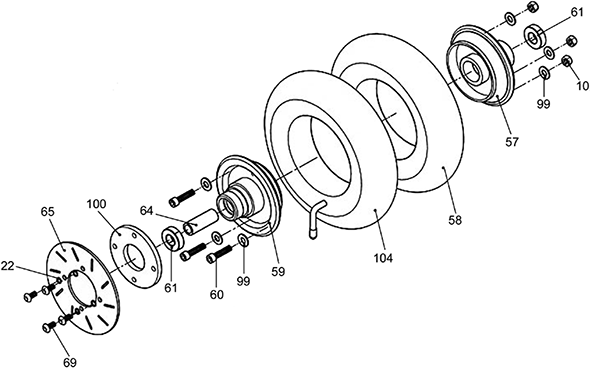

Tanaka PB-SM804

...
...

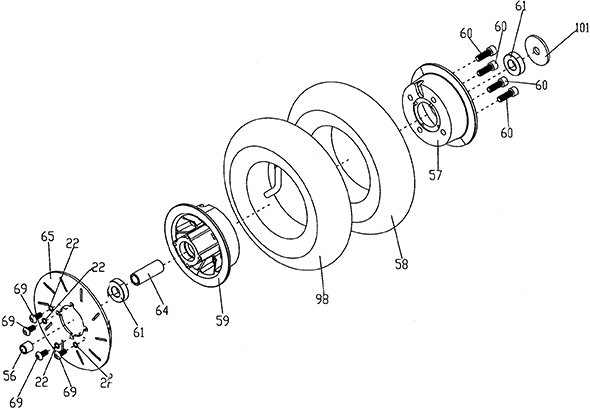

6-10
Nut, M8Xp1.25 HIT-30821
...
6-22
Washer, Spring M6 HIT-30830
...
6-57
Hub,Non-Threaded HIT-31003
...
6-58
Tire,10" HIT-30823
...
6-59
Hub, Threaded HIT-31004
...
6-60
Bolt, M8Xp1.25X30 HIT-31105
...
6-61
Bearing, 6200-2Rs HIT-30883
...
6-64
Spacer, Front Wheel HIT-31028
...
6-65
Disc, Brake, Xtr HIT-30829
...
6-69
Bolt, M6Xp1.0X12 HIT-31106
...
6-99
Washer HIT-31107
...
6-100
Plate, Brake HIT-31108
...
6-104
Tube, Tire HIT-30911

Tanaka PB-SM804

...
...
7-22
Washer, Spring M6 HIT-30830
...
7-56
Spacer, Front Wheel HIT-31837
...
7-57
Hub, Billet, Front, Right HIT-31688
...
7-58
Tire,10" HIT-30823
...
7-59
Hub, Billet, Front, Left HIT-31689
...
7-60
Bolt, M8Xp1.25X30 HIT-31105
...
7-61
Bearing, 6200-2Rs HIT-30883
...
7-64
Spacer, Front Wheel HIT-31028
...
7-65
Disc, Brake, Xtr HIT-31685
...
7-69
Bolt, M6Xp1.0X12 HIT-31106
...
7-98
Tube, Tire HIT-30911
...
7-101
Washer HIT-31838

Tanaka PB-SM804

...
...

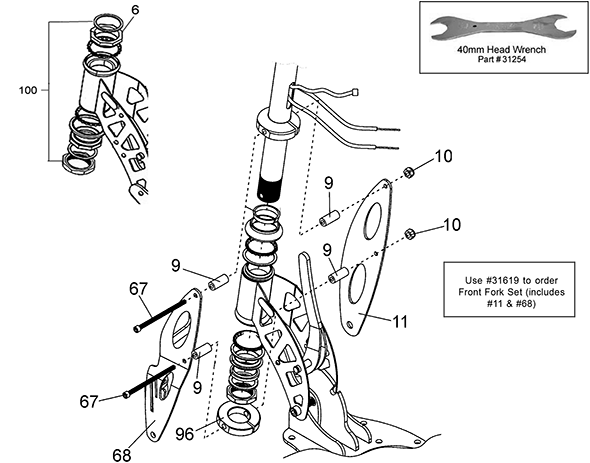

8-6
Spacer Set, Head HIT-31118
...
8-9
Spacer,T-781 HIT-31142
...
8-10
Nut, M8Xp1.25 HIT-30821
...
8-11
Right Front Fork (Chrome) HIT-30873
...
8-67
Bolt, M8Xp1.25X130 HIT-31143
...
8-68
Left Front Fork (Chrome) HIT-30861
...
8-96
Sleeve, Handle Bar HIT-31144
...
8-100
Head Bearing Kit HIT-31230

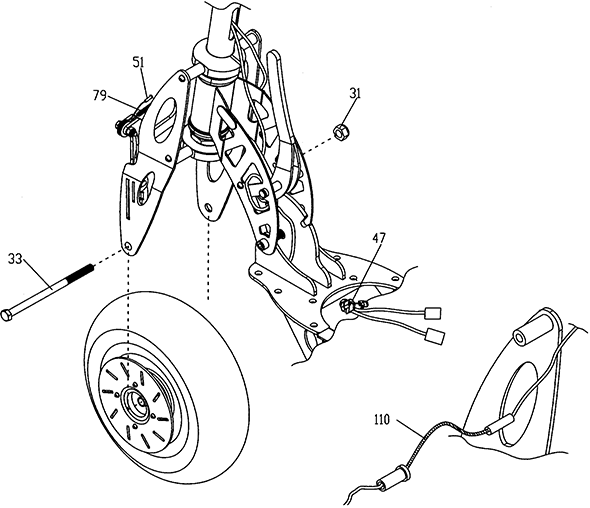

Tanaka PB-SM804

...
...
9-31
Nut, M10Xp1.5 HIT-30880
...
9-33
Bolt, Axle, M10Xp1.5X145 HIT-30891
...
9-47
Cord, 6P-4 HIT-31146
...
9-51
Cap, Cable End HIT-31082
...
9-56
Spacer HIT-31148
...
9-79
Spring, S-043 HIT-31080
...
9-101
Washer HIT-31147

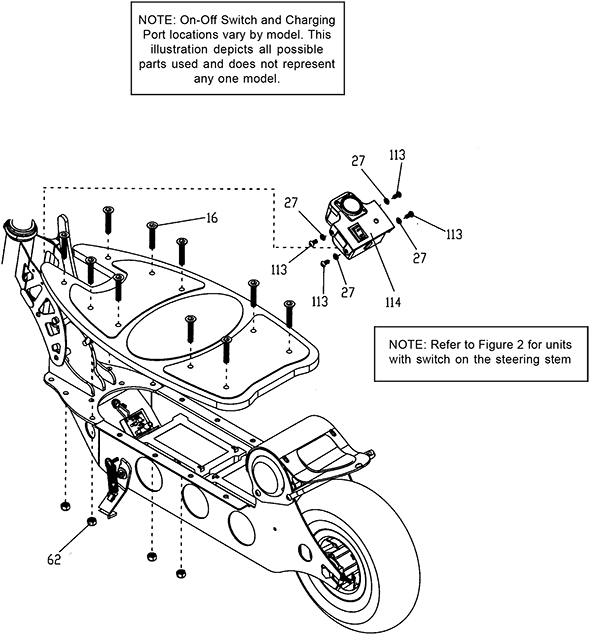

Tanaka PB-SM804

...
...
10-16
Bolt, M6Xp1.0X25, Flt Hd HIT-31090
...
10-27
Washer, Spring, M5 HIT-31121
...
10-62
Nut, M6Xp1.0 HIT-30936
...
10-113
Screw, Control Panel HIT-31707
...
10-114
Control Panel, 806,807 HIT-32002

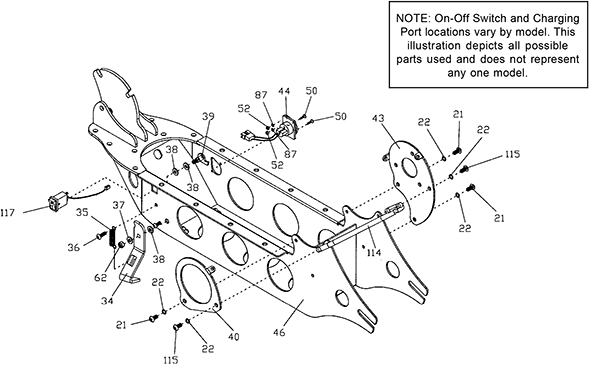

Tanaka PB-SM804

...
...
11-21
Bolt, M6Xp1.0X10 HIT-31097
...
11-22
Washer, Spring M6 HIT-30830
...
11-34
Stand, Kick HIT-30812
...
11-35
Spring, Kick Stand HIT-30811
...
11-36
Bolt,M6Xp1.0X25,Rd Hd HIT-31383
...
11-37
Washer HIT-31124
...
11-38
Washer HIT-31125
...
11-39
Arm,Switch HIT-31126
...
11-40
Plate, Motor, Black, (L) HIT-31127
...
11-40
Plate, Motor, Green, (L) HIT-31387
...
11-40
Plate, Motor, Graphite, (L) HIT-31390
...
11-43
Plate, Motor, Black, (R) HIT-31128
...
11-43
Plate, Motor, Green, (R) HIT-31388
...
11-43
Plate, Motor, Graphite, (R) HIT-31391
...
11-44
Plug, Charger, (Female) HIT-31018
...
11-46
Frame, Xtr, Black HIT-30989
...
11-46
Frame, Xtr, Green HIT-31389
...
11-46
Frame, Xtr, Graphite HIT-31392
...
11-50
Bolt, M2Xp0.4X8 HIT-31129
...
11-52
Nut, M2Xp0.4 HIT-31130
...
11-62
Nut, M6Xp1.0 HIT-30936
...
11-87
Washer, Spring,M2 HIT-31131
...
11-114
Brace, Fender,Xtr HIT-31152
...
11-115
Bolt, M6Xp1.0X13 HIT-31132
...
11-117
Switch, Rocker,3-Wire HIT-31644

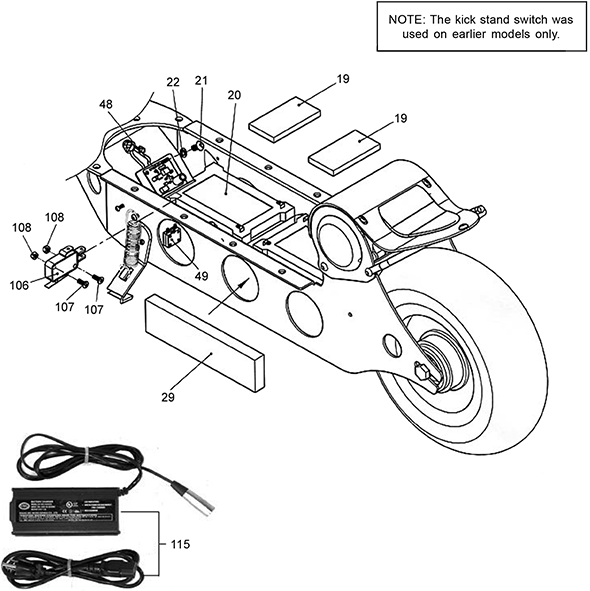

Tanaka PB-SM804

...
...
12-19
Insulator, Battery HIT-30998
...
12-20
Battery Set, Xtr HIT-30987
...
12-21
Bolt, M6Xp1.0X10 HIT-31097
...
12-22
Washer, Spring M6 HIT-30830
...
12-29
Insulator, Battery HIT-30997
...
12-48
Controller, Mc-024D-166 HIT-31751
...
12-49
Circuit Breaker Set HIT-30999
...
12-106
Switch, Kick/Stand,Xtr HIT-31153
...
12-107
Bolt, M3Xp0.5X18 HIT-31154
...
12-108
Nut, Nylon, M3Xp0.5 HIT-31155
...
12-115
Charger, Battery, Xtr HIT-30995

Tanaka PB-SM804

...
...

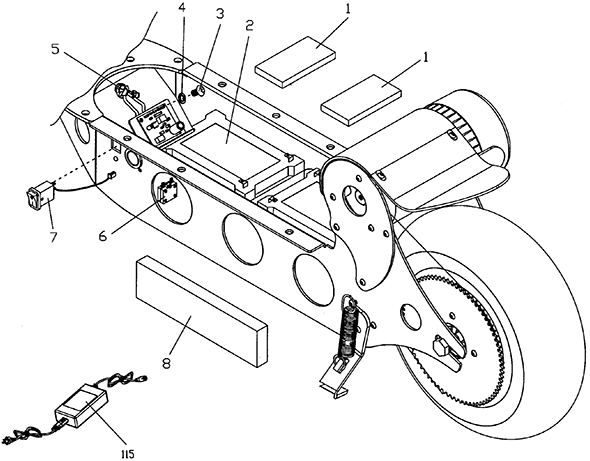

13-1
Insulator, Battery HIT-30998
...
13-2
Battery Set, Xtr HIT-30987
...
13-3
Bolt, M6Xp1.0X10 HIT-31097
...
13-4
Washer, Spring M6 HIT-30830
...
13-5
Controller, Mc-024D-166 HIT-31751
...
13-6
Circuit Breaker Set HIT-30999
...
13-7
Switch, Rocker,3-Wire HIT-31744
...
13-8
Insulator, Battery HIT-30997
...
13-115
Charger, Battery, Xtr HIT-30995

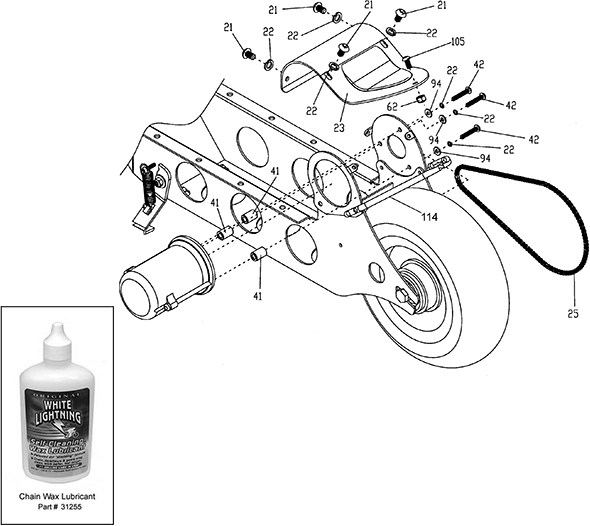

Tanaka PB-SM804

...
...
14-21
Bolt, M6Xp1.0X10 HIT-31097
...
14-22
Washer, Spring M6 HIT-30830
...
14-23
Fender, Chrome HIT-30996
...
14-25
Chain, Xtr,50 HIT-31000
...
14-41
Spacer, T-782 HIT-31149
...
14-42
Bolt, M6Xp1.0X35, Rd Hd HIT-31150
...
14-62
Nut, M6Xp1.0 HIT-30936
...
14-94
Washer HIT-31151
...
14-105
Bolt, M6Xp1.0X13 HIT-31132
...
14-114
Brace, Fender,Xtr HIT-31152

Tanaka PB-SM804

...
...

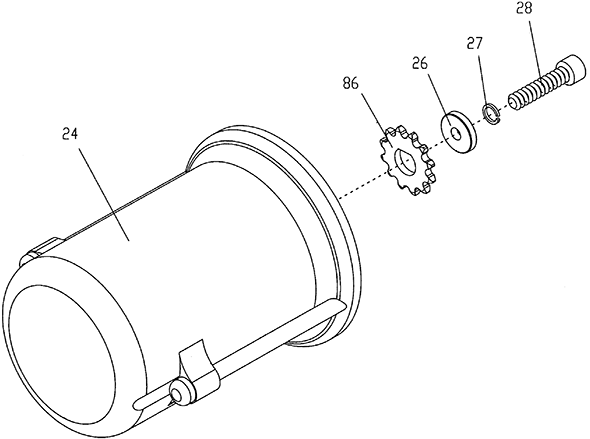

16-24
Motor, 450W,W Pigtail HIT-30991
...
16-24
Motor, 450W, No Pigtail HIT-32084
...
16-26
Spacer, T-810 HIT-31120
...
16-27
Washer, Spring, M5 HIT-31121
...
16-28
Bolt, M5Xp0.8X15 HIT-30810
...
16-86
Sprocket, (Small), Xtr HIT-31122

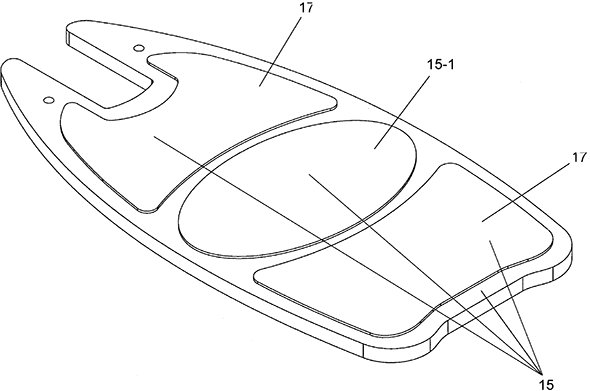

Tanaka PB-SM804

...
...
17-15
Deck, Assy,W-Tape, Decal HIT-31839
...
17-15-1
Decal Set, Xtr HIT-31841
...
17-17
Grip Tape Set, Xtr HIT-31840

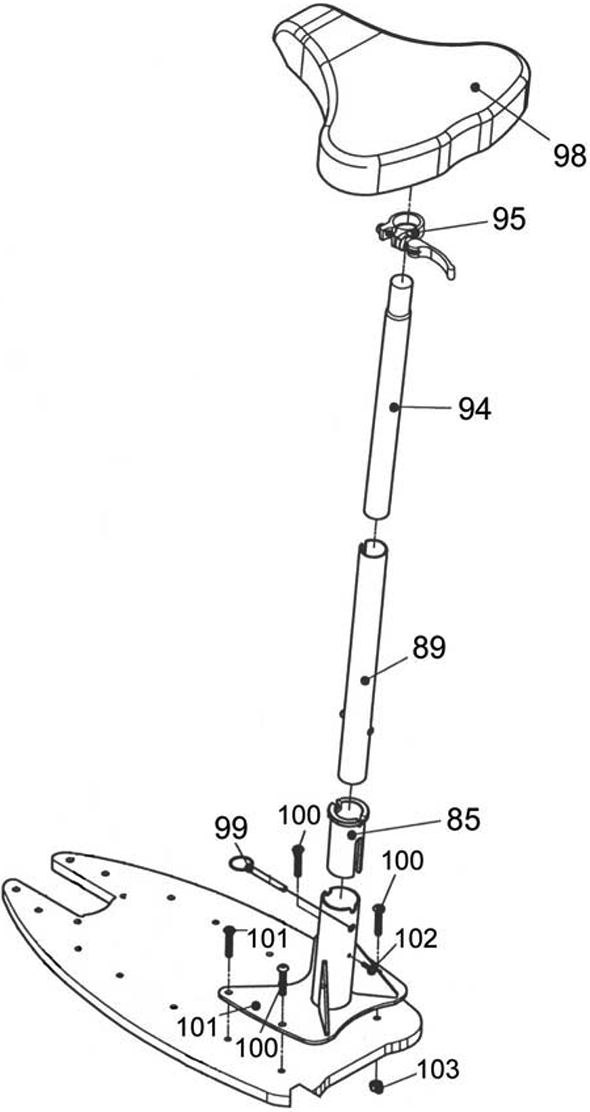

Tanaka PB-SM804

...
...
18-45
Bolt HIT-31134
...
18-85
Coupler, Seat Stand HIT-30979
...
18-89
Pipe, Seat, Lower HIT-30978
...
18-94
Pipe, Seat, Upper HIT-30977
...
18-95
Adjuster, Seat, Xtr HIT-30976
...
18-98
Seat, Xtr, 804 HIT-31046
...
18-99
Pin, Lock HIT-30982
...
18-100
Bolt, M6Xp1.0X32 HIT-30831
...
18-101
Pedestal, Seat Kit, Black HIT-30983
...
18-101
Pedestal, Seat Kit, Green HIT-31733
...
18-102
Bolt HIT-31134
...
18-103
Nut HIT-30936

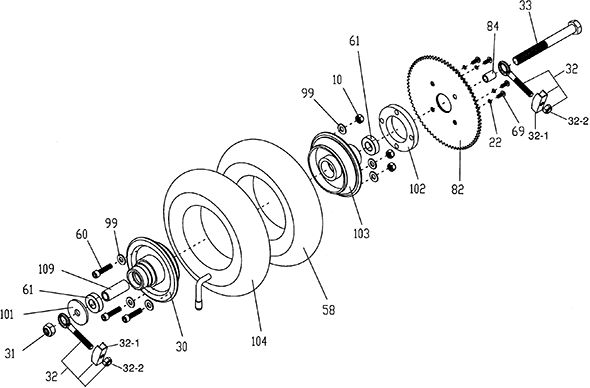

Tanaka PB-SM804

...
...
19-10
Nut, M8Xp1.25 HIT-30821
...
19-22
Washer, Spring M6 HIT-30830
...
19-30
Hub, Non-Threaded HIT-31003
...
19-31
Nut, M10Xp1.5 HIT-30880
...
19-32
Screw, Rear Axle Tension HIT-30881
...
19-32-1
Base, Adjuster HIT-31679
...
19-32-2
Nut, Adjuster HIT-31680
...
19-33
Bolt, Axle 10X145 HIT-30891
...
19-58
Tire,10" HIT-30823
...
19-60
Bolt, M8Xp1.25X30 HIT-31105
...
19-61
Bearing, 6200-2Rs HIT-30883
...
19-69
Bolt, M6Xp1.0X12 HIT-31106
...
19-82
Sprocket, Xtr HIT-31111
...
19-84
Spacer, Rear Wheel HIT-31112
...
19-99
Washer HIT-31113
...
19-101
Washer HIT-31114
...
19-102
Guide, Gear, T-944 HIT-31115
...
19-103
Hub, Threaded HIT-31004
...
19-104
Tube, Tire HIT-30911
...
19-109
Spacer, T-918 HIT-31117

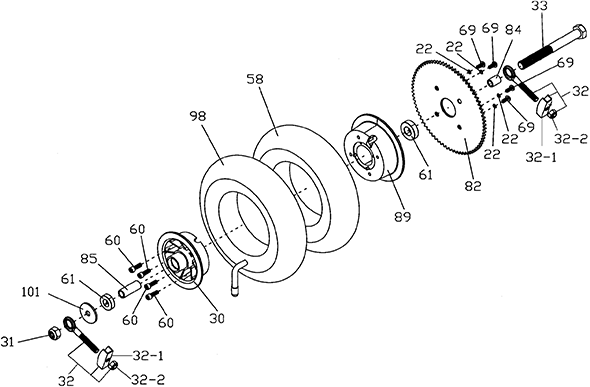

Tanaka PB-SM804

...
...
20-22
Washer, Spring M6 HIT-30830
...
20-30
Hub, Billet, Rear, Left HIT-31697
...
20-31
Nut, M10Xp1.5 HIT-30880
...
20-32
Screw, Rear Axle Tension HIT-30881
...
20-32-1
Base, Adjuster HIT-31679
...
20-32-2
Nut, Adjuster HIT-31680
...
20-33
Bolt, Axle 10X145 HIT-30891
...
20-58
Tire,10" HIT-30823
...
20-60
Bolt, M8Xp1.25X30 HIT-31105
...
20-61
Bearing, 6200-2Rs HIT-30883
...
20-69
Bolt, M6Xp1.0X12 HIT-31106
...
20-82
Sprocket, Xtr HIT-31111
...
20-84
Spacer, Rear Wheel HIT-31112
...
20-85
Spacer, T-918 HIT-31117
...
20-89
Hub, Billet, Rear, Right HIT-31698
...
20-101
Washer HIT-31114
...
20-98
Tube, Tire HIT-30911
